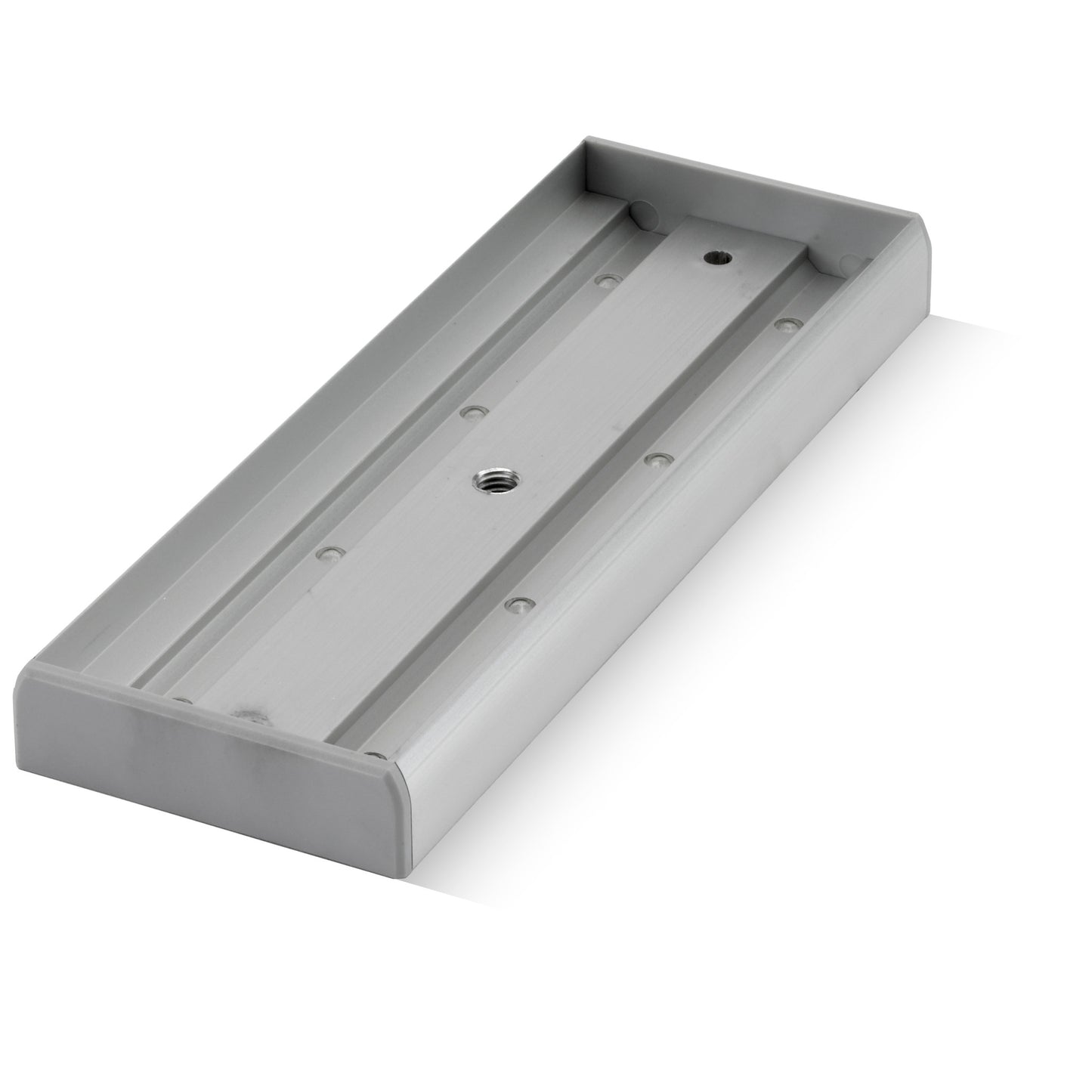

U520S Armature Housing Mounting Plate for Standard Magnetic Locks

The U520S Armature Housing Mounting Plate is designed for use with compatible 1200lbs (544kg) standard magnetic locks where an armature housing or additional armature mounting support is required. It provides a practical fixing accessory for access control and door security installations where the standard armature plate fixing method is not suitable.

Designed for standard maglock installations, the U520S helps provide a secure and tidy mounting solution for the armature plate. It is useful for installations where the door type, construction, fixing position or available mounting surface requires an alternative mounting arrangement.

Suitable for commercial, industrial, educational, healthcare, residential and public sector environments, the U520S is commonly used as part of a complete access control system with compatible magnetic locks, power supplies, exit buttons, emergency door release units, keypads and proximity readers.

Available Model

• U520S – Armature housing mounting plate for compatible standard magnetic locks

Key Features

• Armature housing mounting plate for standard magnetic locks

• Designed for compatible 1200lbs (544kg) maglock installations

• Provides additional support for armature plate mounting

• Helps provide a neat and practical finished installation

• Useful where standard armature fixing is not suitable

• Suitable for new installations and retrofit projects

• Suitable for access control and door security systems

Typical Applications

• Mini magnetic lock installations

• Access control systems

• Door entry systems

• Commercial buildings

• Office doors

• Residential developments

• Educational facilities

• Healthcare buildings

• Restricted access areas

• Retrofit maglock installations

Compatibility and Accessories

The U520S Armature Housing Mounting Plate is designed for use with compatible 1200lbs (544kg) standard magnetic locks and related access control equipment.

Compatible Mini Magnetic Locks

• A10010 Series
• A10020 Series
• A10020M Series
• A10040 Series
• A10060 Series
• U10010 Series
• U10020 Series
• U10040 Series
• U10060 Series

Please check the maglock model, armature plate size, fixing method, door type, opening direction and installation requirements before ordering. If you are unsure whether this mounting plate is suitable for your lock, please contact us with the lock model and door details before purchase.

Compatible With

• Magnetic Locks Accessories
• Standard Magnetic Locks

• Access Control Systems

• Door Entry Systems

• Power Supplies, Relays and Timers

• Press to Exit / Request to Exit Buttons

• Emergency Door Release Units

Technical Specification

• Product type: Armature housing mounting plate

• Model: U520S

• Application: Armature plate mounting accessory

• Compatibility: Suitable for compatible 1200lbs (544kg) standard magnetic locks

• Installation type: Door-mounted armature housing / mounting plate accessory

• Use: Access control and standard maglock installations

• Door application: Suitable where armature housing or additional mounting support is required

Standard Magnetic Lock Brackets & Accessories Product Information

Please check compatibility with your magnetic lock and armature plate before ordering. The U520S Armature Housing Mounting Plate should be installed in accordance with the magnetic lock manufacturer’s installation instructions and the requirements of the door application.

Correct alignment between the magnetic lock and armature plate is important to achieve reliable holding force. The U520S provides a practical mounting solution for compatible standard magnetic lock installations where an armature housing mounting plate is required.

Frequently Asked Questions

What is the U520S Armature Housing Mounting Plate used for?

The U520S Armature Housing Mounting Plate is used to provide a suitable mounting solution for the armature plate on compatible 1200lbs (544kg) standard magnetic lock installations.

Which locks is the U520S compatible with?

The U520S is designed for use with compatible 1200lbs (544kg) standard magnetic locks, including the A10010, A10020, A10020M, A10040, A10060, U10010, U10020, U10040 and U10060 Series.

Is the U520S suitable for mini magnetic locks?

No. The U520S is intended for compatible 1200lbs (544kg) standard magnetic locks. Mini 600lbs (272kg) magnetic locks normally require smaller mounting accessories.

When would I need an armature housing mounting plate?

An armature housing mounting plate may be required where the standard armature fixing method is not suitable, where a neater finish is required, or where the door construction needs an alternative armature mounting arrangement.

Can the U520S be used with access control systems?

Yes. The U520S is a magnetic lock accessory and can be used as part of an access control installation with compatible standard magnetic locks, power supplies, exit buttons, emergency door release units, keypads and proximity readers.

What should I check before ordering?

Please check the maglock model, armature plate size, housing requirements, fixing method, door type, opening direction and installation requirements before ordering.
