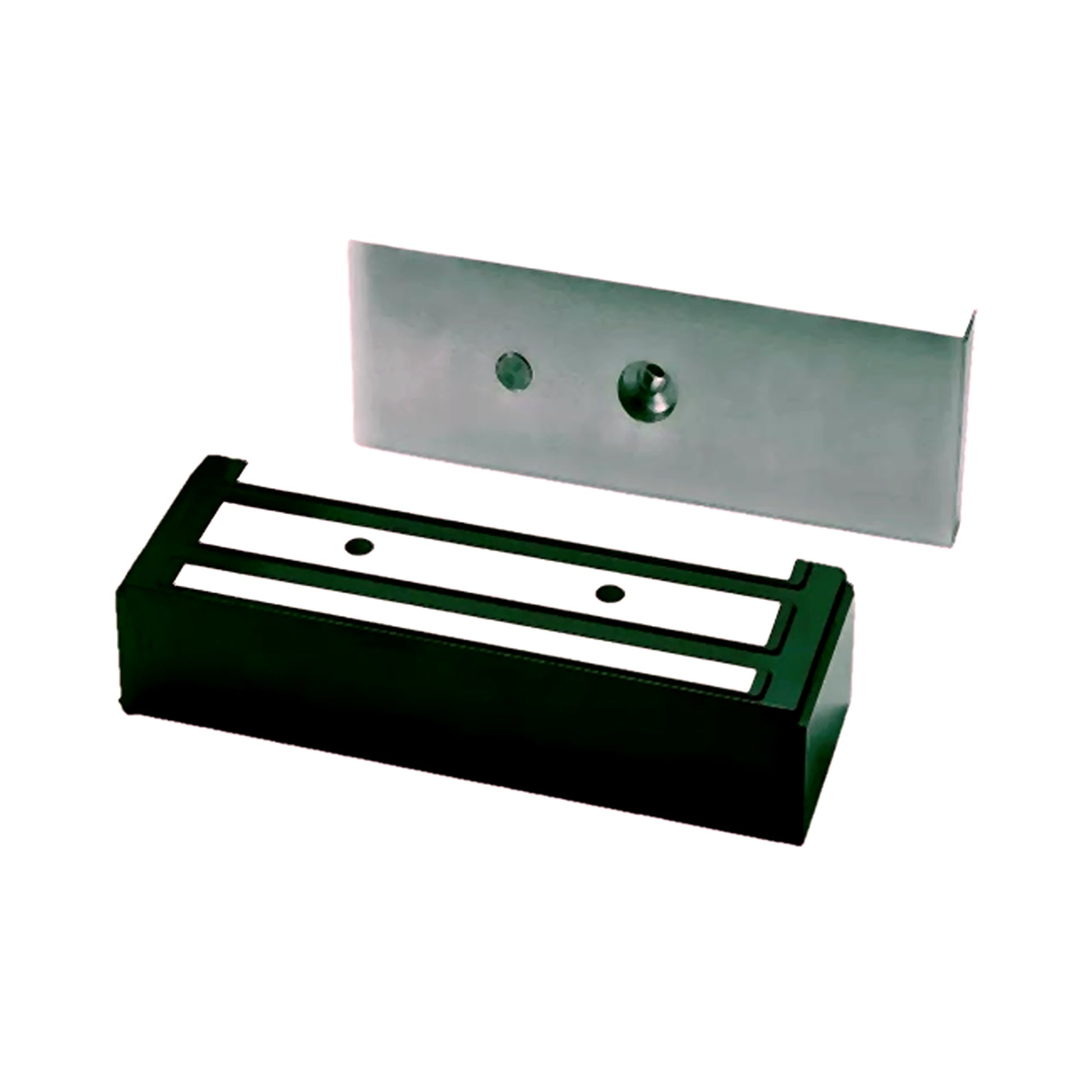

A10020M Monitored Standard Mortice Magnetic Lock (Maglock)

The A10020M Monitored Standard Mortice Magnetic Lock is an electromagnetic locking solution designed for use with access control systems, door entry systems, intercoms, and electronic security installations. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide reliable fail-safe locking whilst allowing the lock body to be installed into an architectural housing for a discreet installation. The concealed mortice design makes the A10020M ideal for installations where aesthetics are important, whilst still providing the strength and reliability expected from a professional electromagnetic locking solution.

An electromagnetic lock, commonly known as a magnetic lock or maglock, consists of an electromagnet and a matching armature plate. When power is applied, the electromagnet generates a powerful magnetic field that securely holds the armature plate in place. As a fail-safe device, the lock automatically releases when power is removed, ensuring safe emergency egress.

Operating from a selectable 12VDC or 24VDC power supply, the A10020M lock provides a holding force of up to 1200lbs (544kg). Manufactured with a durable aluminium housing and an electroless nickel-plated armature, the locks are designed for long-term reliability and corrosion resistance. The A10020M additionally features lock monitoring, providing lock status feedback to compatible access control systems.

Available Models

• A10020M – Monitored Standard Mortice Magnetic Lock

Key Features

• Standard Mortice Magnetic Lock (Maglock)
• Holding Force up to 1200lbs (544kg)
• Selectable 12VDC or 24VDC Operation
• Fail Safe Operation (Power to Lock)
• Mortice Mount Design
• Mortice Installation (in ARCH Housing)
• Aluminium Housing
• Electroless Nickel-Plated Armature Plate
• Lock Status Monitoring
• Suitable for Access Control Systems
• Suitable for New Installations and Retrofits

Typical Applications

• Access Control Systems
• Commercial Buildings
• Office Entrances
• Healthcare Facilities
• Educational Buildings
• Residential Developments
• Internal Security Doors
• Restricted Access Areas
• Aluminium Door Systems
• Timber Door Systems

Compatibility

The A10020M Standard Mortice Magnetic Lock is designed to integrate with a wide range of access control and electronic security equipment.

• Access Control Systems
• Emergency Door Systems
• Fire Alarm Systems
• Door Entry Systems
• Emergency Exit Systems
• Keypad Systems
• Proximity Readers
• Building Management Systems
• Power Supplies
• Door Monitoring Systems

Technical Specification

• Product Type: Monitored Standard Mortice Magnetic Lock (Maglock)
• Operating Voltage: Selectable 12VDC or 24VDC
• Operation: Fail Safe (Power to Lock)
• Holding Force: Up to 1200lbs (544kg)
• Armature Finish: Electroless Nickel Plated
• Lock Monitoring: Monitored
• Mounting: Mortice
• Dimensions: 62mm x 38mm x 190mm (H x W x D)

A10020M Product Information

The A10020M Standard Mortice Magnetic Lock is designed to integrate with a wide range of access control and door security equipment, making them suitable for both new installations and retrofit projects.

Frequently Asked Questions

What Holding Force Does the A10020M Provide?

The A10020M lock provides a holding force of up to 1200lbs (544kg).

What Voltage Does the A10020M Operate On?

The A10020M lock operates on a selectable 12VDC or 24VDC power supply.

What Does Mortice Mounting Mean?

Mortice mounting means the magnetic lock is recessed into a architectural housing or a post, providing a concealed installation with a clean, professional appearance.

What Does Monitored Magnetic Lock Mean?

A monitored magnetic lock provides lock status feedback to a compatible access control system, allowing the system to confirm whether the lock is secure or released.

Why Choose a Mortice Magnetic Lock?

A mortice magnetic lock is recessed into an architectural housing or post, creating a discreet installation while maintaining the security and reliability of a traditional surface-mounted magnetic lock. It is ideal where appearance is important or where a concealed locking solution is preferred.

Can the A10020M be Used with Access Control Systems?

Yes. The A10020M is fully compatible with access control systems, door entry systems, intercoms, keypads, proximity readers, emergency door release units, and other electronic security equipment.
