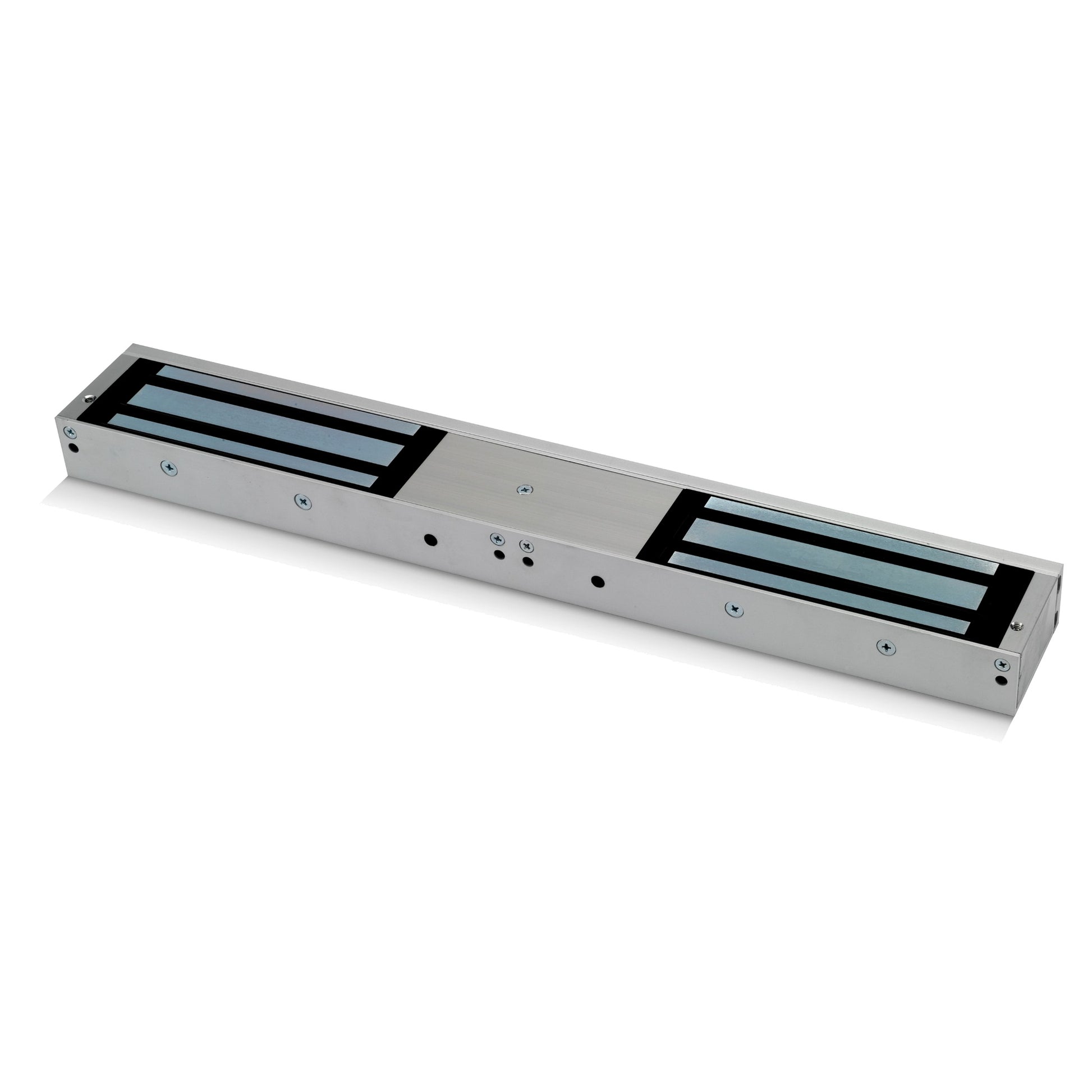

A10060 / A10060DS / FR-A10060 / FR-A10060DS Standard Double Magnetic Lock (Maglock)

£85.68 plus VAT

~~£0.00~~ £85.68 plus VAT

Sale Sold out

Shipping calculated at checkout.

The A10060 Series Unmonitored Standard Double Magnetic Locks (Maglocks) are high-performance electromagnetic locking solutions designed for use with access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure and reliable locking for access-controlled doors.

Operating from selectable 12VDC or 24VDC power supplies, the A10060 Series delivers up to 2 x 1200lbs (544kg) of holding force, making it suitable for applications requiring enhanced door security and dependable locking performance. Manufactured with a durable aluminium housing and electroless nickel plated armature plate, these magnetic locks are designed for long-term reliability and continuous operation.

Selected models are available with a door status output for connection to compatible access control systems, whilst the FR-A10060 and FR-A10060DS versions have been fire tested to BS EN1634-1 and are suitable for installation on FD30 and FD60 fire doors.

Available Models

A10060 – Unmonitored Double Magnetic Lock
A10060DS – Unmonitored Double Magnetic Lock with Door Status Output
FR-A10060 – Fire Rated Unmonitored Double Magnetic Lock
FR-A10060DS – Fire Rated Unmonitored Double Magnetic Lock with Door Status Output

Key Features

Standard Double Magnetic Lock Design
Up to 2 x 1200lbs (544kg) Holding Force
Selectable 12VDC or 24VDC Operation
Fail Safe Operation (Power to Lock)
Aluminium Lock Housing
Electroless Nickel Plated Armature Plate
Door Status Output on A10060DS & FR-A10060DS Models
Fire Rated Versions Available
Tested to BS EN1634-1
Suitable for FD30 and FD60 Fire Doors
Suitable for Access Control Applications
Reliable Electromagnetic Locking

Typical Applications

Double Access Control Doors
Commercial Buildings
Office Entrances
Schools and Educational Facilities
Healthcare Premises
Public Buildings
Fire Door Installations
Restricted Access Areas
Reception Entrances
Internal Security Doors

Compatibility and Accessories

The A10060 Series Unmonitored Standard Double Magnetic Locks are designed to integrate with a wide range of access control and door security equipment, making them suitable for both new installations and retrofit projects.

When building a complete system, please check the lock voltage, current draw, door type, mounting requirements and any emergency release requirements before ordering.

Technical Specification

Lock Type: Standard Double Magnetic Lock (Maglock)
Operation: Fail Safe (Power to Lock)
Operating Voltage: 12VDC or 24VDC Selectable
Holding Force: Up to 2 x 1200lbs (544kg)
Lock Monitoring: Unmonitored (All Models)
Door Status Output: A10060DS & FR-A10060DS only
Housing Material: Aluminium
Armature Plate: Electroless Nickel Plated Steel
Fire Rating: BS EN 1634-1 (FR Models)
Suitable Fire Doors: FD30 & FD60 (FR Models)
Dimensions: 67mm x 532mm x 40mm (H x W x D)

A10060 / A10060DS Product Information

FR-A10060 / FR-A10060DS Product Information

The A10060 Series Standard Double Magnetic Locks provide a secure and reliable locking solution for access control installations requiring high holding force and dependable door security. Available in standard, door status output and fire-rated versions, they are ideal for commercial, industrial, and public sector applications where a durable magnetic lock (maglock) is required.

Frequently Asked Questions

What is a double magnetic lock?

A double magnetic lock (maglock) is an electromagnetic locking device designed for double-door applications. It provides secure locking on both door leaves and is commonly used with access control systems, door entry systems, and electronic security installations.

What does unmonitored magnetic lock mean?

An unmonitored magnetic lock provides electromagnetic door locking without status monitoring outputs. It offers secure locking for access-controlled doors but does not provide lock status feedback to an access control system.

What is the difference between the A10060 and A10060DS?

The A10060DS includes a door status output that can be connected to a compatible access control system to monitor whether the door is open or closed. The A10060 provides the same locking performance without the door status output.

What is the difference between the standard and fire rated versions?

The FR-A10060 and FR-A10060DS models have been fire tested to BS EN1634-1 and are suitable for installation on compatible FD30 and FD60 fire doors where permitted by the door manufacturer's certification and installation requirements.

Can the A10060 series be used with access control systems?

Yes. The A10060 Series is designed for use with access control systems, card readers, keypads, intercom systems, and door entry systems.

What is the holding force of the A10060 series?

The lock provides a holding force of up to 2 x 1200lbs (544kg), delivering a high level of security for double-door applications.

Is the A10060 series fail-safe?

Yes. The A10060 Series operates as a fail-safe locking device, meaning power must be applied to keep the lock secure. In the event of power loss, the lock releases to allow safe exit.

Can these magnetic locks be installed on fire doors?

Only the FR-A10060 and FR-A10060DS fire-rated models are suitable for use on compatible FD30 and FD60 fire doors, subject to correct installation and compliance with fire door regulations.

What voltage does the A10060 series operate on?

The lock supports both 12VDC and 24VDC operation, making it suitable for a wide range of access control and door security systems.

Are these magnetic locks suitable for retrofit installations?

Yes. The A10060 Series can be used for both new installations and retrofit projects where a secure double-door electromagnetic locking solution is required.
