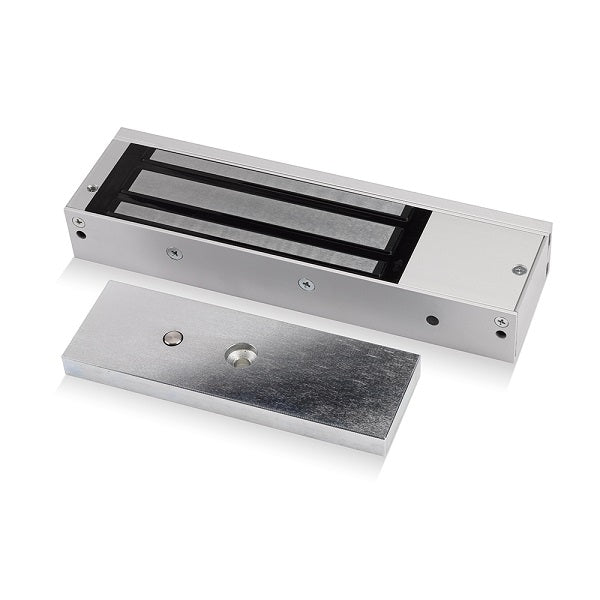

A10020 / A10020DS / FR-A10020 / FR-A10002DS Fire Rated Monitored Standard Magnetic Lock (Maglock)

The A10020, A10020DS, FR-A10020 and FR-A10020DS Standard Magnetic Locks (Maglocks) are high-performance electromagnetic locking solutions designed for use with access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure and reliable locking for a wide range of access-controlled doors.

Featuring a holding force of up to 1200lbs (544kg), these magnetic locks deliver strong and dependable door security whilst maintaining fail-safe operation for safe emergency egress. Manufactured with an aluminium housing and electroless nickel plated armature plate, they are designed for long-term reliability and consistent performance.

The monitored versions provide door status monitoring and LED indication, allowing integration with access control systems and building management systems for enhanced security monitoring. Fire-rated models have been tested to BS EN1634-1 and are suitable for installation on FD30 and FD60 fire doors.

Available Models

• A10020 – Monitored Standard Magnetic Lock

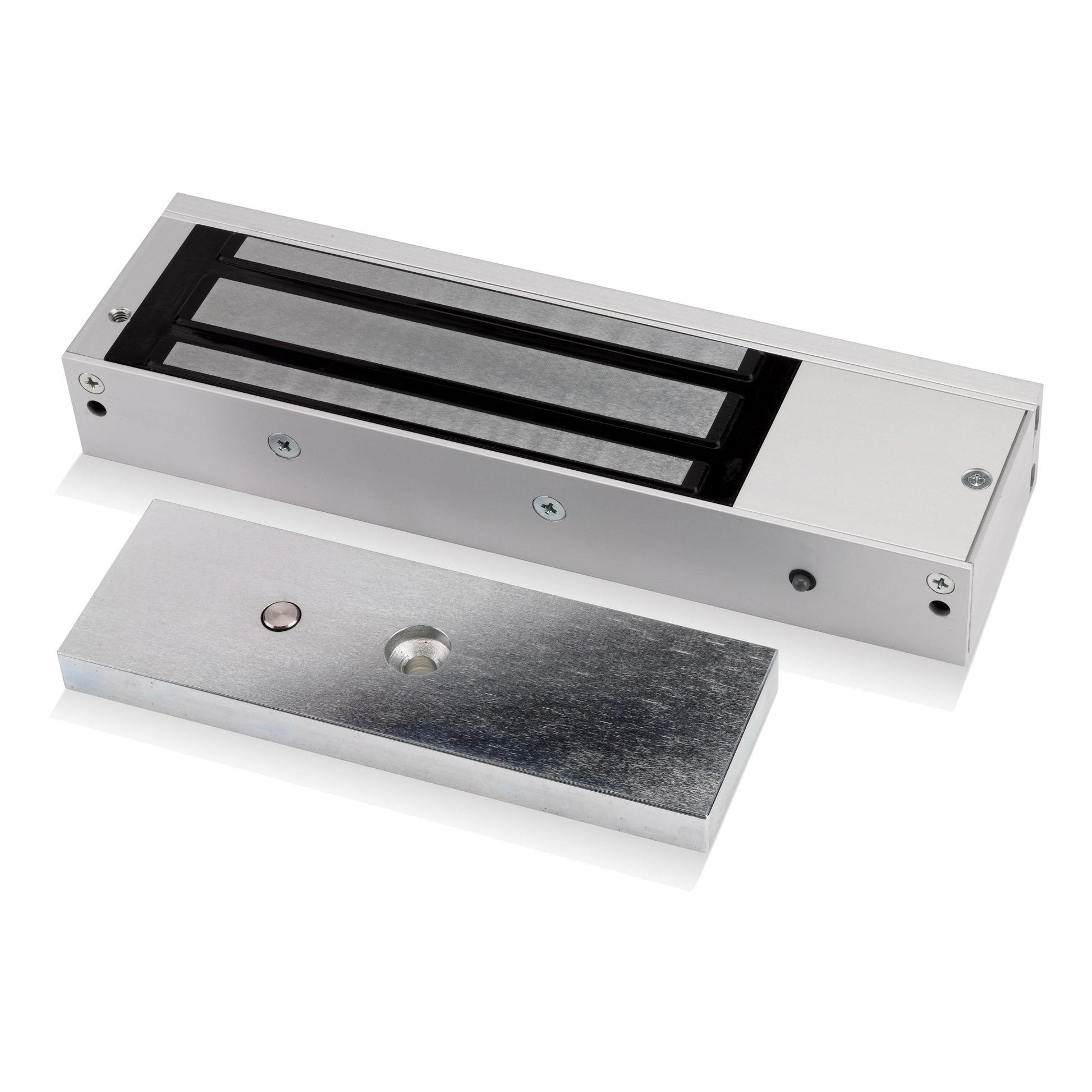

• A10020DS – Monitored Standard Magnetic Lock with Door Status LED
• FR-A10020 – Fire Rated Monitored Standard Magnetic Lock
• FR-A10020DS – Fire Rated Monitored Standard Magnetic Lock with Door Status LED

Key Features

• Holding Force up to 1200lbs (544kg)
• 12VDC / 24VDC Selectable Operation
• Monitored Magnetic Lock
• Door Status Monitoring
• Door Status LED (DS Versions)
• Aluminium Lock Housing
• Electroless Nickel Plated Armature Plate
• Fail Safe Operation
• Suitable for Access Control Systems
• Fire Tested to BS EN1634-1 (FR Versions)
• Suitable for FD30 & FD60 Fire Doors (FR Versions)

Typical Applications

• Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Residential Developments
• Public Buildings
• Fire Door Installations
• Restricted Access Areas
• Internal Security Doors

Compatibility

The A10020 Series Magnetic Locks are designed to integrate with a wide range of access control and door security equipment, making them suitable for both new installations and retrofit projects.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies
• Relays and Timers
• Door Monitoring Systems

Technical Specification

• Lock Type: Standard Magnetic Lock (Maglock)
• Operation: Fail Safe (Power to Lock)
• Operating Voltage: 12VDC / 24VDC Selectable
• Holding Force: Up to 1200lbs (544kg)
• Housing Material: Aluminium
• Armature Plate: Electroless Nickel Plated
• Monitoring: Door Status Monitoring
• Door Status LED: A10020DS & FR-A10020DS Versions
• Fire Rating: BS EN1634-1 (FR Versions)
• Suitable Fire Doors: FD30 & FD60 (FR Versions)
• Dimensions: 67mm x 268mm x 40mm (H x W x D)

A10020 / A10020DS Product Information

FR-A10020 / FR-A10020DS Product Information

The A10020 Series Standard Magnetic Locks provide a secure and reliable locking solution for access control installations requiring monitored door security and high holding force. Suitable for a wide range of commercial, industrial, and public sector applications, they are an ideal choice where a durable monitored maglock with optional fire-rated certification is required.
