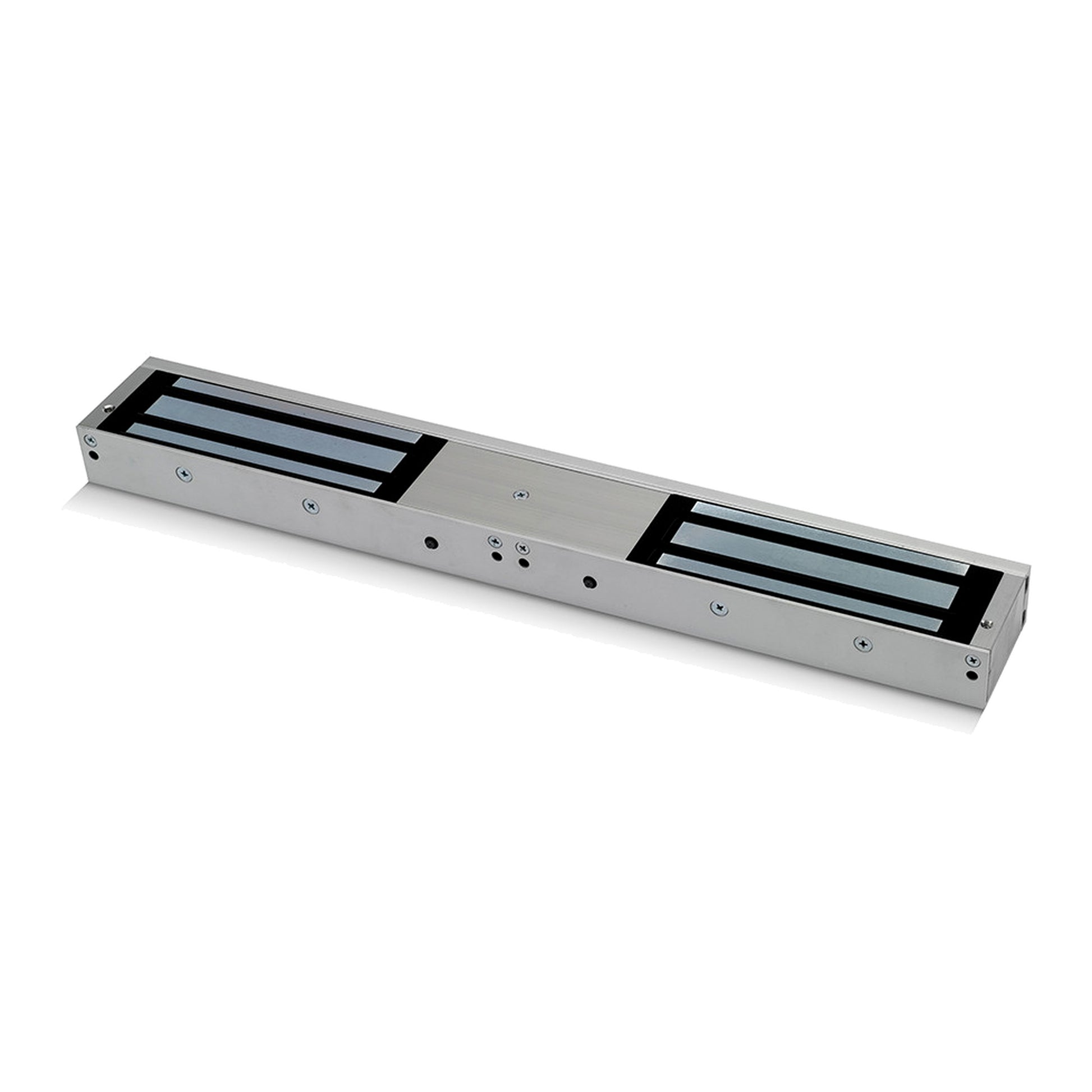

A10040 / A10040DS / FR-A10040 / FR-A10040DS Monitored Standard Double Magnetic Lock (Maglock)

The A10040 Series Monitored Standard Double Magnetic Locks (Maglocks) are high-performance electromagnetic locking solutions designed for use with access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure and reliable locking for double-door access control installations.

Featuring a holding force of up to 2 x 1200lbs (544kg), these double magnetic locks deliver exceptional door security whilst maintaining fail-safe operation for safe emergency egress. Manufactured with an aluminium housing and electroless nickel plated armature plates, they are designed for long-term reliability and consistent performance in demanding environments.

All models include lock status monitoring with an output for connection to compatible access control systems. Each lock also features LED lock status indication, showing green when unlocked and red when locked. The A10040DS and FR-A10040DS versions additionally include a door status output. The FR-A10040 and FR-A10040DS versions have been fire tested to BS EN 1634-1 and are suitable for installation on FD30 and FD60 fire doors.

Available Models

• A10040 – Monitored Double Standard Magnetic Lock
• A10040DS – Monitored Double Standard Magnetic Lock with Door Status Output
• FR-A10040 – Fire Rated Monitored Standard Double Magnetic Lock
• FR-A10040DS – Fire Rated Monitored Standard Double Magnetic Lock with Door Status Output

Key Features

• Holding Force up to 2 x 1200lbs (544kg)
• Double Standard Magnetic Lock Design
• Selectable 12VDC or 24VDC Operation
• Monitored Lock Output
• LED Lock Status Indication
• Door Status Output on A10040DS & FR-A10040DS Models
• Aluminium Lock Housing
• Electroless Nickel Plated Armature Plates
• Fail Safe Operation (Power to Lock)
• Suitable for Access Control Systems
• Fire Tested to BS EN1634-1 (FR Versions)
• Suitable for FD30 & FD60 Fire Doors (FR Versions)

Typical Applications

• Double Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Public Buildings
• Fire Door Installations
• Restricted Access Areas
• Reception Entrances
• Internal Security Doors

Compatibility and Accessories

The A10040 Series Double Standard Magnetic Locks are designed to integrate with a wide range of access control and door security equipment, making them suitable for both new installations and retrofit projects.

When building a complete system, please check the lock voltage, current draw, door type, mounting requirements and any emergency release requirements before ordering.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies, Relays and Timers
• Building Management Systems
• Fire Alarm Interface Systems

Technical Specification

• Lock Type: Double Magnetic Lock (Maglock)
• Operation: Fail Safe (Power to Lock)
• Operating Voltage: 12VDC or 24VDC Selectable
• Holding Force: Up to 2 x 1200lbs (544kg)
• Housing Material: Aluminium
• Armature Plates: Electroless Nickel Plated
• Lock Monitoring: Monitored (All Models)
• Door Status Output: A10040DS & FR-A10040DS Only
• Lock Status LED: All Models (Green Unlocked / Red Locked)
• Fire Rating: BS EN1634-1 (FR Versions)
• Suitable Fire Doors: FD30 & FD60 (FR Versions)
• Dimensions: 67mm x 532mm x 40mm (H x W x D)

A10040 Product Information

FR-A10040 Product Information

The A10040 Series Monitored Standard Double Magnetic Locks provide a secure and reliable locking solution for access control installations requiring dependable security for double door applications. Available in standard, door status output, and fire-rated versions, they are ideal for commercial, public sector, and residential environments where a durable double magnetic lock or double door maglock is required

Frequently Asked Questions

What is a monitored magnetic lock?

A monitored standard double magnetic lock provides a monitored output for connection to compatible access control systems. All A10040 Series models also feature LED lock status indication, showing green when unlocked and red when locked. Selected DS models additionally include a door status output.

What is the holding force of the A10040 double maglock?

The A10040 Series provides a holding force of up to 2 x 1200lbs (544kg), making it suitable for securing double-door access control installations in commercial, industrial, and public buildings.

Can the A10040 magnetic lock be used on double doors?

Yes. The A10040 Series is specifically designed for double-door applications and provides secure electromagnetic locking for paired access control doors.

What does fail-safe operation mean?

Fail safe operation means the magnetic lock requires power to remain locked. If power is removed, the lock releases automatically, allowing safe emergency egress from the building.

Are the FR-A10040 models suitable for fire doors?

Yes. The FR-A10040 and FR-A10040DS models have been tested to BS EN1634-1 and are suitable for installation on compatible FD30 and FD60 fire doors.

What is the difference between the A10040 and A10040DS?

The A10040 and A10040DS are both monitored double mini magnetic locks with LED lock status indication. The A10040DS additionally includes a door status output for connection to compatible access control systems.

Can the A10040 series be used with access control systems?

Yes. The A10040 Series is designed for integration with access control systems, door entry systems, intercoms, emergency door release units, keypads, card readers, and other door security equipment.
