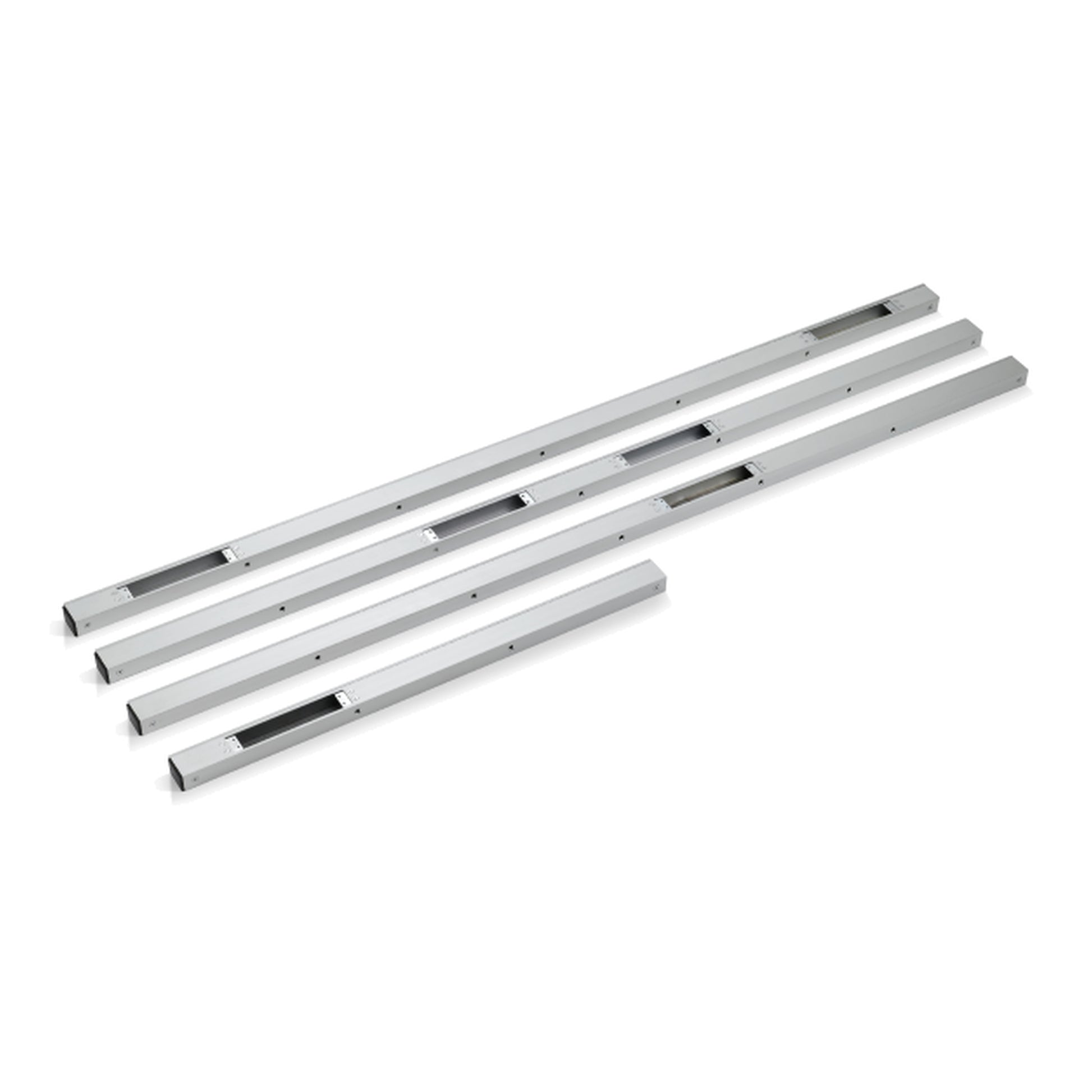

ARCH Transom Housings for Mortice Magnetic Locks (Maglocks)

The ARCH Transom Housings are professional aluminium mounting solutions designed for use with mini and standard mortice magnetic locks (maglocks) in access control and electronic door security installations. Suitable for commercial, educational, healthcare, public sector, and residential applications, they provide a neat and aesthetically pleasing alternative to conventional surface-mounted magnetic lock installations.

Designed to house compatible mini and standard mortice magnetic locks within an architectural transom housing, the ARCH range helps create a clean, integrated appearance whilst maintaining the security and reliability of electromagnetic locking systems. The housings can be used on both single and double door applications and are available in horizontal and vertical configurations to suit a wide range of installation requirements.

Manufactured from aluminium and supplied with mounting plates, the ARCH housings are ideal for projects where appearance is important, including offices, schools, healthcare facilities, apartment buildings, and commercial entrances.

Available Models

• ARCH1 – One Metre Mini Maglock Housing with one cut out, horizontal mounting.
• ARCH2 - Two Metre Mini Maglock Housing with one cut out, horizontal mounting.
• ARCH2-2 – Two Metre Mini Maglock Housing with two cut outs, horizontal mounting.
• ARCH2-2V – Two Metre Mini Maglock Housing with two cut outs, vertical mounting.

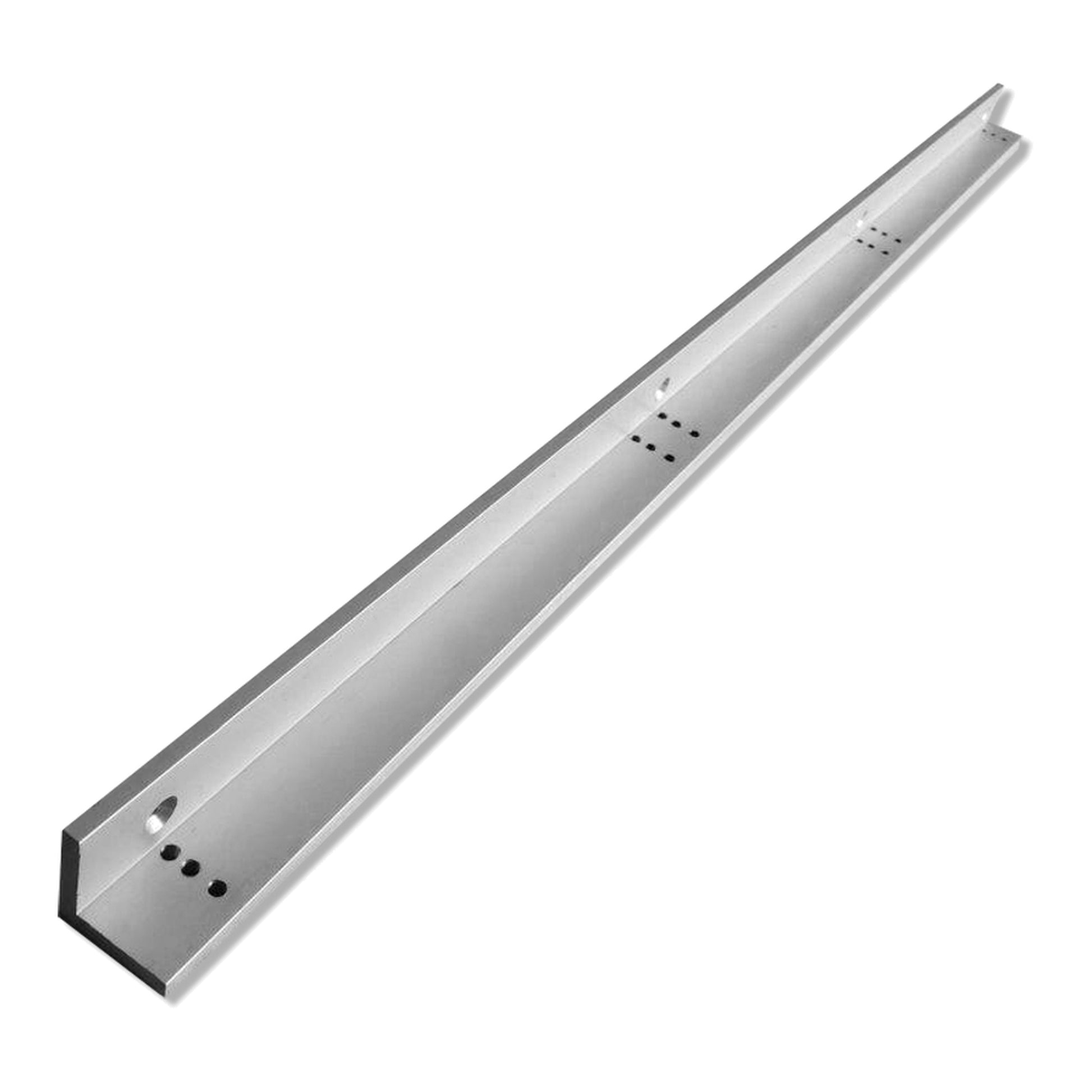

• 1TML - 1 One Metre Adjustable 'L' Bracket  for Slimline Housing.
• 2TML - 1 Two Metre Adjustable 'L' Bracket  for Slimline Housing.
• ARCH1-10 - One Metre Standard Maglock Housing with one cut out, horizontal mounting.
• ARCH2-10 - Two Metre Standard Maglock Housing with one cut out, horizontal mounting.
• ARCH2-2-10 – Two Metre Standard Maglock Housing with two cut outs, horizontal mounting.
• ARCH2-2-10V – Two Metre Standard Maglock Housing with two cut outs, vertical mounting.
• 1TML-10 - 1 One Metre Adjustable 'L' Bracket  for Standard Housing.
• 2TML-10 - 1 Two Metre Adjustable 'L' Bracket  for Standard Housing.

Compatible Magnetic Locks

• ARCH1 - Compatible with A10000, A10000R, U10000 and U10000R Mini magnetic locks
• ARCH2 - Compatible with A10000, A10000R, U10000 and U10000R Mini magnetic locks
• ARCH2-2 - Compatible with A10000, A10000R, U10000 and U10000R Mini magnetic locks
• ARCH2-2V - Compatible with A10000, A10000R, U10000 and U10000R Mini magnetic locks
• ARCH1-10 - Compatible with A10020M Standard Magnetic Locks
• ARCH2-10 - Compatible with A10020M Standard Magnetic Locks
• ARCH2-2-10 - Compatible with A10020M Standard Magnetic Locks
• ARCH2-2-10V - Compatible with A10020M Standard Magnetic Locks

Key Features

• Slimline Architectural Design
• Professional Maglock Installation Solution
• Suitable for Mortice Mini & Mortice Standard Magnetic Locks
• Available in 1 Metre and 2 Metre Lengths
• Single and Double Door Configurations
• Aluminium Construction
• Horizontal and Vertical Mounting Options

• Improves Installation Appearance
• Complete with Mounting Plate

• Suitable for New Installations and Retrofit Projects

Typical Applications

• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Apartment Developments
• Public Buildings
• Access Control Doors
• Reception Areas
• Internal Security Doors
• Electronic Door Locking Systems

Compatibility

The ARCH Transom Housings are designed for use with compatible mini & standard magnetic locks and access control equipment.

• Mini Magnetic Locks (Maglocks)
• Standard Magnetic Locks (Maglocks)
• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Emergency Door Release Units
• Press to Exit Buttons
• Power Supplies, Relays and Timers
• Building Management Systems


Technical Specification

• Housing Type: Architectural Transom Housing
• Material: Aluminium
• Lengths Available: 1 Metre and 2 Metre
• Lock Cut-Outs: 1 cut-out or 2 cut-out options
• Installation Options: Horizontal or Vertical
• Door Types: Single and Double Doors
• Mounting: Surface Mounted Transom Housing
• Compatible Locks: Mini Mortice Magnetic Locks & Standard Mortice Magnetic Locks

• Finish: Aluminium

Architectural Transom Housing Product Information

Important Delivery Information

**** DUE TO THE SIZE OF THE 2 METRE HOUSINGS & BRACKETS, THE DELIVERY FOR THESE ITEMS WILL BE £26.50 PLUS VAT ****

The ARCH Transom Housings provide a professional and aesthetically pleasing mounting solution for mortice mini and standard magnetic lock installations. Suitable for single and double door applications, they are an ideal choice where a clean architectural finish, concealed maglock installation, and seamless integration with access control, door entry, and electronic locking systems are required.

What is a Maglock Transom Housing?

A maglock transom housing is an architectural aluminium enclosure designed to house mortice magnetic locks within a door transom section. It provides a cleaner and more professional appearance than conventional surface-mounted magnetic lock installations whilst maintaining the security and reliability of the locking system.

What Are ARCH Transom Housings Used For?

ARCH Transom Housings are used to mount and conceal magnetic locks in access control, door entry, and electronic locking installations. They are commonly specified for commercial buildings, schools, healthcare facilities, offices, and apartment developments where appearance is an important consideration.

Which Magnetic Locks Are Compatible with ARCH Transom Housings?

The ARCH range is designed for use with selected mini and standard magnetic locks. Mini lock housings are compatible with the A10000, A10000R, U10000 and U10000R magnetic locks, whilst standard lock housings are designed for use with the A10020M magnetic lock.

Can ARCH Transom Housings Be Used on Double Doors?

Yes. Selected ARCH models are designed specifically for double door applications and are available with multiple cut-outs to accommodate magnetic locks on paired door installations. Both horizontal and vertical mounting options are available depending on the application.

What is the Difference Between the 1 Metre and 2 Metre Housings?

The 1 metre housings are typically used where a single magnetic lock is required. The 2 metre housings are available in single and double cut-out configurations, making them suitable for larger door sets and double door installations.

Can ARCH Transom Housings Be Used with Access Control Systems?

Yes. ARCH Transom Housings are designed for use as part of complete access control and electronic locking systems. They can be installed alongside card readers, keypad entry systems, door entry systems, emergency door release units, press to exit buttons, and associated control equipment.
