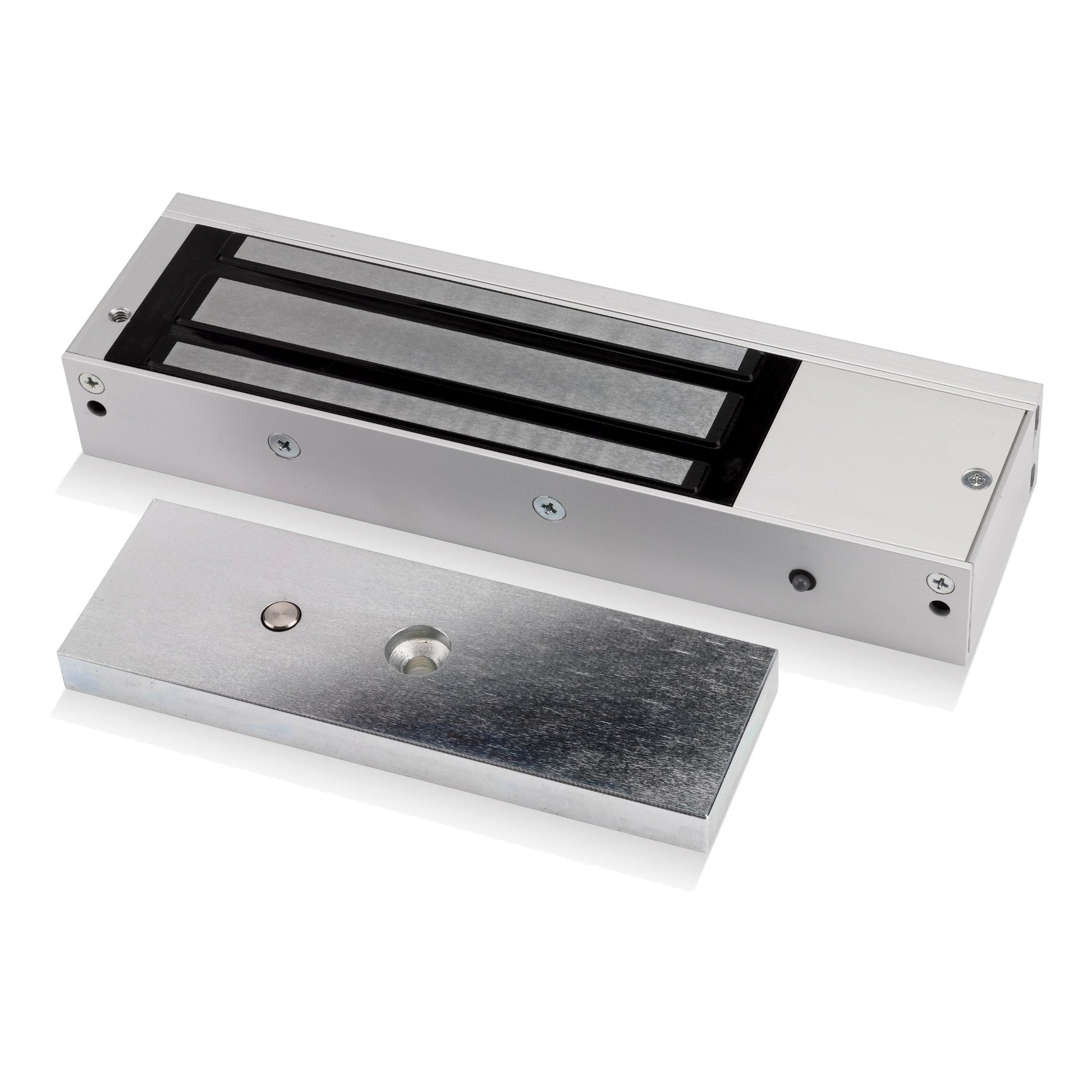

U10020 / U10020DSU / FR-U10020 / FR-U10020DSU Monitored Standard Magnetic Lock (Maglock)

The U10020 Series Standard Magnetic Locks (Maglocks) are high-performance electromagnetic locking solutions designed for use with access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure and reliable locking for a wide range of access-controlled doors.

Featuring a holding force of up to 1200lbs (544kg), these magnetic locks deliver strong and dependable door security whilst maintaining fail-safe operation for safe emergency egress. Manufactured with an aluminium housing and electroless nickel plated armature plate, they are designed for long-term reliability and consistent performance.

All models include lock status monitoring with an output for connection to compatible access control systems. Each lock also features LED lock status indication, showing green when unlocked and red when locked. The U10020DSU and FR-U10020DSU versions additionally include a door status output.

Available Models

• U10020 – Monitored Standard Magnetic Lock
• U10020DSU – Monitored Standard Magnetic Lock with Door Status Output
• FR-U10020 – Fire Rated Monitored Standard Magnetic Lock
• FR-U10020DSU – Fire Rated Monitored Standard Magnetic Lock with Door Status Output

Key Features

• Holding Force up to 1200lbs (544kg)
• Selectable 12VDC or 24VDC Operation
• Monitored Lock Output
• Door Status Monitoring
• Door Status Output on U10020DSU & FR-U10020DSU Models
• LED Lock Status Indication
• Aluminium Lock Housing
• Electroless Nickel Plated Armature Plate
• Fail Safe Operation
• Suitable for Access Control Systems
• Fire Tested to BS EN1634-1 (FR Versions)
• Suitable for FD30 & FD60 Fire Doors (FR Versions)

Typical Applications

• Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Residential Developments
• Public Buildings
• Fire Door Installations
• Restricted Access Areas
• Internal Security Doors

Compatibility

The U10020 Series Magnetic Locks are designed to integrate with a wide range of access control and door security equipment, making them suitable for both new installations and retrofit projects.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies
• Relays and Timers
• Door Monitoring Systems

Technical Specification

• Lock Type: Standard Magnetic Lock (Maglock)
• Operation: Fail Safe (Power to Lock)
• Operating Voltage: Selectable 12VDC or 24VDC
• Holding Force: Up to 1200lbs (544kg)
• Housing Material: Aluminium
• Armature Plate: Electroless Nickel Plated
• Lock Monitoring: Monitored (All Models)
• Door Status Output: U10020DSU & FR-U10020DSU Only
• LED Indication: Lock Status LED - Green Unlocked / Red Locked
• Fire Rating: BS EN 1634-1 (FR Models)
• Suitable Fire Doors: FD30 & FD60 (FR Models)
• Dimensions: 67mm x 268mm x 40mm (H x W x D)

U10020 / U10020DSU Product Information

FR-U10020 / FR-U10020DSU Product Information

The U10020 Series Mini Magnetic Locks provide a secure and reliable locking solution for access control installations requiring compact dimensions, dependable holding force, lock status monitoring, and LED lock status indication. Available in standard, door status output, and fire-rated versions, they are ideal for commercial, residential, and public sector applications where a durable magnetic lock (maglock) is required.

Frequently Asked Questions

What is a monitored magnetic lock?

A monitored magnetic lock provides status outputs that allow an access control system to monitor the condition of the lock or door. This enables security systems to confirm whether a door is secure, unlocked, or open.

What is the holding force of the U10020 magnetic lock?

The U10020 Series provides a holding force of up to 1200lbs (544kg), making it suitable for a wide range of commercial, industrial, educational, healthcare, and public sector access control applications.

What does fail-safe operation mean?

Fail-safe operation means the magnetic lock requires power to remain locked. If power is removed due to an emergency, fire alarm activation, or power failure, the lock releases automatically to allow safe exit.

Are the FR-U10020 models suitable for fire doors?

Yes. The FR-U10020 and FR-U10020DSU models have been tested to BS EN 1634-1 and are suitable for installation on compatible FD30 and FD60 fire doors.

What does the LED indication show?

The U10020 Series includes LED lock status indication, showing green when the lock is unlocked and red when the lock is locked.

Can the A10020 series be used with access control systems?

Yes. The U10020 Series is designed for integration with access control systems, door entry systems, intercoms, card readers, keypads, emergency door release units, and other electronic door security equipment.

Why choose a monitored magnetic lock?

A monitored magnetic lock provides additional security information that can be used by access control systems and building management systems. This allows door status monitoring, alarm integration, and improved security management compared to a standard unmonitored magnetic lock.
