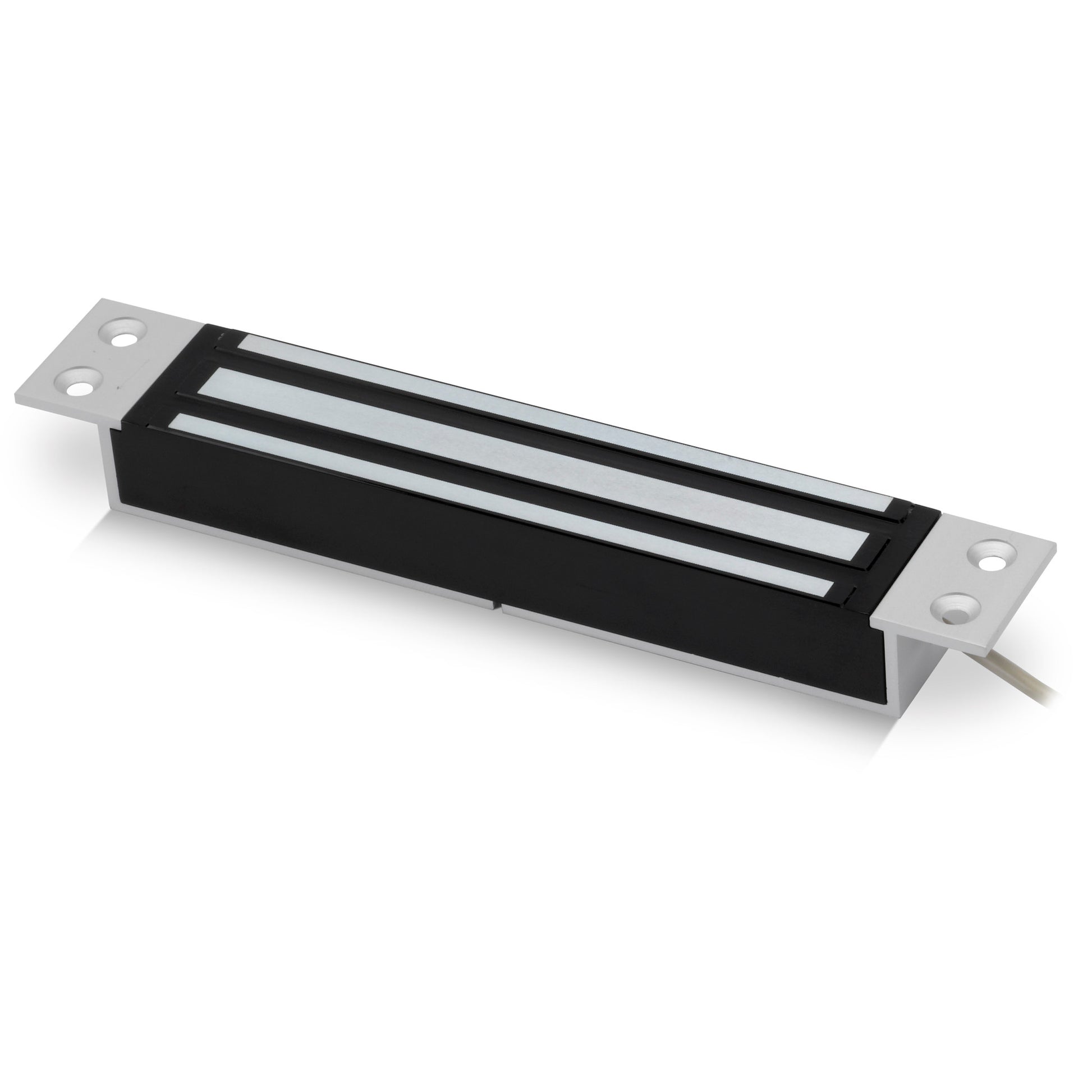

A10000 / A10000R Mini Mortice Magnetic Lock (Maglock)

The A10000 and A10000R Mini Mortice Magnetic Locks are compact electromagnetic locking solutions designed for use with access control systems, door entry systems, intercoms, and electronic security installations. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide reliable fail-safe locking whilst allowing the lock body to be concealed within the door frame for a discreet installation. The concealed mortice design makes the A10000 Series ideal for installations where aesthetics are important, whilst still providing the strength and reliability expected from a professional electromagnetic locking solution.

An electromagnetic lock, commonly known as a magnetic lock or maglock, consists of an electromagnet mounted within the door frame and a matching armature plate fitted to the door. When power is applied, the electromagnet generates a powerful magnetic field that securely holds the armature plate in place. As a fail-safe device, the lock automatically releases when power is removed, ensuring safe emergency egress.

Operating from a selectable 12VDC or 24VDC power supply, the A10000 series provides a holding force of up to 600lbs (272kg). Manufactured with a durable aluminium housing and an electroless nickel-plated armature, the locks are designed for long-term reliability and corrosion resistance. The A10000R additionally features lock monitoring, providing lock status feedback to compatible access control systems.

Available Models

• A10000 – Mini Mortice Magnetic Lock
• A10000R – Monitored Mini Mortice Magnetic Lock

Key Features

• Mini Mortice Magnetic Lock (Maglock)
• Holding Force up to 600lbs (272kg)
• Selectable 12VDC or 24VDC Operation
• Fail Safe Operation (Power to Lock)
• Mortice Mount Design
• Concealed Mortice Installation
• Aluminium Housing
• Electroless Nickel-Plated Armature
• Lock Status Monitoring (A10000R)
• Suitable for Access Control Systems
• Suitable for New Installations and Retrofits

Typical Applications

• Access Control Systems
• Commercial Buildings
• Office Entrances
• Healthcare Facilities
• Educational Buildings
• Residential Developments
• Internal Security Doors
• Restricted Access Areas
• Aluminium Door Systems
• Timber Door Systems

Compatibility

The A10000 and A10000R Mini Mortice Magnetic Locks are designed to integrate with a wide range of access control and electronic security equipment.

• Access Control Systems
• Emergency Door Systems
• Fire Alarm Systems
• Door Entry Systems
• Emergency Exit Systems
• Keypad Systems
• Proximity Readers
• Building Management Systems
• Power Supplies
• Door Monitoring Systems

Technical Specification

• Product Type: Mini Mortice Magnetic Lock (Maglock)
• Operating Voltage: Selectable 12VDC or 24VDC
• Operation: Fail Safe (Power to Lock)
• Holding Force: Up to 600lbs (272kg)
• Housing: Aluminium
• Armature Finish: Electroless Nickel Plated
• Monitoring: A10000R Monitored / A10000 Unmonitored
• Mounting: Mortice
• Dimensions: 38mm × 228mm × 27mm (H × W × D)

A10000 Product Information

A10000R Product Information

The A10000 and A10000R Mini Mortice Magnetic Locks provide a compact and discreet locking solution for access-controlled doors. Featuring concealed mortice installation, up to 600lbs holding force, selectable 12VDC or 24VDC operation, and a monitored option for lock status feedback, they are ideal for professional access control installations.

Frequently Asked Questions

What is the Difference Between the A10000 and A10000R?

Both models share the same dimensions, holding force, and operating voltage. The A10000R includes a monitored output that provides lock status feedback to compatible access control systems, while the A10000 is the standard unmonitored version.

What Holding Force Does the A10000 Provide?

The lock provides a holding force of up to 600lbs (272kg).

What Voltage Does the A10000 Operate On?

The lock operates on a selectable 12VDC or 24VDC power supply.

What Does Mortice Mounting Mean?

Mortice mounting means the magnetic lock is recessed into the door frame, providing a concealed installation with a clean, professional appearance.

Why choose a mortice magnetic lock?

A mortice magnetic lock is recessed into the door frame, creating a discreet installation while maintaining the security and reliability of a traditional surface-mounted magnetic lock. It is ideal where appearance is important or where a concealed locking solution is preferred.

Can the A10000 Series be Used with Access Control Systems?

Yes. The A10000 series is fully compatible with access control systems, door entry systems, intercoms, keypads, proximity readers, emergency door release units, and other electronic security equipment.
