A10010 / A10010DS / FR-A10010 / FR-A10010DS Standard Magnetic Lock (Maglock)

The A10010 Series Unmonitored Standard Magnetic Locks (Maglocks) are high-performance electromagnetic locking solutions designed for use with access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure and reliable locking for access-controlled doors.

Operating from selectable 12VDC or 24VDC power supplies, the A10010 Series delivers up to 1200lbs (544kg) of holding force, making it suitable for applications requiring enhanced door security and dependable locking performance. Manufactured with a durable aluminium housing and electroless nickel plated armature plate, these magnetic locks are designed for long-term reliability and continuous operation.

Selected models are available with a door status output for connection to compatible access control systems, whilst the FR-A10010 and FR-A10010DS versions have been fire tested to BS EN1634-1 and are suitable for installation on FD30 and FD60 fire doors.

Available Models

• A10010 – Unmonitored Standard Magnetic Lock

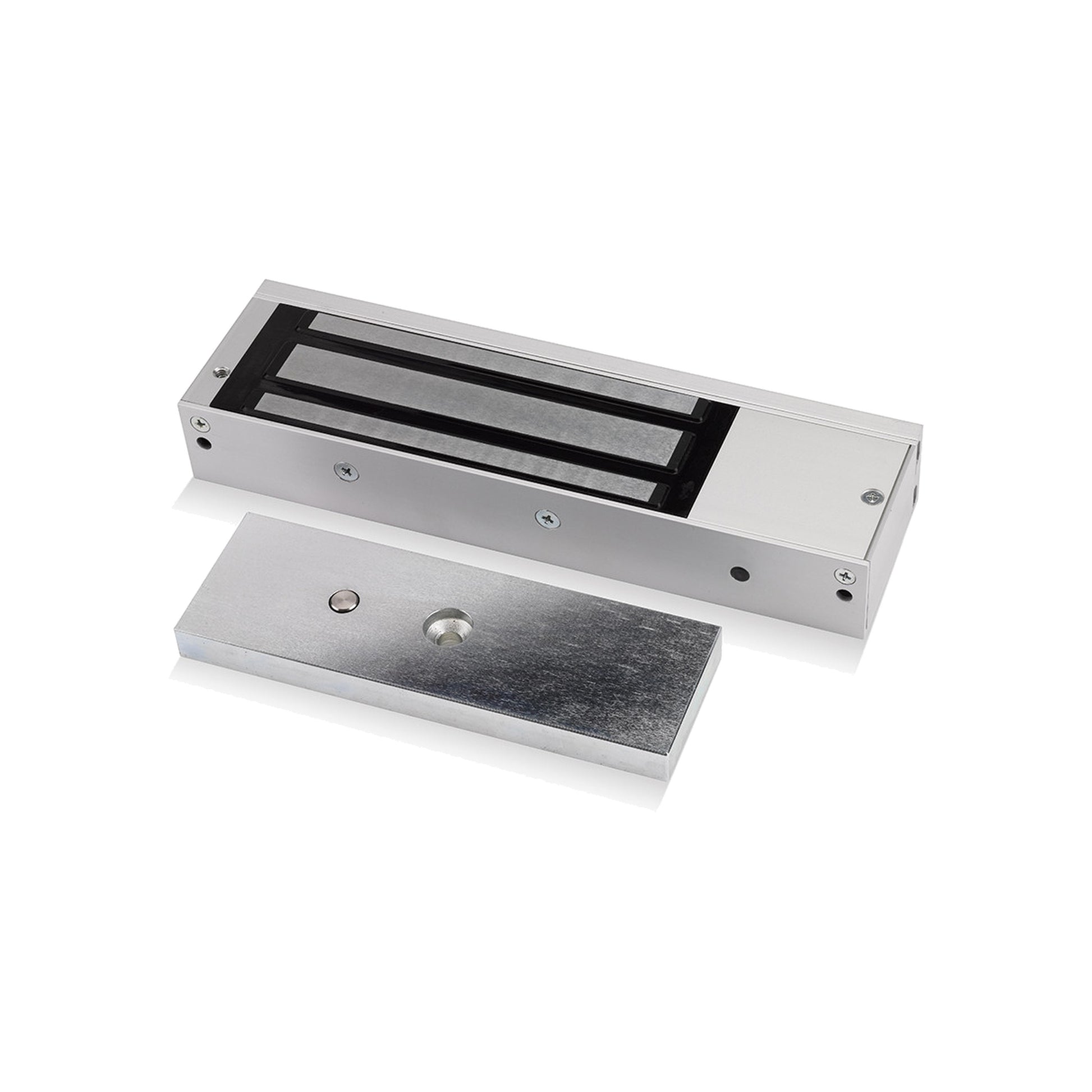

• A10010DS – Unmonitored Standard Magnetic Lock with Door Status Output
• FR-A10010 – Fire Rated Unmonitored Standard Magnetic Lock
• FR-A10010DS – Fire Rated Unmonitored Standard Magnetic Lock with Door Status Output


Key Features

• Standard Magnetic Lock Design
• Up to 1200lbs (544kg) Holding Force
• Selectable 12VDC or 24VDC Operation
• Fail Safe Operation (Power to Lock)
• Aluminium Lock Housing
• Electroless Nickel Plated Armature Plate
• Door Status Output on A10010DS & FR-A10010DS Models
• Fire Rated Versions Available
• Tested to BS EN 1634-1
• Suitable for FD30 and FD60 Fire Doors
• Suitable for Access Control Applications
• Reliable Electromagnetic Locking

Typical Applications

• Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Public Buildings
• Restricted Access Areas
• Staff Access Doors
• Fire Door Installations
• Internal Security Doors

Compatibility

The A10010 Series Unmonitored Standard Magnetic Locks are designed to integrate with a wide range of access control and door security equipment, making them suitable for both new installations and retrofit projects.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies
• Relays and Timers
• Door Monitoring Systems

Technical Specification

• Lock Type: Standard Magnetic Lock (Maglock)
• Operation: Fail Safe (Power to Lock)
• Operating Voltage: 12VDC or 24VDC Selectable
• Holding Force: Up to 1200lbs (544kg)
• Lock Monitoring: Unmonitored (All Models)
• Door Status Output: A10010DS & FR-A10010DS only
• Housing Material: Aluminium
• Armature Plate: Electroless Nickel Plated Steel
• Fire Rating: BS EN 1634-1 (FR Models)
• Suitable Fire Doors: FD30 & FD60 (FR Models)
• Dimensions: 67mm x 268mm x 40mm (H x W x D)

A10010 / A10010DS Product Information

FR-A10010 / FR-A10010DS Product Information

The A10010 Series Standard Magnetic Locks provide a secure and reliable locking solution for access control installations requiring high holding force and dependable door security. Available in standard, door status output and fire-rated versions, they are ideal for commercial, industrial, and public sector applications where a durable magnetic lock (maglock) is required.

Frequently Asked Questions

What is an Unmonitored Magnetic Lock?

An unmonitored magnetic lock provides electromagnetic door locking without status monitoring outputs. It offers secure locking for access-controlled doors but does not provide lock status feedback to an access control system.

What is the Holding Force of the A10010 Magnetic Lock?

The A10010 Series provides a holding force of up to 1200lbs (544kg), making it suitable for a wide range of commercial and industrial access control applications.

What Does Fail Safe Operation Mean?

Fail safe operation means the magnetic lock requires power to remain locked. If power is removed due to a fire alarm activation, emergency release, or power failure, the lock automatically releases to allow safe exit.

Are the FR-A10010 Models Suitable for Fire Doors?

Yes. The FR-A10010 and FR-A10010DS models have been tested to BS EN1634-1 and are suitable for installation on compatible FD30 and FD60 fire doors.

What Is the Difference Between the A10010 and A10010DS?

The A10010DS includes a door status output that can be connected to a compatible access control system to monitor whether the door is open or closed. The A10010 provides the same locking performance without the door status output.

Can the A10010 Series Be Used with Access Control Systems?

Yes. The A10010 Series is compatible with access control systems, door entry systems, intercoms, card readers, keypads, emergency door release units, and other electronic door security equipment.

Why Choose a Magnetic Lock?

Magnetic locks offer reliable fail safe locking, high holding force, minimal moving parts, and long service life, making them a popular choice for access control and electronic door security installations.
