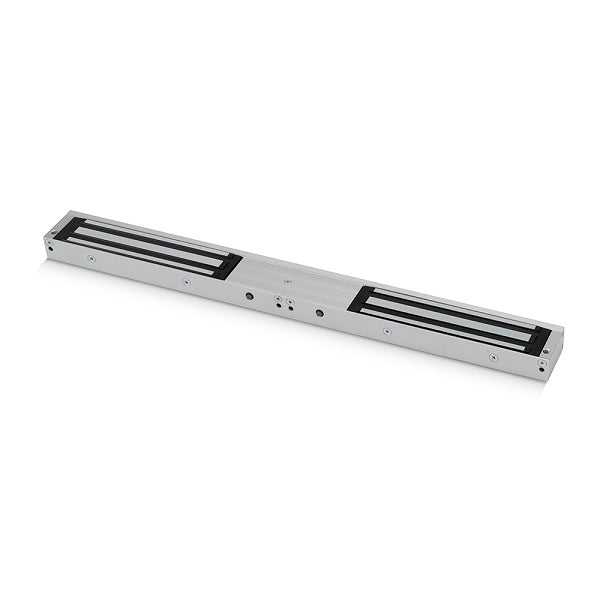

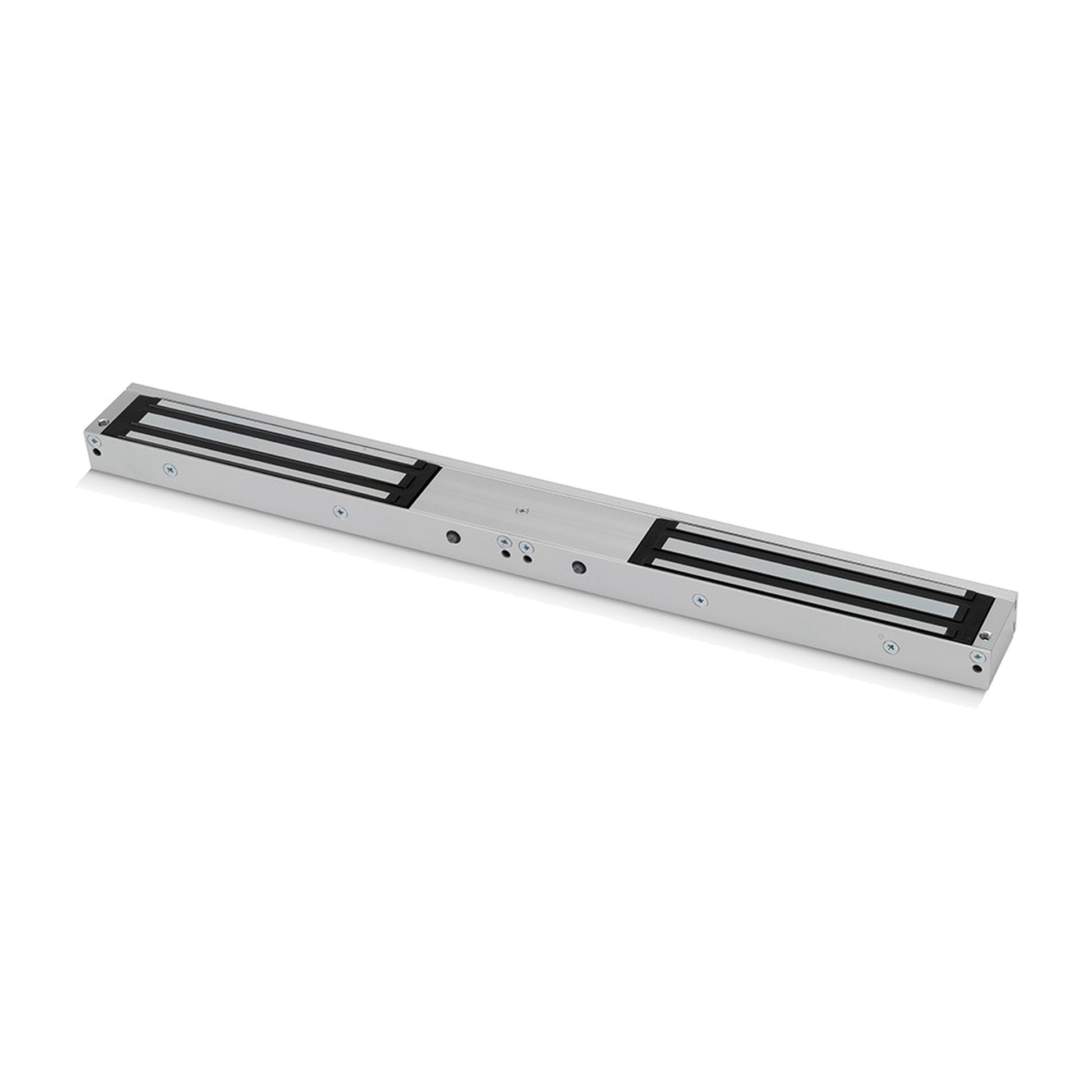

A10005 / A10005DS / FR-A10005 / FR-A10005DS Monitored Double Mini Magnetic Lock (Maglock)

The A10005 Series Monitored Double Mini Magnetic Locks or Maglocks are compact electromagnetic locking solutions designed for securing double doors in access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure and reliable locking for paired access-controlled doors.

Operating from selectable 12VDC or 24VDC power supplies, the A10005 Series delivers up to 2 x 600lbs (272kg) of holding force, providing secure locking across both door leaves. Manufactured with a durable aluminium housing and electroless nickel plated armature plates, these magnetic locks are designed to provide long-term reliability and consistent locking performance.

Selected models are available with integrated door status monitoring, while the FR-A10005 and FR-A10005DS versions have been fire tested to BS EN 1634-1 and are suitable for installation on FD30 and FD60 fire doors.

Available Models

• A10005 – Monitored Double Mini Magnetic Lock
• A10005DS – Monitored Double Mini Magnetic Lock with Door Status
• FR-A10005 – Fire Rated Monitored Double Mini Magnetic Lock
• FR-A10005DS – Fire Rated Monitored Double Mini Magnetic Lock with Door Status

Key Features

• Double Mini Magnetic Lock Design
• Suitable for Double Door Applications
• Up to 2 x 600lbs (272kg) Holding Force
• Selectable 12VDC or 24VDC Operation
• Monitored Lock
• Fail Safe Operation (Power to Lock)
• Aluminium Lock Housing
• Electroless Nickel Plated Armature Plates
• Available with Door Status Monitoring
• Fire Rated Versions Available
• Tested to BS EN 1634-1
• Suitable for FD30 and FD60 Fire Doors
• Suitable for Access Control Applications

Typical Applications

• Double Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Public Buildings
• Fire Door Installations
• Staff Access Areas
• Restricted Access Areas
• Double Door Security Entrances

Compatibility

The A10005 Series Monitored Double Mini Magnetic Locks are designed to integrate with a wide range of access control and door security equipment, making them suitable for both new installations and retrofit projects.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies
• Relays and Timers
• Door Monitoring Systems

Technical Specification

• Lock Type: Double Mini Magnetic Lock (Maglock)
• Operation: Fail Safe (Power to Lock)
• Operating Voltage: 12VDC or 24VDC Selectable
• Holding Force: Up to 2 x 600lbs (272kg)
• Monitoring: Door Status Output (A10004DS & FR-A10004DS)
• Housing Material: Aluminium
• Armature Plate: Electroless Nickel Plated Steel
• Fire Rating: BS EN 1634-1 (FR Models)
• Suitable Fire Doors: FD30 & FD60 (FR Models)
• Dimensions: 42mm x 500mm x 26mm (H x W x D)

A10005 Product Information

FR-A10005 Product Information

The A10005 Monitored Series Double Mini Magnetic Locks provide a secure and reliable locking solution for access control installations requiring dependable security for double door applications. Available in monitored and fire-rated versions, they are ideal for commercial, public sector, and residential environments where a durable double magnetic lock or double door maglock is required.
