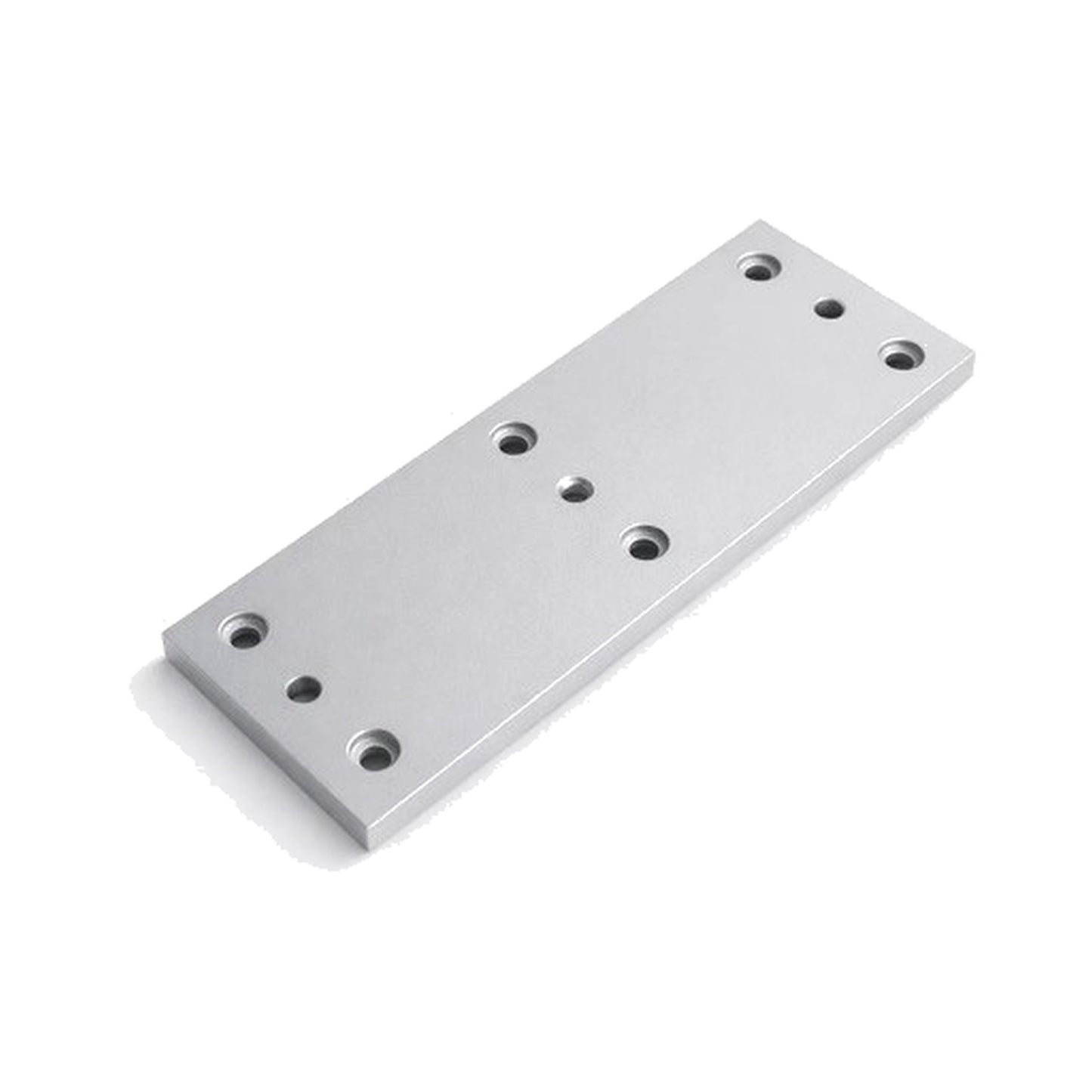

A500BP Armature Mounting Plate for Standard Magnetic Locks

The A500BP Armature Mounting Plate is designed for use with compatible 1200lbs (544kg) standard magnetic locks where additional armature plate mounting support is required. It provides a practical fixing solution for installations where the standard armature fixing method is not suitable due to the door type, construction, or available mounting surface.

Designed for standard maglock installations, the A500BP can help provide a secure and stable mounting point for the armature plate when fitting a compatible 1200lbs magnetic lock. Correct armature plate positioning and alignment are important to help achieve reliable holding force and consistent lock operation.

Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, the A500BP is a useful accessory for installers working with standard magnetic lock installations as part of an access control or door security system.

Available Model

• A500BP – Armature mounting plate for compatible standard magnetic locks

Key Features

• Armature mounting plate for standard magnetic locks

• Designed for compatible 1200lbs (544kg) maglock installations

• Provides additional fixing support for the armature plate

• Useful where the standard fixing method is not suitable

• Helps provide a secure and stable armature mounting point

• Suitable for new installations and retrofit projects

• Suitable for access control and door security systems

Typical Applications

• Standard magnetic lock installations

• Access control systems

• Door entry systems

• Commercial buildings

• Office doors

• Residential developments

• Educational facilities

• Healthcare buildings

• Restricted access areas

• Retrofit maglock installations

Compatibility and Accessories

The A500BP Armature Mounting Plate is designed for use with compatible 1200lbs (544kg) standard magnetic locks and related access control equipment.

Compatible Mini Magnetic Locks

• A10010 Series
• A10020 Series
• A10020M Series
• A10040 Series
• A10060 Series
• U10010 Series
• U10020 Series
• U10040 Series
• U10060 Series

Please check the maglock model, armature plate size, fixing method, door type, opening direction and installation requirements before ordering. If you are unsure whether this mounting plate is suitable for your lock, please contact us with the lock model and door details before purchase.

Compatible With

• Magnetic Locks Accessories
• Standard Magnetic Locks

• Access Control Systems

• Door Entry Systems

• Power Supplies, Relays and Timers

• Press to Exit / Request to Exit Buttons

• Emergency Door Release Units

Technical Specification

• Product type: Armature mounting plate

• Model: A500BP

• Application: Armature mounting support

• Compatibility: Suitable for compatible 1200lbs (544kg) standard magnetic locks

• Installation type: Door-mounted armature plate accessory

• Use: Access control and standard maglock installations

• Door application: Suitable where additional armature mounting support is required
• Plate Dimensions: 284mm x 71mm x 6mm (L x W x D)

Standard Magnetic Lock Brackets & Accessories Product Information

Please check compatibility with your magnetic lock before ordering. The A500BP Armature Mounting Plate should be installed in accordance with the magnetic lock manufacturer’s installation instructions and the requirements of the door application.

Correct alignment between the magnetic lock and armature plate is important to achieve reliable holding force. The A500BP provides a practical mounting solution for compatible standard magnetic lock installations where additional support or an alternative armature fixing method is required.

Frequently Asked Questions

What is the A500BP Armature Mounting Plate used for?

The A500BP Armature Mounting Plate is used to provide a suitable fixing point for the armature plate on compatible 1200lbs (544kg) standard magnetic lock installations.

Which locks is the A500BP compatible with?

The A500BP is designed for use with compatible 1200lbs (544kg) standard magnetic locks, including selected A10010, A10020, A10020M, A10040, A10060, U10010, U10020, U10040 and U10060 Series locks.

Is the A500BP suitable for mini magnetic locks?

No. The A500BP is intended for compatible 1200lbs (544kg) standard magnetic locks. Mini 600lbs (272kg) magnetic locks normally require smaller mounting accessories.

When would I need an armature mounting plate?

An armature mounting plate may be required where the standard armature fixing method is not suitable due to the door type, door construction, fixing position or available mounting surface.

Can the A500BP be used with access control systems?

Yes. The A500BP is a magnetic lock accessory and can be used as part of an access control installation with compatible standard magnetic locks, power supplies, exit buttons, emergency door release units, keypads and proximity readers.

What should I check before ordering?

Please check the maglock model, armature plate size, fixing method, door type, opening direction and installation requirements before ordering.
