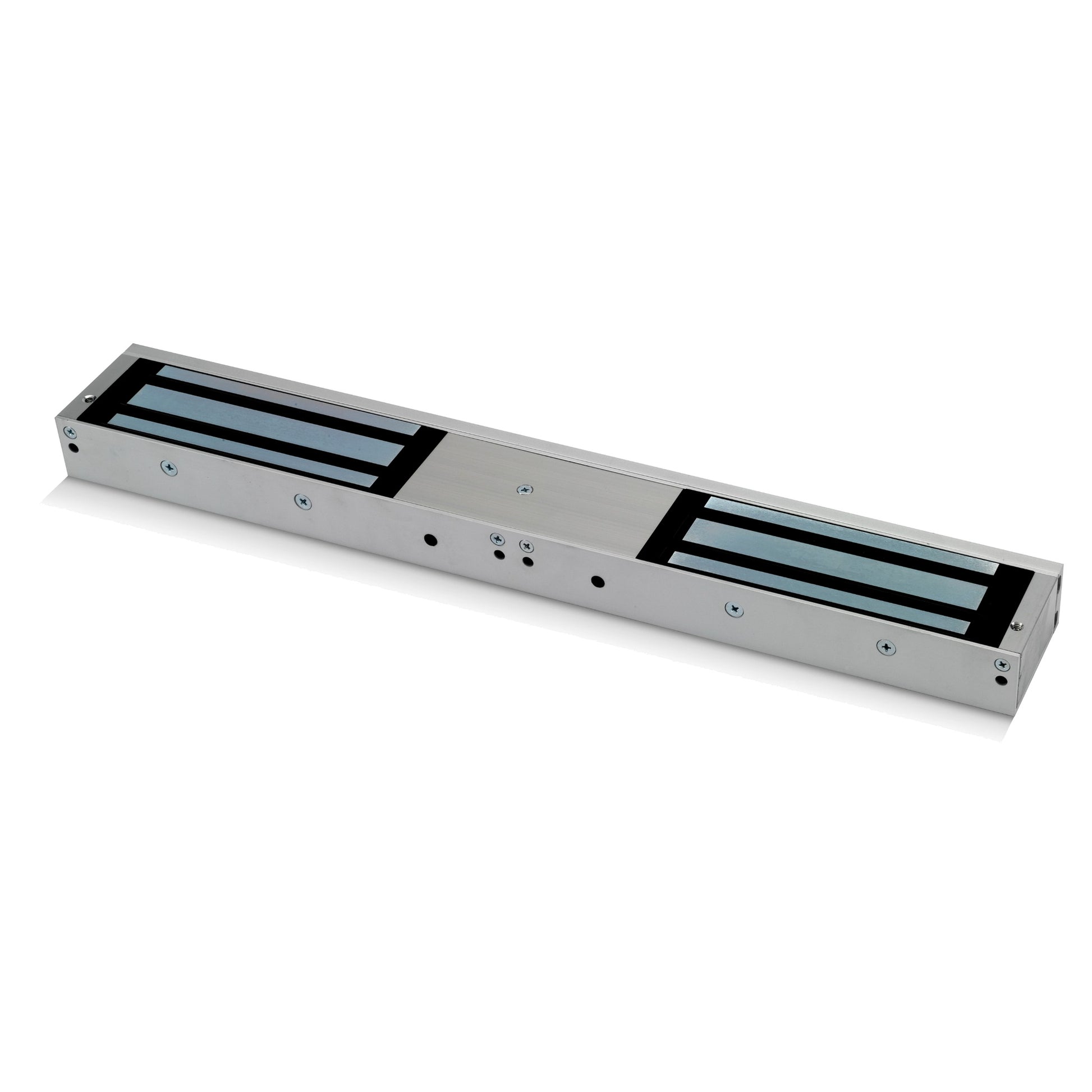

FR-A10060 / FR-A10060DS Standard Double Magnetic Lock (Maglock)

The FR-A10060 series Unmonitored Fire Rated Standard Double Magnetic Locks are high-performance fire rated electromagnetic locking solutions designed for use with access control systems, emergency door systems, fire doors, and door entry systems. Suitable for commercial, industrial, educational, healthcare, and public sector environments, they provide reliable door security whilst meeting fire door installation requirements.

Operating from selectable 12VDC or 24VDC power supplies, the FR-A10060 Series delivers up to 2 x 1200lbs (544kg) of holding force, making it suitable for applications requiring enhanced door security and dependable locking performance.

Manufactured from durable aluminium and designed specifically for fire-rated applications, the FR-A10060 range has been tested to BS EN1634-1 and is suitable for installation on FD30 and FD60 fire doors. The FR-A10060DS version additionally includes a door status output for connection to compatible access control systems.

Available Models

• FR-A10060 – Fire Rated Unmonitored Standard Double Magnetic Lock
• FR-A10060DS – Fire Rated Unmonitored Standard Double Magnetic Lock with Door Status Output

Key Features

• Fire rated standard double magnetic lock
• Holding force up to 2 x 1200lbs (544kg)
• Selectable 12VDC or 24VDC Operation
• Aluminium housing
• Electroless Nickel Plated Armature Plates
• Fail-safe operation (Power to Lock)

• Door Status Output (FR-A10060DS Only)
• Fire tested to BS EN1634-1
• Suitable for FD30 and FD60 fire doors
• Suitable for access control and emergency door systems
• Compact design


Typical Applications

• Double Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Public Buildings
• Fire Door Installations
• Restricted Access Areas
• Reception Entrances
• Internal Security Doors

Compatibility

The FR-A10060 range is designed to integrate with a wide range of door security and life safety equipment.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies, Relays and Timers

• Fire Alarm Interface Systems

Technical Specification

• Lock Type: Fire Rated Standard Double Magnetic Lock
• Operation: Fail Safe (Power to Lock)
• Operating Voltage: Selectable 12VDC or 24VDC
• Holding Force: Up to 2 x 1200lbs (544kg)
• Lock Monitoring: Unmonitored (All Models)
• Door Status Output: FR-A10060DS Only
• Housing Material: Aluminium
• Armature Plates: Electroless Nickel Plated Steel
• Fire Rating: Tested to BS EN1634-1
• Suitable Fire Doors: FD30 & FD60
• Dimensions: 67mm x 532mm x 40mm (H x W x D)


FR-A10060 / FR-A10060DS Product Information

The FR-A10060 Series Standard Double Magnetic Locks provide a secure and reliable locking solution for fire-rated access control installations requiring high holding force and dependable door security. Ideal for commercial, industrial, and public sector applications, they are suitable for installation on compatible FD30 and FD60 fire doors.

Frequently Asked Questions

What is a Double Magnetic Lock?

A double magnetic lock (maglock) is an electromagnetic locking device designed for double-door applications. It provides secure locking on both door leaves and is commonly used with access control systems, door entry systems, and electronic security installations.

What Does Unmonitored Magnetic Lock Mean?

An unmonitored magnetic lock provides electromagnetic locking without lock status monitoring. The FR-A10060 does not provide lock status feedback to an access control system, while the FR-A10060DS additionally includes a door status output to indicate whether the door is open or closed.

What is the Difference Between the FR-A10060 and FR-A10060DS?

The FR-A10060DS includes a door status output for connection to compatible access control systems, allowing the system to monitor whether the door is open or closed. The FR-A10060 provides the same locking performance without the door status output.

Have the FR-A10060 locks been fire tested?

Yes. The FR-A10060 series locks have been tested to BS EN1634-1 and are suitable for installation on compatible FD30 and FD60 fire doors.

Can the FR-A10060 Series Be Used with Access Control Systems?

Yes. The FR-A10060 Series is designed for use with access control systems, card readers, keypads, intercom systems, and door entry systems.

What is the Holding Force of the FR-A10060 Series?

The lock provides a holding force of up to 2 x 1200lbs (544kg), delivering a high level of security for double-door applications.

Is the FR-A10060 Series Fail Safe?

Yes. The FR-A10060 Series operates as a fail-safe locking device, meaning power must be applied to keep the lock secure. In the event of power loss, the lock releases to allow safe exit.

Can These Magnetic Locks Be Installed on Fire Doors?

The FR-A10060 and FR-A10060DS fire-rated locks are suitable for use on compatible FD30 and FD60 fire doors, subject to correct installation and compliance with fire door regulations.

What operating voltage does the lock require?

The FR-A10060 range operates on selectable 12VDC or 24VDC power supplies.
