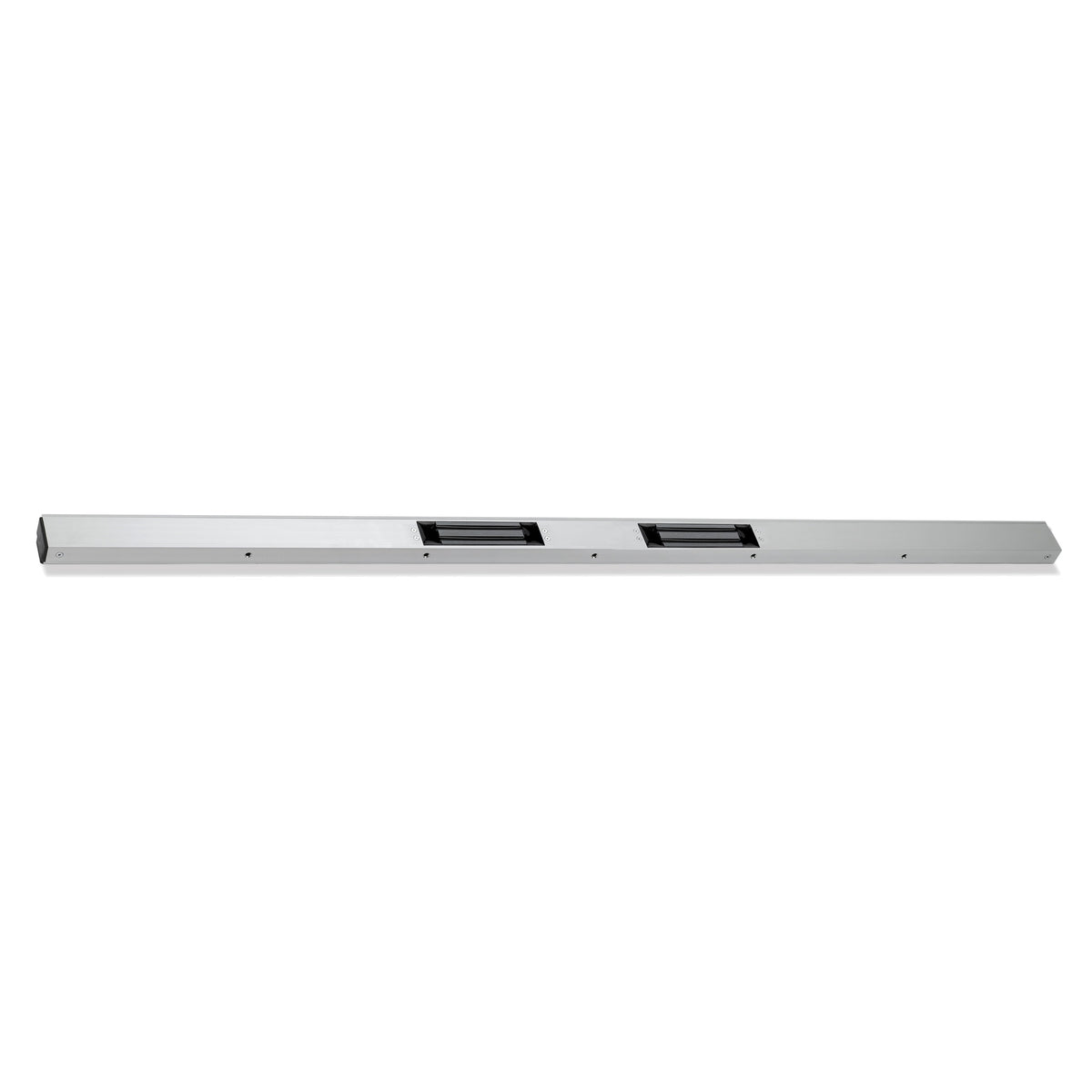

ARCH2-2-10 Standard Transom Housing for Mortice Magnetic Locks

The ARCH2-10 Standard Transom Housing is a 2 metre aluminium architectural housing designed for use with compatible standard mortice magnetic locks in access control and electronic door security installations.

Designed for horizontal fitting, the ARCH2-2-10 provides a clean and professional mounting solution where a more integrated magnetic lock installation is preferred over a conventional surface-mounted maglock.

The housing features two magnetic lock cut-outs and is supplied complete with a mounting plate. It is designed for compatible standard mortice magnetic locks providing up to 1200lbs (545kg) holding force, including the A10020M and U10020M. The ARCH2-2-10 is a 2 metre housing with two cut-outs and horizontal fitting.

Available Model

• ARCH2-2-10 – 2 metre standard aluminium transom housing with two cut-outs for compatible standard mortice magnetic locks

Key Features

• 2 metre transom housing
• Standard architectural design
• Horizontal fitting
• Aluminium construction
• Two magnetic lock cut-outs
• Supplied complete with mounting plate
• Suitable for compatible standard mortice magnetic locks
• Designed for locks providing up to 1200lbs (545kg) holding force
• Compatible with the A10020M & U10020M
• Provides a clean and integrated magnetic lock installation

Typical Applications

• Standard mortice magnetic lock installations
• Access control systems
• Commercial entrances
• Office buildings
• Educational facilities
• Healthcare buildings
• Public buildings
• Residential developments
• Industrial premises
• Internal controlled doors
• Architectural door installations

Compatibility

The ARCH2-2-10 is designed for use with compatible standard mortice magnetic locks.

The housing is for use with:

• A10020M
• U10020M

The ARCH2-2-10 forms part of the standard ARCH transom housing range for 1200lbs mortice magnetic locks.

Compatible with

• A10020M & U10020M Standard Mortice Magnetic Locks
• Standard Mortice Magnetic Locks
• Access Control Systems
• Door Entry Systems
• Keypad Entry Systems
• Proximity Readers
• Emergency Door Release Units
• Press to Exit Buttons
• Power Supplies
• Timers and Relays

Please check the exact magnetic lock model, monitoring requirements and door configuration before ordering.

Technical Specification

• Product type: Standard transom housing
• Model: ARCH2-2-10
• Housing length: 2000mm
• Material: Aluminium
• Installation: Horizontal
• Number of cut-outs: 2
• Mounting plate: Included
• Compatible lock type: Standard mortice magnetic lock
• Compatible holding force: Up to 1200lbs (545kg)
• Compatible lock models: A10020M & U10020M
• Compatible bracket: 2MTL-10 adjustable L bracket

ARCH2-2-10 Product Information

The ARCH2-2-10 provides a professional architectural mounting solution for compatible standard mortice magnetic locks.

Its 2 metre aluminium housing allows the magnetic lock to be incorporated neatly into the transom area, helping provide a cleaner and more integrated appearance than a conventional surface-mounted maglock installation.

The ARCH2-2-10 is supplied with two magnetic lock cut-outs and a mounting plate and is intended for compatible 1200lbs standard mortice magnetic locks.

Please check the magnetic lock model, monitoring requirements, door configuration and installation dimensions before ordering.

Frequently Asked Questions

What is the ARCH2-2-10 used for?

The ARCH2-2-10 is a 2 metre standard transom housing designed to provide a neat architectural mounting solution for compatible standard mortice magnetic locks.

Is the ARCH2-2-10 for mini or standard magnetic locks?

The ARCH2-2-10 is designed for standard mortice magnetic locks. ARCH housings without the -10 designation are for slim and mini mortice magnetic locks.

Which magnetic locks are compatible with the ARCH2-2-10?

The ARCH2-2-10 is for use with the A10020M & U10020M standard mortice magnetic locks.

How long is the ARCH2-2-10 housing?

The ARCH2-2-10 is a 2 metre transom housing.

How many magnetic lock cut-outs does the ARCH2-2-10 have?

The ARCH2-2-10 has two magnetic lock cut-outs.

Is the ARCH2-2-10 supplied with a mounting plate?

Yes. The ARCH standard housing range is supplied with a mounting plate.

Is the ARCH2-2-10 mounted horizontally or vertically?

The ARCH2-2-10 is designed for horizontal fitting.

What holding force magnetic locks is the ARCH2-2-10 designed for?

The ARCH2-2-10 is intended for compatible standard mortice magnetic locks providing up to 1200lbs (545kg) holding force.

What bracket is available for the ARCH2-2-10?

The compatible bracket is the 2MTL-10 L bracket, which is designed for the ARCH2-2-10 and ARCH2-2-10V standard transom housings.

What should I check before ordering?

Please check the magnetic lock model, monitoring requirements, door configuration, mounting position and installation dimensions before ordering.
