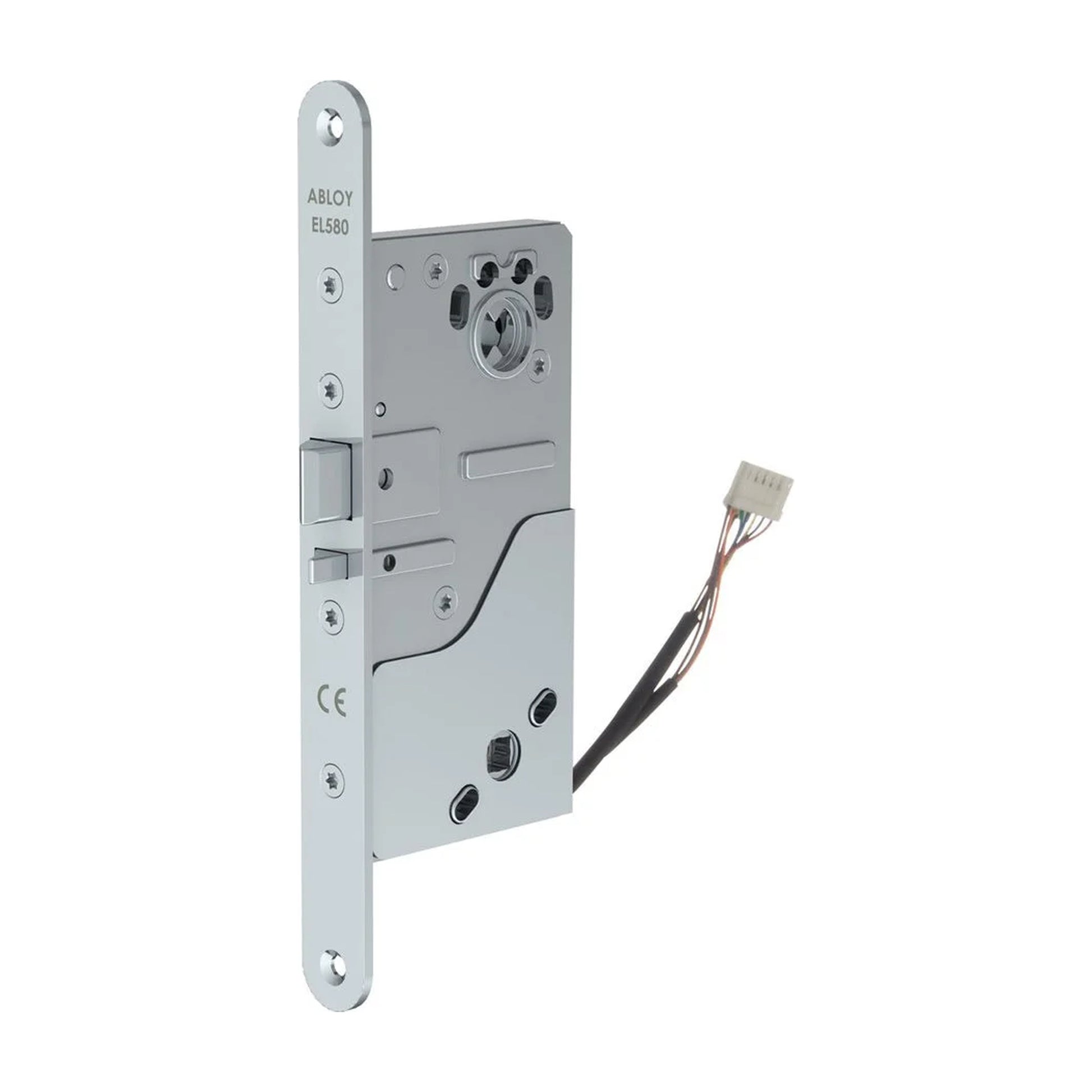

ABLOY EL580 Handle Controlled Electric Lock

The ABLOY EL580 Scandinavian Solenoid Lock is a handle-controlled solenoid operated lockcase designed for use on solid doors where electronic access control or remote door release is required. The lock can be electrically controlled by an access control system, keypad, timer, push button or other suitable control device.

Designed for medium traffic doors, the EL580 provides controlled access for internal door applications where electronic access control is needed. The lock can be configured for fail-locked or fail-unlocked operation, allowing the electrical function to be selected to suit the application.

The EL580 is commonly used on internal doors in offices, storage rooms, maintenance rooms, commercial buildings, public buildings, education sites and healthcare environments. As a handle-controlled lock, it is not suitable for use with door automatics.

Available Models

• EL580-50 – 50mm Backset, Handle Controlled Electric Lock
• EL580-70 – 70mm Backset, Handle Controlled Electric Lock

Key Features

• Scandinavian standard handle-controlled solenoid lockcase

• Designed for solid doors

• Single point locking

• Suitable for medium traffic doors

• Electrically controlled by access control or remote-control systems

• Can be configured as fail-locked or fail-unlocked

• Suitable for electronic access control applications

• Designed for internal controlled door applications

• Commonly used on offices, storage rooms and maintenance rooms

• Mortice installation

• Certified to EN 14846 electric lock standard

• Certified to EN 179 for exit door applications

• Certified to EN 1125 for panic exit door applications

• Fire approval included under EN 14846 certification

• Not suitable for use with door automatics

Typical Applications

• Access control systems

• Door entry systems

• Electronically controlled internal doors

• Commercial buildings

• Office buildings

• Public buildings

• Hospitals and healthcare buildings

• Schools, colleges and universities

• Storage rooms

• Maintenance rooms

• Restricted access areas

• Medium traffic doors

• Internal door security applications

• Escape door applications where suitable hardware and certification requirements are met

• Compatible fire door applications where suitable certification and installation requirements are met

Compatibility and Accessories

The ABLOY EL580 Scandinavian Solenoid Lock is designed to integrate with a wide range of electronic access control and door security equipment.

When building a complete system, please check the required lock model, operating voltage, fail-locked or fail-unlocked function, cylinder requirements, handle furniture, monitoring requirements, door type, escape route requirements and fire door certification before ordering.

• Access Control Systems

• Door Entry Systems

• Keypad Entry Systems

• Proximity Readers

• Timers and Relays

• Push Buttons

• Power Supplies

• Door Entry Intercom Systems

• Emergency Door Release Units

• Suitable Door Furniture

• Compatible Cylinders

• Compatible Strike Plates

• Compatible Connection Cables

• Lead Covers

Technical Specification

• Product type: Solenoid operated lockcase

• Model: ABLOY EL580

• Lock type: Scandinavian standard handle-controlled single point lock

• Door type: Solid doors

• Operation: Electrically controlled handle-controlled lock

• Electrical function: Fail-locked / fail-unlocked configurable

• Installation type: Mortice

• Mortice standard: Scandinavian

• Locking points: Single point

• Backset options: 50mm or 70mm
• Door usage: Medium traffic doors

• Standards: EN 14846, EN 179 and EN 1125

• Fire approval: Included under EN 14846 certification, subject to correct specification and installation requirements

• Door automatics: Not suitable for use with door automatics

ABLOY EL580 Product Information

ABLOY EL580 Technical Datasheet

Please refer to the ABLOY product datasheet and installation instructions before ordering or installing the EL580 Scandinavian Solenoid Lock.

The lock model, cylinder, door furniture, operating mode, access control wiring, monitoring requirements and door certification should all be checked before installation.

Where the EL580 is used on an escape route, panic exit door or fire-rated door, the complete door assembly, hardware specification, certification, installation method and relevant safety requirements must be suitable for the application.

The ABLOY EL580 provides a professional handle-controlled solenoid lockcase solution for Scandinavian standard solid door applications where electronic access control, remote door control and selectable fail-locked or fail-unlocked operation are required.

Frequently Asked Questions

What is the ABLOY EL580 used for?

The ABLOY EL580 is a Scandinavian standard solenoid operated lockcase used for access control and remote door release applications on suitable solid doors.

How does the ABLOY EL580 work?

The EL580 is a handle-controlled solenoid lock. It can be electrically controlled by an access control system or remote-control device, allowing the handle-controlled function to be used for controlled access.

Is the ABLOY EL580 fail-locked or fail-unlocked?

The ABLOY EL580 can be set to operate as fail-locked or fail-unlocked. In fail-locked mode, the lock can be opened by handle when power is on and cannot be opened by handle when power is off. In fail-unlocked mode, the electrical function is reversed.

What is the difference between the ABLOY EL580 and EL560?

The ABLOY EL580 is a Scandinavian standard lockcase, while the ABLOY EL560 is a DIN standard lockcase. Both are handle-controlled solenoid locks for solid doors and medium traffic access control applications.

Is the ABLOY EL580 suitable for high traffic doors?

The EL580 is designed for medium traffic doors. For high traffic applications, a suitable motor lock or alternative product may be more appropriate depending on the door and system requirements.

Can the ABLOY EL580 be used with door automatics?

No. ABLOY states that handle-controlled locks such as the EL580 cannot be used with door automatics.

Is the ABLOY EL580 suitable for fire doors?

The EL580 is certified to EN 14846, including fire approval. Suitability for a fire-rated door depends on the complete door assembly, certification, installation method and project requirements.

Is the ABLOY EL580 suitable for escape doors?

The EL580 is certified to EN 179 for exit doors and EN 1125 for panic exit doors. The complete door hardware set must be correctly specified and installed for the application.

Can the ABLOY EL580 be connected to access control?

Yes. The EL580 can be electrically controlled by access control systems and remote-control devices such as keypads, timers, push buttons and door entry systems.

What should I check before ordering?

Please check the lock model, door type, cylinder requirements, handle furniture, fail-locked or fail-unlocked function, access control wiring, monitoring requirements and any escape or fire door requirements before ordering.
