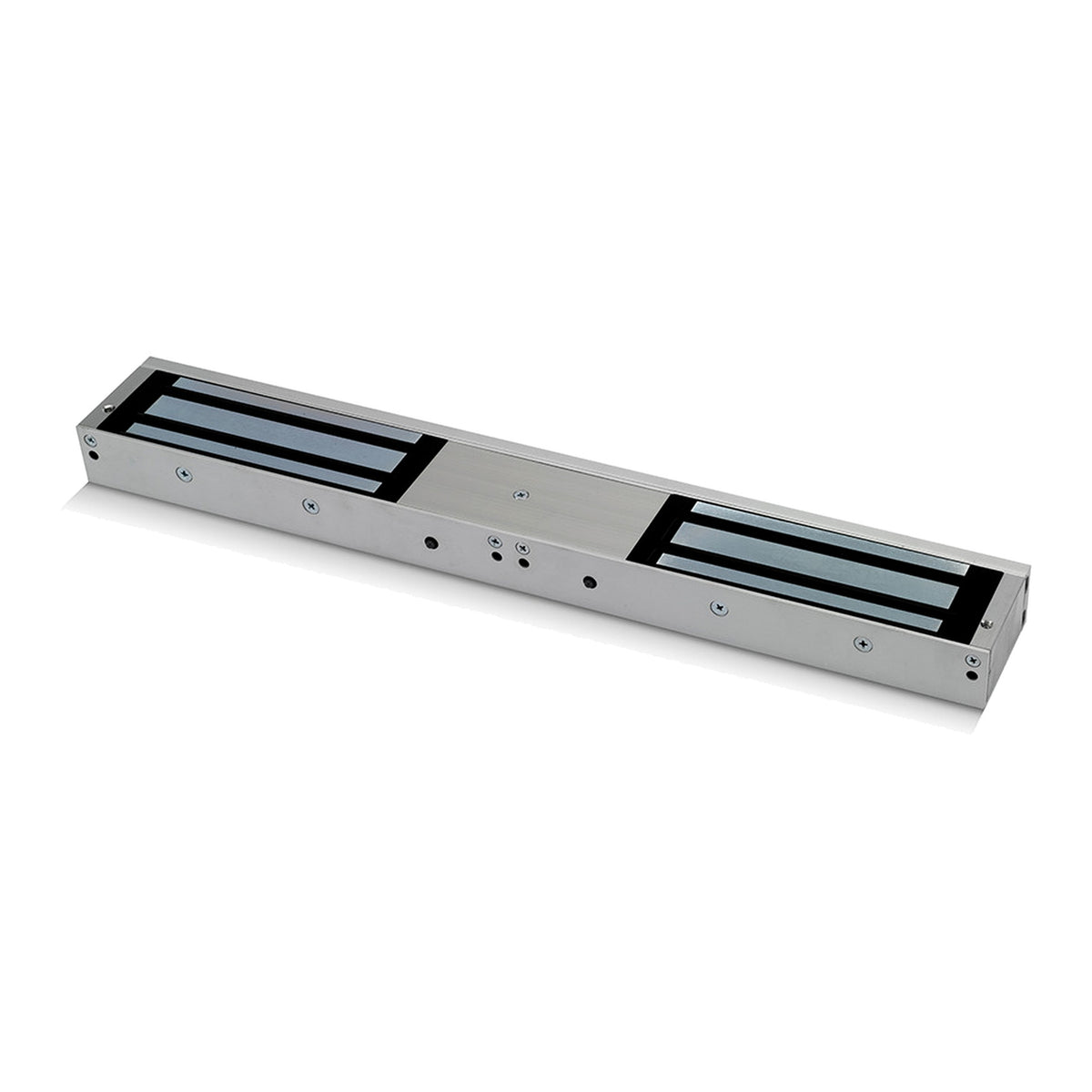

A10040 / A10040DS Monitored Standard Double Magnetic Lock (Maglock)

The A10040 / A10040DS Monitored Standard Double Magnetic Locks (Maglocks) are high-performance electromagnetic locking solutions designed for use with access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure and reliable locking for double-door access control installations.

Featuring a holding force of up to 2 x 1200lbs (544kg) and selectable 12VDC or 24VDC operation, the A10040 Series provides strong and dependable security across both door leaves whilst maintaining fail-safe operation for safe egress. Manufactured with a durable aluminium housing and electroless nickel plated armature plates, these double magnetic locks are designed for long-term reliability and consistent performance in demanding environments.

Both models include lock status monitoring with an output for connection to compatible access control or monitoring systems. Each lock also features LED lock status indication, showing green when unlocked and red when locked. The A10040DS additionally includes a door status output, allowing compatible systems to monitor whether the door is physically open or closed.

Available Models

• A10040 – Monitored Standard Double Magnetic Lock
• A10040DS – Monitored Standard Double Magnetic Lock with Door Status Output

Key Features

• Double Standard Magnetic Lock Design
• Up to 2 x 1200lbs (544kg) Holding Force
• Selectable 12VDC or 24VDC Operation
• Fail Safe Operation (Power to Lock)
• Lock Status Monitoring Output
• LED Lock Status Indication
• Green Unlocked / Red Locked LED Display
• Door Status Output on A10040DS
• Aluminium Lock Housing
• Electroless Nickel Plated Armature Plates
• Suitable for Access Control Applications
• Reliable Electromagnetic Locking

Typical Applications

• Double Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Public Buildings
• Restricted Access Areas
• Reception Entrances
• Internal Security Doors
• Industrial Premises

Compatibility and Accessories

The A10040 / A10040DS Monitored Standard Double Magnetic Locks are designed to integrate with a wide range of access control and door security equipment, making them suitable for both new installations and retrofit projects.

When building a complete system, please check the lock voltage, current draw, door type, mounting requirements and any emergency release requirements before ordering.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies, Relays and Timers
• Building Management Systems
• Fire Alarm Interface Systems

Technical Specification

• Lock Type: Monitored Standard Double Magnetic Lock (Maglock)
• Operation: Fail Safe (Power to Lock)
• Operating Voltage: Selectable 12VDC or 24VDC
• Holding Force: Up to 2 x 1200lbs (544kg)
• Lock Monitoring: Monitored – All Models
• Door Status Output: A10040DS Only
• Lock Status LED: Green Unlocked / Red Locked
• Housing Material: Aluminium
• Armature Plates: Electroless Nickel Plated Steel
• Dimensions: 67mm x 532mm x 40mm (H x W x D)

A10040 Product Information

The A10040 / A10040DS Monitored Standard Double Magnetic Locks provide a secure and reliable locking solution for access control installations requiring high holding force and dependable security for double-door applications. With lock status monitoring and LED lock indication as standard, and optional door status monitoring on the A10040DS, they are ideal for commercial, industrial, educational, healthcare, residential and public sector environments where a durable monitored double magnetic lock or double door maglock is required.

Frequently Asked Questions

What is a monitored standard double magnetic lock?

A monitored standard double magnetic lock is an electromagnetic locking device designed for double-door access control applications. It includes a lock status monitoring output for connection to compatible access control or monitoring systems.

What is the holding force of the A10040 double maglock?

The A10040 Series provides up to 2 x 1200lbs (544kg) of holding force, providing secure electromagnetic locking across both door leaves.

Can the A10040 magnetic lock be used on double doors?

Yes. The A10040 Series is specifically designed for double-door applications and provides secure electromagnetic locking across paired access-controlled doors.

What does fail-safe operation mean?

Fail safe operation means the magnetic lock requires power to remain locked. If power is removed due to a power failure, emergency release activation or other control input, the lock automatically releases to allow safe egress.

What is the difference between the A10040 and A10040DS?

Both models include lock status monitoring and LED lock status indication. The A10040DS additionally includes a door status output, allowing compatible systems to monitor whether the door is physically open or closed.

What does the LED indication show?

The A10040 Series includes LED lock status indication, showing green when unlocked and red when locked.

Can the A10040 Series be used with access control systems?

Yes. The A10040 Series is designed for integration with access control systems, door entry systems, intercoms, emergency door release units, keypads, card readers, press to exit buttons and other electronic door security equipment.

Why choose a double standard magnetic lock?

A double standard magnetic lock provides high holding force across both door leaves while retaining the simplicity and reliability of electromagnetic locking. It is well suited to double-door access control applications requiring dependable fail-safe operation and minimal mechanical maintenance.
