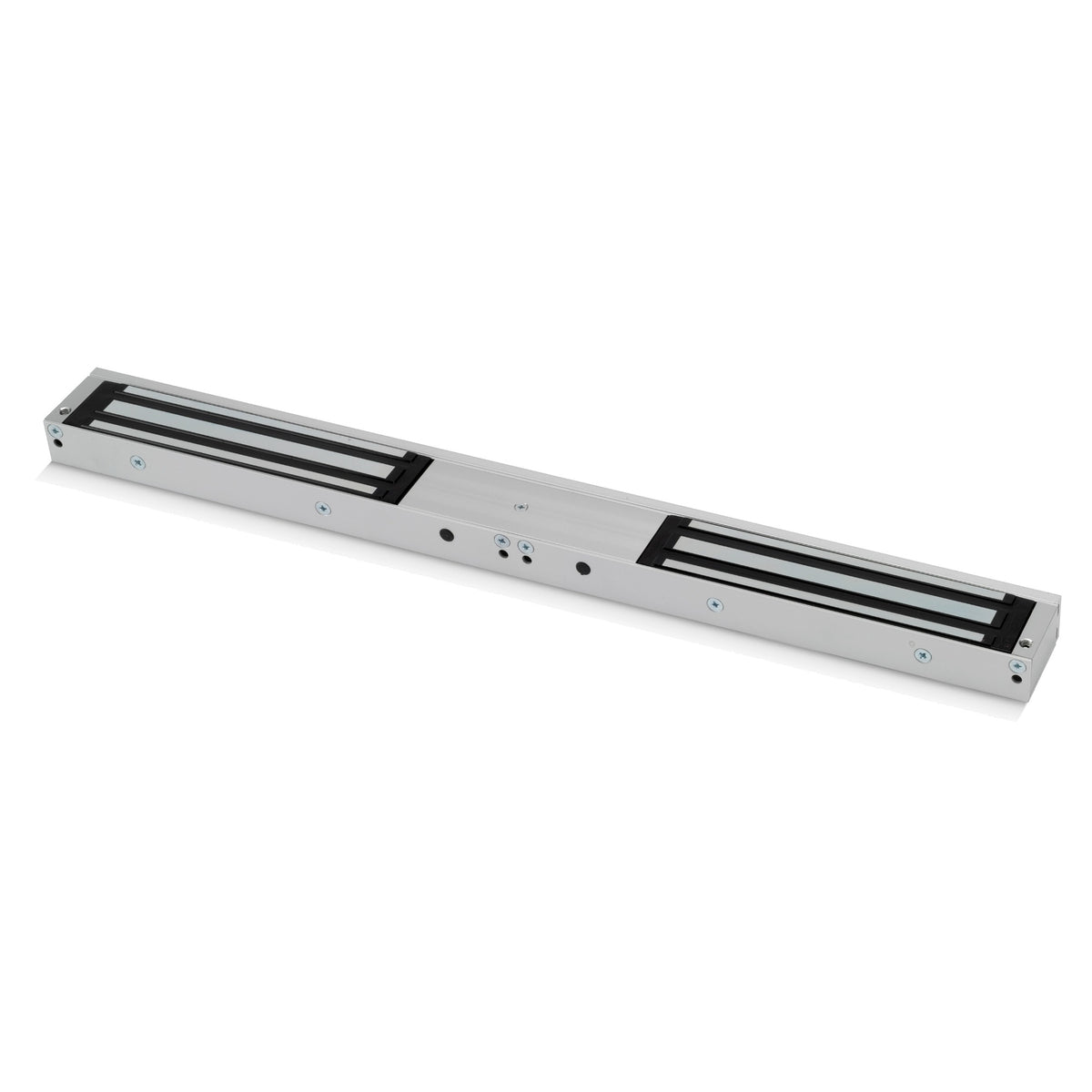

A10004 / A10004DS Double Mini Magnetic Lock (Maglock)

The A10004 / A10004DS Double Mini Magnetic Locks or Maglocks are compact electromagnetic locking solutions designed for securing double doors in access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure and reliable locking for paired access-controlled doors.

Operating from selectable 12VDC or 24VDC, the A10004 Series delivers up to 2 x 600lbs (272kg) of holding force, providing secure locking across both door leaves. Manufactured with a durable aluminium housing and electroless nickel plated armature plates, these magnetic locks are designed to provide long-term reliability and consistent locking performance.

The A10004DS version additionally includes a door status output for connection to compatible access control or monitoring systems, allowing the system to identify whether the door is physically open or closed.

Available Models

• A10004 – Unmonitored Double Mini Magnetic Lock
• A10004DS – Unmonitored Double Mini Magnetic Lock with Door Status Output

Key Features

• Double Mini Magnetic Lock Design
• Suitable for Double Door Applications
• Up to 2 x 600lbs (272kg) Holding Force
• Selectable 12VDC or 24VDC Operation
• Fail Safe Operation (Power to Lock)
• Aluminium Lock Housing
• Electroless Nickel Plated Armature Plates
• Door Status Output on A10004DS
• Suitable for Access Control Applications
• Reliable Electromagnetic Locking

Typical Applications

• Double Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Public Buildings
• Staff Access Areas
• Restricted Access Areas
• Double Door Security Entrances

Compatibility and Accessories

The A10004 / A10004DS Double Mini Magnetic Locks are designed to integrate with a wide range of access control and door security equipment, making them suitable for both new installations and retrofit projects.

When building a complete system, please check the lock voltage, current draw, door type, mounting requirements and any emergency release requirements before ordering.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies
• Relays and Timers
• Door Monitoring Systems

Technical Specification

• Lock Type: Double Mini Magnetic Lock (Maglock)
• Operation: Fail Safe (Power to Lock)
• Operating Voltage: Selectable 12VDC or 24VDC
• Holding Force: Up to 2 x 600lbs (272kg)
• Lock Monitoring: Unmonitored
• Door Status Output: A10004DS Only
• Housing Material: Aluminium
• Armature Plates: Electroless Nickel Plated Steel
• Dimensions: 42mm x 500mm x 26mm (H x W x D)

A10004 Product Information

The A10004 / A10004DS Double Mini Magnetic Locks provide a secure and reliable locking solution for access control installations requiring dependable security for double door applications. Available with or without door status monitoring, they are ideal for commercial, educational, healthcare, residential and public sector environments where a compact double magnetic lock or double door maglock is required.

Frequently Asked Questions

What is a double mini magnetic lock?

A double mini magnetic lock is a compact electromagnetic locking device designed to secure double-door applications. It provides electromagnetic locking on both door leaves whilst maintaining a smaller overall size than standard double magnetic locks.

What is the holding force of the A10004 Series?

The A10004 Series provides a holding force of up to 2 x 600lbs (272kg), making it suitable for securing access-controlled double doors in commercial, educational, healthcare, residential and public buildings.

Can the A10004 Series be used on double doors?

Yes. The A10004 Series has been specifically designed for double-door installations and provides secure electromagnetic locking for paired door leaves.

What does fail-safe operation mean?

Fail safe operation means the magnetic lock requires power to remain locked. If power is removed due to a power failure, emergency release activation or other control input, the lock automatically releases to allow safe egress.

What is the difference between the A10004 and A10004DS?

The A10004DS includes a door status output, allowing compatible access control or monitoring systems to identify whether the door is open or closed. The A10004 provides the same locking performance without the door status output.

Can the A10004 Series be used with access control systems?

Yes. The A10004 Series is compatible with access control systems, intercoms, door entry systems, card readers, keypads, press to exit buttons, emergency door release units and other electronic door security equipment.

Why choose a double mini magnetic lock?

Double mini magnetic locks provide a compact solution for securing double doors whilst offering reliable fail-safe operation, minimal maintenance requirements and compatibility with a wide range of access control systems.
