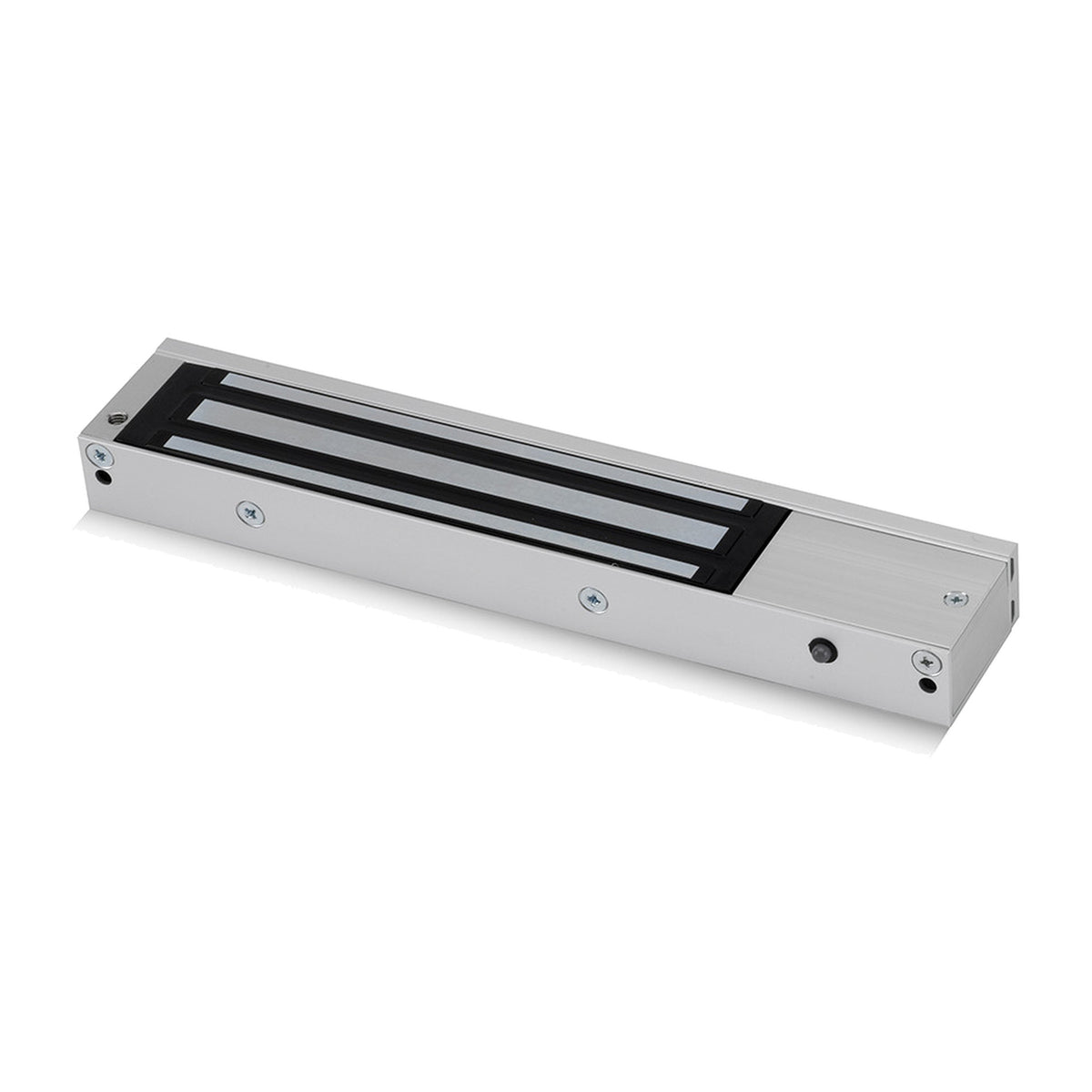

A10002 / A10002DS Monitored Mini Magnetic Lock (Maglock)

The A10002 / A10002DS Mini Magnetic Locks or Maglocks are compact electromagnetic locking solutions designed for use with access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure and reliable door locking for access-controlled doors.

Operating from selectable 12VDC or 24VDC, the A10002 Series delivers up to 600lbs (272kg) of holding force while maintaining a compact footprint. Manufactured with a durable aluminium housing, these monitored magnetic locks are designed to provide long-term reliability and consistent locking performance in demanding environments.

Both models include lock status monitoring with an output for connection to compatible access control systems. Each lock also features LED lock status indication, showing green when unlocked and red when locked. The A10002DS additionally includes a door status output, allowing compatible systems to monitor whether the door is physically open or closed.

Available Models

• A10002 – Monitored Mini Magnetic Lock
• A10002DS – Monitored Mini Magnetic Lock with Door Status Output

Key Features

• Compact Mini Magnetic Lock Design
• Up to 600lbs (272kg) Holding Force
• Selectable 12VDC or 24VDC Operation
• Fail Safe Operation (Power to Lock)
• Aluminium Lock Housing
• Lock Status Monitoring Output
• Door Status Output on A10002DS
• LED Lock Status Indication
• Green Unlocked / Red Locked LED Display
• Suitable for Access Control Applications
• Reliable Electromagnetic Locking

Typical Applications

• Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Premises
• Residential Developments
• Internal Security Doors
• Staff Access Areas
• Restricted Access Areas

Compatibility and Accessories

The A10002 / A10002DS Mini Magnetic Locks are designed to integrate with a wide range of access control and door security equipment, making them suitable for both new installations and retrofit projects.

When building a complete system, please check the lock voltage, current draw, door type, mounting requirements and any emergency release requirements before ordering.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies
• Relays and Timers
• Door Monitoring Systems

Technical Specification

• Lock Type: Mini Magnetic Lock (Maglock)
• Operation: Fail Safe (Power to Lock)
• Operating Voltage: Selectable 12VDC or 24VDC
• Holding Force: Up to 600lbs (272kg)
• Lock Monitoring: Monitored – All Models
• Door Status Output: A10002DS Only
• Lock Status LED: Green Unlocked / Red Locked
• Housing Material: Aluminium
• Dimensions: 42mm x 250mm x 26mm (H x W x D)

A10002 Product Information

The A10002 / A10002DS Mini Magnetic Locks provide a secure and reliable locking solution for access control installations requiring compact dimensions, dependable holding force, lock status monitoring, and LED lock status indication. With the A10002DS also providing door status monitoring, the range is ideal for commercial, residential, educational, healthcare and public sector applications where a compact monitored magnetic lock or maglock is required.

Frequently Asked Questions

What is a mini magnetic lock?

A mini magnetic lock, also known as a mini maglock, is a compact electromagnetic locking device designed for use on access-controlled doors where installation space is limited. Despite its smaller size, it provides secure and reliable locking for a wide range of access control applications.

What is the holding force of the A10002 Series?

The A10002 Series provides a holding force of up to 600lbs (272kg), making it suitable for internal access control doors, offices, residential developments and restricted access areas.

What does lock monitoring mean?

Lock monitoring provides an output that can be connected to a compatible access control or monitoring system to indicate the status of the magnetic lock.

What does fail-safe operation mean?

Fail safe operation means the magnetic lock requires power to remain locked. If power is removed due to a power failure, emergency release activation or other control input, the lock automatically unlocks to allow safe egress.

What is the difference between the A10002 and A10002DS?

Both models include lock status monitoring and LED lock status indication. The A10002DS additionally includes a door status output, allowing compatible systems to monitor whether the door is physically open or closed. The A10002 provides the same monitored locking performance without the door status output.

Can the A10002 Series be used with access control systems?

Yes. The A10002 Series is designed for integration with access control systems, door entry systems, intercoms, proximity card readers, keypad entry systems, press to exit buttons and emergency door release units.

What does the LED indication show?

The A10002 Series includes LED lock status indication, showing green when unlocked and red when locked.

Why choose a mini magnetic lock?

Mini magnetic locks offer a compact and reliable locking solution where installation space is limited. They provide dependable electromagnetic locking, fail-safe operation and compatibility with a wide range of access control and door security systems.

Are mini magnetic locks suitable for commercial buildings?

Yes. The A10002 Series is suitable for commercial buildings, schools, healthcare facilities, residential developments, offices and other environments where secure access control is required.
