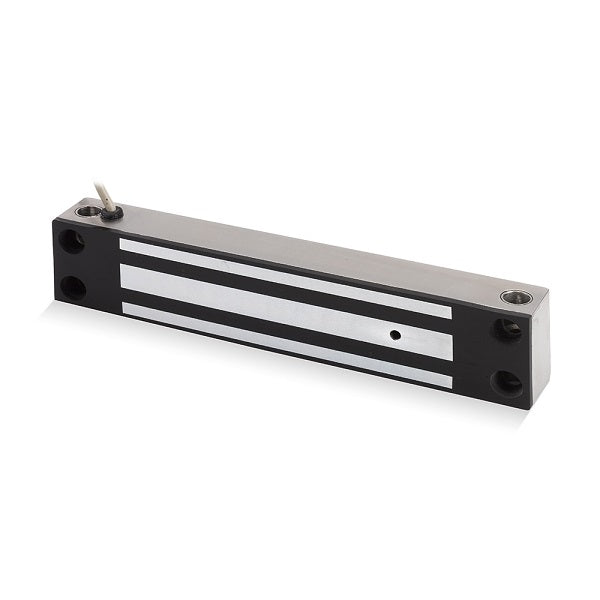

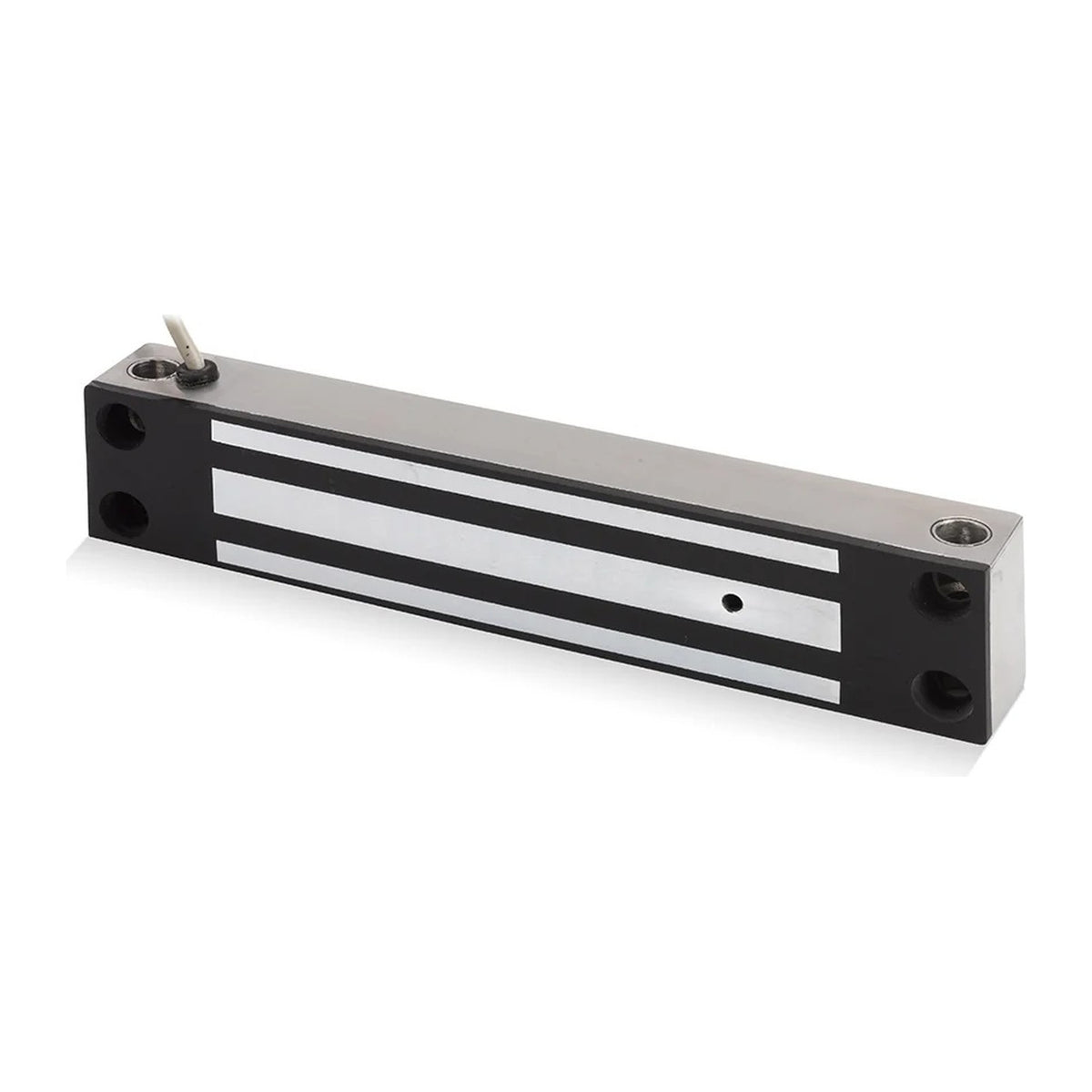

U10006S Monitored Midi Magnetic Lock (Maglock)

The U10006S Midi Magnetic Lock is a high-performance electromagnetic locking solution designed for use with access control systems, door entry systems, intercoms, and electronic security installations. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, it provides reliable fail-safe locking with enhanced weather and vandal resistance for demanding applications.

An electromagnetic lock, commonly known as a magnetic lock or maglock, consists of an electromagnet mounted to the door frame and a matching armature plate attached to the door. When power is applied, the electromagnet generates a powerful magnetic field that securely holds the armature plate in place. As a fail-safe device, the lock automatically releases when power is removed, allowing safe egress.

Operating from selectable 12VDC or 24VDC, the U10006S provides a holding force of up to 800lbs (363kg). Manufactured with a durable stainless steel housing, the lock features sealed electronics, integrated lock monitoring, an IP67 weather-resistant rating, and vandal-resistant construction, making it suitable for both internal and external installations where durability and reliability are essential.

Available Model

• U10006S – Monitored Midi Magnetic Lock (Maglock)

Key Features

• Midi Magnetic Lock (Maglock)
• Holding Force up to 800lbs (363kg)
• Selectable 12VDC or 24VDC Operation
• Fail Safe Operation (Power to Lock)
• Integrated Lock Monitoring
• Stainless Steel Housing
• Sealed Electronics
• IP67 Weather Resistant
• Vandal Resistant Construction
• Suitable for Indoor and Outdoor Installations
• Suitable for Access Control Systems
• Suitable for New Installations and Retrofit Projects

Typical Applications

• Access Control Systems
• Commercial Buildings
• Industrial Facilities
• Healthcare Facilities
• Educational Buildings
• External Gates
• Perimeter Security
• Restricted Access Areas
• High-Traffic Entrances
• Internal Security Doors

Compatibility and Accessories

The U10006S Midi Magnetic Lock is designed to integrate with a wide range of access control and electronic security equipment.

When building a complete system, please check the lock voltage, current draw, door type, mounting requirements and any emergency release requirements before ordering.

• Access Control Systems
• Emergency Door Systems
• Door Entry Systems
• Emergency Exit Systems
• Keypad Systems
• Proximity Readers
• Building Management Systems
• Power Supplies
• Door Monitoring Systems

Technical Specification

• Product Type: Monitored Midi Magnetic Lock (Maglock)
• Operating Voltage: Selectable 12VDC or 24VDC
• Operation: Fail Safe (Power to Lock)
• Holding Force: Up to 800lbs (363kg)
• Lock Monitoring: Integrated
• Housing: Stainless Steel
• Protection Rating: IP67
• Construction: Vandal Resistant
• Electronics: Sealed
• Dimensions: 46mm × 220mm × 30mm (H × W × D)

U10006S Product Information

The U10006S Midi Magnetic Lock provides a powerful and durable locking solution for access-controlled doors. Featuring up to 800lbs (363kg) holding force, stainless steel construction, sealed electronics, integrated lock monitoring, vandal-resistant construction and an IP67 weather-resistant rating, it is ideal for demanding indoor and outdoor access control installations.

Frequently Asked Questions

What holding force does the U10006S provide?

The U10006S provides a holding force of up to 800lbs (363kg).

Is the U10006S suitable for outdoor use?

Yes. The U10006S features sealed electronics, an IP67 weather-resistant rating, and a stainless steel housing, making it suitable for exposed outdoor installations.

What does the monitored function do?

The integrated lock monitoring output provides status feedback to a compatible access control or monitoring system, allowing the system to monitor the condition of the magnetic lock.

Is the U10006S vandal resistant?

Yes. The U10006S features a robust stainless steel housing and vandal-resistant construction, making it suitable for demanding, exposed and high-traffic environments.

Is the U10006S fail safe?

Yes. The U10006S operates as a fail-safe magnetic lock, meaning it requires power to remain locked and releases when power is removed.

What voltage does the U10006S operate on?

The U10006S operates from selectable 12VDC or 24VDC power supplies.

Can the U10006S be used with access control systems?

Yes. The U10006S is compatible with access control systems, door entry systems, intercoms, keypads, proximity readers, emergency door release units and other electronic security equipment.
