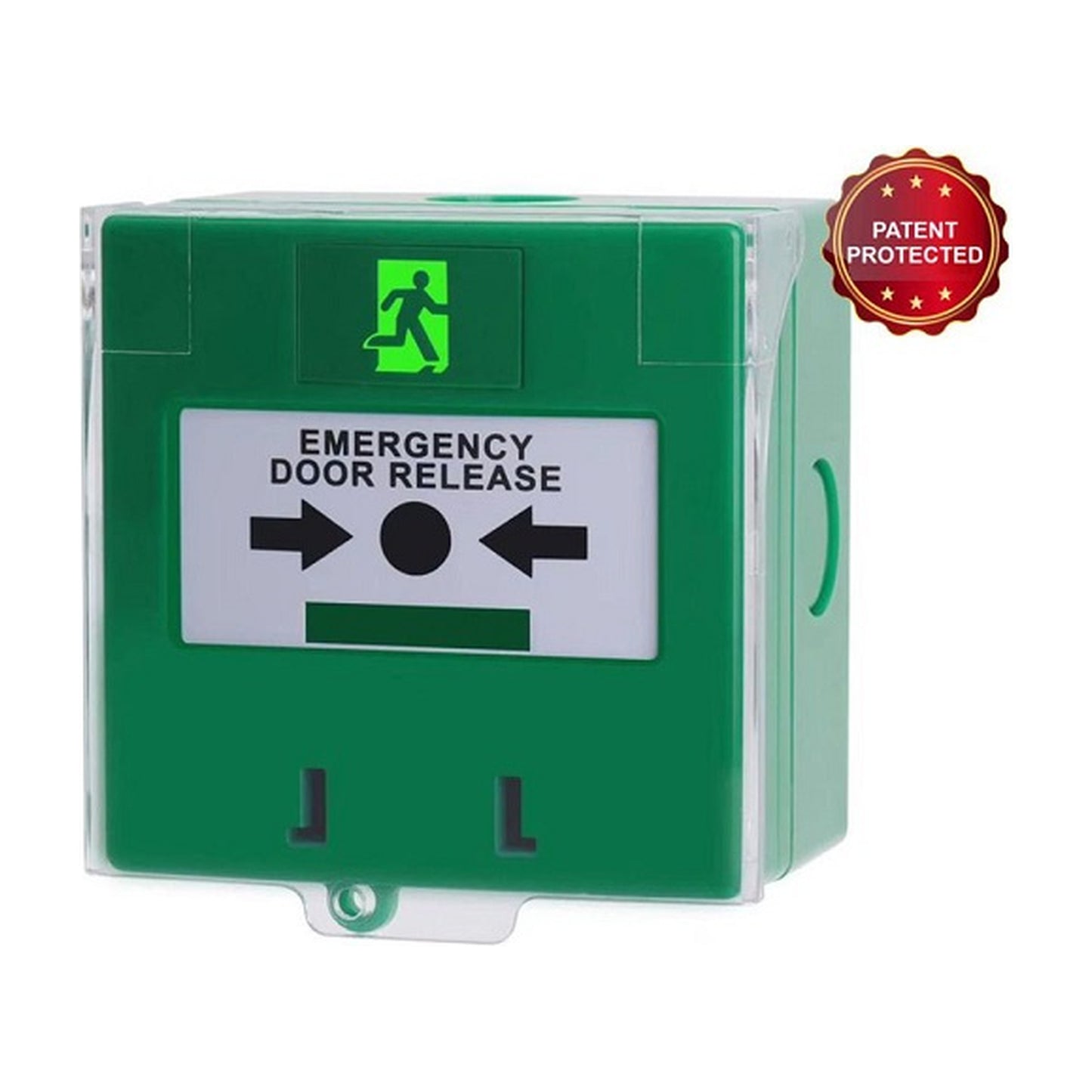

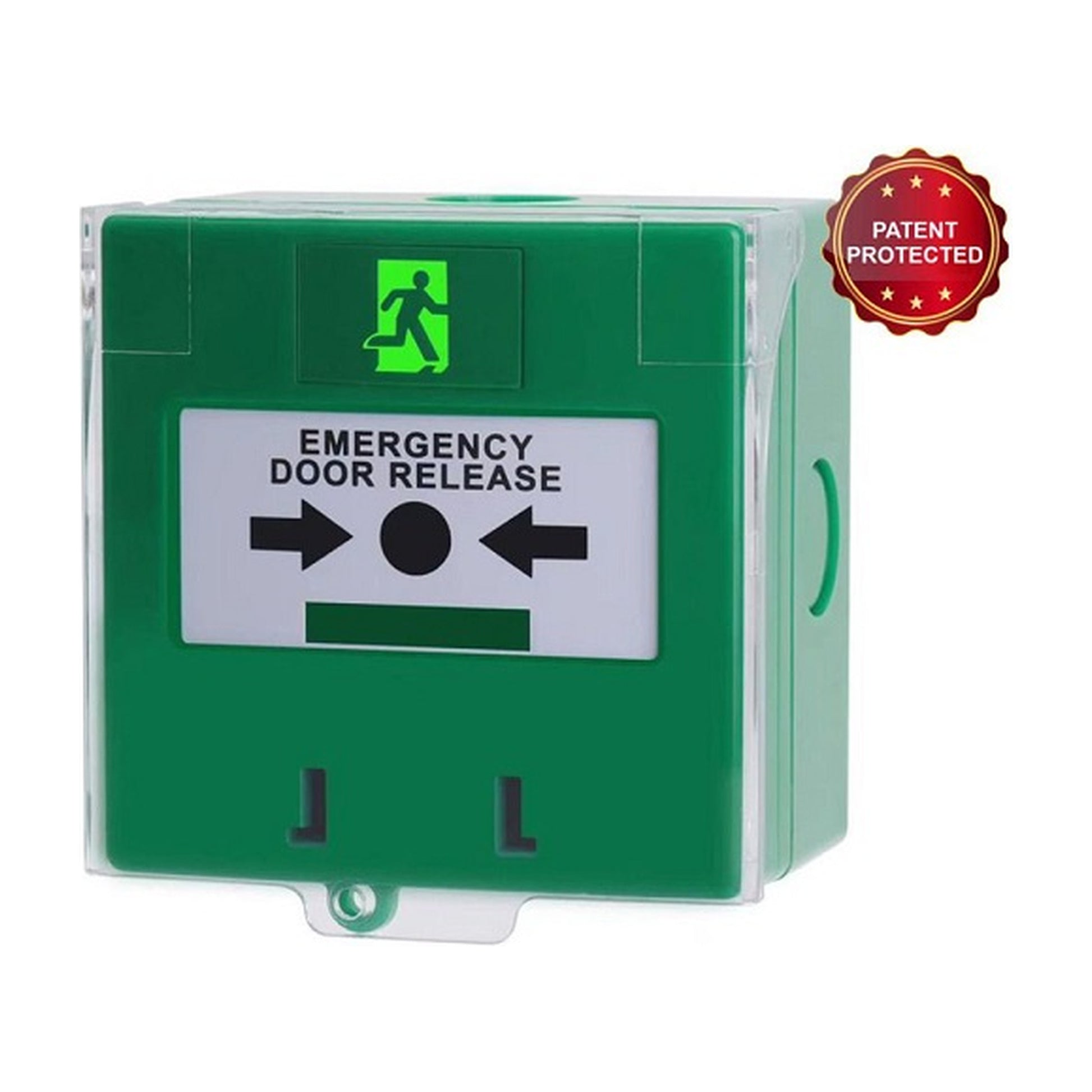

MCP440-WP Triple Pole Weatherproof Resettable Call Point

The MCP440-WP Triple Pole Weatherproof Resettable Call Point is an IP67-rated emergency door release device designed to provide safe override of electronic locking systems in both indoor and outdoor environments. Suitable for commercial, industrial, educational, healthcare, residential, and public sector applications, it ensures emergency exit routes can be safely released whenever required, even in harsh weather conditions.

Commonly referred to as an emergency door release, emergency break glass, green break glass unit, or emergency exit call point, the MCP440-WP is installed alongside access control systems to immediately interrupt power to electric locks and magnetic locks when activated. Its waterproof construction makes it particularly suitable for external doors, gates, plant rooms, loading bays, and other exposed installations.

Manufactured from durable green plastic, the MCP440-WP features a resettable operating mechanism, eliminating the need to replace glass after activation. The unit includes a clear protective front cover, LED status indicator, triple pole COM/NO/NC switching, and conduit entry on all four sides for flexible installation. With an IP67 weatherproof rating, it is designed to provide reliable operation in demanding environments.

Available Models

• MCP440-WP - Waterproof Resettable Emergency Call Point

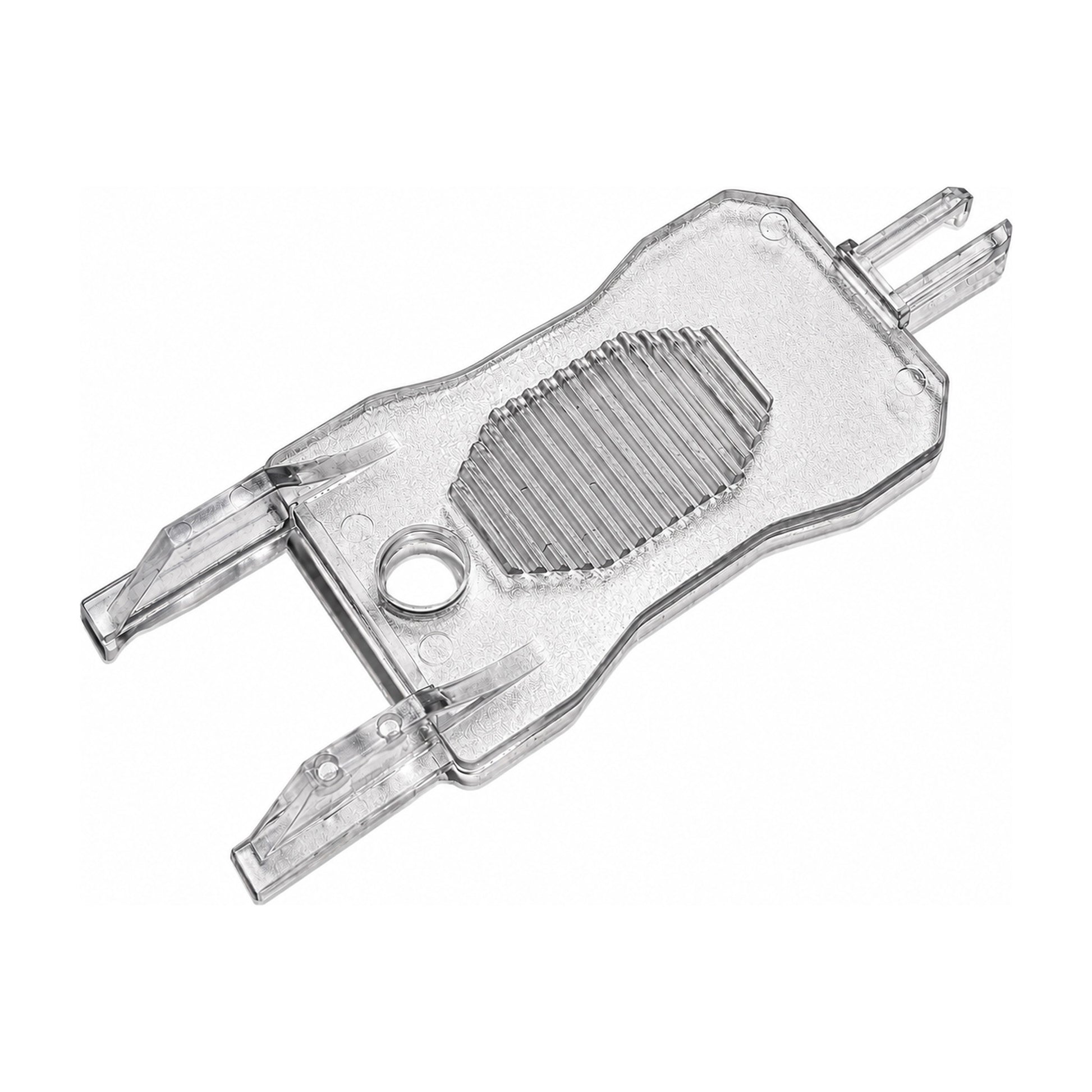

• MCP440-WP-KEY - Reset Key for the MCP440-WP Call Point

Key Features

• Waterproof Resettable Emergency Call Point
• IP67 weatherproof rating
• Resettable operating element
• Green plastic housing
• Clear protective front cover
• LED status indicator
• Triple pole COM / NO / NC switching
• Surface mount design
• Conduit entry on all four sides
• Operating voltage 12VDC to 24VDC
• Suitable for emergency door release applications
• Suitable for new installations and retrofits

Typical Applications

• Access Control Systems
• Emergency Door Release Systems
• External Exit Doors
• Automatic Gates
• Commercial Buildings
• Industrial Facilities
• Schools and Universities
• Healthcare Buildings
• Public Buildings
• Outdoor Security Installations

Compatibility

The MCP440-WP Waterproof Resettable Emergency Call Point is designed to integrate with a wide range of access control and life safety equipment.

• Access Control Systems
• Emergency Exit Doors
• Door Entry Systems
• Intercom Systems
• Magnetic Locks (Maglocks)
• Fail Safe Magnetic Lock Systems
• Electric Locks
• Electric Strikes
• Electric Bolts
• Shear Locks
• Emergency Door Release Systems
• Power Supplies
• Relays and Timers
• Building Management Systems
• Fire Alarm Interface Systems


Technical Specification

• Product Type: Waterproof Resettable Call Point with LED
• Operating Voltage: 12VDC to 24VDC
• Operation: Resettable
• Protection Rating: IP67
• Switching: Triple Pole COM / NO / NC
• LED Indicator: Yes
• Protective Cover: Clear front cover
• Conduit Entry: Four sides
• Housing Material: Green plastic
• Mounting: Surface mount
• Dimensions: 86.1mm x  92.55mm x 55.71mm (H x W x D)

MCP440-WP Product Information

The MCP440-WP Triple Pole Weatherproof Resettable Call Point provides a reliable emergency door release solution for both internal and external access control installations. Featuring IP67 weatherproof protection, a resettable operating mechanism, triple pole switching, LED indication, and flexible conduit entry, it offers enhanced functionality whilst reducing ongoing maintenance costs associated with traditional glass-element call points.

Frequently Asked Questions

What is the MCP440-WP used for?

The MCP440-WP is used to safely override electronic locking systems during an emergency, allowing immediate release of locked doors or gates.

Is the MCP440-WP suitable for outdoor installation?

Yes. The MCP440-WP has an IP67 weatherproof rating, making it suitable for external installations when correctly installed.

Does the MCP440-WP include a protective cover?

Yes. The MCP440-WP includes a clear protective front cover to help prevent accidental activation while still allowing emergency operation when required.

Does the MCP440-WP require replacement glass?

No. The MCP440-WP features a resettable operating element that can be quickly reset after activation without replacing glass.

Does the MCP440-WP include an LED indicator?

Yes. The unit includes an integrated LED status indicator.

What type of contacts does the MCP440-WP have?

The MCP440-WP features triple pole COM, NO, and NC contacts for flexible integration with access control and emergency release systems.

What does triple pole switching mean?

Triple pole switching provides three separate switching circuits within the call point, allowing the MCP440-WP to control or signal multiple compatible systems from a single emergency activation.

What voltage does the MCP440-WP operate on?

The MCP440-WP operates from either a 12VDC or 24VDC power supply.

Can the MCP440-WP be used with magnetic locks?

Yes. The MCP440-WP is designed for integration with magnetic locks, electric locks, access control systems, and emergency door release installations, allowing power to be interrupted during an emergency.
