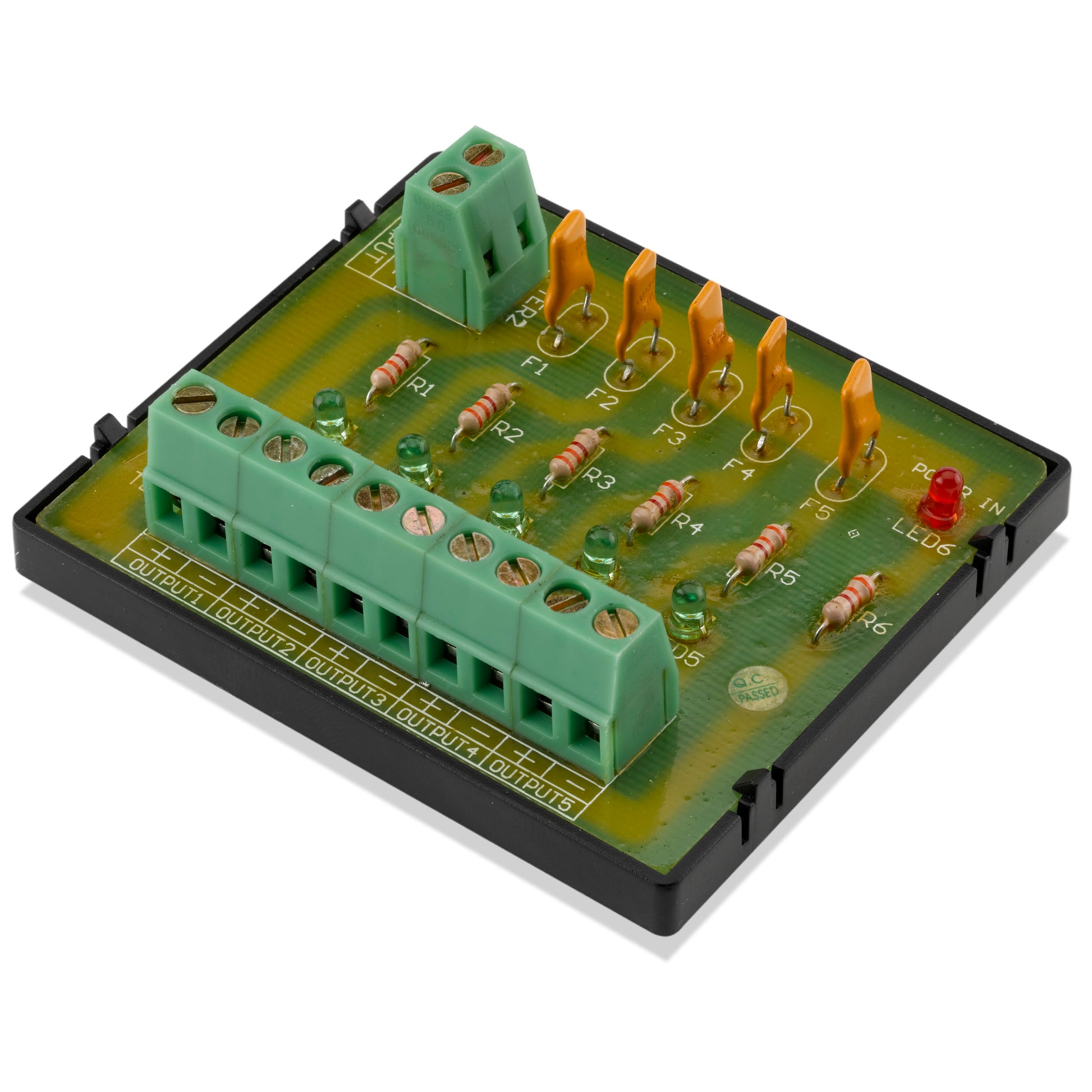

GPD3015 Plus Fused Distribution Board

The GPD3015 Plus Fused Distribution Board is a compact power distribution module designed for use with access control systems, door entry systems, CCTV installations, alarm systems, and other low-voltage electronic security applications. Suitable for commercial, industrial, educational, healthcare, and residential environments, it provides a convenient method of distributing power from a single power supply to multiple devices.

Operating on 12VDC to 24VDC systems, the GPD3015 Plus features five individually protected outputs, allowing multiple devices to be powered from a single input source. The use of thermal fuses provides automatic circuit protection, helping to protect connected equipment against overloads and short circuits whilst simplifying maintenance and fault finding.

Its compact design makes the GPD3015 Plus suitable for installation within control panels, equipment enclosures, access control cabinets, and security system housings where reliable low-voltage power distribution is required.

Available Models

• GPD3015 Plus – 5 Way Fused Distribution Board

Key Features

• Power distribution board
• Operating voltage 12VDC ~ 24VDC
• 5 individually protected outputs
• Thermal fuse protection
• Compact design
• Simplifies power distribution
• Suitable for low-voltage security systems
• Easy installation
• Reliable circuit protection
• Suitable for new installations and retrofit projects

Typical Applications

• Access control systems
• Door entry systems
• CCTV systems
• Intruder alarm systems
• Intercom systems
• Security control panels
• Electronic locking systems
• Building management systems
• Power distribution enclosures
• Low-voltage control systems

Compatibility

The GPD3015 Plus is designed to distribute power to a wide range of electronic security and low-voltage equipment.

• Access control systems
• Electric locks
• Magnetic locks (maglocks)
• Electric strikes
• Door entry systems
• Intercom systems
• CCTV cameras
• Alarm systems
• Control panels
• Security accessories

Technical Specification

• Product Type: Fused Distribution Board
• Operating Voltage: 12VDC ~ 24VDC
• Outputs: 5
• Fuse Type: Thermal Fuses
• Dimensions: 73mm x 64mm x 23mm (H x W x D)

GPD3015 Product Information

The GPD3015 Plus Fused Distribution Board provides a simple and effective solution for distributing power to multiple devices within access control and security installations. Featuring five individually protected outputs and thermal fuse protection, it helps improve system reliability whilst simplifying wiring and maintenance.

Frequently Asked Questions

What is the GPD3015 Plus used for?

The GPD3015 Plus is used to distribute power from a single 12VDC ~ 24VDC power supply to multiple devices within a security or access control installation.

How many outputs does the GPD3015 Plus provide?

The unit provides five individually protected power outputs.

What type of protection does the board use?

The GPD3015 Plus uses thermal fuses to protect connected equipment against overloads and faults.

What voltage does the GPD3015 Plus support?

The board operates on 12VDC ~ 24VDC systems.

Can it be used with access control systems?

Yes. The GPD3015 Plus is ideal for access control systems, electric locks, magnetic locks, door entry systems, CCTV equipment, and alarm systems.

Does the board simplify wiring installations?

Yes. The distribution board allows multiple devices to be powered from a single source, helping to reduce wiring complexity and improve installation efficiency.
