GK760 / GK770 Electric Release Lock

The GK760 and GK770 Electric Release Locks are versatile electric strikes designed for use with access control systems, door entry systems, intercoms, and electronic locking applications. Suitable for commercial, industrial, educational, healthcare, and public sector environments, they provide reliable remote door release whilst maintaining secure access control.

An electric strike, also known as a electric release, or latch release, is installed within the door frame and operates in conjunction with a compatible lock or latch. When activated, the strike releases the latch, allowing the door to be opened remotely without manual unlocking. Once the door closes, the latch automatically re-engages to restore security.

Designed for installation in both wood and metal door frames, the GK760 and GK770 feature selectable fail-safe or fail-secure operation and long-life solenoid technology. The GK760 monitored version additionally provides a door status output for integration with compatible access control and monitoring systems, while the GK770 is the unmonitored version. Both models are suitable for use with DIN standard lockcases, making them ideal for a wide range of commercial door security applications.

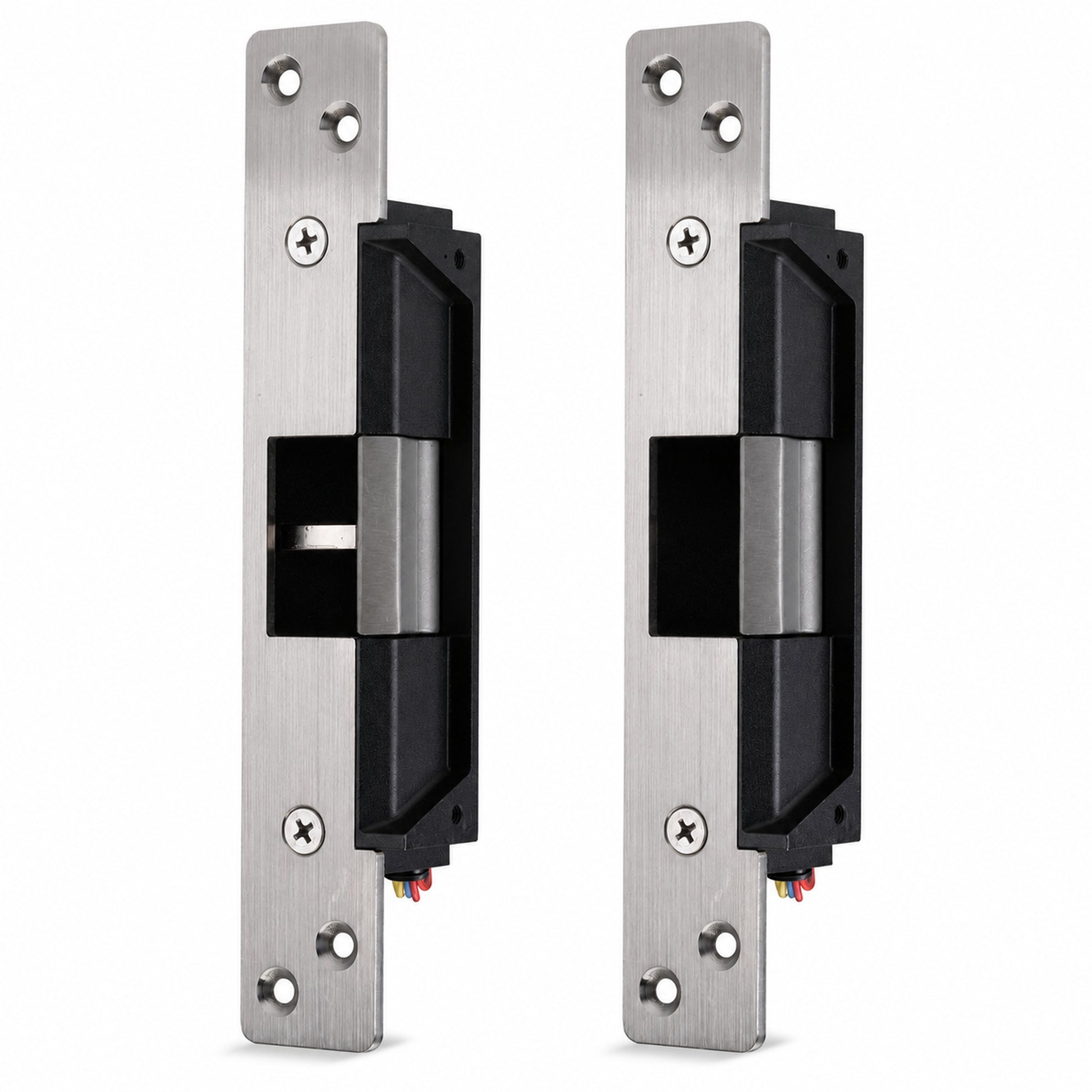

Available Models

• GK760 – Monitored Electric Release Lock

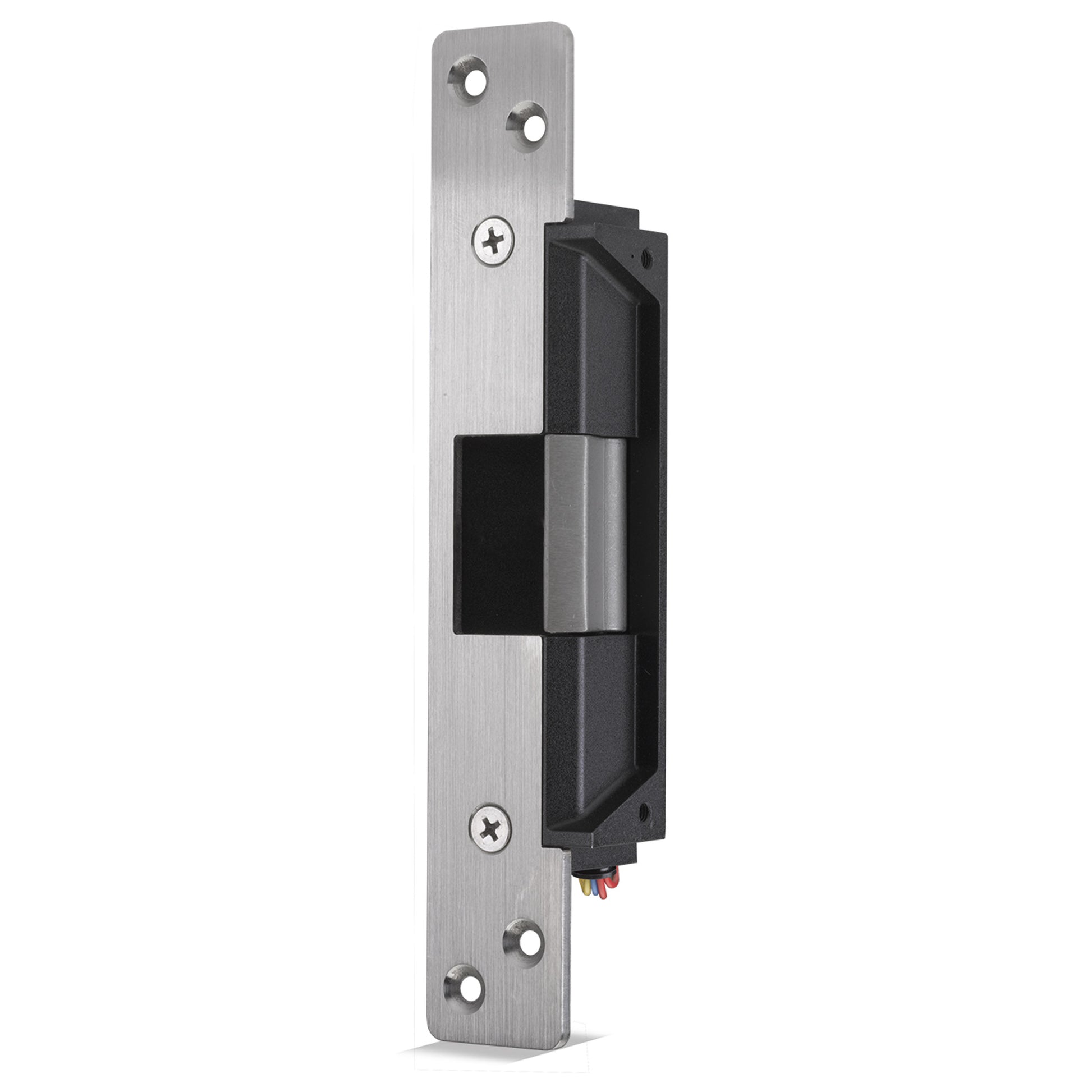

• GK770 – Unmonitored Electric Release Lock

Key Features

• Electric release lock
• Operating voltage 12V to 24VAC/VDC
• Selectable fail-safe or fail-secure operation
• Maximum latch throw 18mm
• Door status monitoring output (GK760 only)
• Suitable for wood or metal frame doors
• Long-life solenoid
• Suitable for DIN standard lockcases
• Reliable remote door release operation
• Suitable for access control systems
• Robust construction


Typical Applications

• Access control systems
• Door entry systems
• Intercom systems
• Commercial buildings
• Office entrances
• Educational facilities
• Healthcare environments
• Public buildings
• Staff access doors
• Security-controlled doors


Compatibility

The GK760 and GK770 are designed to integrate with a wide range of access control and door security equipment.

• Access control systems
• Door entry systems
• Intercom systems
• DIN standard lockcases
• Electric locks
• Keypad entry systems
• Proximity card readers
• Building management systems
• Power supplies
• Door monitoring systems

Technical Specification

• Product Type: Electric Release Lock (Rim Strike)
• Operating Voltage: 12V to 24VAC/VDC
• Operation: Fail-Safe / Fail-Secure (Selectable)
• Maximum Latch Throw: 18mm
• Monitoring: Monitored (GK760) / Unmonitored (GK770)
• Door Status Output: GK760 Only
• Frame Compatibility: Wood and Metal Frame Doors
• Solenoid Type: Long-Life Solenoid
• Lockcase Compatibility: DIN Standard Lockcases
• Dimensions: 201mm x 32mm x 28mm (H x W x D)

GK760 & GK770 Lock Product Information

The GK760 and GK770 Electric Release Locks provide reliable and flexible door release solutions for access control installations requiring DIN lockcase compatibility and selectable fail-safe or fail-secure operation. The GK760 includes a door status monitoring output for integration with access control and monitoring systems, whilst the GK770 provides the same dependable locking performance without monitoring functionality. Suitable for both wood and metal frame doors, they are ideal for a wide range of commercial and industrial door security applications.

Frequently Asked Questions

What are the GK760 and GK770 used for?

The GK760 and GK770 are used to provide remote door release in access control, door entry, and intercom systems whilst maintaining secure locking.

Do both models support fail-safe and fail-secure operation?

Yes. Both the GK760 and GK770 feature selectable fail-safe or fail-secure operation.

What voltage do the GK760 and GK770 operate on?

The units operate on 12 to 24VAC/VDC power supplies.

What is the difference between the GK760 and GK770?

The GK760 is a monitored electric release lock and includes a door status output, allowing integration with access control and door monitoring systems. The GK770 is an unmonitored version and does not provide door status feedback.

Are the GK760 and GK770 suitable for DIN lockcases?

Yes. They are specifically designed for compatibility with DIN standard lockcases.

Can these strikes be installed in wood and metal frames?

Yes. The GK760 and GK770 are suitable for installation in both wood and metal frame doors.

What is the maximum latch throw supported?

The strikes support a maximum latch throw of 18mm.
