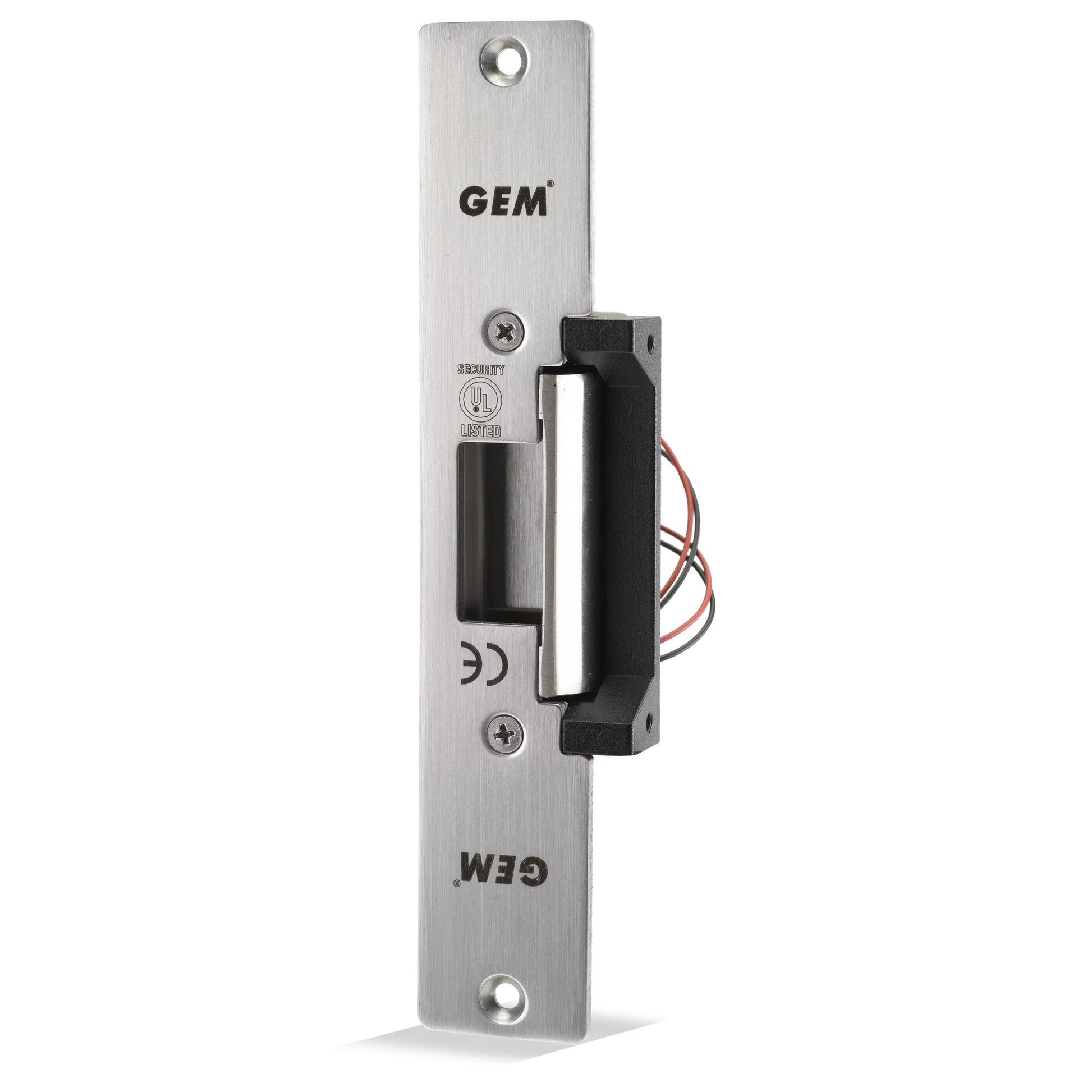

GK311-1224 Electric Release Lock

The GK311-1224 Electric Release Lock is a versatile electric strike designed for use with access control systems, door entry systems, intercoms, and electronic locking applications. Suitable for commercial, industrial, educational, healthcare, and public sector environments, it provides reliable remote door release whilst maintaining secure access control.

An electric strike, also known as a electric release, or latch release, is installed within the door frame and operates in conjunction with a compatible lock or latch. When activated, the strike releases the latch, allowing the door to be opened remotely without manual unlocking. Once the door closes, the latch automatically re-engages to restore security.

Designed for installation flexibility, the GK311-1224 features selectable fail-safe or fail-secure operation and is supplied with both long and short faceplates to suit different frame configurations. Its compact design and wide voltage compatibility make it suitable for a broad range of access control and door security installations.

Available Models

• GK311-1224 - Electric Release Lock

Key Features

• Electric release lock (rim strike)
• Operating voltage 12VDC to 24VDC
• Selectable fail-safe or fail-secure operation
• Supplied with long and short faceplates
• Suitable for access control systems
• Reliable remote door release operation
• Compact design
• Flexible mounting options
• Suitable for commercial and industrial applications
• Easy installation

Typical Applications

• Access control systems
• Door entry systems
• Intercom systems
• Commercial buildings
• Office entrances
• Educational facilities
• Healthcare environments
• Public buildings
• Staff access doors
• Security-controlled doors

Compatibility

The GK311-1224 is designed to integrate with a wide range of access control and door security equipment.

• Access control systems
• Door entry systems
• Intercom systems
• Rim locks

• Keypad entry systems
• Proximity card readers
• Building management systems
• Power supplies
• Door monitoring systems
• Security control systems


Technical Specification

• Product Type: Electric Release Lock
• Operating Voltage: 12VDC to 24VDC
• Operation: Selectable Fail-Safe / Fail-Secure
• Faceplates Supplied: Long and short faceplates
• Short Faceplate Dimensions: 124mm x 40mm x 33mm (H x W x D)
• Long Faceplate Dimensions: 202mm x 40mm x 33mm (H x W x D)

GK311-1224 Product Information

The GK311-1224 Electric Release Lock provides a reliable and flexible door release solution for access control installations requiring selectable fail-safe or fail-secure operation. Supplied with both long and short faceplates, it is ideal for a wide range of commercial and industrial door security applications.

Frequently Asked Questions

What is the GK311-1224 used for?

The GK311-1224 is used to provide remote door release in access control, door entry, and intercom systems whilst maintaining secure locking.

What is a Rim Strike?

A rim strike, also known as an electric release lock or latch release, is installed in the door frame and releases a compatible latch when activated electronically.

Can the GK311-1224 operate as fail-safe or fail-secure?

Yes. The GK311-1224 features selectable fail-safe or fail-secure operation to suit different installation requirements.

What voltage does the GK311-1224 operate on?

The GK311-1224 operates on 12VDC to 24VDC power supplies.

Does the GK311-1224 include different faceplate options?

Yes. The GK311-1224 is supplied with both a long faceplate and a short faceplate to provide greater installation flexibility.

Can the GK311-1224 be used with access control systems?

The GK311-1224 is designed for integration with access control systems, door entry systems, intercom systems, and other compatible electronic door security equipment.

What are the dimensions of the supplied faceplates?

The short faceplate measures 124mm x 40mm x 33mm, while the long faceplate measures 202mm x 40mm x 33mm.
