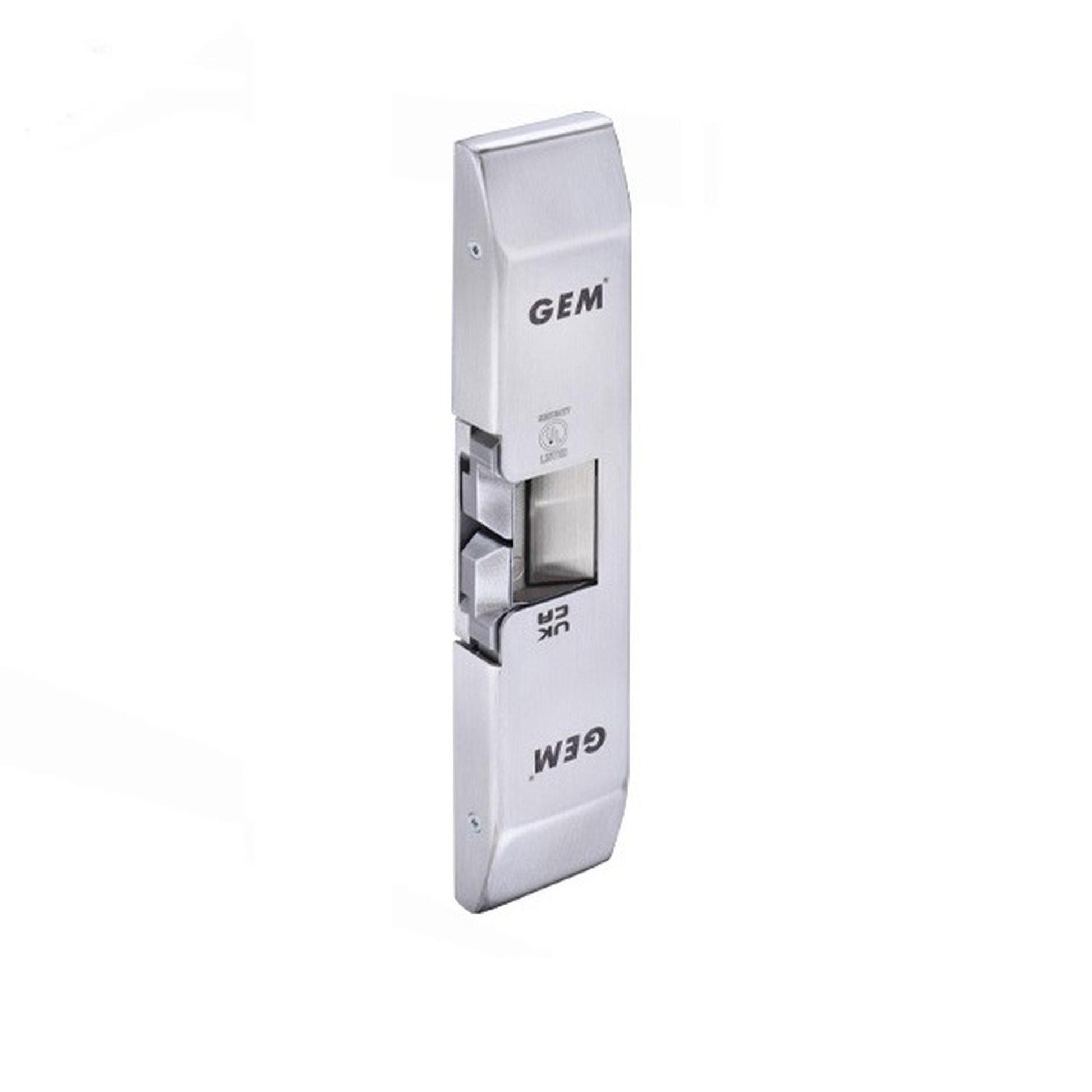

GK1279M Electronic Rim Strike Lock for Emergency Push Bars

The GK1279M Electronic Rim Strike is a heavy-duty electric release lock designed specifically for use with emergency push bars, panic latches, and escape door hardware. Suitable for commercial, industrial, educational, healthcare, and public sector environments, it provides secure access control for doors fitted with compatible emergency exit hardware.

An electronic strike, also known as a rim strike, electric release, or latch release, is installed within the door frame and operates in conjunction with a compatible panic latch or push bar device. When activated, the strike releases the latch, allowing the door to be opened remotely without compromising security. Once the door closes, the latch automatically re-engages to restore secure locking.

Designed for demanding access control applications, the GK1279M offers selectable fail-safe or fail-secure operation, monitored latch status, and a high static holding strength of up to 680kg. Operating from either 12VDC or 24VDC power supplies, it provides a flexible and reliable solution for doors fitted with emergency exit hardware.

Available Models

• GK1279M – Electronic Rim Strike Lock for Emergency Push Bars

Key Features

• Electronic rim strike
• Designed for emergency push bars and panic latches
• Selectable 12VDC or 24VDC operation
• Selectable fail-safe or fail-secure operation
• Monitored latch status
• Static holding strength up to 680kg
• Suitable for access control systems
• Reliable remote door release operation
• Heavy-duty construction
• Suitable for commercial applications

Typical Applications

• Emergency exit doors
• Panic bar installations
• Access control systems
• Commercial buildings
• Office buildings
• Educational facilities
• Healthcare environments
• Public buildings
• Staff access doors
• Secure escape routes

Compatibility

The GK1279M is designed to integrate with a wide range of access control and door security equipment.

• Access control systems
• Door entry systems
• Intercom systems
• Rim locks
• Emergency Push Bars
• Keypad entry systems
• Proximity card readers
• Building management systems
• Power supplies
• Door monitoring systems


Technical Specification

• Product Type: Electronic Rim Strike
• Operating Voltage: 12VDC / 24VDC (Selectable)
• Current Draw: 540mA @ 12VDC, 270mA @ 24VDC
• Operation: Fail-Safe or Fail-Secure (Selectable)
• Static Strength: 680kg
• Monitoring: Monitored Latch Status

GK1279M Product Information

The GK1279M Electronic Rim Strike provides a reliable and flexible locking solution for emergency exit doors fitted with compatible panic hardware. Featuring latch status monitoring, selectable fail-safe or fail-secure operation, and a static holding strength of up to 680kg, it is ideal for access control installations requiring secure remote door release and monitored operation.

Frequently Asked Questions

What is the GK1279M used for?

The GK1279M is used to provide remote door release on doors fitted with emergency push bars or panic latch hardware.

Is the GK1279M suitable for panic bars?

Yes. The GK1279M is specifically designed for use with compatible emergency push bars and panic latch devices.

Can the GK1279M operate as fail-safe or fail-secure?

Yes. The unit can be configured for either fail-safe or fail-secure operation depending on the installation requirements.

What voltage does the GK1279M operate on?

The GK1279M operates from either a 12VDC or 24VDC power supply.

What is the holding strength of the GK1279M?

The strike provides a static holding strength of up to 680kg.

Does the GK1279M provide monitoring outputs?

Yes. The GK1279M provides a latch status monitoring output for integration with compatible access control and door monitoring systems.

Can the GK1279M be used with access control systems?

Yes. The strike is designed for integration with access control systems, door entry systems, intercom systems, and other door security equipment.
