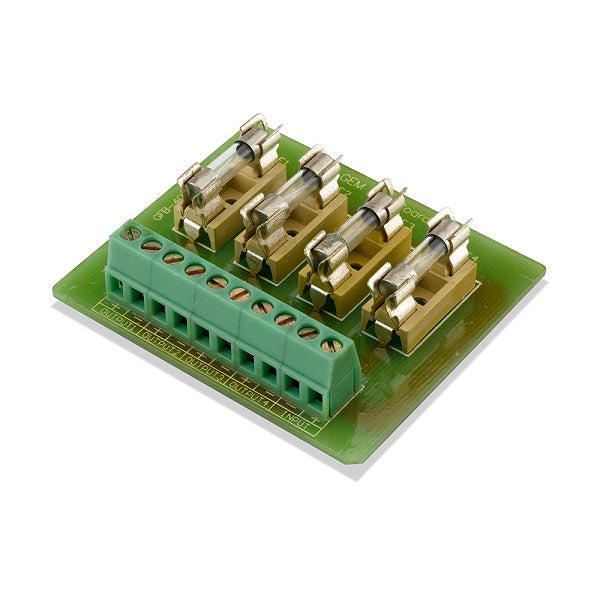

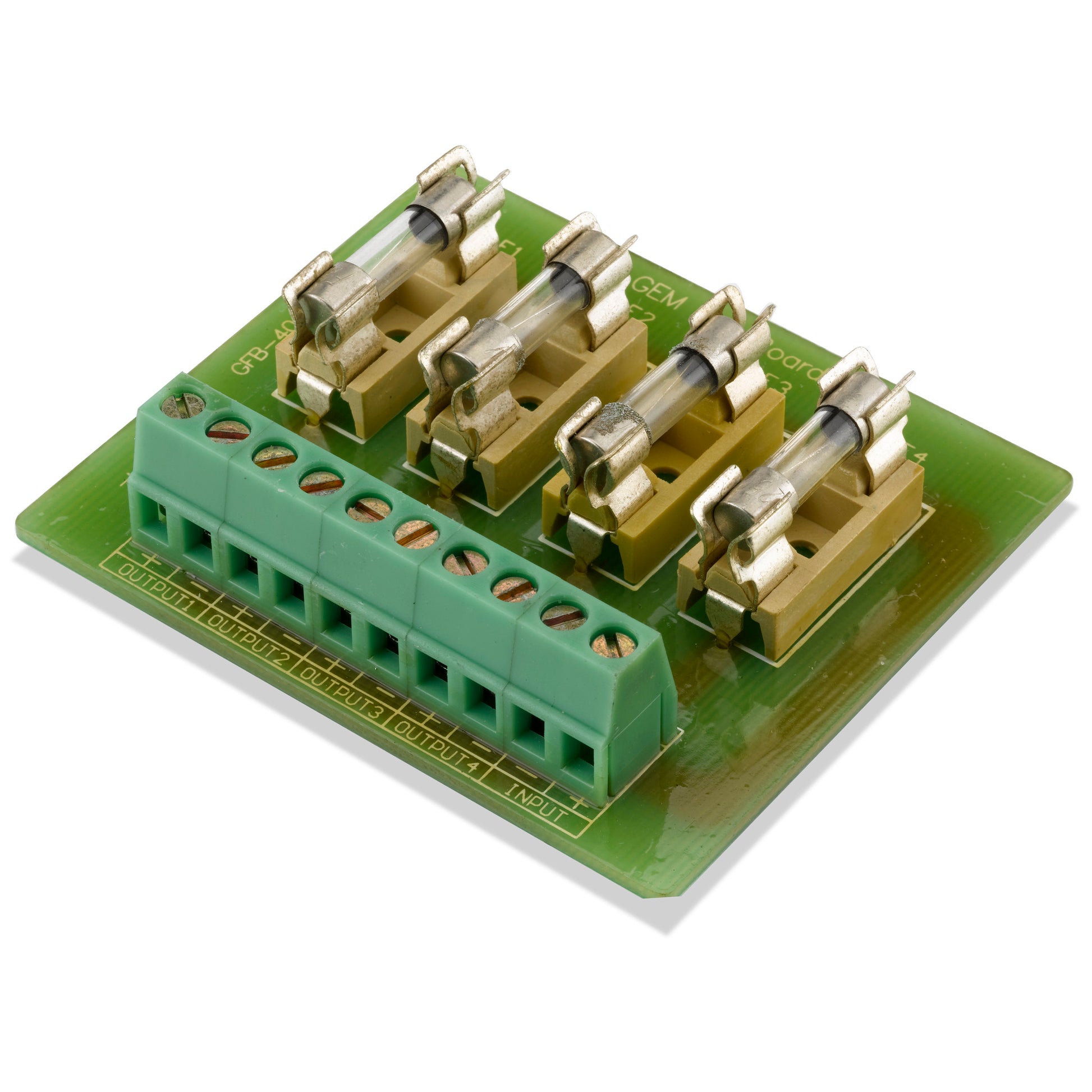

GFB04 4 Way Fused Distribution Board
GFB04 4 Way Fused Distribution Board
Couldn't load pickup availability
The GFB04 4 Way Fused Distribution Board is a compact power distribution module designed for use with access control systems, door entry systems, emergency door systems, magnetic locks, electric locks, and other low-voltage security equipment. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, it provides a simple and reliable method of distributing fused 12VDC power to multiple devices.
Designed to simplify wiring and improve circuit protection, the GFB04 features four individually fused outputs, allowing multiple devices to be powered from a single power supply whilst maintaining independent circuit protection. This helps protect connected equipment against over-current faults and simplifies maintenance and fault finding.
Manufactured in a compact format for easy installation within control panels, enclosures, and security system cabinets, the GFB04 provides a practical solution for low-voltage power distribution applications.
Available Models
- GFB04 - 4 Way Fused Distribution Board
Key Features
- Four individually fused output channels
- 12VDC power input
- Glass fuse protection
- Compact design
- Simple wiring connections
- Suitable for low-voltage power distribution
- Provides independent circuit protection
- Ideal for access control installations
- Easy installation
- Reliable operation
Typical Applications
- Access control systems
- Door entry systems
- Intercom systems
- Emergency door systems
- Magnetic locks (maglocks)
- Electric locks
- Electric strikes
- Keypad entry systems
- Proximity reader systems
- Security control panels
Compatibility
The GFB04 is designed to distribute power to a wide range of security and access control equipment.
- Access control systems
- Door entry systems
- Intercom systems
- Magnetic locks
- Electric locks
- Electric strikes
- Proximity readers
- Keypad systems
- Emergency door systems
- 12VDC power supplies
Technical Specification
- Product Type: Fused Distribution Board
- Power Input: 12VDC
- Outputs: 4 Individually fused outputs
- Fuse Type: Glass fuse
- Dimensions: 60mm x 70mm x 15mm (H x W x D)
The GFB04 4 Way Fused Distribution Board provides a convenient and reliable solution for distributing protected 12VDC power to multiple devices within access control and security installations. Featuring four individually fused outputs and a compact design, it is ideal for professional security system installations requiring organised and protected power distribution.
Frequently Asked Questions
What is the GFB04 used for?
The GFB04 is used to distribute 12VDC power from a single power supply to multiple devices whilst providing fused protection for each output.
How many outputs does the GFB04 provide?
The GFB04 provides four fused output channels.
What voltage does the GFB04 operate on?
The GFB04 is designed for use with 12VDC power supplies.
What type of fuse does the GFB04 use?
The GFB04 uses glass fuses for circuit protection.
Can the GFB04 be used with access control systems?
Yes. The GFB04 is ideal for access control systems, magnetic locks, electric locks, door entry systems, and other low-voltage security equipment.
Why use a fused distribution board?
A fused distribution board helps protect connected devices from faults, simplifies wiring, and makes maintenance and fault finding easier.
Is the GFB04 suitable for new and retrofit installations?
Yes. The compact design makes it suitable for both new installations and upgrades to existing systems.
