G600M / G600M-BCE Mini Stainless Steel Magnetic Lock (Maglock)

The G600M Series Mini Stainless Steel Magnetic Lock is a compact electromagnetic locking solution designed for use with access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, it provides secure and reliable locking for access-controlled doors where a compact yet durable magnetic lock is required.

An electromagnetic lock, magnetic lock, or maglock consists of an electromagnet mounted to the door frame and a corresponding armature plate fixed to the door. When power is applied, a magnetic field is generated that securely holds the armature plate against the magnet, creating a strong locking force. In a typical fail-safe magnetic lock installation, the lock releases automatically when power is removed, allowing safe egress in the event of a power failure.

Manufactured from durable stainless steel and designed for demanding environments, the G600M Series offers a holding force of up to 600lbs (272kg). Both models include lock status monitoring output and IP65 weather-resistant protection, making them suitable for internal and external installations. The G600M-BCE version additionally features rear cable entry for installations where concealed or rear-entry cabling is preferred.

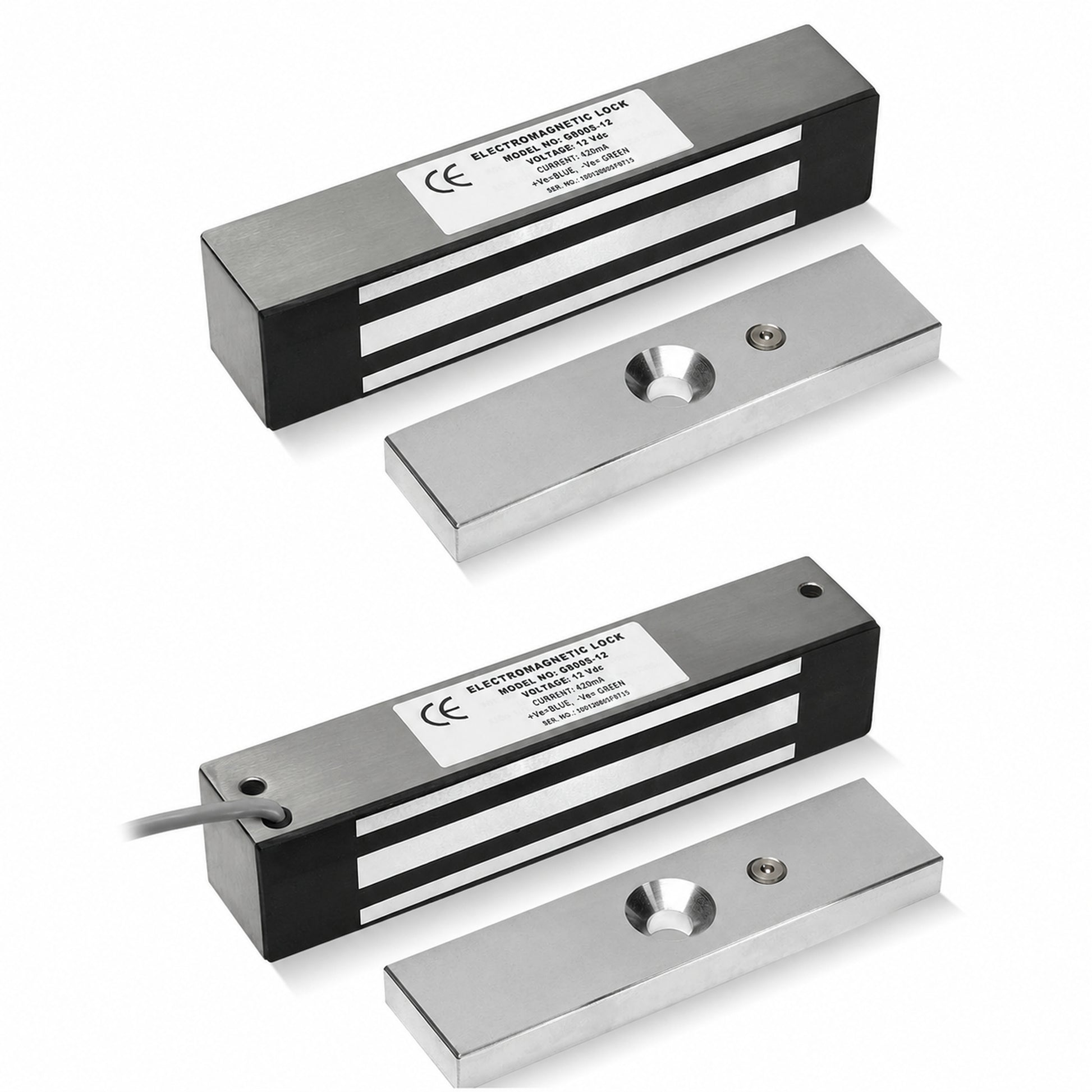

Available Models

• G600M - Mini Stainless Steel Magnetic Lock

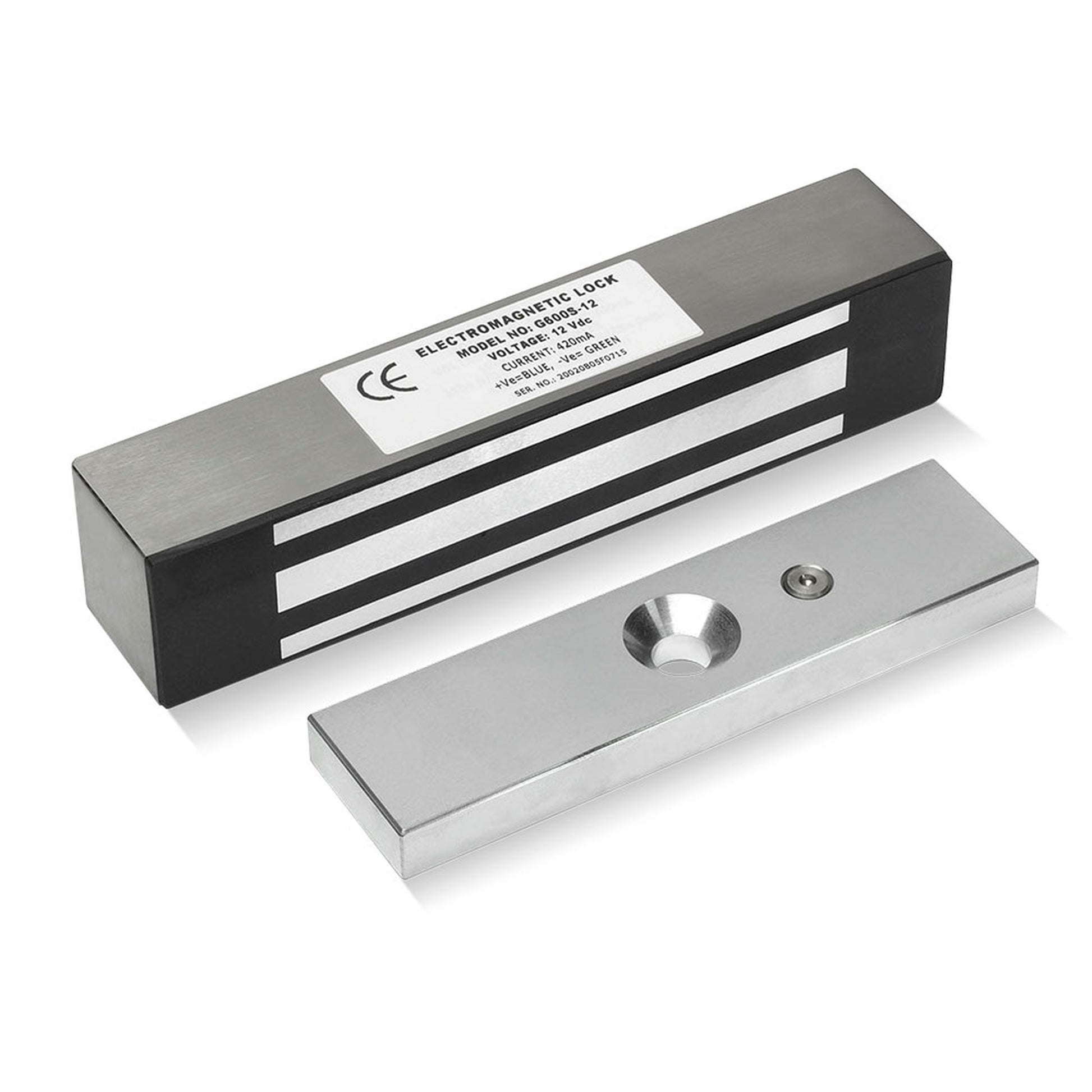

• G600M-BCE - Mini Stainless Steel Magnetic Lock with Rear Cable Entry

Key Features

• Mini magnetic lock design
• Holding force up to 600lbs (272kg)
• Operating voltage 12VDC
• Stainless steel construction
• Fail-safe operation (power to lock)
• Monitored lock status output
• IP65 weather-resistant protection
• Rear cable entry version available (G600M-BCE)
• Vandal-resistant design
• Suitable for internal and external installations
• Compact design
• Compatible with access control systems

Typical Applications

• Access control doors
• Commercial buildings
• Office entrances
• Schools and educational facilities
• Healthcare premises
• Public buildings
• Restricted access areas
• Staff access doors
• External security doors
• Industrial facilities

Compatibility

The G600M Series is designed to integrate with a wide range of access control and door security equipment.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Proximity Card Readers
• Keypad Entry Systems
• Press to Exit Buttons
• Emergency Door Release Units
• Power Supplies
• Relays and Timers


Technical Specification

• Lock Type: Mini Magnetic Lock (Maglock)
• Operation: Fail-Safe (Power to Lock)
• Operating Voltage: 12VDC
• Holding Force: Up to 600lbs (272kg)
• Monitoring: Lock status monitoring output
• Environmental Rating: IP65
• Construction: Stainless steel
• Cable Entry: Standard (G600M) / Rear Entry (G600M-BCE)
• Vandal Resistance: Yes
• Dimensions: 45mm x 203mm x 40mm (H x W x D)

G600M Product Information

G600M-BCE Product Information

The G600M Series Mini Stainless Steel Magnetic Locks provides a compact, reliable, and weather-resistant locking solution for access control installations requiring monitored operation and dependable door security. Featuring stainless steel construction, IP65 protection, vandal resistance, and a holding force of up to 600lbs, it is ideal for both internal and external applications.

Frequently Asked Questions

What is the holding force of the G600M?

The G600M provides a holding force of up to 600lbs (272kg).

Is the G600M monitored?

Yes. The G600M includes a lock status monitoring output that can be integrated with compatible access control and door monitoring systems.

What is the difference between the G600M and G600M-BCE?

The G600M and G600M-BCE provide the same holding force, monitoring output, IP65 protection, and 12VDC fail-safe operation. The only difference is that the G600M-BCE features rear cable entry, making it suitable for installations where concealed or rear-entry cabling is preferred.

Is the G600M suitable for outdoor installations?

Yes. The G600M has an IP65 protection rating, making it suitable for external installations when correctly installed.

What does fail-safe operation mean?

Fail-safe operation means the lock requires power to remain locked. When power is removed, the lock automatically releases.

What voltage does the G600M operate on?

The G600M operates from a 12VDC power supply.

Is the G600M vandal resistant?

Yes. The lock is designed with a vandal-resistant construction for use in demanding environments.

What is the difference between a monitored and unmonitored magnetic lock?

A monitored magnetic lock provides a lock status output that can be connected to a compatible access control or monitoring system, allowing the system to determine the lock's status. An unmonitored magnetic lock does not provide this output.

Can the G600M be used with access control systems?

Yes. The G600M is designed for integration with with access control systems, door entry systems, intercoms, keypads, card readers, and emergency door release devices.
