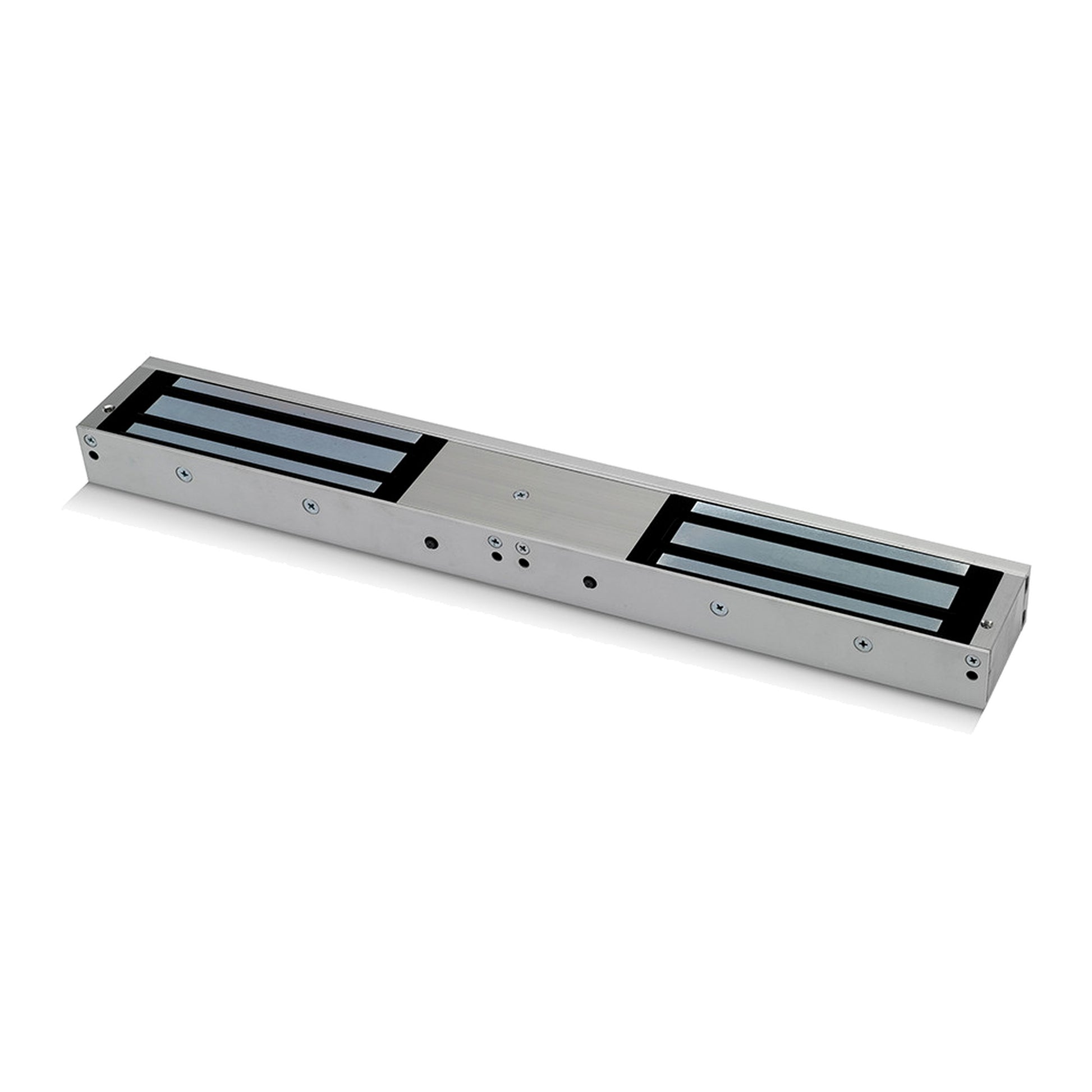

FR-U10040 / FR-U10040DSU Fire Rated Monitored Standard Double Magnetic Lock (Maglock)

The FR-U10040 Series Monitored Standard Double Magnetic Locks (Maglocks) are high-performance fire rated electromagnetic locking solutions designed for use with access control systems, door entry systems, intercoms, and electronic door security applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, they provide secure and reliable locking for access-controlled doors.

Operating from selectable 12VDC or 24VDC power supplies, the FR-U10040 Series delivers up to 2 x 1200lbs (544kg) of holding force, making it suitable for applications requiring enhanced door security and dependable locking performance.

Both models include lock status monitoring with an output for connection to compatible access control systems. Each lock also features LED lock status indication, showing green when unlocked and red when locked. The FR-U10040DSU model additionally includes a door status output.

Both the FR-U10040 and FR-U10040DSU models have been fire tested to BS EN 1634-1 and are suitable for installation on FD30 and FD60 fire doors.

Available Models

• FR-U10040 – Fire Rated Monitored Standard Double Magnetic Lock
• FR-U10040DSU – Fire Rated Monitored Standard Double Magnetic Lock with Door Status Output

Key Features

• Fire rated standard double magnetic lock
• Holding force up to 2 x 1200lbs (544kg)
• Selectable 12VDC or 24VDC Operation
• Aluminium housing
• Electroless nickel-plated armature plate
• Fail-safe operation (Power to Lock)
• Monitored Lock Output
• LED Lock Status Indication
• Door Status Output (FR-U10040DSU Only)
• Fire tested to BS EN 1634-1
• Suitable for FD30 and FD60 fire doors
• Suitable for access control and emergency door systems
• Compact design

Typical Applications

• Fire doors
• Access control systems
• Emergency door systems
• Commercial buildings
• Educational facilities
• Healthcare environments
• Public buildings
• Internal security doors
• Staff-only areas
• Door entry systems

Compatibility

The FR-U10040 range is designed to integrate with a wide range of door security and life safety equipment.

• Access control systems
• Emergency door systems
• Fire alarm systems
• Door entry systems
• Emergency exit systems
• Keypad systems
• Proximity readers
• Building management systems
• Power supplies

Technical Specification

• Product Type: Fire Rated Monitored Standard Double Magnetic Lock
• Operation: Fail Safe (Power to Lock)
• Operating Voltage: Selectable 12VDC or 24VDC
• Holding Force: Up to 2 x 1200lbs (544kg)
• Lock Monitoring: Monitored (All Models)
• Door Status Output: FR-U10040DSU Only
• Lock Status LED: All Models (Green Unlocked / Red Locked)
• Housing Material: Aluminium
• Armature Plate: Electroless Nickel Plated Steel
• Fire Rating: Tested to BS EN 1634-1
• Suitable Fire Doors: FD30 & FD60
• Dimensions: 67mm x 532mm x 40mm (H x W x D)

FR-U10040 / FR-U10040DS Product Information

The FR-U10040 Series Monitored Standard Double Magnetic Locks provide a secure and reliable locking solution for fire-rated access control installations requiring high holding force and dependable door security. They are ideal for commercial, industrial, and public sector applications where a durable monitored magnetic lock is required for compatible FD30 and FD60 fire doors.

Frequently Asked Questions

What is the difference between the FR-U10040 and FR-U10040DSU?

The FR-U10040 and FR-U10040DSU are both monitored standard double magnetic locks with LED lock status indication. The FR-U10040DSU additionally includes a door status output for connection to compatible access control systems.

What is the holding force of the lock?

The lock provides a holding force of up to 2 x 1200lbs (544kg).

Is the lock fail-safe?

Yes. The FR-U10040 range is fail-safe, meaning the lock releases when power is removed.

Has the lock been fire tested?

Yes. The lock has been tested to BS EN 1634-1 and is suitable for installation on FD30 and FD60 fire doors.

Can the lock be used with access control systems?

Yes. The lock is designed for use with access control systems, door entry systems, emergency door systems, and fire alarm interfaces.

What operating voltage does the lock require?

The FR-U10040 range operates on selectable 12VDC or 24VDC power supplies.
