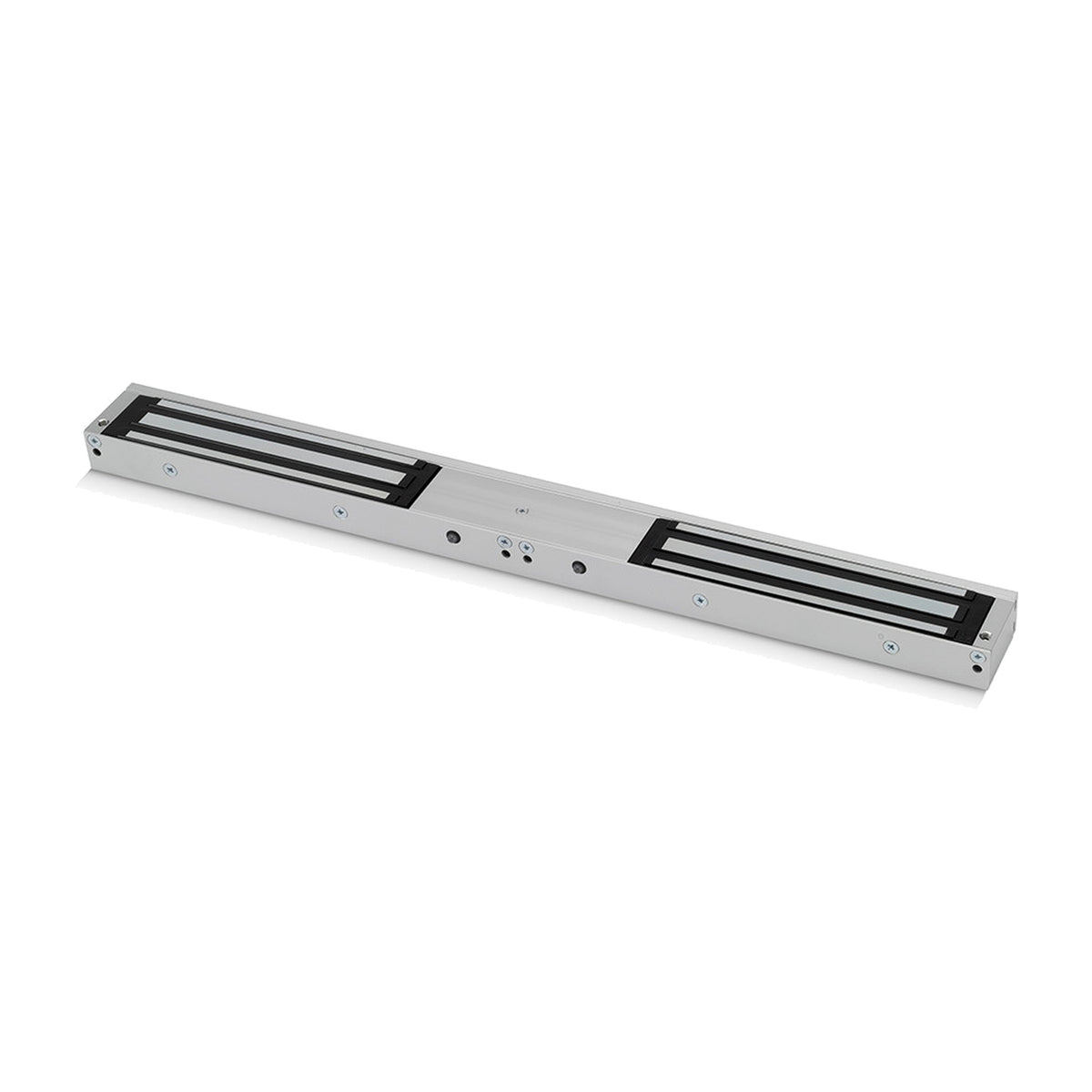

FR-A10005 / FR-A10005DS Fire Rated Monitored Double Mini Magnetic Lock (Maglock)

£53.58 plus VAT

~~£0.00~~ £53.58 plus VAT

Sale Sold out

Shipping calculated at checkout.

The FR-A10005 and FR-A10005DS Fire Rated Monitored Double Mini Magnetic Locks are compact electromagnetic locking solutions designed for use with access control systems, emergency door systems, fire doors, and door entry systems. Suitable for commercial, industrial, educational, healthcare, and public sector environments, they provide reliable door security whilst meeting fire door installation requirements.

An electromagnetic lock, magnetic lock, or maglock consists of an electromagnet mounted to the door frame and a corresponding armature plate fixed to the door. When power is applied, a magnetic field is generated that securely holds the armature plate against the magnet, creating a strong locking force. As these devices are fail-safe, the lock releases automatically when power is removed.

Manufactured with a durable aluminium housing and electroless nickel-plated armature plate, the FR-A10005 range offers a holding force of up to 2 x 600lbs (272kg). Both models include lock status monitoring with an output for connection to compatible access control systems. Each lock also features LED lock status indication, showing green when unlocked and red when locked. The FR-A10005DS version additionally includes a door status output.

Both the FR-A10005 and FR-A10005DS versions have been fire tested to BS EN 1634-1 and are suitable for installation on FD30 and FD60 fire doors.

Available Models

FR-A10005 – Fire Rated Monitored Double Mini Magnetic Lock
FR-A10005DS – Fire Rated Monitored Double Mini Magnetic Lock with Door Status Output

Key Features

Fire rated mini magnetic lock
Up to 2 x 600lbs (272kg) Holding Force
Selectable 12VDC or 24VDC Operation
Aluminium housing
Electroless nickel-plated armature plate
Fail-safe operation
Monitored lock output
LED Lock Status Indication
Door Status Output (FR-A10005DS Only)
Fire tested to BS EN1634-1
Suitable for FD30 and FD60 fire doors
Suitable for access control and emergency door systems
Compact design

Typical Applications

Fire doors
Access control systems
Emergency door systems
Commercial buildings
Educational facilities
Healthcare environments
Public buildings
Internal security doors
Staff-only areas
Door entry systems

Compatibility and Accessories

The FR-A10005 range is designed to integrate with a wide range of door security and life safety equipment.

When building a complete system, please check the lock voltage, current draw, door type, mounting requirements and any emergency release requirements before ordering.

Access control systems
Emergency door systems
Fire alarm systems
Door entry systems
Emergency exit systems
Keypad systems
Proximity readers
Building management systems
Power supplies

Technical Specification

Product Type: Fire Rated Double Mini Magnetic Lock
Operating Voltage: Selectable 12VDC or 24VDC
Holding Force: Up to 2 x 600lbs (272kg)
Housing Material: Aluminium
Armature Finish: Electroless Nickel Plated
Operation: Fail-Safe
Lock Monitoring: Monitored (All Models)
Door Status Output: FR-A10005DS Only
Lock Status LED: All Models (Green Unlocked / Red Locked)
Fire Rating: Tested to BS EN1634-1
Suitable Door Types: FD30 and FD60 Fire Doors
Dimensions: 42mm x 500mm x 26mm (H x W x D)

FR-A10005 / FR-A10005DS Product Information

The FR-A10005 range provides a compact and reliable fire-rated magnetic locking solution for access control and emergency door applications. Featuring fail-safe operation, BS EN 1634-1 fire testing, and compatibility with FD30 and FD60 fire doors, these locks are ideal for installations requiring secure access control and fire door compliance.

Frequently Asked Questions

What is the difference between the FR-A10005 and FR-A10005DS?

The FR-A10005 and FR-A10005DS are both monitored double mini magnetic locks with LED lock status indication. The FR-A10005DS additionally includes a door status output for connection to compatible access control systems.
