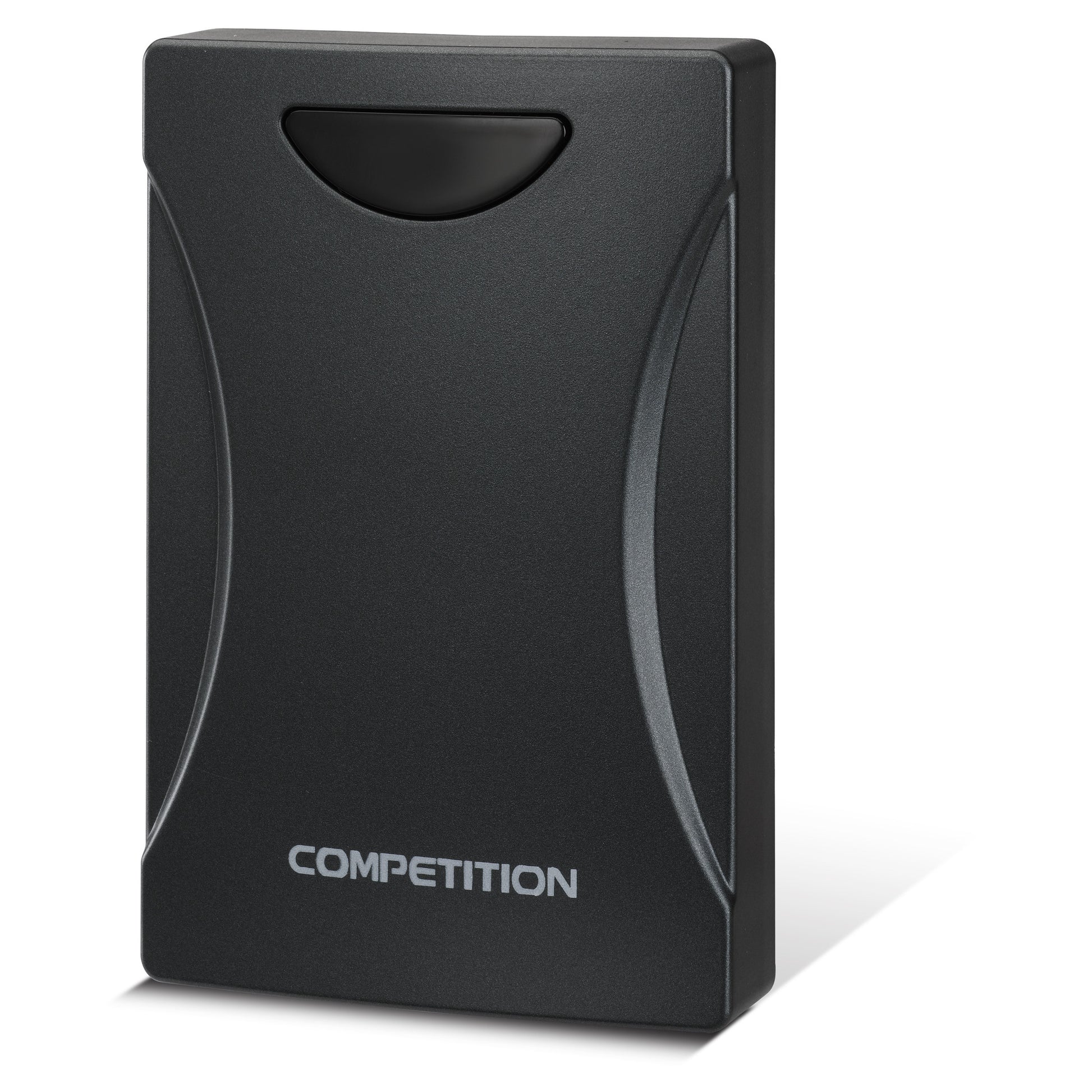

EPX10 Standalone Door Entry Proximity Card Reader

The EPX10 Standalone Door Entry Proximity Card Reader is a compact and reliable access control solution designed for use with electric locks, magnetic locks (maglocks), door entry systems, and access control installations. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, it provides secure access control using EM 125kHz proximity cards and key fobs.

Manufactured from durable ABS plastic and featuring an IP65 weather-resistant rating, the EPX10 is suitable for both internal and external installations. The reader supports up to 2,000 users and provides a self-contained access control solution without the need for a separate control panel.

The EPX10 is programmed by using an infrared programmer (EXP10-HP sold separately), allowing simple user management and configuration. Its compact design, reliable operation, and weather-resistant construction make it suitable for a wide range of door access applications.

Available Models

• EPX10 – Standalone Door Entry Proximity Reader

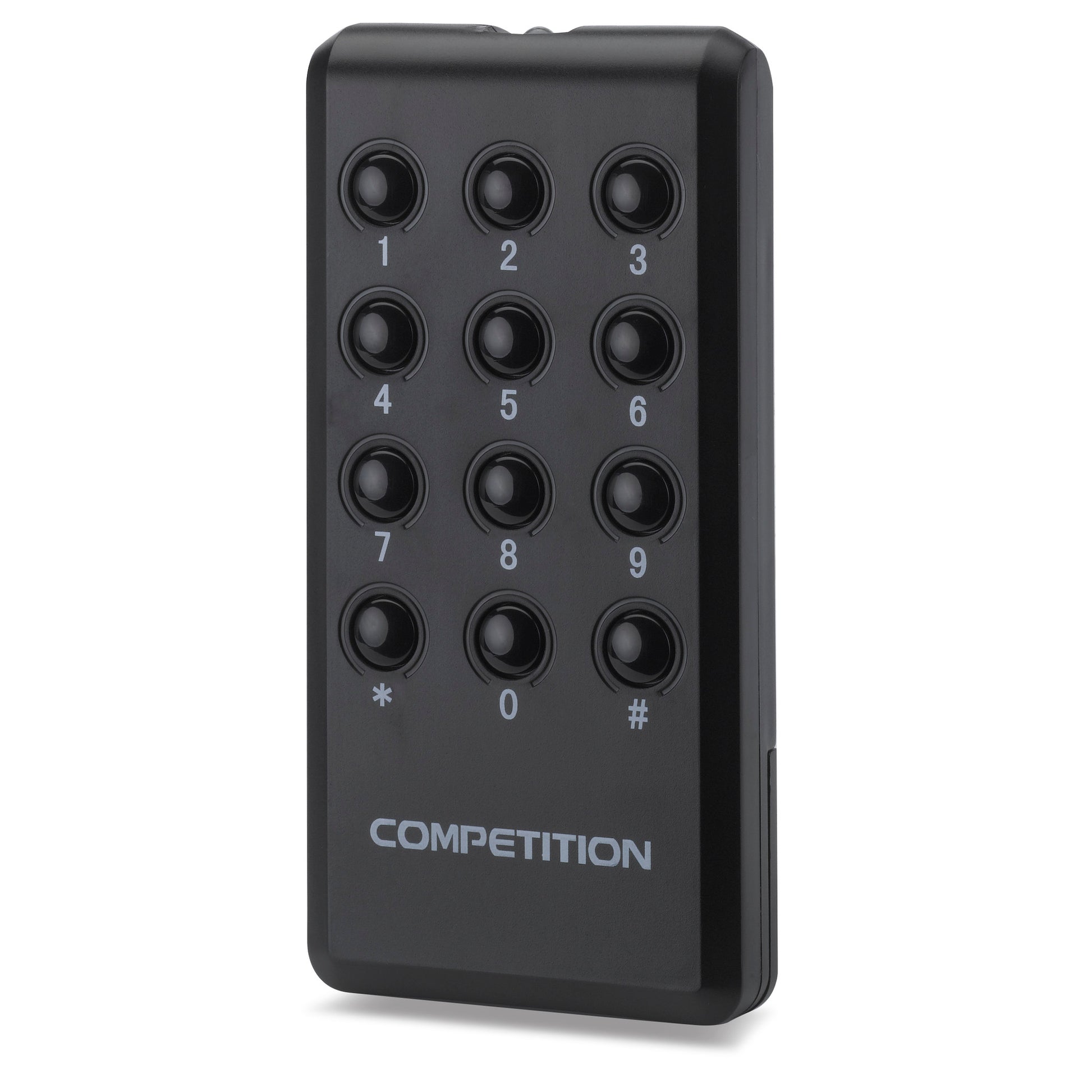

• EPX10-HP - Handheld Programmer for EPX10 Proximity Reader

Key Features

• Standalone access control reader
• Supports up to 2,000 users
• EM 125kHz proximity technology
• Self-contained controller
• Infrared programmer (sold separately)
• IP65 weather-resistant protection
• Durable ABS plastic construction
• Suitable for internal and external installations
• 12VDC operation
• Compact design

• Easy installation

Typical Applications

• Access control systems
• Office entrances
• Commercial buildings
• Schools and educational facilities
• Healthcare facilities
• Apartment buildings
• Staff access doors
• Industrial facilities
• Secure storage areas
• Residential access control systems

Compatibility

The EPX10 Standalone Proximity Reader is designed to integrate with a wide range of access control and door security equipment.

• Electric locks
• Magnetic locks (maglocks)
• Electric strikes
• Access control systems
• Door Entry Systems
• Intercom Systems
• EM 125kHz proximity cards
• EM 125kHz proximity key fobs
• Timers and relays
• Power Supplies

Technical Specification

• Product Type: Standalone Door Entry Proximity Reader
• Operating Voltage: 12VDC
• User Capacity: Up to 2,000 users
• Credential Type: EM 125kHz Proximity cards and key fobs
• Programming Method: Infrared Programmer (EXP10-HP sold separately)
• Housing Material: ABS plastic
• Environmental Rating: IP65
• Dimensions: 115mm x 75mm x 21mm (H x W x D)

EPX10 Product Information

The EPX10 Standalone Door Entry Proximity Reader provides a reliable and cost-effective access control solution for doors, gates, and restricted areas. Featuring support for up to 2,000 users, EM 125kHz proximity technology, IP65 weather protection, and straightforward programming, it is an ideal choice for both residential and commercial access control installations.

Frequently Asked Questions

What is the EPX10 used for?

The EPX10 is a standalone access control reader used to control access through doors, gates, and other secured entry points.

How many users can the EPX10 support?

The EPX10 can store and manage up to 2,000 users.

What type of credentials does the EPX10 use?

The EPX10 uses EM 125kHz proximity cards and key fobs for access control.

Does the EPX10 require a separate control panel?

No. The EPX10 is a self-contained standalone access control device.

Is the EPX10 suitable for outdoor installations?

Yes. The EPX10 has an IP65 protection rating, making it suitable for external installations when correctly installed.

How is the EPX10 programmed?

The EPX10 is programmed using an optional infrared programmer, which is sold separately.

What operating voltage does the EPX10 require?

The EPX10 operates from a 12VDC power supply.

What devices can the EPX10 control?

The EPX10 can be used with electric locks, magnetic locks (maglocks), electric strikes, and other access control equipment.

Does the EPX10 require the EPX10-HP programmer?

The EPX10-HP infrared handheld programmer is used for programming and user management of the EPX10 proximity reader. It is sold separately.
