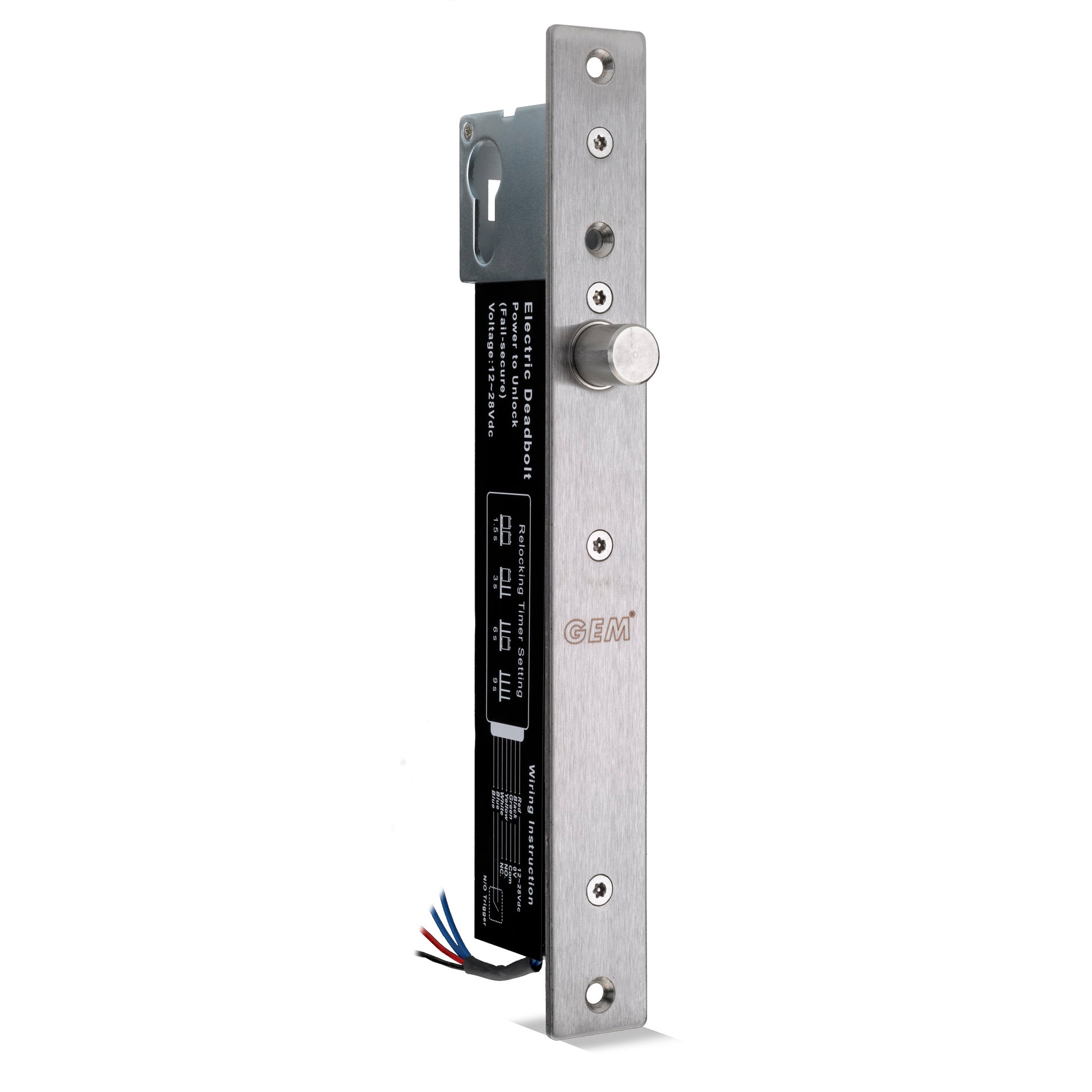

EB260-N Electric Solenoid Deadbolt Lock

The EB260-N Electric Deadbolt Lock is a high-security electromechanical locking solution designed for use with access control systems, door entry systems, automatic doors, and security installations. Suitable for commercial, industrial, educational, healthcare, and public sector environments, it provides reliable locking for doors requiring enhanced security and controlled access.

A deadbolt lock, also known as a solenoid bolt lock or electric bolt lock, uses an electrically operated stainless steel locking bolt that engages when both the door and frame are correctly aligned. This operation helps prevent damage to the locking mechanism and ensures secure door locking.

The EB260-N incorporates an adjustable automatic relock timer and a Euro profile cylinder key override, providing both electronic access control and mechanical override functionality. Manufactured from durable stainless steel, the lock offers reliable long-term performance and has been tested to 500,000 operating cycles.

Available Models

• EB260-N – Electric Deadbolt Lock

Key Features

• Electric deadbolt locking mechanism
• Fail-secure operation (power to unlock)
• 12-28VDC operation
• Euro profile key override (Euro cylinder not included)
• Adjustable automatic relock timer
• Timer delay settings of 0, 3, 6 or 9 seconds
• Door alignment detection for controlled bolt engagement
• Stainless steel construction
• Tested to 500,000 cycles
• Suitable for access control systems

• Reliable electromechanical locking solution

Typical Applications

• Access control systems
• Door entry systems
• Commercial buildings
• Office entrances
• Healthcare facilities
• Educational facilities
• Industrial premises
• Internal security doors
• Restricted access areas
• Secure storage areas

Compatibility

The EB260-N Electric Deadbolt Lock is designed to integrate with a wide range of access control and door security equipment.

• Access control systems
• Door entry systems
• Intercom systems
• Keypad Entry Systems
• Proximity card readers
• Bluetooth access control systems
• Exit buttons
• Emergency door release units
• Timers and relays
• Power Supplies
• Automatic door controllers


Technical Specification

• Product Type: Electric Deadbolt Lock
• Operating Voltage: 12 - 28VDC
• Operation: Fail-Secure (Power to Unlock)
• Key Override: Euro Profile Cylinder (Euro cylinder not included)
• Relock Timer: 0, 3, 6 or 9 Seconds
• Construction: Stainless Steel
• Cycle Rating: Tested to 500,000 Cycles
• Dimensions: 260mm x 30mm x 38.5mm (H x W x D)

EB260-N Product Information

The EB260-N Electric Deadbolt Lock provides a secure and reliable locking solution for access control installations requiring fail-secure operation and mechanical key override capability. Featuring stainless steel construction, adjustable relock timing, and a Euro profile key override, it is an ideal choice for commercial, industrial, and public sector security applications.

Frequently Asked Questions

What is the EB260-N used for?

The EB260-N is an electric deadbolt lock designed to secure doors connected to access control, door entry, and security systems.

What does fail-secure mean?

Fail-secure means the lock remains locked if power is removed. Electrical power is required to unlock the door.

What voltage does the EB260-N operate on?

The EB260-N operates from a 12-28VDC power supply.

Does the EB260-N include a key override?

Yes. The lock has compatibility for a Euro profile key override, allowing manual operation in the event of a power failure or emergency. A Euro cylinder is not included with the EB260-N lock.

Does the EB260-N have a relock timer?

Yes. The lock features an adjustable automatic relock timer with settings of 0, 3, 6, or 9 seconds.

Is the EB260-N suitable for access control systems?

Yes. The lock is designed for use with access control systems, card readers, keypads, intercom systems, and door entry equipment.

What happens if power is lost to the EB260-N?

As a fail-secure lock, the EB260-N remains locked if power is removed or fails. The Euro profile key override provides a mechanical means of operation, subject to the installed cylinder configuration.

Why does the bolt only engage when the door is aligned?

The lock uses alignment detection to ensure the bolt only extends when the door is correctly positioned. This helps prevent damage to both the lock and the door.

How durable is the EB260-N?

The lock has been tested to 500,000 operating cycles, making it suitable for demanding commercial and industrial environments.
