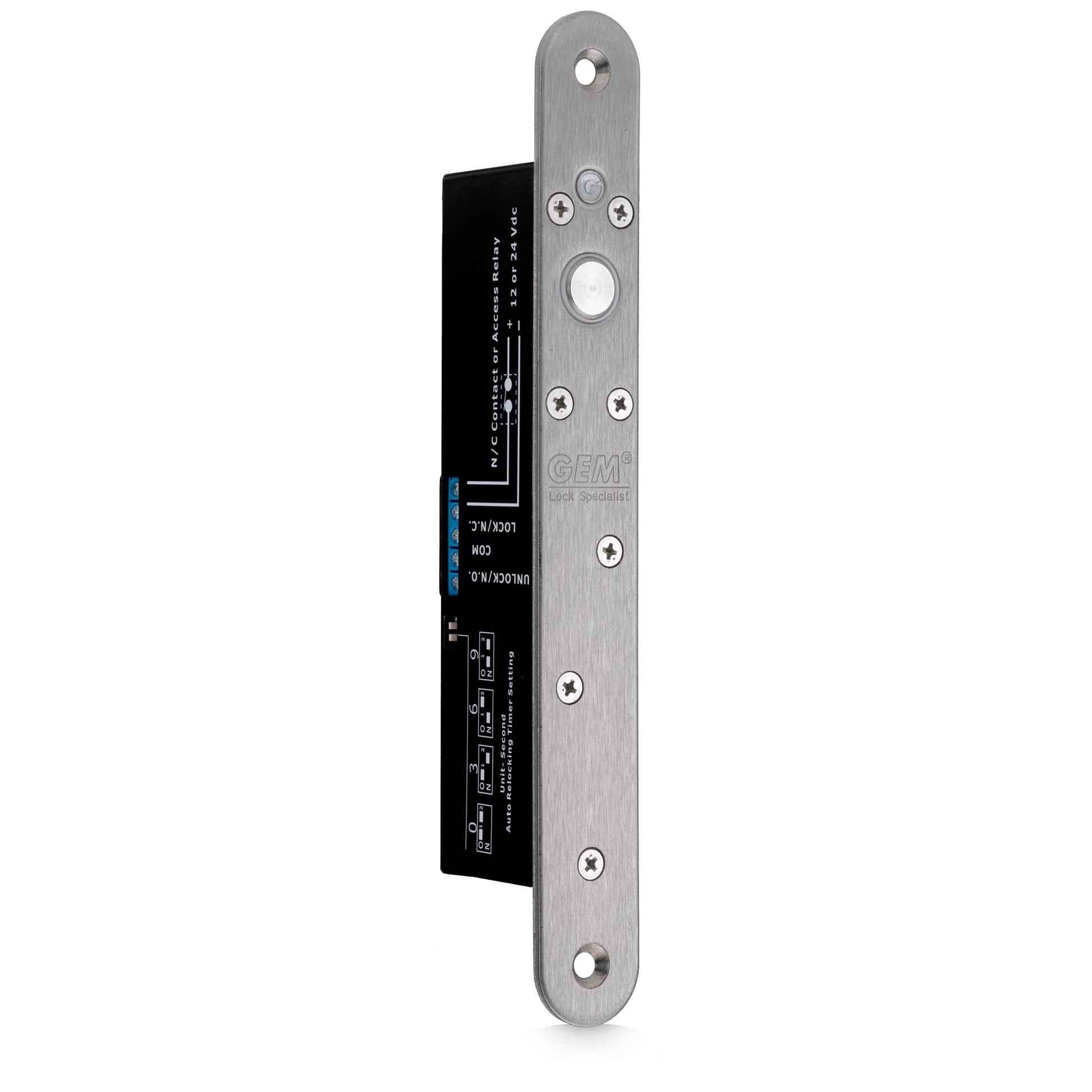

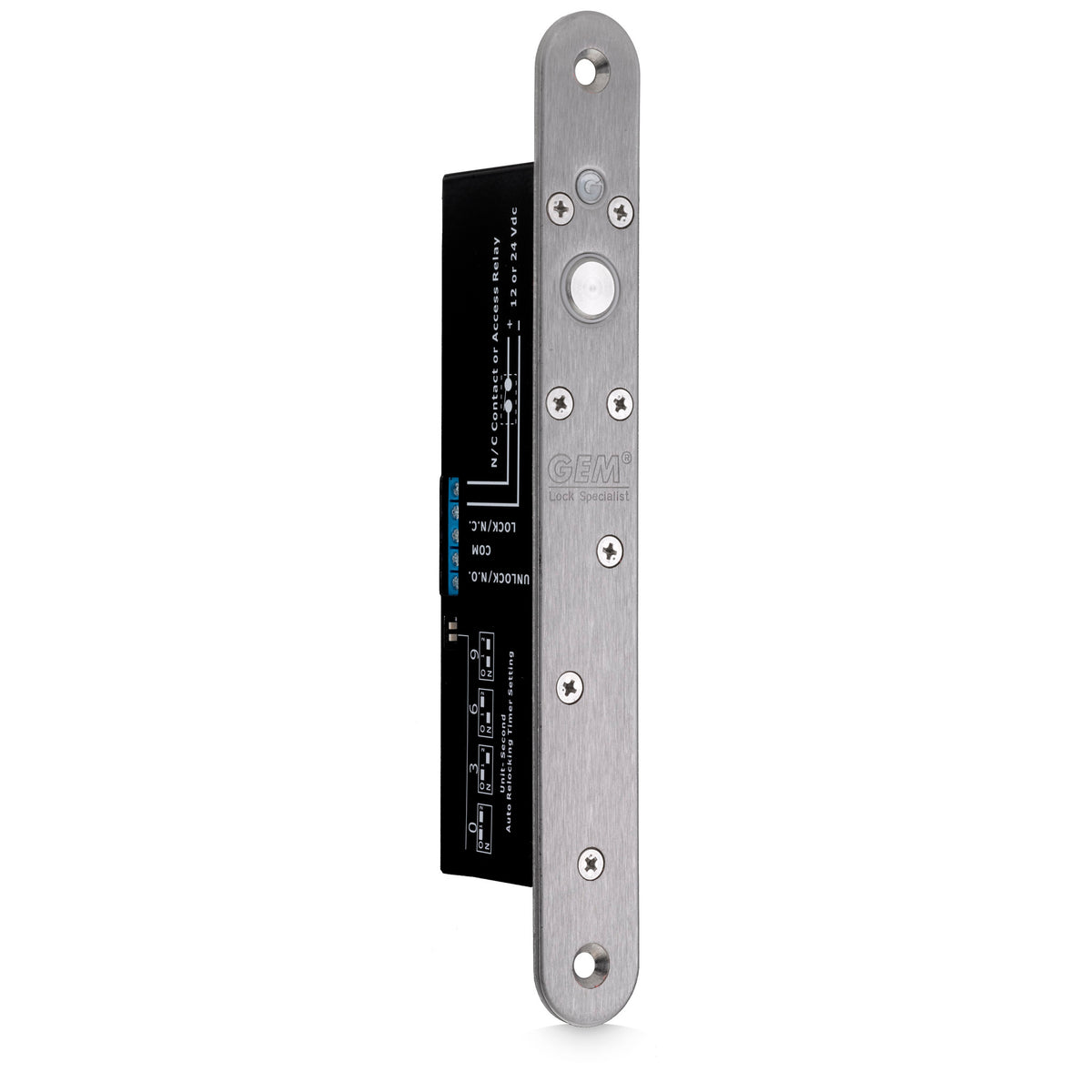

EB180 Electric Solenoid Dropbolt Lock

The EB180 Electric Solenoid Drop Bolt Lock is a high-security electromechanical locking solution designed for use with access control systems, door entry systems, automatic doors, and security installations. Suitable for commercial, industrial, educational, healthcare, and public sector environments, it provides reliable locking for doors requiring enhanced security and controlled access.

A drop bolt lock, also known as a solenoid bolt lock or electric deadbolt, uses an electrically operated stainless steel locking bolt that engages when both the door and frame are correctly aligned. This operation helps prevent damage to the locking mechanism and ensures secure door locking.

The EB180 incorporates an adjustable automatic relock timer, making it suitable for a wide range of access control applications. Manufactured from durable stainless steel, the lock offers reliable long-term performance and vandal-resistant construction for demanding environments.

Available Models

• EB180 – Electric Solenoid Drop Bolt Lock

Key Features

• Electric drop bolt locking mechanism
• Fail-safe operation (power to lock)
• Operating voltage 12VDC to 24VDC
• Door alignment detection for controlled bolt engagement
• Adjustable automatic relock timer
• Timer delay settings of 0, 3, 6 or 9 seconds
• Stainless steel construction
• Vandal-resistant design
• Suitable for access control systems

• Reliable electromechanical locking solution

Typical Applications

• Access control systems
• Door entry systems
• Commercial buildings
• Office entrances
• Healthcare facilities
• Educational facilities
• Industrial premises
• Internal security doors
• Automatic door systems
• Restricted access areas

Compatibility and Accessories

The EB180 Electric Drop Bolt Lock is designed to integrate with a wide range of access control and door security equipment.

This solenoid drop bolt lock is commonly used with access control systems, door entry intercoms, keypads, proximity readers, press to exit buttons, timers, relays and power supplies.

When building a complete system, please check the release type, fail-safe or fail-secure operation, voltage, door type, lock case compatibility and installation requirements before ordering.

• Access control systems
• Door entry systems
• Intercom systems
• Keypad Entry Systems
• Proximity card readers
• Bluetooth access control systems
• Exit buttons
• Emergency door release units
• Timers and relays
• Power Supplies
• Automatic door controllers

Technical Specification

• Product Type: Electric Drop Bolt Lock
• Operating Voltage: 12VDC to 24VDC
• Operation: Fail-Safe (Power to Lock)
• Relock Timer: 0, 3, 6 or 9 Seconds
• Construction: Stainless Steel
• Design: Vandal Resistant
• Lock Dimensions: 210mm x 25mm x 41mm (H x W x D)

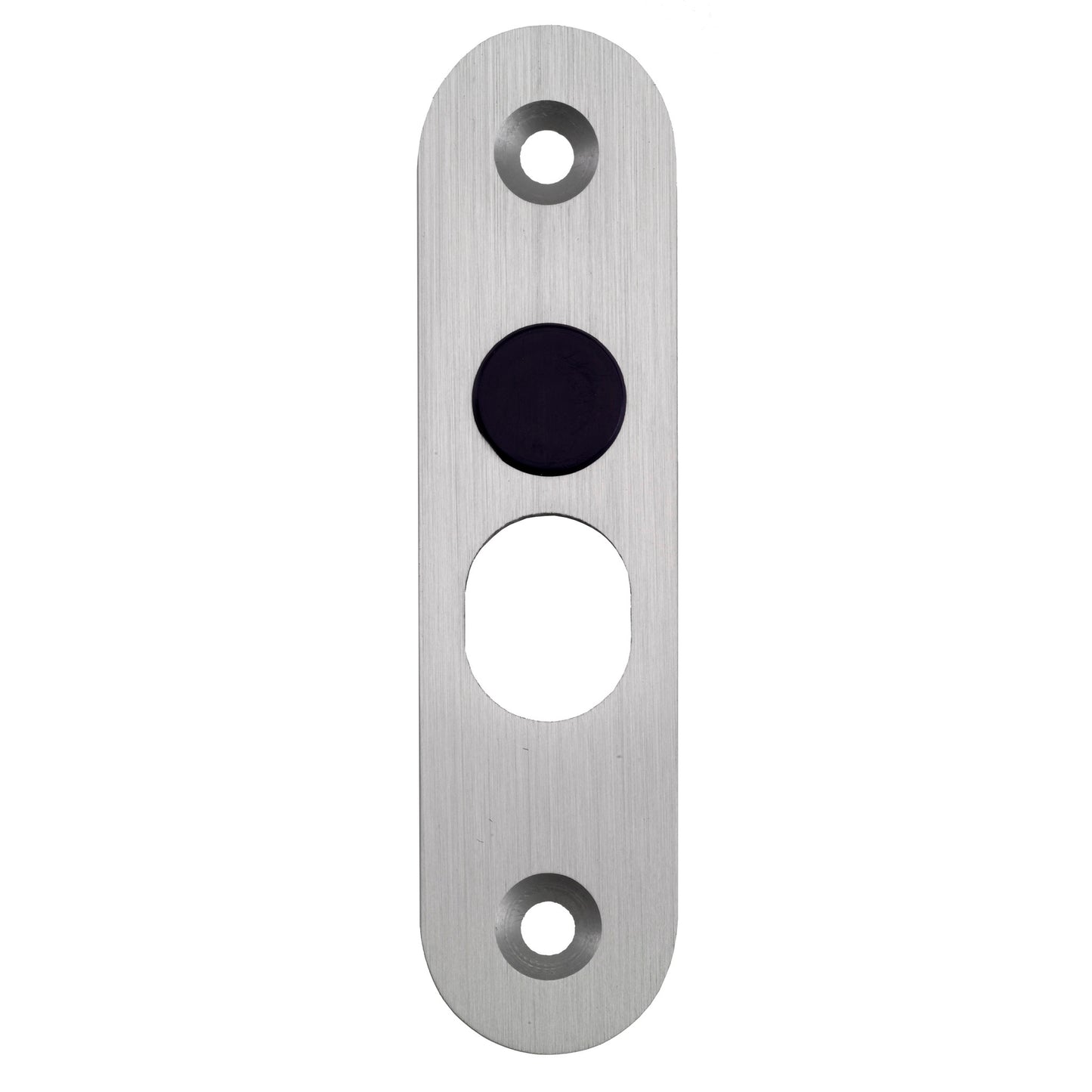

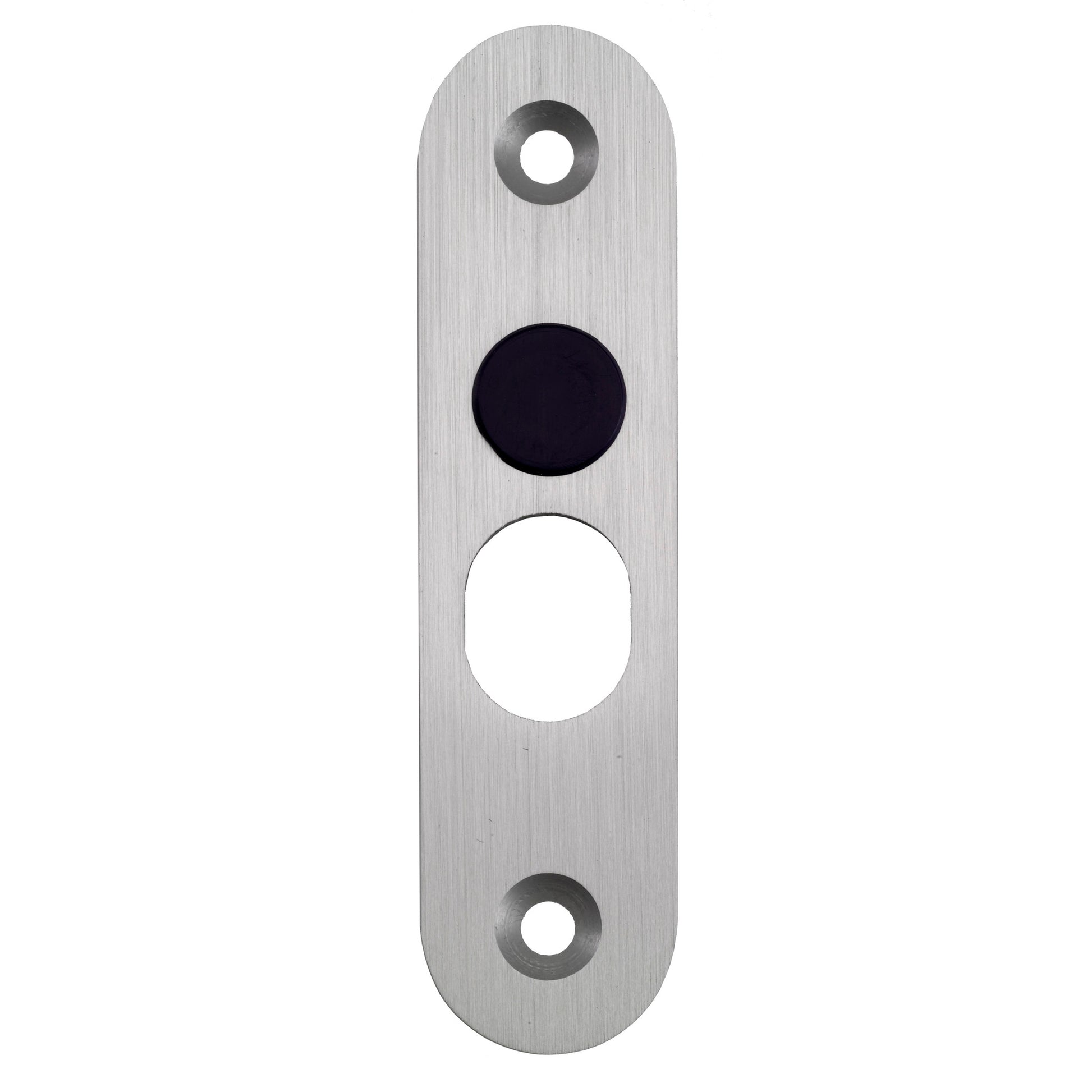

• Keeper Plate Dimensions: 100mm x 25mm x 10mm (H x W x D)

EB180 Product Information

The EB180 Electric Drop Bolt Lock provides a secure and reliable locking solution for access control installations requiring intelligent bolt locking and fail-safe operation. Featuring stainless steel construction, adjustable relock timing, and vandal-resistant design, it is an ideal choice for commercial, industrial, and public sector security applications.

Frequently Asked Questions

What is an electric drop bolt lock?

An electric drop bolt lock is an electromechanical locking device that secures a door using an electrically operated locking bolt. The bolt engages when the door is correctly aligned with the frame.

What does fail-safe mean?

Fail-safe operation means the lock requires power to remain locked. If power is removed or fails, the lock automatically releases, allowing the door to open.

What voltage does the EB180 operate on?

The EB180 operates from either a 12VDC to 24VDC power supply.

Does the EB180 have a relock timer?

Yes. The lock features an adjustable automatic relock timer with delay settings of 0, 3, 6, or 9 seconds.

Is the EB180 suitable for access control systems?

Yes. The EB180 is designed for use with access control systems, door entry systems, card readers, keypads, and other access control equipment.

Can the EB180 be used on double doors?

Yes. The EB180 can be used on both single and double door applications where a secure electromechanical locking solution is required.

Is the lock vandal resistant?

Yes. The EB180 features a durable stainless steel construction and vandal-resistant design suitable for commercial and public-facing environments.

Why does the bolt only engage when the door is aligned?

The lock uses alignment detection to ensure the bolt only extends when the door is correctly positioned. This helps prevent damage to both the lock and the door.

What happens if power is lost to the EB180?

As a fail-safe lock, the EB180 requires power to remain locked. If power is removed, the locking bolt retracts to release the door.
