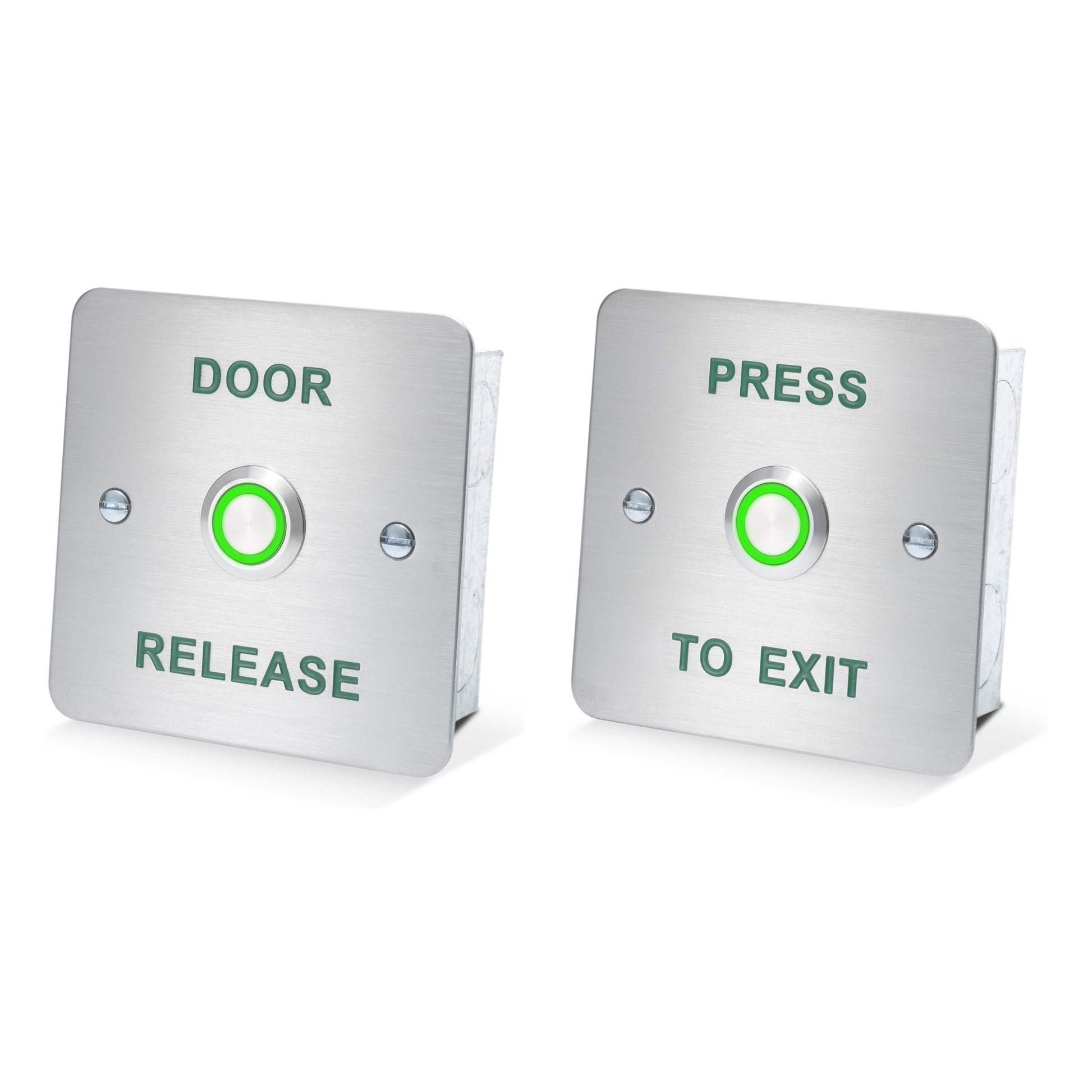

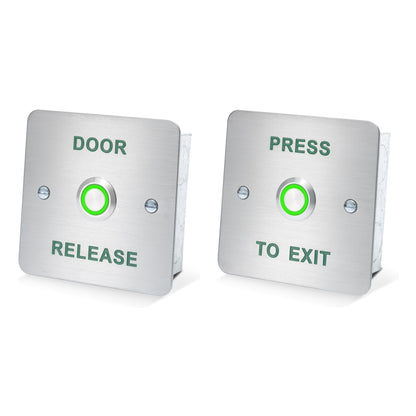

DRB011F-PTE / DRB011F-DR Illuminated Press to Exit Button (RTE)

The DRB011 Series Press to Exit Button is a high-quality illuminated stainless steel door release switch designed for use with access control systems, electric locks, magnetic locks (maglocks), and door entry systems. Suitable for commercial, industrial, educational, healthcare, and public sector environments, it provides a simple and reliable request-to-exit (RTE) solution for controlled access doors.

Manufactured from durable brushed stainless steel and fitted with a high-quality illuminated stainless steel button, the DRB011 is designed to withstand frequent daily use while maintaining a professional appearance. Available as a flush mount device or for surface mounting when used with the compatible DRB-SH surface surround housing, the switch can be installed in a wide range of access control applications. The DRB011 is IP65-rated weather-resistant for external doors and exposed environments.

The DRB011 features COM, NO and NC contacts, allowing easy integration with most access control panels, electric strikes, magnetic locks, intercom systems, and door automation equipment. Its robust construction and versatile mounting options make it suitable for new installations and retrofit projects alike.

Available Models

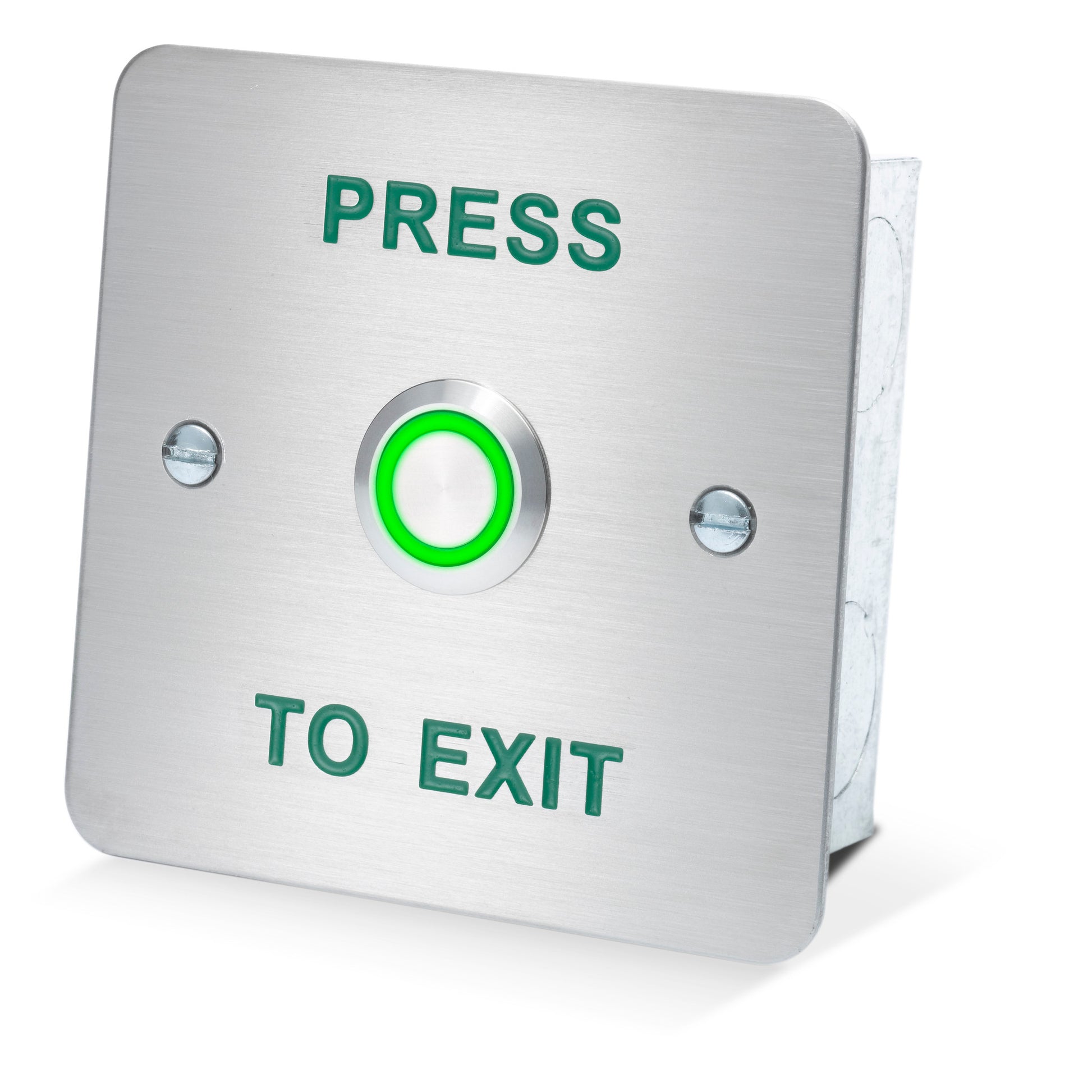

• DRB011F-PTE – Flush Mount Press to Exit Button (requires DRB-SH for surface mounting)

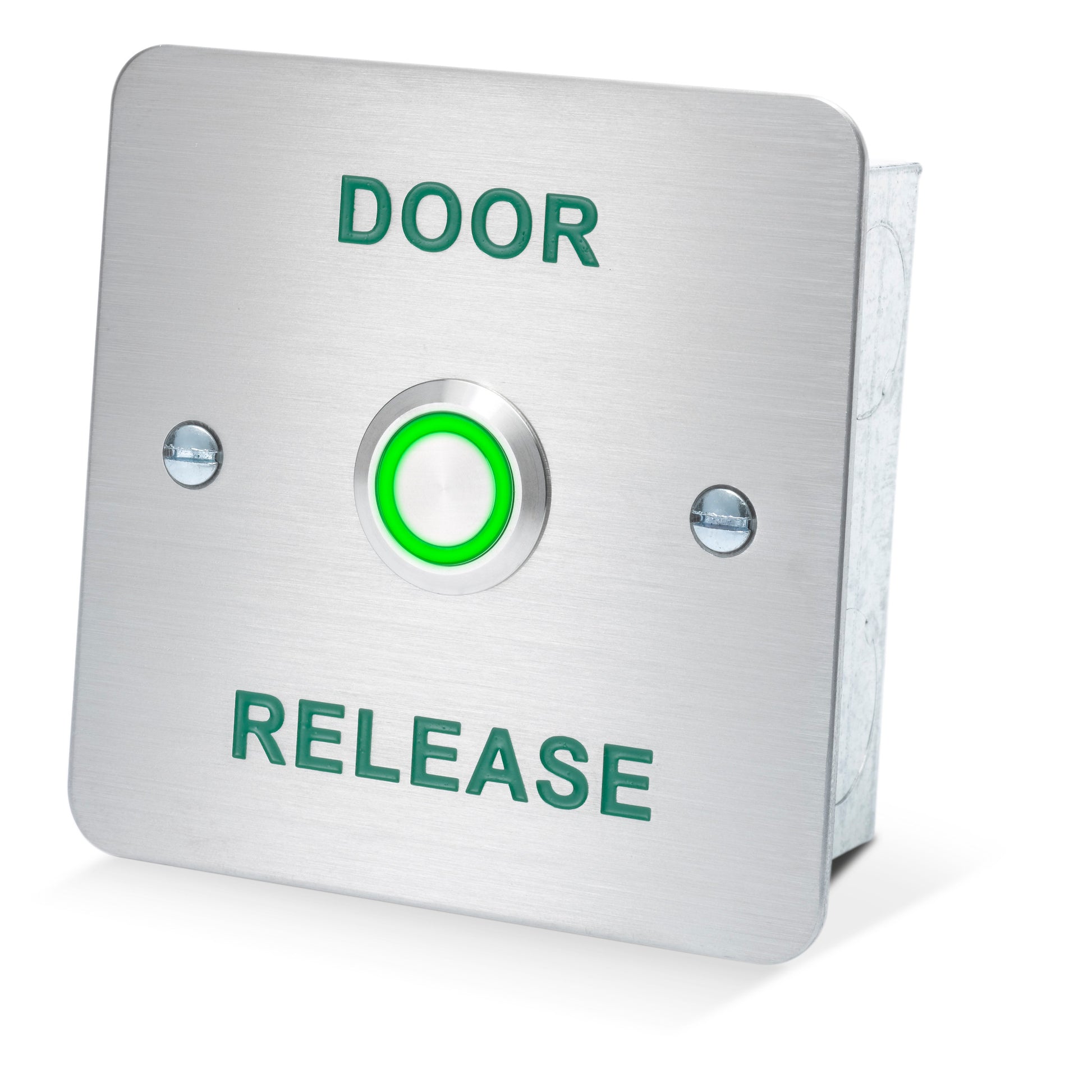

• DRB011F-DR – Flush Mount Door Release Button (requires DRB-SH for surface mounting)
• DRB-SH - Surface Mount Surround Housing

Key Features

• Brushed stainless steel faceplate
• Illuminated Stainless steel button design
• Flush mount installation with surface mount option using DRB-SH surround housing
• COM, NO and NC contact outputs
• Compatible with most access control and door release systems

• Robust design for high-traffic environments

Typical Applications

The DRB011 Series Press to Exit Button is commonly installed in:

• Office access control doors
• Commercial building entrances
• Warehouses and distribution centres
• Schools, colleges, and universities
• Hospitals and healthcare facilities
• Secure staff-only areas
• Internal security doors
• Industrial access control systems

Compatibility

The DRB011 Press to Exit Button is designed to integrate with a wide range of door security and access control equipment, making it suitable for both new installations and system upgrades.

• Access control systems
• Electric locks
• Magnetic locks (maglocks)
• Electric strikes
• Door entry systems
• Intercom systems
• Power Supplies, Relays & Timers

Technical Specification

• Material: Brushed stainless steel
• Button Type: Illuminated 19mm stainless steel push button
• Operating Voltage: 12VDC
• Operation: Momentary
• Contact Configuration: COM / NO / NC
• Mounting Options: Flush Mount or Surface Mount with DRB-SH Surround Housing
• Faceplate Dimensions: 85mm x 85mm x 3mm (H x W x D)

DRB011 Product Information

The DRB011 Series illuminated stainless steel exit buttons provide a dependable and easy-to-use door release solution for access control installations requiring secure, reliable, and efficient egress. Suitable for a wide range of commercial and industrial door security applications, it is an ideal choice where a durable press to exit button or door release switch is required.

Frequently Asked Questions

What is the DRB011 used for?

The DRB011 is used as a request-to-exit (RTE) button for releasing secured doors connected to access control systems, electric locks, magnetic locks (maglocks), and door entry systems.

What makes the DRB011 different from standard exit buttons?

The DRB011 features an illuminated stainless steel push button, improving visibility in low-light environments and making the exit button easier to locate..

What contact outputs are available?

The DRB011 provides COM, NO and NC contacts, allowing compatibility with a wide range of access control systems, electric locks, magnetic locks, and electric strikes.

What voltage is required for the illumination?

The illuminated button operates from a 12VDC supply.

Can the DRB011 be surface mounted?

Yes. The DRB011 can be surface mounted when using the DRB-SH surface surround housing.

Is the DRB011 suitable for access control systems?

Yes. The DRB011 is designed for use with access control systems, electric locks, magnetic locks (maglocks), electric strikes, intercom systems, and door entry systems.
