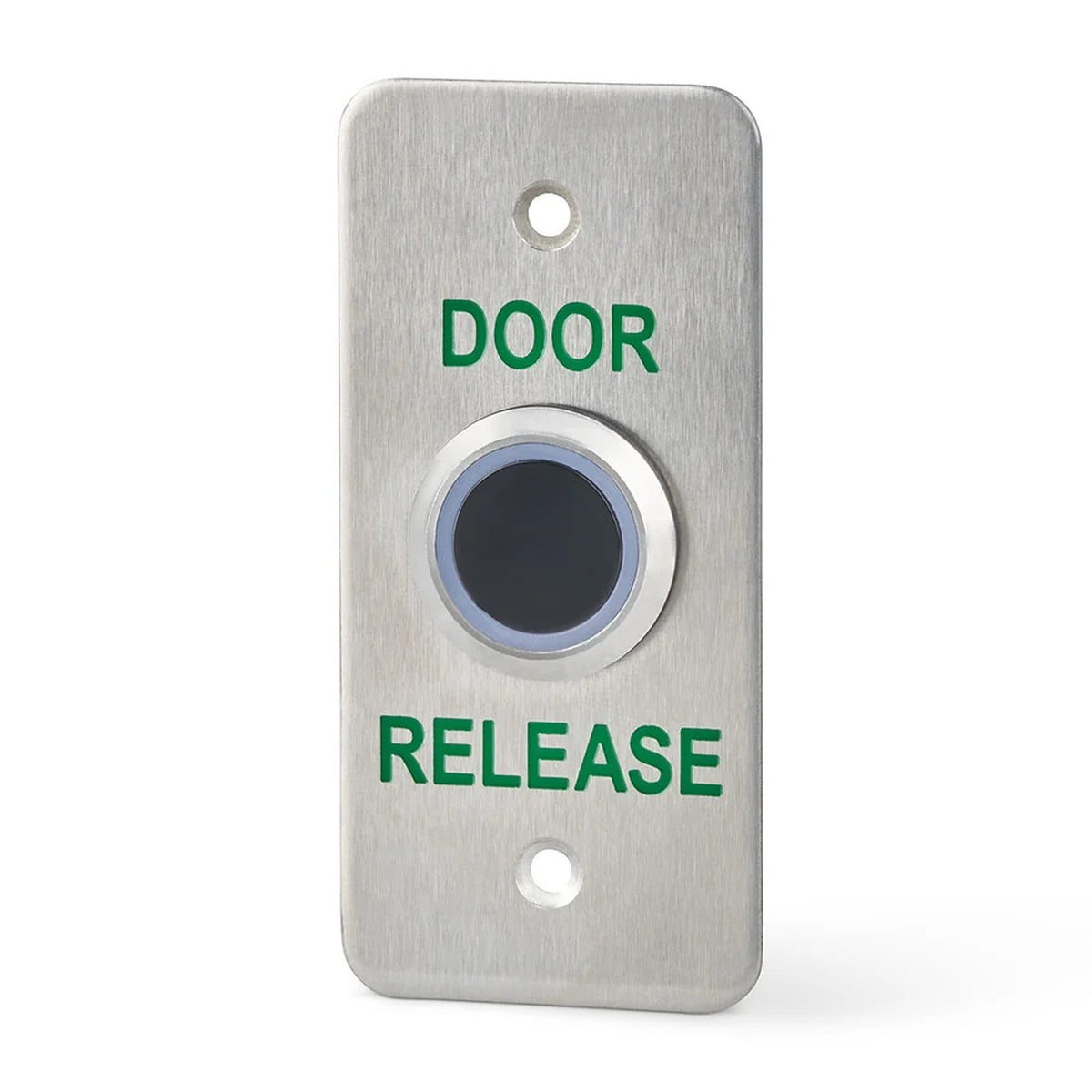

DRB-IR-N Narrow Infrared Touch Free Exit Button

The DRB-IR-N Flush Infra-Red Exit Button is a touch-free door release device designed for access control and electronic locking systems. Using infra-red detection, the unit allows users to activate the door release without physically touching the button, making it suitable for busy commercial, public and professional environments.

Mounted on a brushed stainless steel plate, the DRB-IR-N operates from 12VDC to 24VDC and provides COM, normally open and normally closed changeover contacts for connection to compatible access control and electric locking equipment.

The infra-red sensor has an adjustable detection distance of approximately 5cm to 20cm, together with an adjustable time delay from 0.5 to 20 seconds. A toggle function is also available by turning the time delay adjustment to the fully clockwise position.

Available Model

• DRB-IR-N – Infra-red exit button with brushed stainless steel plate, adjustable detection distance, adjustable time delay and changeover contacts

Key Features

• Touch-free infra-red operation
• Brushed stainless steel plate
• 12VDC to 24VDC operation
• COM / N/O / N/C changeover contacts
• Adjustable detection distance from approximately 5cm to 20cm
• Adjustable time delay from 0.5 to 20 seconds
• Toggle function available
• Red and green LED indication
• Internal and external LED control modes
• Suitable for access control and electronic locking systems

Typical Applications

• Access controlled doors
• Touch-free request-to-exit applications
• Magnetic lock installations
• Electric release systems
• Commercial buildings
• Office environments
• Educational facilities
• Healthcare environments
• Public buildings
• Industrial premises
• Reception areas
• High-traffic controlled doors

Compatibility

The DRB-IR-N can be connected to compatible access control and electric locking equipment using its volt-free changeover contact.

Compatible with

• Access Control Systems
• Magnetic Locks
• Electric Releases
• Electric Locks
• Door Entry Systems
• Keypad Entry Systems
• Proximity Readers
• Power Supplies
• Timers and Relays

Please check the switching requirements, supply voltage and connected locking equipment before installation.

Technical Specification

• Product type: Infra-red exit button
• Model: DRB-IR-N
• Operation: Touch-free infra-red detection
• Plate finish: Brushed stainless steel
• Operating voltage: 12VDC to 24VDC
• Contacts: COM / N/O / N/C
• Contact type: Changeover
• Detection distance: Adjustable, approximately 5cm to 20cm
• Time delay: Adjustable from 0.5 to 20 seconds
• Toggle function: Yes
• LED control: Internal or external
• Button thread: M22
• Cable: 7 x AWG 28 x 200mm

LED control modes

The DRB-IR-N can operate in two LED control modes:

• INT mode: Factory setting with the jumper open. The LEDs are controlled by the infra-red button.
• EXT mode: With the jumper closed, the LEDs can be controlled by the connected system.

Connection colours

• Red: 12-24VDC
• Black: 0VDC
• Yellow: Green LED control in EXT mode
• White: Red LED control in EXT mode
• Green: Normally Open
• Blue: Common
• Purple: Normally Closed

DRB-IR-N Product Datasheet

The DRB-IR-N provides a practical touch-free alternative to a conventional press-to-exit button, combining adjustable infra-red detection with configurable timing and changeover contacts.

Its brushed stainless steel plate provides a clean professional appearance, while the adjustable sensing distance and time delay make it suitable for a wide range of access control and door release applications.

Please check the required detection range, time delay, switching configuration and system voltage before installation.

Frequently Asked Questions

What is the DRB-IR-N used for?

The DRB-IR-N is a touch-free infra-red exit button designed to release an access controlled door without requiring the user to physically press a button.

Does the DRB-IR-N need to be touched?

No. The unit uses infra-red detection, allowing the door release to be activated by presenting a hand within the configured detection range.

What is the detection range of the DRB-IR-N?

The detection distance can be adjusted between approximately 5cm and 20cm.

Does the DRB-IR-N have an adjustable timer?

Yes. The output time delay can be adjusted from approximately 0.5 to 20 seconds.

Does the DRB-IR-N have a toggle function?

Yes. A toggle function is available by turning the time delay adjustment to the fully clockwise position.

What voltage does the DRB-IR-N operate from?

The DRB-IR-N operates from 12VDC to 24VDC.

What switching contacts are provided?

The DRB-IR-N provides COM, normally open and normally closed changeover contacts for connection to compatible access control and electric locking equipment.

Does the DRB-IR-N have LED indication?

Yes. The unit supports red and green LED indication and can operate with either internal or external LED control.

What finish does the DRB-IR-N have?

The DRB-IR-N is supplied with a brushed stainless steel plate.

Can the DRB-IR-N be used with a magnetic lock?

Yes. Its changeover contacts can be incorporated into a compatible magnetic lock and access control circuit to provide touch-free request-to-exit operation.
