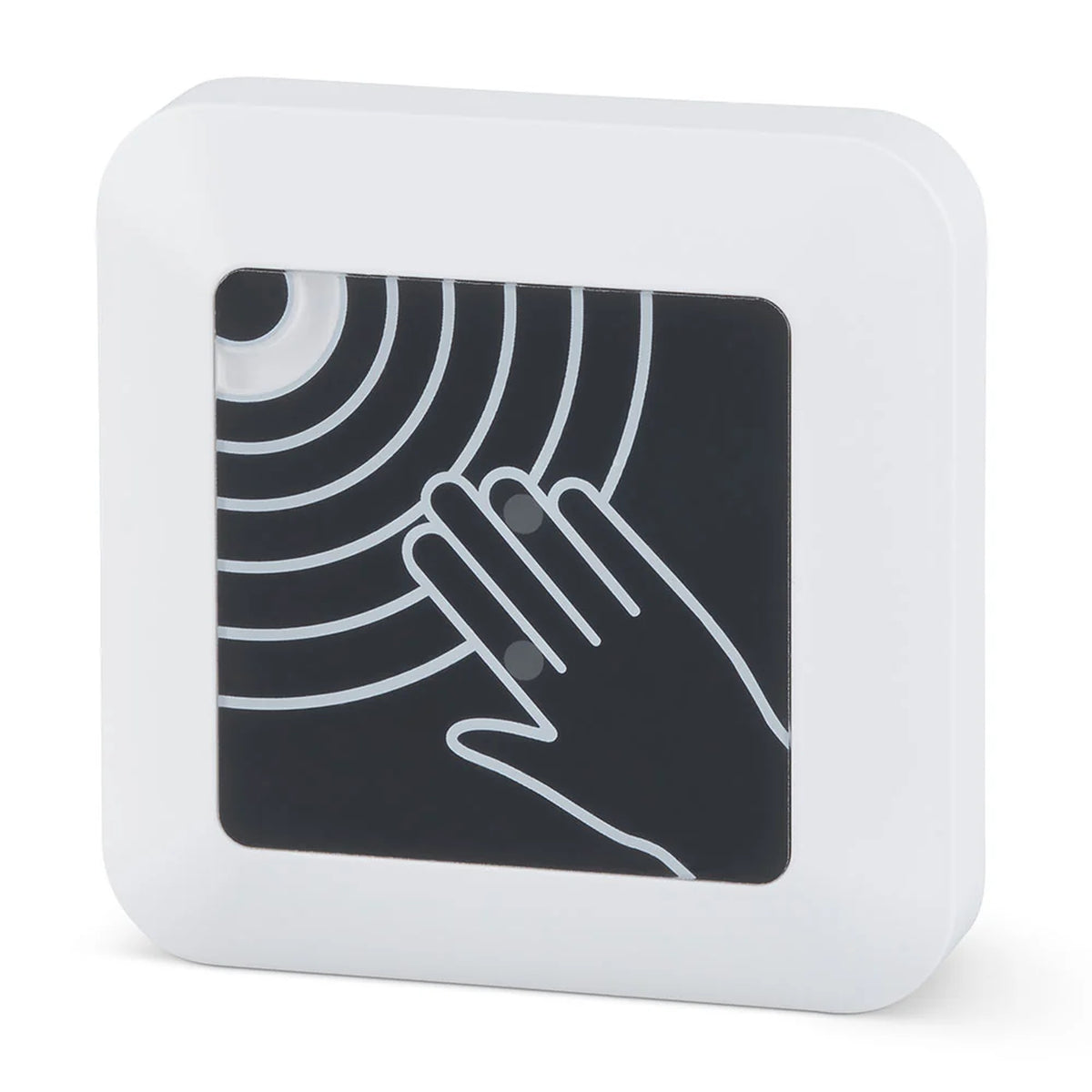

DRB-IR-K4 Infrared Touch Free Exit Button

The DRB-IR-K4 Touchless Infra-Red Exit Button is a surface mounted request-to-exit device designed for access control and electronic locking systems. Using infra-red detection, the unit allows users to activate the door release without physically touching the button, making it suitable for busy commercial, public and professional environments.

Manufactured from ABS fireproof plastic, the DRB-IR-K4 operates from 12-24VDC or 12-28VAC and provides NO / NC / COM changeover contacts for connection to compatible access control and electric locking equipment. The contact rating is 3A at 120VAC / 30VDC.

The unit features an adjustable infra-red detection range of approximately 5cm to 20cm and an adjustable time delay from 0.3 to 30 seconds. The LED is red in standby and changes to green when the sensor is triggered.

Available Model

• DRB-IR-K4 – Surface mounted touchless infra-red exit button with adjustable detection range, adjustable time delay and changeover contacts

Key Features

• Touch-free infra-red operation
• Surface mounted design
• ABS fireproof plastic construction
• 12-24VDC or 12-28VAC operation
• NO / NC / COM changeover contacts
• Contact rating: 3A at 120VAC / 30VDC
• Adjustable detection range from approximately 5cm to 20cm
• Adjustable time delay from 0.3 to 30 seconds
• Red LED indication in standby
• Green LED indication when triggered
• Suitable for access control and electric locking systems
• Compact 86mm x 86mm design

Typical Applications

• Access controlled doors
• Touch-free request-to-exit applications
• Magnetic lock installations
• Electric release systems
• Commercial buildings
• Office environments
• Educational facilities
• Healthcare environments
• Public buildings
• Industrial premises
• Reception areas
• High-traffic controlled doors

Compatibility

The DRB-IR-K4 can be connected to compatible access control and electric locking equipment using its NO / NC / COM changeover contacts.

Compatible with

• Access Control Systems
• Magnetic Locks
• Electric Releases
• Electric Locks
• Door Entry Systems
• Keypad Entry Systems
• Proximity Readers
• Power Supplies
• Timers and Relays

Please check the supply voltage, switching requirements and connected locking equipment before installation.

Technical Specification

• Product type: Infra-red exit button
• Model: DRB-IR-K4
• Operation: Touch-free infra-red detection
• Mounting: Surface
• Material: ABS fireproof plastic
• Operating voltage: 12-24VDC / 12-28VAC
• Output contacts: NO / NC / COM
• Contact rating: 3A at 120VAC / 30VDC
• Detection distance: Adjustable, approximately 5cm to 20cm
• Time delay: Adjustable from 0.3 to 30 seconds
• Standby indication: Red LED
• Triggered indication: Green LED
• Dimensions: 86mm x 86mm x 20mm (H x W x D)

Connection details

• Green: Normally Open
• White: Normally Closed
• Yellow: Common
• Black: GND
• Red: 12/24VDC

DRB-IR-K4 Product Datasheet

The DRB-IR-K4 provides a practical touch-free alternative to a conventional press-to-exit button, combining adjustable infra-red detection with configurable time delay and changeover contacts.

Its surface mounted ABS housing and clear red/green LED indication make it suitable for a wide range of access control and electronic locking installations where simple, contactless door release operation is required.

Please check the required sensing distance, time delay, supply voltage and switching configuration before installation.

Frequently Asked Questions

What is the DRB-IR-K4 used for?

The DRB-IR-K4 is a touchless infra-red exit button designed to release an access controlled door without requiring the user to physically press a button.

Does the DRB-IR-K4 need to be touched?

No. The unit uses infra-red detection, allowing the door release to be activated by presenting a hand within the configured sensing range.

Is the DRB-IR-K4 surface mounted or flush mounted?

The DRB-IR-K4 is designed for surface mounting.

What is the detection range?

The sensing distance can be adjusted from approximately 5cm to 20cm.

Does the DRB-IR-K4 have an adjustable timer?

Yes. The time delay can be adjusted from approximately 0.3 to 30 seconds.

What voltage does the DRB-IR-K4 operate from?

The DRB-IR-K4 operates from 12-24VDC or 12-28VAC.

What switching contacts are provided?

The unit provides normally open, normally closed and common contacts, allowing it to interface with compatible access control and electric locking equipment.

What is the contact rating?

The DRB-IR-K4 contacts are rated at 3A at 120VAC / 30VDC.

What do the LED colours indicate?

The LED is red in standby and changes to green when the sensor is triggered.

What are the dimensions of the DRB-IR-K4?

The unit measures 86mm x 86mm x 20mm (H x W x D).

Can the DRB-IR-K4 be used with a magnetic lock?

Yes. Its NO / NC / COM contacts can be incorporated into a compatible magnetic lock and access control circuit to provide touch-free request-to-exit operation.
