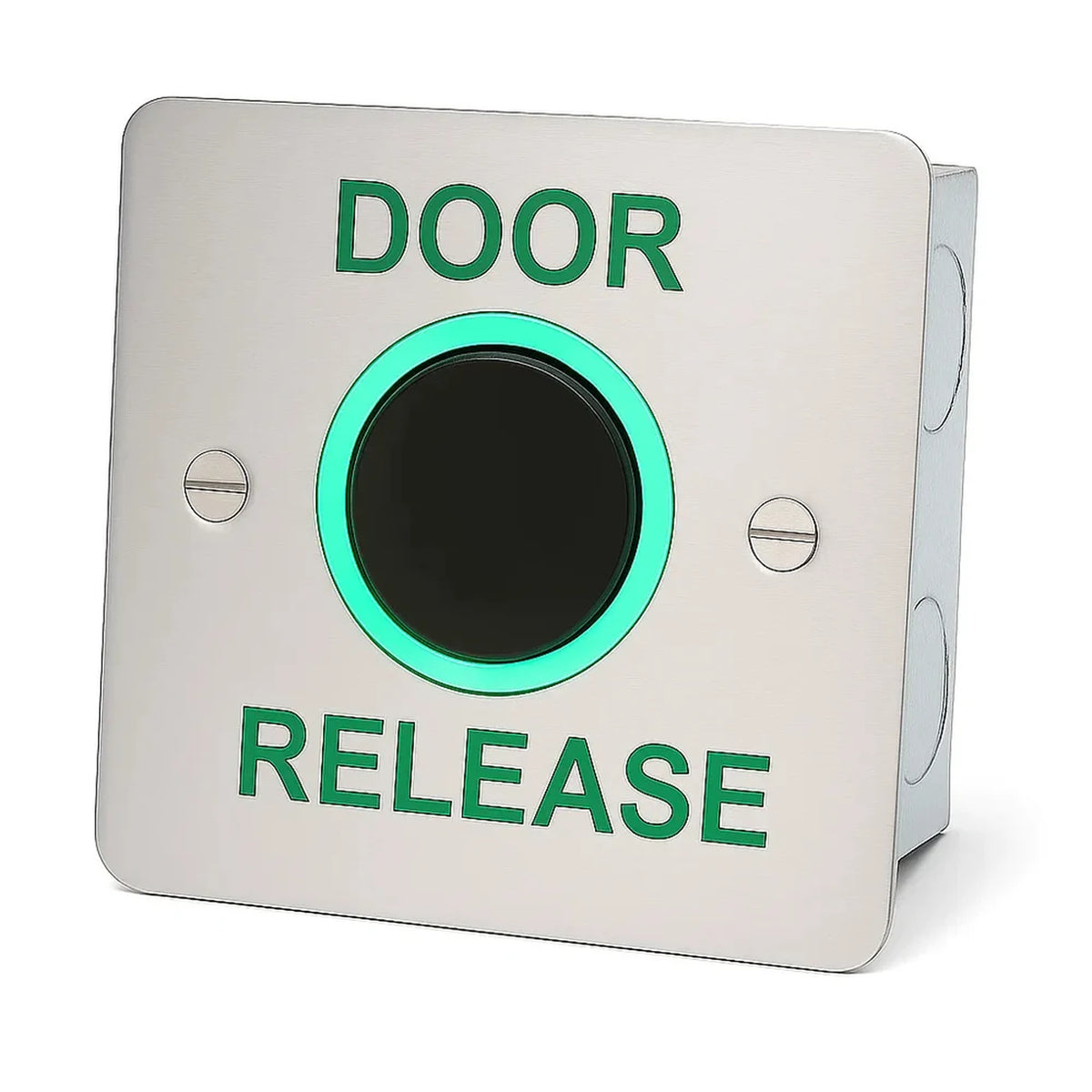

DRB-IR-200 Infrared Touch Free Exit Button

The DRB-IR-200 Flush Infra-Red Exit Button is a touch-free door release device designed for access control and electronic locking systems. Using infra-red detection, the unit allows users to release an access controlled door without physically touching the button, making it suitable for busy commercial, public and professional environments.

Manufactured with a brushed stainless steel faceplate, the DRB-IR-200 is designed for flush mounting and features a Door Release legend. It operates from 12VDC to 24VDC and provides changeover contacts for connection to compatible access control and electric locking equipment.

The infra-red sensor features an adjustable detection range together with an adjustable timer, allowing the unit to be configured to suit different door release applications.

Available Model

• DRB-IR-200 – Flush mounted brushed stainless steel infra-red exit button with Door Release legend, adjustable timer and changeover contacts

Key Features

• Touch-free infra-red operation
• Brushed stainless steel faceplate
• Flush mounted design
• Door Release legend
• 12VDC to 24VDC operation
• Adjustable detection range
• Adjustable timer
• Changeover contacts
• Suitable for access control and electric locking systems
• Ideal for busy commercial and public environments

Typical Applications

• Access controlled doors
• Touch-free request-to-exit applications
• Magnetic lock installations
• Electric release systems
• Commercial buildings
• Office environments
• Educational facilities
• Healthcare environments
• Public buildings
• Industrial premises
• Reception areas
• High-traffic controlled doors

Compatibility

The DRB-IR-200 can be connected to compatible access control and electric locking equipment using its changeover contacts.

Compatible with

• Access Control Systems
• Magnetic Locks
• Electric Releases
• Electric Locks
• Door Entry Systems
• Keypad Entry Systems
• Proximity Readers
• Power Supplies
• Timers and Relays

Please check the switching requirements, supply voltage and connected locking equipment before installation.

Technical Specification

• Product type: Infra-ed exit button
• Model: DRB-IR-200
• Operation: Touch-free infrared detection
• Mounting: Flush
• Faceplate finish: Brushed stainless steel
• Legend: Door Release
• Operating voltage: 12VDC to 24VDC
• Detection range: Adjustable
• Timer: Adjustable
• Contacts: Changeover
• Dimensions: 85mm x 85mm x 30mm (H x W x D)

DRB-IR-200 Product Datasheet

The DRB-IR-200 provides a practical touch-free alternative to a conventional press-to-exit button, combining infrared detection with adjustable range and timing control.

Its brushed stainless steel faceplate and flush mounted design provide a clean professional appearance, while the changeover contacts allow it to be integrated with a wide range of compatible access control and electric locking systems.

Please check the required detection range, timer setting, switching configuration and system voltage before installation.

Frequently Asked Questions

What is the DRB-IR-200 used for?

The DRB-IR-200 is a touch-free infra-red exit button designed to release an access controlled door without requiring the user to physically press a button.

Does the DRB-IR-200 need to be touched?

No. The unit uses infra-red detection, allowing the door release to be activated without physical contact.

Is the DRB-IR-200 surface mounted or flush mounted?

The DRB-IR-200 is designed for flush mounting.

What voltage does the DRB-IR-200 operate from?

The DRB-IR-200 operates from 12VDC to 24VDC.

Does the DRB-IR-200 have an adjustable timer?

Yes. The DRB-IR-200 features an adjustable timer, allowing the operating period to be configured to suit the installation.

Can the detection range be adjusted?

Yes. The infra-red detection range is adjustable.

What switching contacts are provided?

The DRB-IR-200 provides changeover contacts for connection to compatible access control and electric locking equipment.

What is the faceplate made from?

The faceplate is manufactured from brushed stainless steel.

What are the dimensions of the DRB-IR-200?

The DRB-IR-200 measures 85mm x 85mm x 30mm (H x W x D).

Can the DRB-IR-200 be used with a magnetic lock?

Yes. Its changeover contacts can be incorporated into a compatible magnetic lock and access control circuit to provide touch-free request-to-exit operation.
