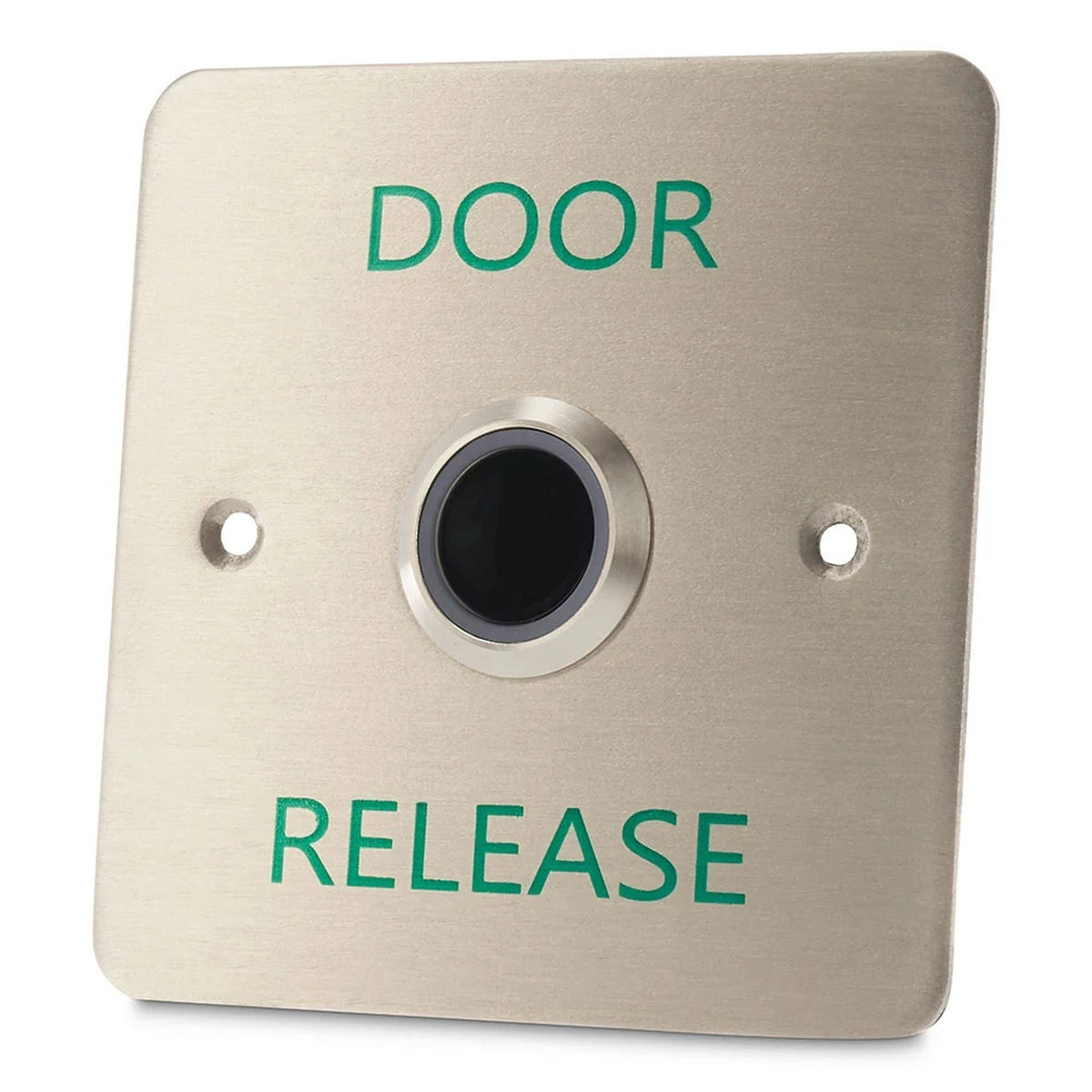

DRB-IR-1224 Flush Infrared Touch Free Exit Button

The DRB-IR-1224 Flush Infra-Red Exit Button is a touch-free door release device designed for access control and electronic locking systems. Using infra-red detection, the button allows users to activate the door release without physically touching the unit, making it particularly suitable for busy commercial and public environments.

Mounted on a brushed stainless steel plate, the DRB-IR-1224 is designed for flush installation and operates from 12VDC to 24VDC. It provides a volt-free changeover contact with COM, normally open and normally closed connections, allowing it to interface with a wide range of access control systems, magnetic locks, electric releases and door control equipment.

The detection distance can be adjusted between approximately 5cm and 20cm, while the built-in adjustable time delay can be set from 0.5 to 20 seconds. A toggle function is also available by adjusting the time delay control to its fully clockwise position.

Available Model

• DRB-IR-1224 – Flush mounted infra-red exit button with brushed stainless steel plate, adjustable detection range and changeover contacts

Key Features

• Touch-free infra-red operation
• Brushed stainless steel plate
• Flush mounted design
• 12VDC to 24VDC operation
• COM / N/O / N/C changeover contacts
• Adjustable detection distance from approximately 5cm to 20cm
• Adjustable time delay from 0.5 to 20 seconds
• Toggle function available
• Red and green LED indication
• Internal and external LED control modes
• Suitable for access control and electric locking systems
• Ideal for high-traffic and hygiene-conscious environments

Typical Applications

• Access controlled doors
• Touch-free request-to-exit applications
• Magnetic lock installations
• Electric release systems
• Commercial buildings
• Office environments
• Educational facilities
• Healthcare environments
• Public buildings
• Industrial premises
• Reception areas
• High-traffic controlled doors

Compatibility

The DRB-IR-1224 can be connected to compatible access control and electric locking equipment using its volt-free changeover contact.

Compatible with

• Access Control Systems
• Magnetic Locks
• Electric Releases
• Electric Locks
• Door Entry Systems
• Keypad Entry Systems
• Proximity Readers
• Power Supplies
• Timers and Relays

Please check the switching requirements, power supply voltage and connected locking equipment before installation.

Technical Specification

• Product type: Infra-red exit button
• Model: DRB-IR-1224
• Operation: Touch-free infra-red detection
• Mounting: Flush
• Plate finish: Brushed stainless steel
• Operating voltage: 12VDC to 24VDC
• Contacts: COM / N/O / N/C
• Contact type: Changeover
• Detection distance: Adjustable, approximately 5cm to 20cm
• Time delay: Adjustable from 0.5 to 20 seconds
• Toggle function: Yes
• LED indication: Red / Green
• LED control modes: Internal or external
• Cable: 7 core AWG 28, approximately 200mm
• Button thread: M22

LED control modes

The DRB-IR-1224 can operate in two LED control modes:

• INT mode: The LEDs are controlled directly by the infra-red button. This is the factory setting with the jumper open.
• EXT mode: The LEDs can be controlled by the connected system with the jumper closed.

Connection colours

• Red: 12-24VDC
• Black: 0VDC
• Yellow: Green LED control in EXT mode
• White: Red LED control in EXT mode
• Green: Normally Open
• Blue: Common
• Purple: Normally Closed

DRB-IR-1224 Product Datasheet

The DRB-IR-1224 provides a practical touch-free alternative to a conventional press-to-exit button, combining adjustable infra-red detection with flexible switching and LED control.

Its brushed stainless steel finish and flush mounted design provide a clean professional appearance, while the adjustable sensing distance and time delay allow the unit to be configured for a wide range of access control and door release applications.

Please check the required detection range, time delay, switching configuration and system voltage before installation.

Frequently Asked Questions

What is the DRB-IR-1224 used for?

The DRB-IR-1224 is a touch-free infra-red exit button used to release an access controlled door without requiring the user to physically press a button.

Does the DRB-IR-1224 need to be touched?

No. The unit uses infra-red detection, allowing the door release to be activated by presenting a hand within the configured detection range.

What is the detection range of the DRB-IR-1224?

The detection distance can be adjusted between approximately 5cm and 20cm.

Does the DRB-IR-1224 have an adjustable timer?

Yes. The output time delay can be adjusted from approximately 0.5 to 20 seconds.

Does the DRB-IR-1224 have a toggle function?

Yes. A toggle function is available by turning the time delay adjustment to its fully clockwise position.

What voltage does the DRB-IR-1224 operate from?

The DRB-IR-1224 operates from 12VDC to 24VDC.

What switching contacts are provided?

The unit provides COM, normally open and normally closed changeover contacts, allowing it to interface with a wide range of compatible access control and electric locking equipment.

Does the DRB-IR-1224 have LED indication?

Yes. The unit has red and green LED indication. The LEDs can either be controlled internally by the button or externally by the connected system.

Is the DRB-IR-1224 surface mounted or flush mounted?

The DRB-IR-1224 is designed for flush mounting.

What is the plate finish?

The unit is supplied on a brushed stainless steel plate.

Can the DRB-IR-1224 be used with a magnetic lock?

Yes. Its changeover contacts can be incorporated into a compatible magnetic lock and access control circuit to provide touch-free request-to-exit operation.
