Armoured Cable Door Loops & Concealed Door Loops for Access Control Systems
Armoured Cable Door Loops & Concealed Door Loops for Access Control Systems
Couldn't load pickup availability
The Armoured Cable Door Loops are designed to provide a secure and protected method of transferring power and signal cables between a door frame and door leaf in access control systems, door entry systems, intercom systems, electric locking installations, and security doors. Suitable for commercial, industrial, educational, healthcare, and public sector environments, they protect cables from damage, tampering, vandalism, repeated door movement and with selected fire-rated models available for suitable fire door applications.
Manufactured with a robust armoured construction, these door loops provide reliable cable protection where power and signal cables need to pass safely between the frame and door for electric locks, magnetic locks, access control readers, intercoms, and door monitoring equipment. They are commonly used with electric locks, magnetic locks, electric strikes, access control readers, and door monitoring devices.
Available in both surface-mounted and concealed versions, the range provides flexible installation options for new projects and retrofit applications. Their durable construction makes them particularly suitable for high-traffic environments where long-term cable protection is essential.

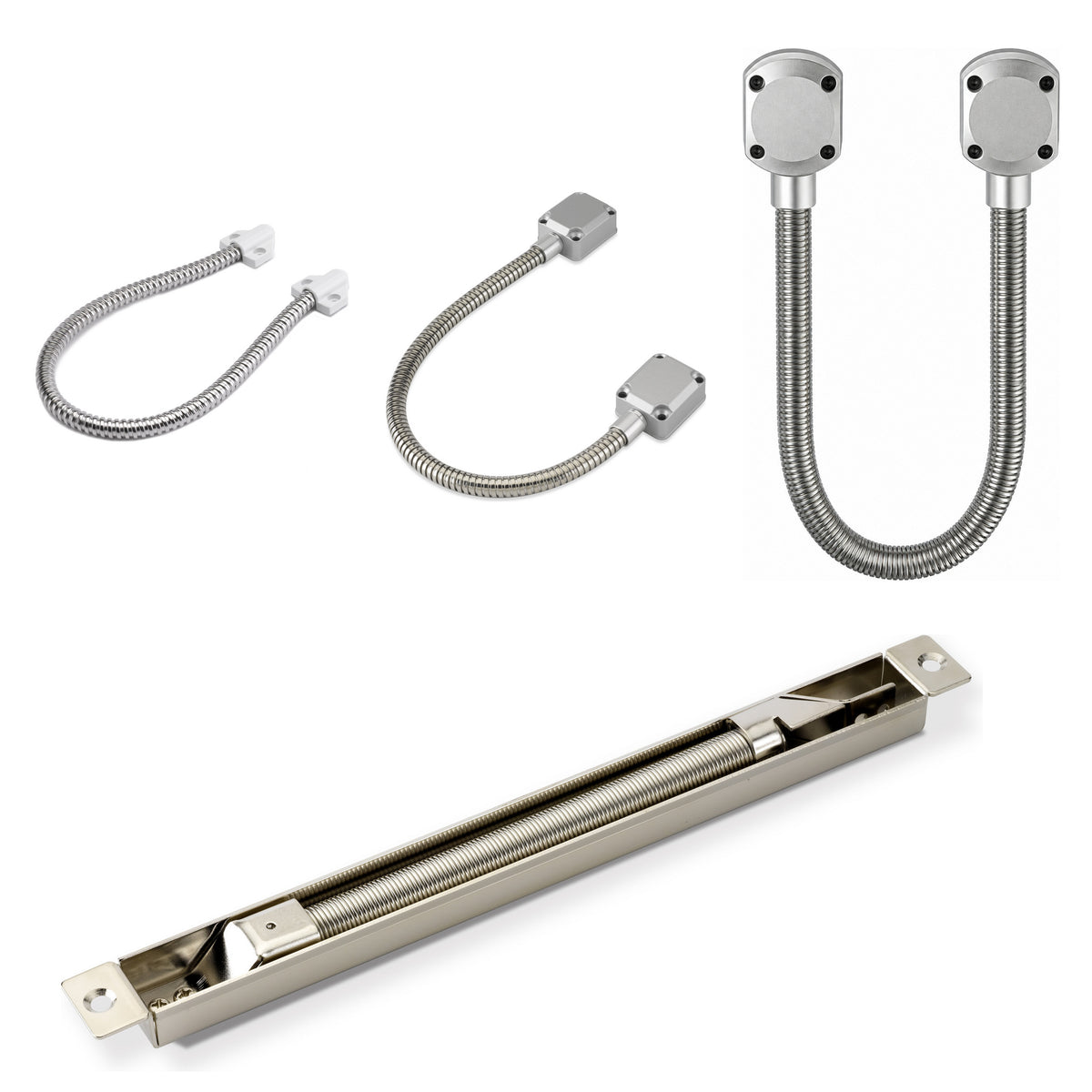

Available Models

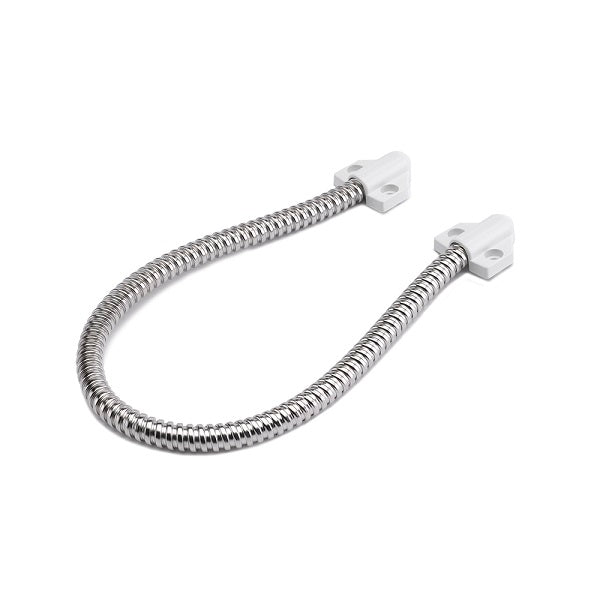

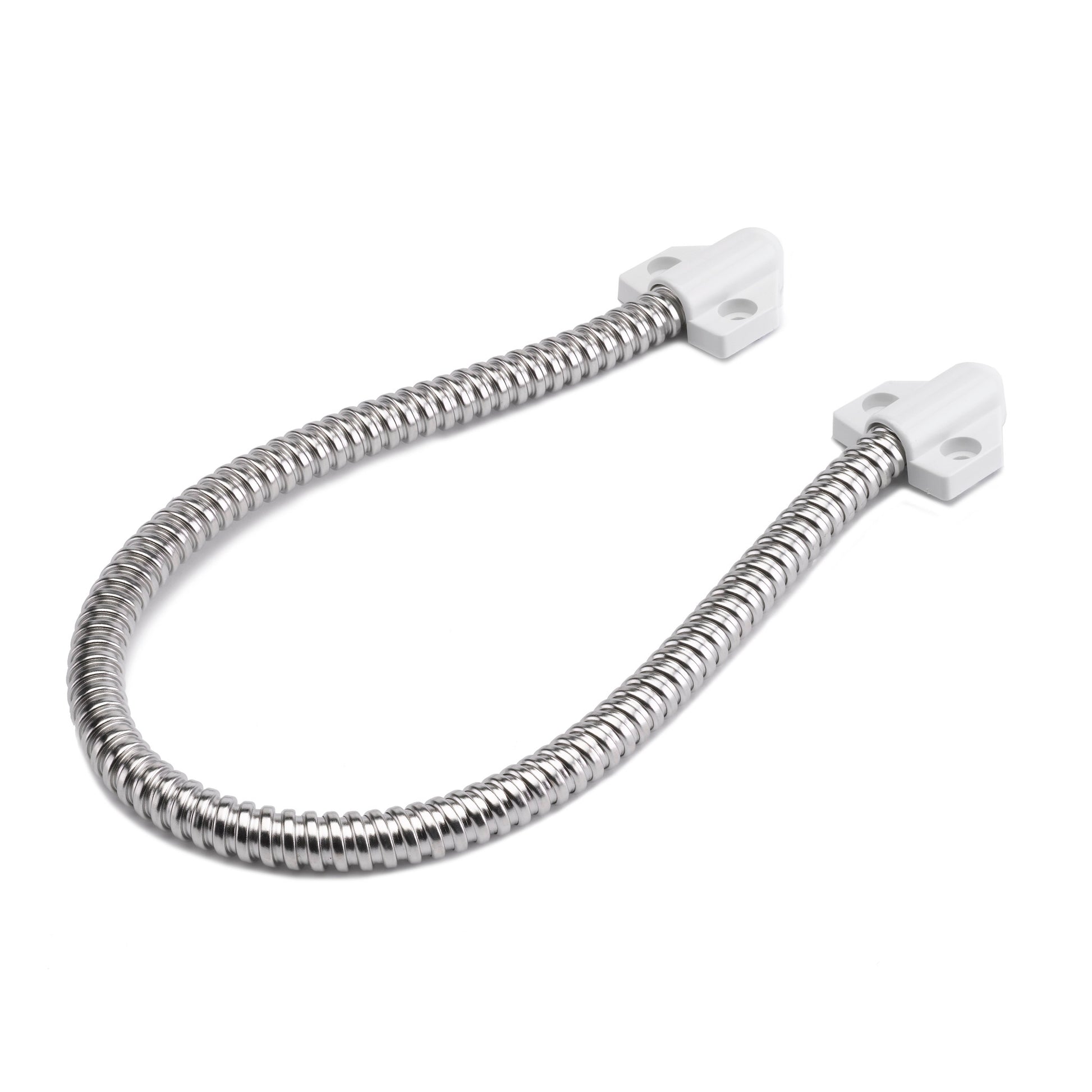

- DL200 – 400mm Door Loop with Plastic Ends

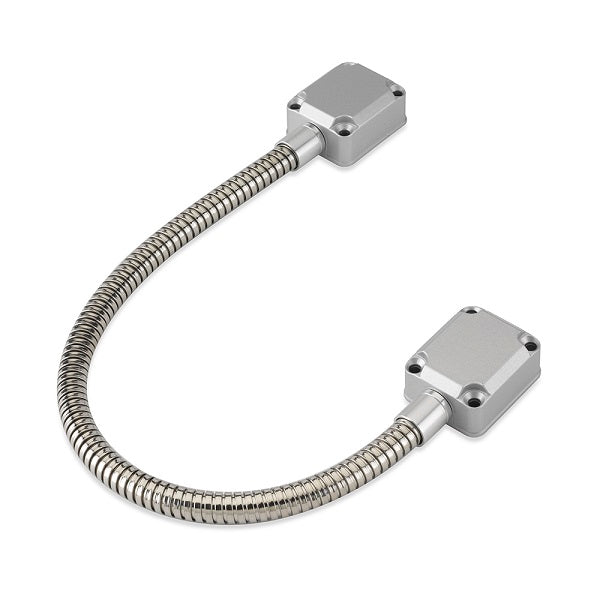

- DL350 - 400mm Armoured Door Loop

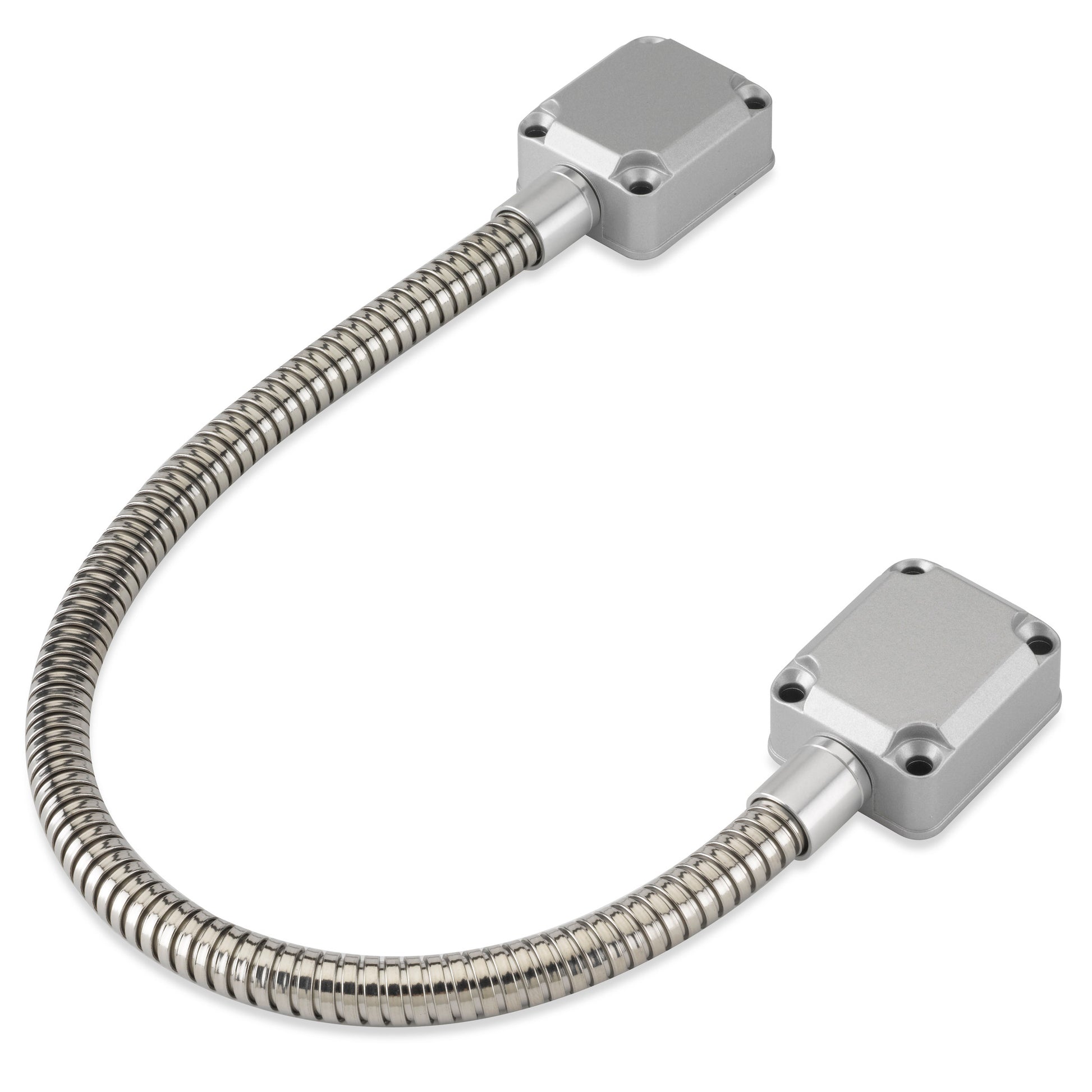

- DL350SP - 400mm Spring Door Loop

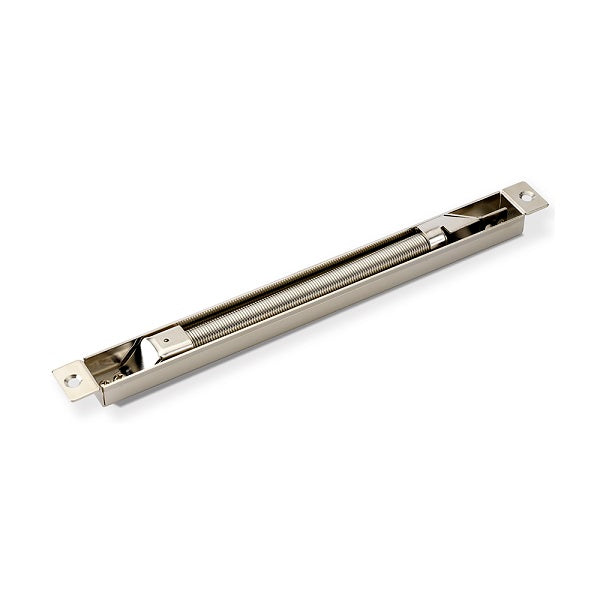

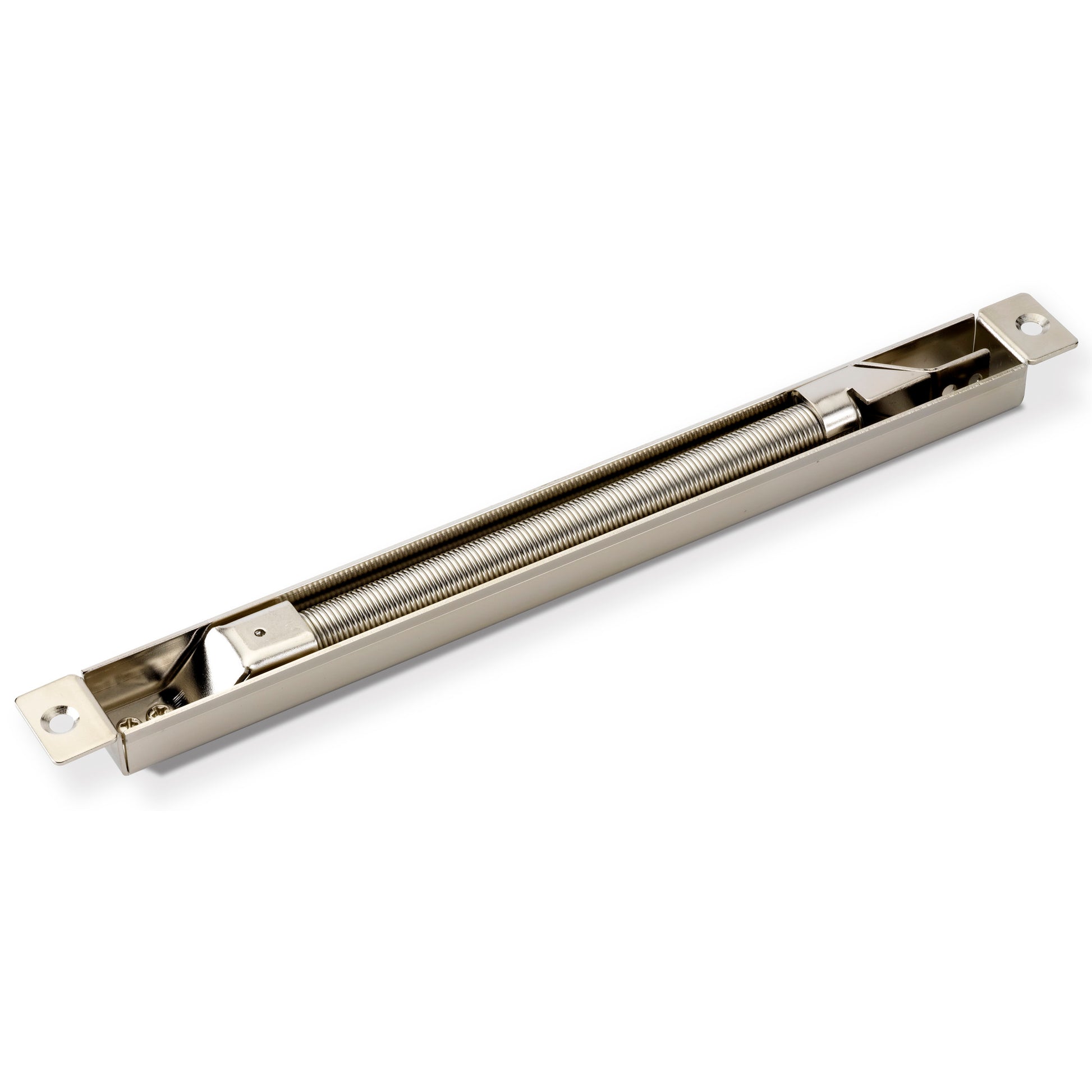

- DL400 – Concealed Armoured Door Loop
- DL850 - 850mm Armoured Door Loop
- FR-DL350 - Fire Rated 400mm Armoured Door Loop
- FR-DL350N - Fire Rated 400mm Armoured Door Loop
- FR-DL350SP - Fire Rated 400mm Spring Door Loop
- FR-DL850 - Fire Rated 800mm Armoured Door Loop
Key Features
- Armoured Cable Protection
- Protects Door Wiring from Damage
- Surface Mounted and Concealed Options
- Suitable for Access Control Installations
- Heavy Duty Construction
- Protects Power and Signal Cables
- Suitable for New Installations and Retrofits
- Fire Rated Versions Available
- Fire Tested to BS-EN1634-1 (FR Models)
- Professional Installation Appearance
- Reliable Cable Management Solution
- Suitable for High Traffic Doors
Typical Applications
- Access Control Doors
- Commercial Buildings
- Office Entrances
- Schools and Educational Facilities
- Healthcare Facilities
- Industrial Premises
- Double Door Installations
- Electronic Locking Systems
- Door Entry Systems
- Security Doors
Compatibility
The Armoured Cable Door Loops are designed for use with a wide range of door security and access control equipment.
- Electric Locks
- Magnetic Locks (Maglocks)
- Electric Strikes
- Access Control Systems
- Door Entry Systems
- Intercom Systems
- Proximity Card Readers
- Keypad Entry Systems
- Door Monitoring Devices
- Power Supplies
- Relays and Timers
- Door Contacts
- Door Position Switches
- Request to Exit Devices
- Electric Bolts
- Shear Locks
- Emergency Exit Systems
- Fire Door Monitoring Systems
Technical Specification
- Product Type: Armoured Cable Door Loop
- Installation Options: Surface Mounted or Concealed
- Construction: Heavy Duty Armoured Design
- Application: Cable Transfer Between Door and Frame
- Fire Rating: BS-EN1634-1 (FR Models)
-
Suitable Door Types: Single and Double Doors
Available Lengths
- DL200 – 400mm
- DL350 – 400mm
- DL350S – 400mm
- DL400 – 290mm Concealed
- DL850 – 850mm
- FR-DL350 - Fire Rated 400mm
- FR-DL350N - Fire Rated 400mm
- FR-DL350S - Fire Rated 400mm
- FR-DL850 - Fire Rated 800mm
FR-DL Fire Rated Door Loop Product Information
The Armoured Cable Door Loops provide a secure and reliable cable transfer solution for access control systems, door entry systems, intercoms, and electronic locking installations. Suitable for a wide range of commercial and industrial applications, they are an ideal choice where protected cable routing between the door and frame is required.
Frequently Asked Questions
Why use an armoured door loop?
Armoured door loops provide a secure method of protecting cables that pass between a door and frame. They help prevent cable damage caused by repeated door movement whilst protecting wiring from accidental impact, tampering, and vandalism. Commonly used with electric locks, magnetic locks, access control readers, and door monitoring devices, armoured door loops improve installation reliability and extend cable life.
