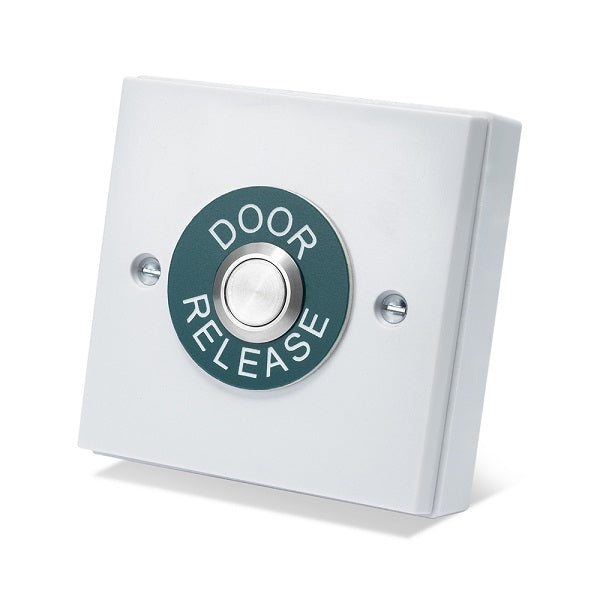

DL09 Door Release Button (RTE)

The DL09 Door Release Button is a simple and reliable request-to-exit (RTE) solution designed for use with access control systems, door entry systems, intercoms, and electronic locking applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, it provides a convenient method of releasing secured doors from the protected side of an access-controlled entrance.

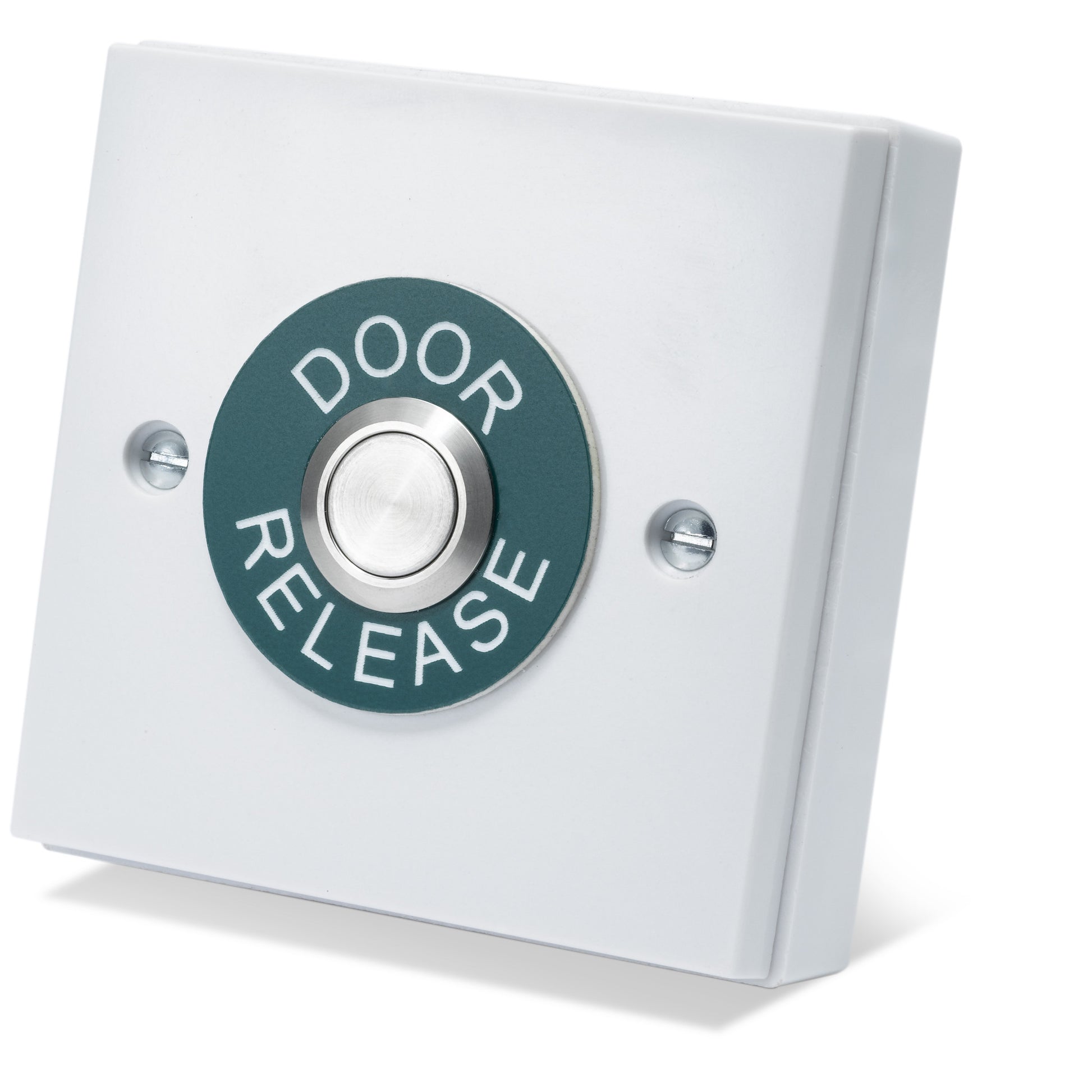

Featuring a durable 19mm stainless steel push button mounted within a gloss white plastic housing, the DL09 is designed for reliable day-to-day operation while maintaining a clean and professional appearance. Its compact surface mount design allows for quick installation without the need for flush mounting back boxes, making it suitable for both new installations and retrofit projects.

The DL09 provides a simple common (COM) and normally open (NO) switching output, allowing straightforward integration with electric locks, magnetic locks (maglocks), electric strikes, door controllers, and access control systems.

Available Models

• DL09 – Surface Mount Door Release Button

Key Features

• 19mm stainless steel push button
• Gloss white plastic housing
• Surface mount installation
• COM and NO contact configuration
• Simple and reliable operation
• Suitable for access control systems
• Compact and unobtrusive design
• Easy installation
• Ideal for new and retrofit installations
• Suitable for internal applications

Typical Applications

• Access control doors
• Office entrances
• Commercial buildings
• Residential developments
• Schools and educational facilities
• Healthcare premises
• Staff access areas
• Internal security doors
• Door entry systems
• Restricted access areas

Compatibility

The DL09 Door Release Button is designed to integrate with a wide range of access control and security equipment, making it suitable for both new installations and retrofit projects.

• Access control systems

• Electric strikes

• Magnetic locks (maglocks)
• Door entry systems

• Intercom systems
• Electric Bolt Locks
• Keypad Entry Systems
• Proximity Card Readers
• Power supplies

• Relays and Timers

Technical Specification

• Housing Material: Gloss White Plastic
• Button Material: Stainless Steel
• Button Diameter: 19mm
• Mounting Type: Surface Mounted
• Contact Configuration: COM / NO
• Dimensions: 85mm x 85mm x 28mm (H x W x D)

DL09 Product Information

The DL09 Door Release Button provides a dependable and cost-effective solution for request-to-exit applications within access control systems. Featuring a durable stainless steel button, compact surface mount design, and simple switching operation, it is ideal for commercial, residential, educational, healthcare, and industrial installations requiring reliable door release functionality.

Frequently Asked Questions

What is the DL09 used for?

The DL09 is used as a request-to-exit button for releasing secured doors connected to an access control or door entry system.

Is the DL09 surface mounted?

Yes. The DL09 features a surface mount design for quick and straightforward installation.

What contact configuration does the DL09 provide?

The DL09 provides common (COM) and normally open (NO) contacts for straightforward integration with compatible access control and electronic locking systems.

Can the DL09 be used with magnetic locks?

Yes. The DL09 is compatible with magnetic locks (maglocks), electric strikes, electric bolt locks, and most access control systems.

Is the push button made from stainless steel?

Yes. The DL09 features a durable 19mm stainless steel push button for reliable long-term operation.

Can the DL09 Be used with access control systems?

Yes. The DL09 is designed for use with access control systems, door entry systems, intercoms, magnetic locks, electric strikes, electric bolt locks, and other compatible electronic locking equipment.
