DG160N / DG160N-WP Narrow Standalone Combined Proximity Reader and Keypad

£45.75 plus VAT

~~£0.00~~ £45.75 plus VAT

Sale Sold out

Shipping calculated at checkout.

The DG160N Series Combined Proximity Reader and Keypad is a standalone narrow access control solution designed for use with electric locks, magnetic locks (maglocks), electric strikes, automatic doors, gate automation systems, and door entry applications. Suitable for commercial, industrial, educational, healthcare, residential, and public sector environments, it provides secure access control using PIN codes, proximity credentials, or a combination of both.

Operating from a 12VDC power supply, the DG160N supports up to 1,000 credentials, making it ideal for medium to large access control installations. The integrated EM 125kHz proximity reader allows convenient contactless access, while the backlit keypad provides reliable PIN code operation in low-light conditions.

Manufactured from durable aluminium and available in IP65 and IP67 weather-resistant versions, the DG160N Series is suitable for both internal and external installations. Its vandal-resistant construction and built-in anti-tamper switch provide additional security, making it suitable for demanding environments where reliability and protection are essential.

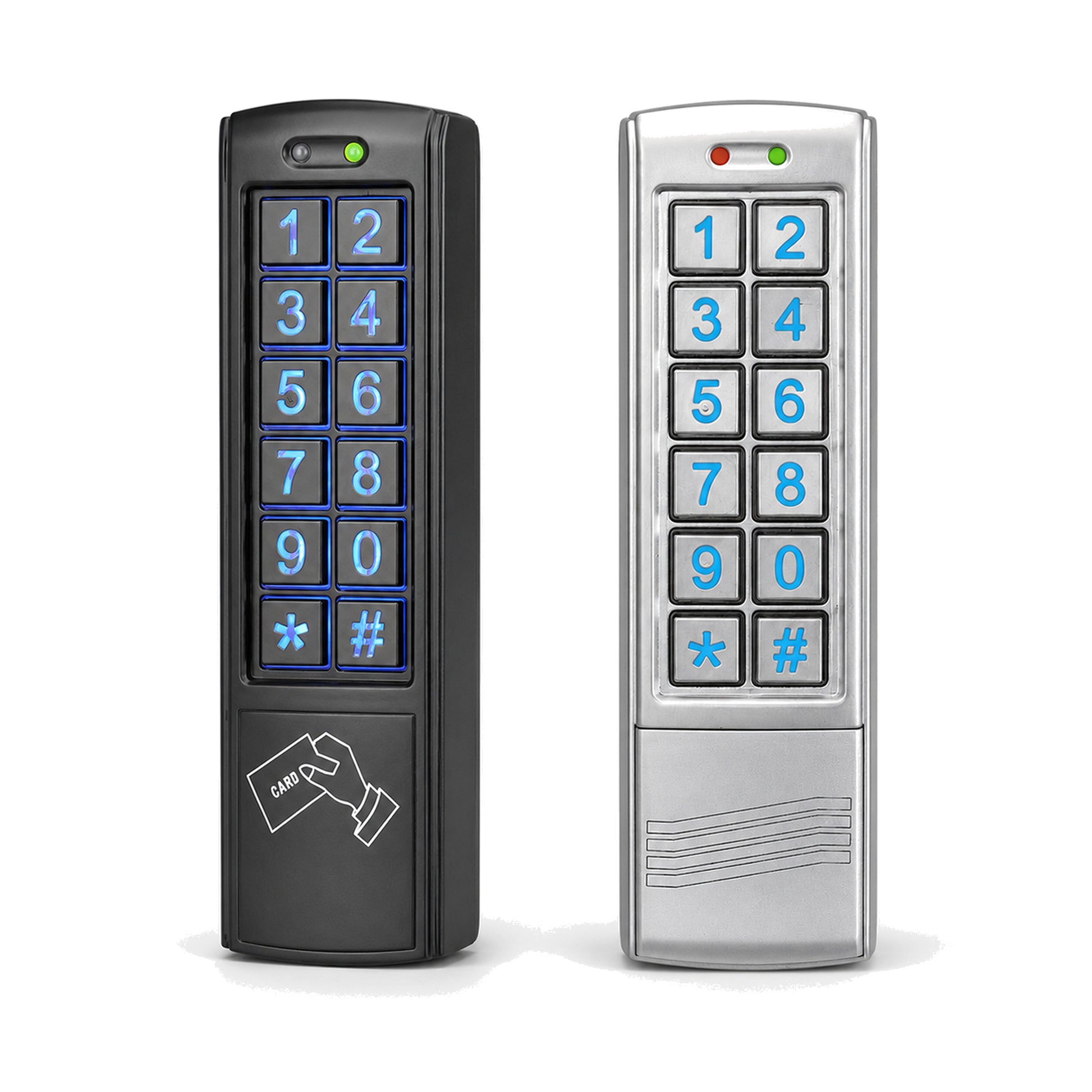

Available Models

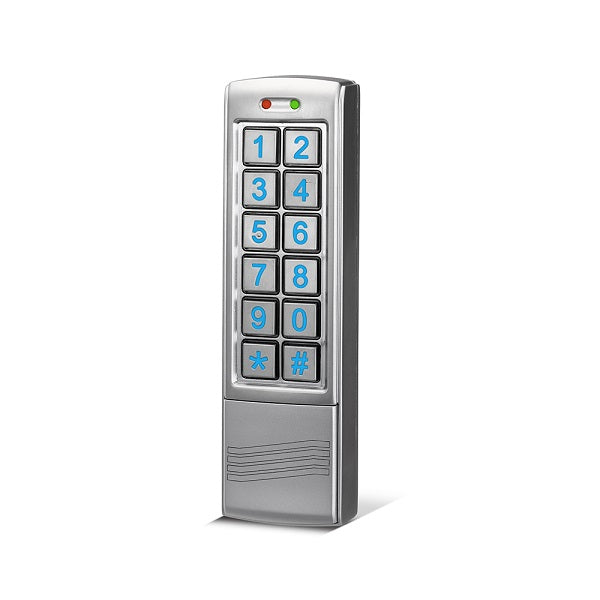

DG160N – Silver IP65 Standalone Combined Proximity Reader and Keypad
DG160N-WP – Silver IP67 Standalone Combined Proximity Reader and Keypad

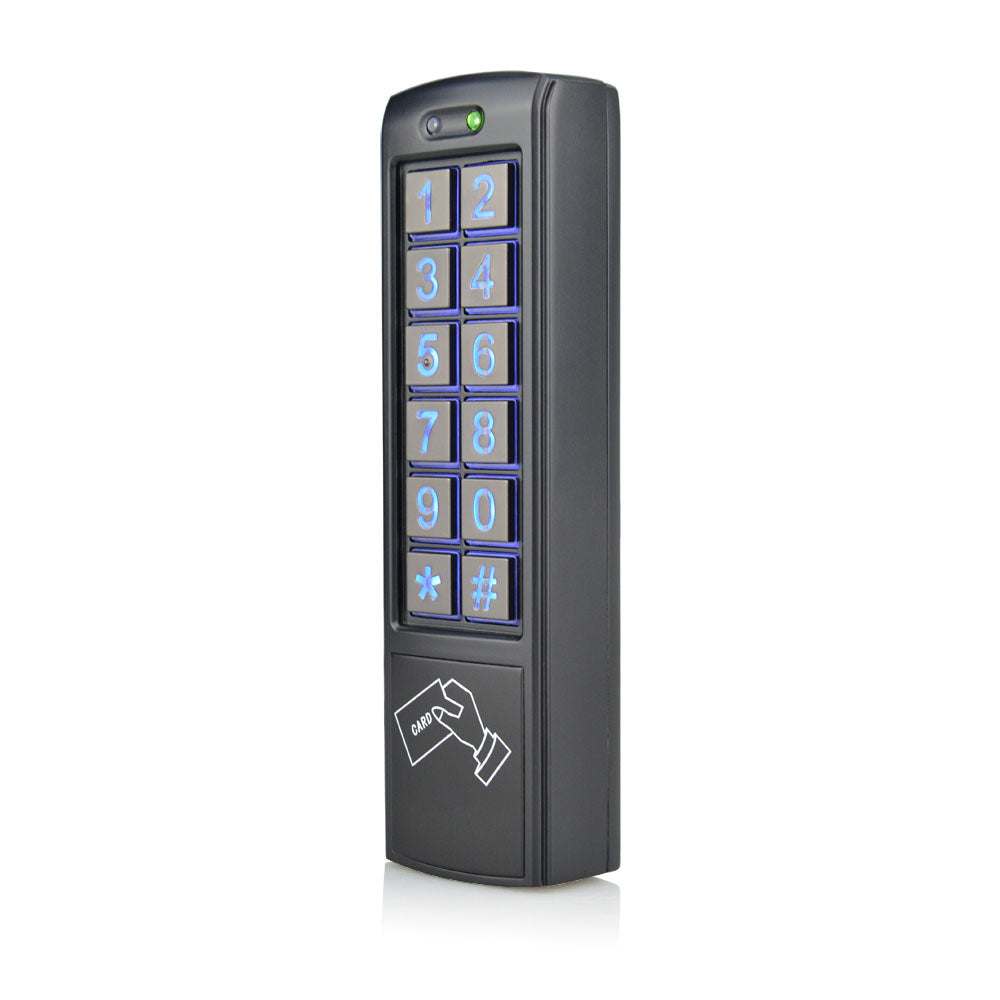

DG160N-WP-BLK – Black IP67 Standalone Combined Proximity Reader and Keypad

Key Features

12VDC operating voltage
Combined proximity reader and keypad
Supports up to 1,000 credentials
EM 125kHz proximity reader technology
Backlit keypad for low-light operation
Built-in anti-tamper switch
Two LED status indicators
IP65 and IP67 Weather-Resistant Models Available
DG800N models have a terminal connection block
DG800N-WP models have a pigtail wire connection
Silver and Black Finishes Available
Vandal-resistant design
Durable aluminium housing
Suitable for internal and external installations
Standalone access control operation

Typical Applications

Access control doors
Office entrances
Commercial buildings
Residential developments
Schools and educational facilities
Healthcare premises
Staff access areas
Internal security doors
Gate automation systems
Restricted access areas

Compatibility

The DG160N Combined Proximity Reader and Keypad is designed to integrate with a wide range of access control and security equipment, making it suitable for both new installations and retrofit projects.

Access Control Systems
Electric strikes
Magnetic locks (Maglocks)
Electric bolt locks
Automatic door operators
Gate automation systems
Door entry systems
Intercom systems
Power supplies
Relays and Timers

Technical Specification

Operating Voltage: 12VDC
Material: Aluminium
Credential Capacity: Up to 1,000 Credentials
Reader Technology: EM 125kHz
Keypad Type: Backlit Keypad
Status Indicators: 2 LED Indicators
Anti-Tamper Protection: Built-In Anti-Tamper Switch
Protection Rating: IP65 (DG160N) / IP67 (DG160N-WP and DG160N-WP-BLK)
Connections: DG160N models have a terminal connection block
Connections: DG160N-WP models have a pigtail wire connection
Construction: Vandal Resistant
Dimensions: 152mm x 44mm x 24mm (H x W x D)

DG160N Product Information

The DG160N Combined Proximity Reader and Keypad provides a reliable and secure access control solution for applications requiring both PIN code and proximity credential entry. Featuring support for up to 1,000 credentials, IP65 or IP67 weather-resistant protection depending on the model, vandal-resistant aluminium construction, and integrated anti-tamper protection, it is ideal for commercial, industrial, educational, healthcare, and residential access control installations.

Frequently Asked Questions

What is the DG160N used for?

The DG160N is a standalone access control device that combines a proximity card reader and keypad to control access through doors, gates, and other secured entry points.

How many credentials can the DG160N support?

The DG160N supports up to 1,000 credentials.

What is the Difference Between the DG160N, DG160N-WP and DG160N-WP-BLK?

The DG160N is the standard silver IP65 model. The DG160N-WP is a silver IP67 version for enhanced weather protection, while the DG160N-WP-BLK provides the same IP67 protection in a black finish.
