DBR100 12VDC Relay Module

The DBR100 Relay Module is a compact switching interface designed for use with access control systems, door entry systems, intercoms, alarm systems, and general electronic control applications. Suitable for commercial, industrial, educational, healthcare, and public sector environments, it provides a reliable method of switching higher current loads from low-voltage control signals.

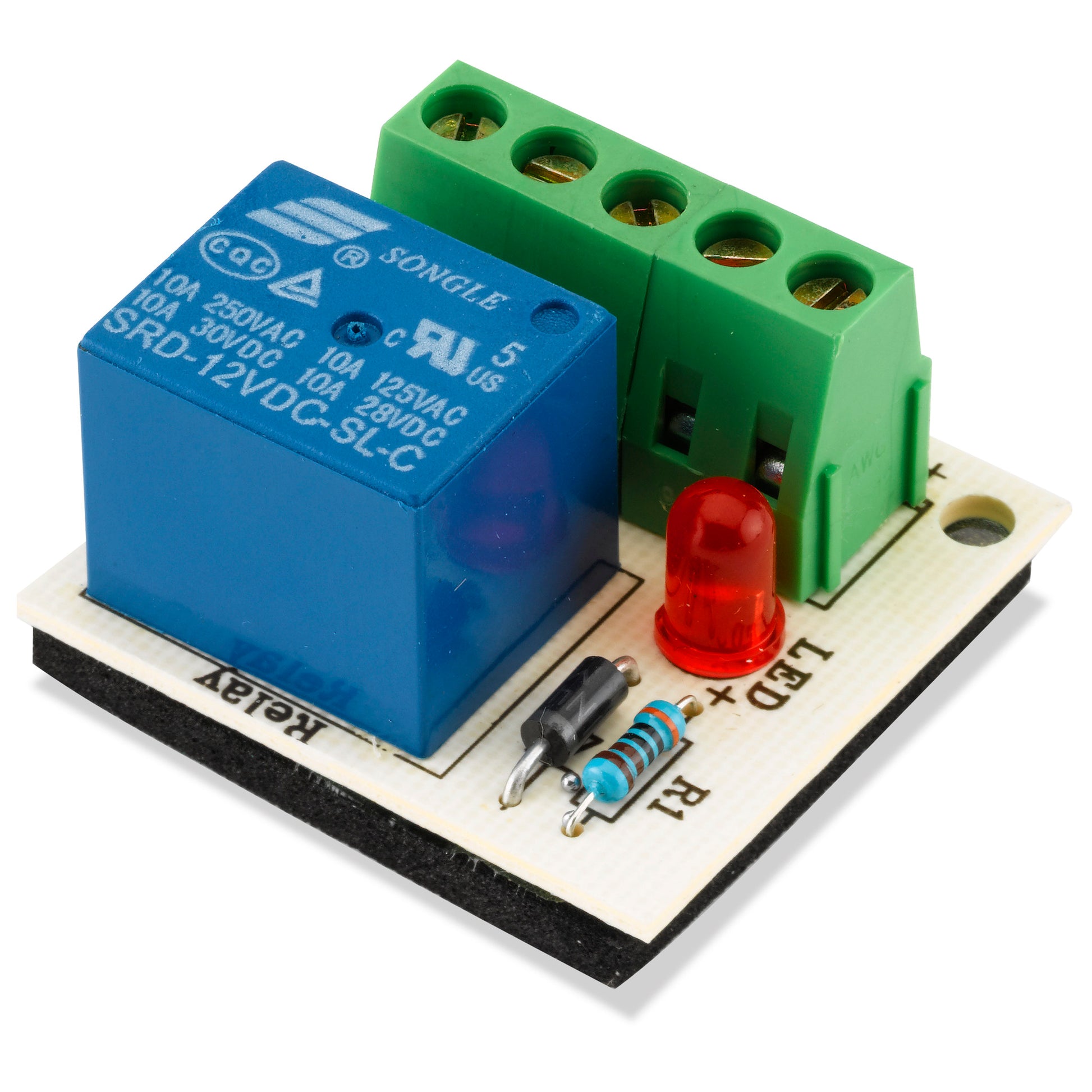

Operating from a 12VDC power supply, the DBR100 features a single relay with NO (Normally Open), NC (Normally Closed), and COM (Common) contacts, allowing flexible integration with a wide range of access control and automation equipment. An integrated LED indicator provides clear visual confirmation of relay status, simplifying installation and fault finding.

Its compact size makes the DBR100 ideal for installation within control panels, access control enclosures, door controllers, and other security system installations where space is limited.

Available Models

• DBR100 – 12VDC Relay Module

Key Features

• 12VDC operating voltage
• Compact relay module design
• NO / NC / COM relay contacts
• LED status indicator
• Suitable for access control systems
• Ideal for switching electric locks and door hardware
• Simple integration with control equipment
• Compact space-saving construction
• Reliable switching performance
• Suitable for new installations and retrofit projects

Typical Applications

• Access control systems
• Door entry systems
• Intercom systems
• Electric lock control
• Magnetic lock (maglock) switching
• Electric strike control
• Alarm systems
• Automation systems
• Control panels
• Security system installations

Compatibility

The DBR100 Relay Module is designed to integrate with a wide range of security, access control, and automation equipment.

• Access control systems
• Door entry systems
• Intercom systems
• Electric strikes
• Magnetic locks (maglocks)
• Power supplies
• Proximity card readers
• Keypad entry systems
• Alarm systems

• Timers and control modules

Technical Specification

• Power Input: 12VDC
• Relay Contacts: NO / NC / COM
• Relay Rating: 10A Relay
• Status Indication: LED indicator
• Dimensions: 35mm x 35mm x 20mm (L x W x D)

DBR100 Product Information

The DBR100 Relay Module provides a compact and reliable switching solution for access control, security, and automation systems. Featuring NO, NC, and COM contacts, LED status indication, and a space-saving design, it is an ideal choice for installations requiring dependable relay switching within electronic security applications.
