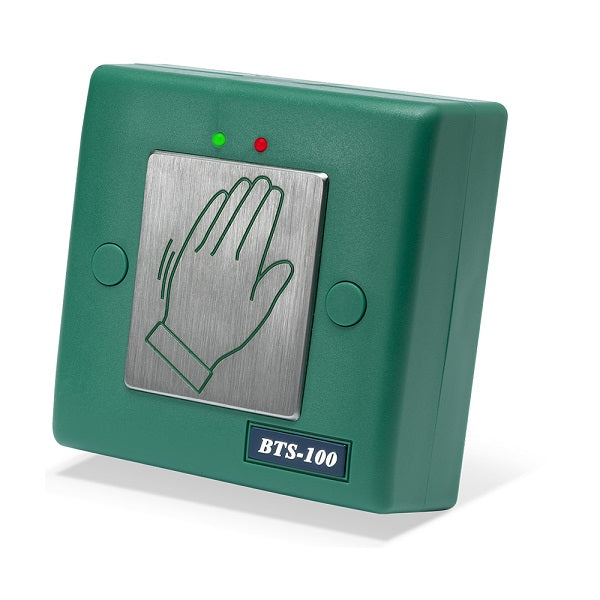

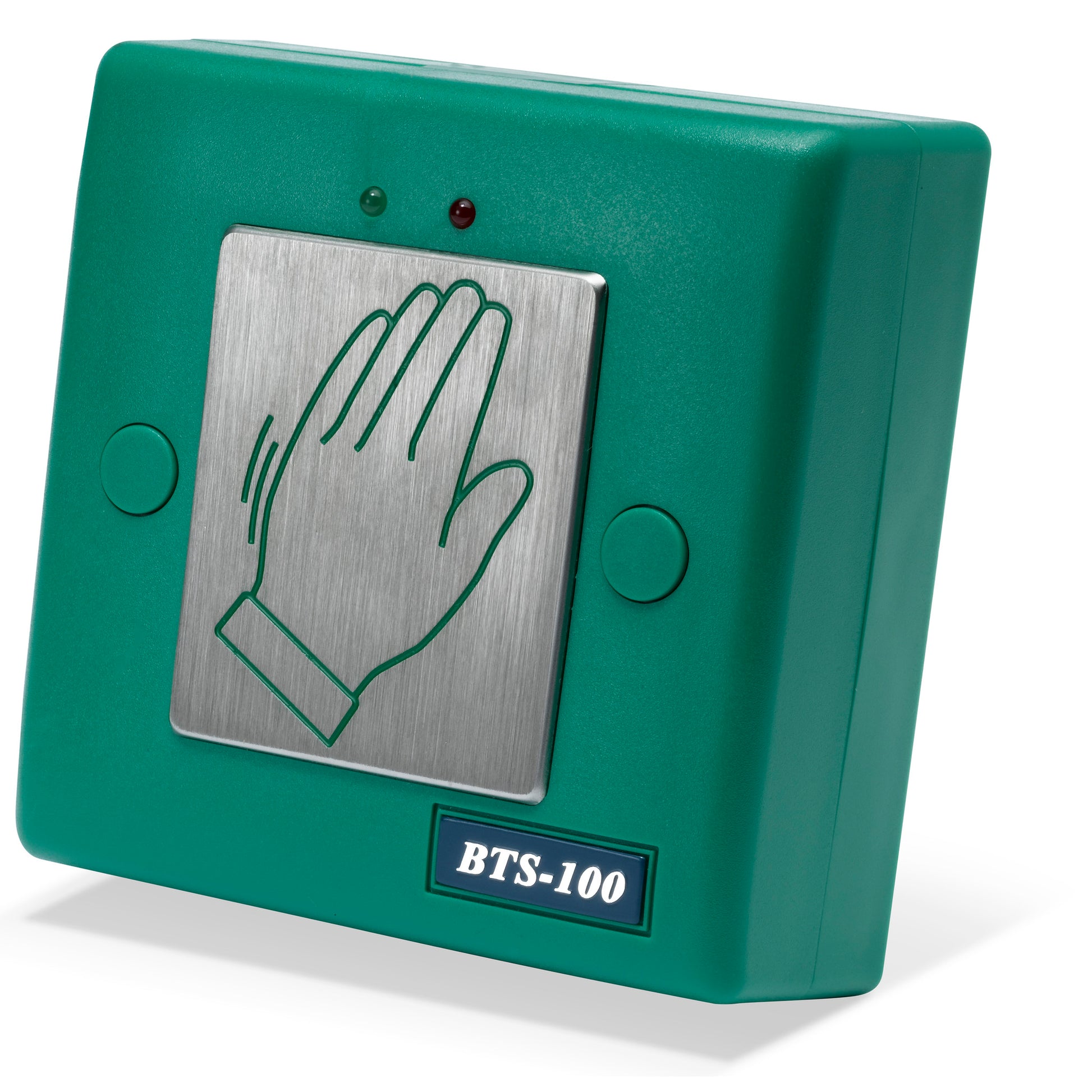

BTS-100G Touch Sensitive Request to Exit Door Release (RTE)

The BTS-100G Touch Sensitive Exit Button is a modern press to exit (request to exit – RTE) device designed for access control systems, door entry systems, intercom systems, and electronic locking applications. Suitable for commercial, educational, healthcare, residential, and public sector environments, it provides a convenient and reliable method of requesting exit from the secure side of a controlled door.

Featuring a touch-sensitive activation surface, the BTS-100G offers contactless-style operation without the need for a mechanical push button, helping to reduce wear and improve user convenience. The integrated timer can be adjusted between 1 and 30 seconds, making it suitable for a wide range of access control and door release applications.

Manufactured with a durable green housing and incorporating volt-free COM, NO, and NC contacts, the BTS-100G is compatible with a wide range of access control equipment, electric locks, magnetic locks, and door entry systems. LED status indicators provide clear visual confirmation of operation, whilst the surface-mounted design allows for straightforward installation.

Available Models

• BTS-100G - Touch Sensitive Exit Button

Key Features

• Touch Sensitive Exit Button
• Press to Exit (RTE) Device
• Request to Exit Button
• Built-In Adjustable Timer (1–30 Seconds)
• Operating Voltage 12VDC to 24VDC
• LED Status Indicators
• Contactless-Style Operation

• Surface Mount Design
• Suitable for Access Control Systems
• Suitable for Electronic Locking Systems
• Reliable Door Release Operation
• Easy Installation
• Suitable for New Installations and Retrofits

Typical Applications

• Access Control Doors
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Facilities
• Apartment Buildings
• Internal Security Doors
• Door Entry Systems
• Intercom Controlled Doors
• Staff Access Areas
• Clean Environments

• High Traffic Access Control Doors
• Reception Entrances
• Secure Access Doors

Compatibility

The BTS-100G Touch Sensitive Exit Button is designed to integrate with a wide range of access control and electronic locking equipment.

• Access Control Systems
• Door Entry Systems
• Intercom Systems
• Automatic Door Systems
• Electric Locks
• Magnetic Locks (Maglocks)
• Electric Strikes
• Electric Bolts
• Exit Release Systems
• Shear Locks
• Access Control Controllers
• Power Supplies
• Relays and Timers
• Keypad Entry Systems
• Proximity Card Readers


Technical Specification

• Product Type: Touch Sensitive Exit Button
• Operation: Touch Activated
• Operating Voltage: 12VDC – 24VDC
• Timer Adjustment: 1–30 Seconds
• Mounting: Surface Mounted
• Housing Colour: Green
• LED Indicators: Yes
• Contact Output: Volt-Free
• Contact Configuration Type: COM / NO / NC
• Dimensions: 85mm x 85mm x 35mm (H x W x D)

BTS-100G Product Information

The BTS-100G Touch Sensitive Exit Button provides a reliable and modern door release solution for access control installations requiring secure and convenient egress. Suitable for a wide range of commercial and residential applications, it is an ideal choice where a touch-sensitive press to exit button, request to exit (RTE) device, or door release switch is required.

Frequently Asked Questions

What is a touch sensitive exit button?

A touch sensitive exit button allows a user to release an electronically locked door by touching an activation surface rather than pressing a mechanical button. They are commonly used with access control systems, magnetic locks, electric strikes, and door entry systems.

Does the BTS-100G have an adjustable timer?

Yes. The BTS-100G includes a built-in adjustable timer that can be set between 1 and 30 seconds, allowing the door release time to be adjusted to suit different access control and exit requirements.

What is a request to exit (RTE) button?

A request to exit (RTE) button is installed on the secure side of an access-controlled door and allows authorised occupants to safely exit by releasing the locking device.

Can the BTS-100G be used with magnetic locks?

Yes. The BTS-100G provides volt-free COM, NO and NC contacts, making it suitable for use with magnetic locks (maglocks), electric strikes, electric bolts, and other electronic locking systems.
