BG1 Emergency Door Release Resettable Call Point

The BG1 Emergency Door Release Resettable Call Point is an emergency door release device designed for use with access control systems, magnetic locks, electric locks, and electronic door security installations. Suitable for commercial, educational, healthcare, industrial, residential, and public sector environments, it provides a reliable method of safely overriding electronic locking systems during emergency situations.

Commonly installed alongside magnetic locks and access control systems, the BG1 allows immediate door release when activated, helping to ensure safe egress and helping to support safe egress requirements when correctly installed as part of an access control system. The resettable operating mechanism enables the unit to be quickly returned to service after activation without requiring replacement glass elements.

Manufactured from durable plastic and available in green or white finishes, the BG1 features double pole contacts, LED illumination, and both normally open and normally closed outputs for flexible integration with a wide range of access control and electronic locking equipment.

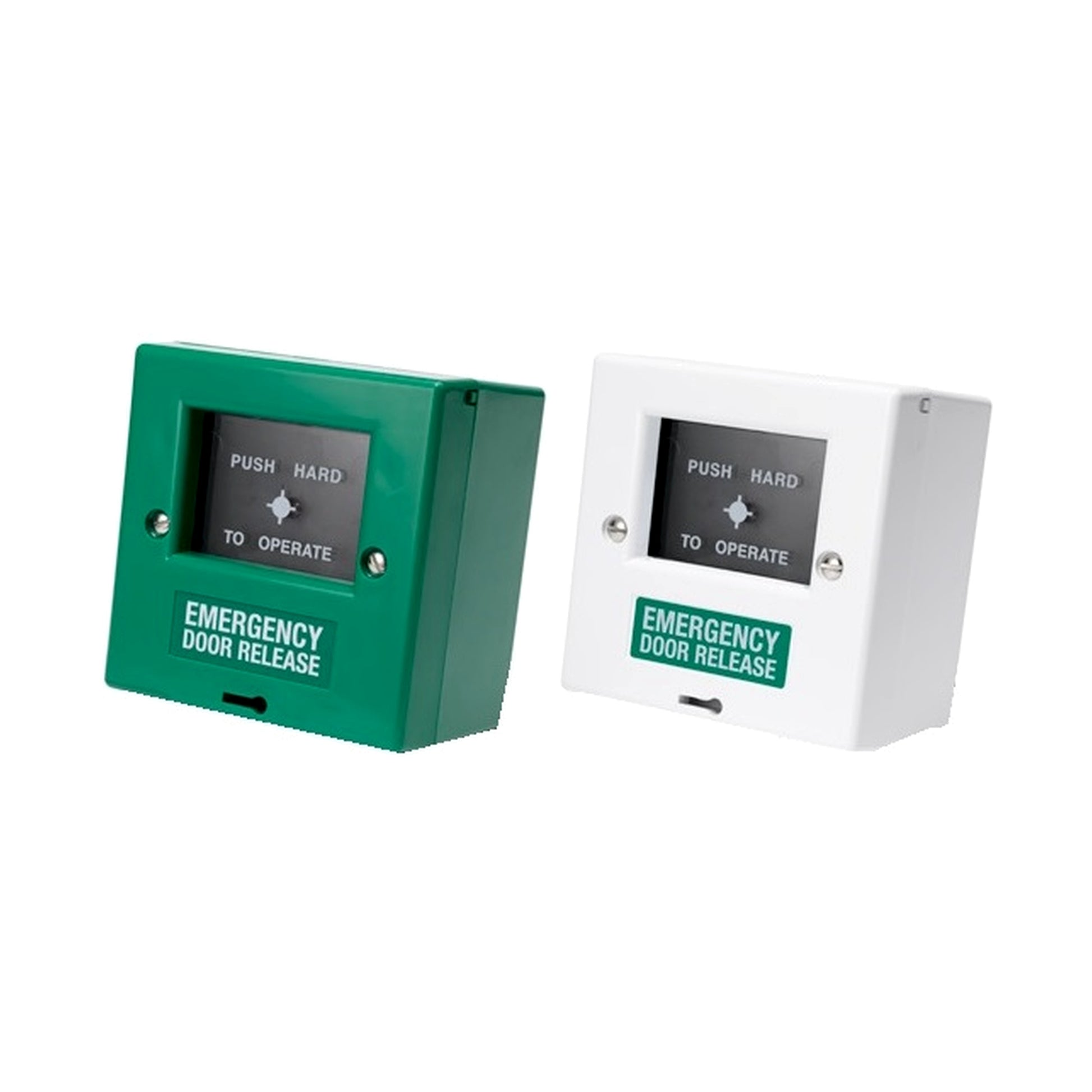

Available Models

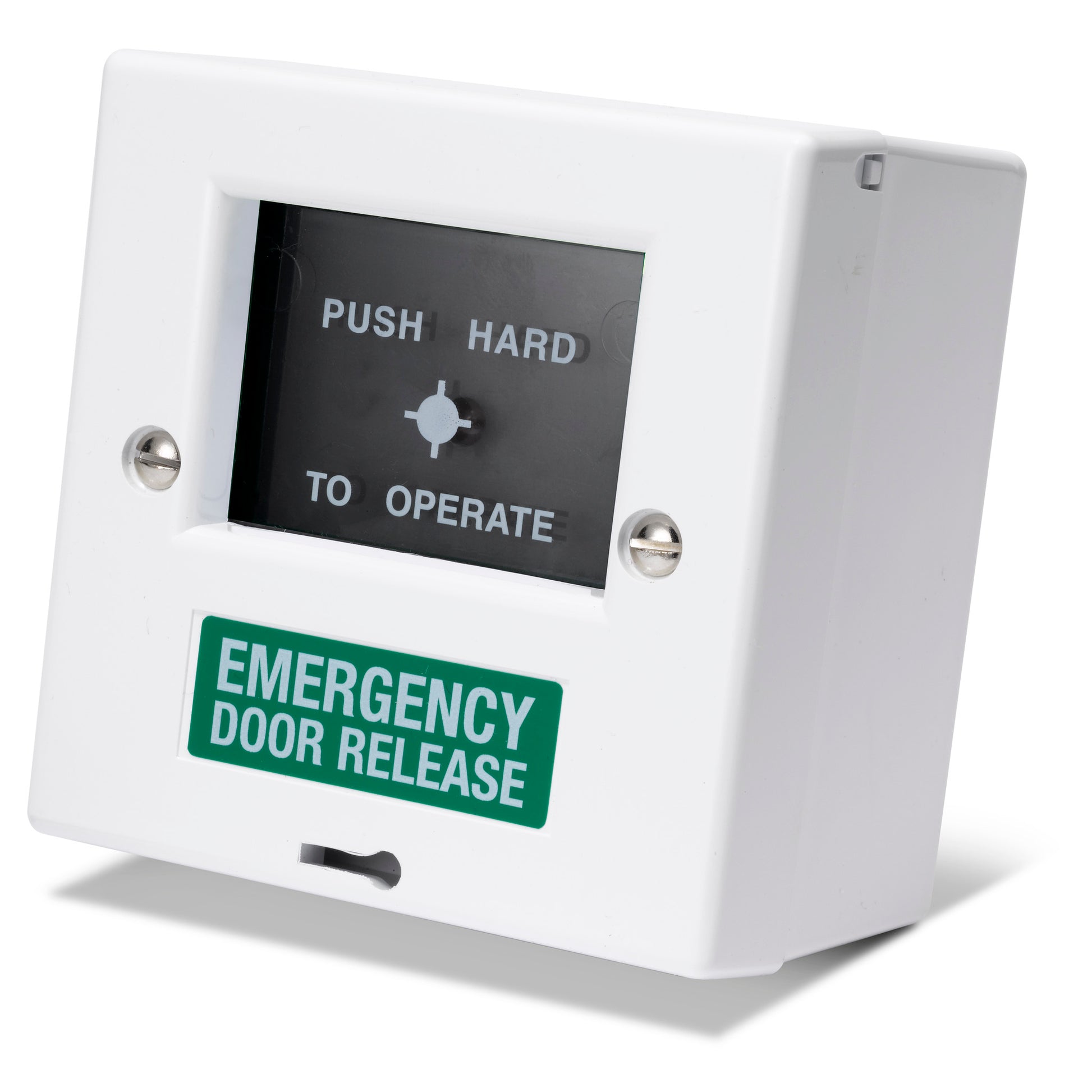

• BG1 – White Emergency Door Release Resettable Call Point

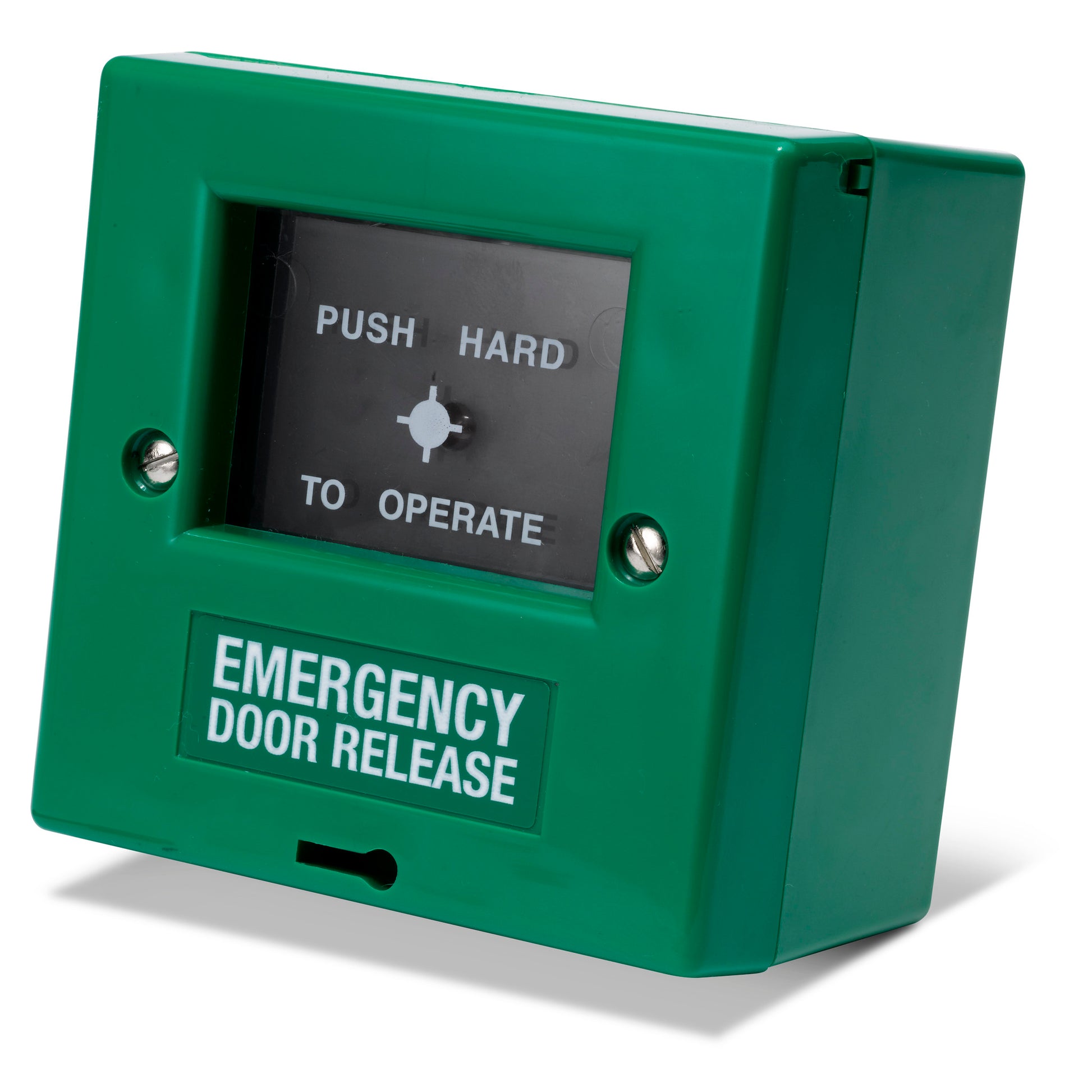

• BG1-G - Green Emergency Door Release Resettable Call Point

Key Features

• Resettable Call Point Unit
• Emergency Door Release Device
• Emergency Exit Override
• Suitable for Access Control Systems
• Suitable for Magnetic Locks (Maglocks)
• Suitable for Fail-Safe Door Systems
• Double Pole Contacts
• COM / NO / NC Outputs
• LED Illuminated
• Surface Mounted Design
• Green or White Finish Available
• Resettable Operating Mechanism
• Durable Plastic Construction
• Easy Installation

Typical Applications

• Access Control Doors
• Emergency Exit Routes
• Commercial Buildings
• Office Entrances
• Schools and Educational Facilities
• Healthcare Facilities
• Industrial Premises
• Public Buildings
• Reception Areas
• Electronic Locking Systems

Compatibility

The BG1 Resettable Call Point is designed to integrate with a wide range of access control and electronic locking equipment.

• Access Control Systems
• Emergency Exit Doors
• Door Entry Systems
• Intercom Systems
• Magnetic Locks (Maglocks)
• Fail Safe Magnetic Lock Systems
• Electric Locks
• Electric Strikes
• Electric Bolts
• Shear Locks
• Emergency Door Release Systems
• Power Supplies
• Relays and Timers
• Building Management Systems
• Fire Alarm Interface Systems

Technical Specification

• Product Type: Emergency Door Release Resettable Call Point
• Mounting: Surface Mounted
• Material: Plastic
• Colours Available: Green or White
• Contact Configuration: Double Pole
• Outputs: COM / NO / NC
• LED Illumination: Included
• Operation: Resettable
• Dimensions: 85mm x 85mm x 51mm (H x W x D)

BG1 Product Information

The BG1 Emergency Door Release Resettable Call Point Unit provides a reliable emergency door release solution for access control and electronic locking systems. Suitable for a wide range of commercial, industrial, and public sector applications, it is an ideal choice where safe emergency egress and secure emergency override functionality where safe emergency egress and secure manual override functionality are required.

Frequently Asked Questions

What is an Emergency Door Release Call Point?

An emergency door release call point is a safety device used to immediately release an electronically locked door during an emergency. When activated, it interrupts the locking circuit, allowing occupants to safely exit the building.

Why is a Call Point Unit Used with Magnetic Locks?

Magnetic locks (maglocks) are typically fail-safe locking devices that require power to remain locked. An emergency door release unit provides a manual override, allowing power to be removed from the lock so the door can be opened in an emergency situation.

What Does a Resettable Call Point Mean?

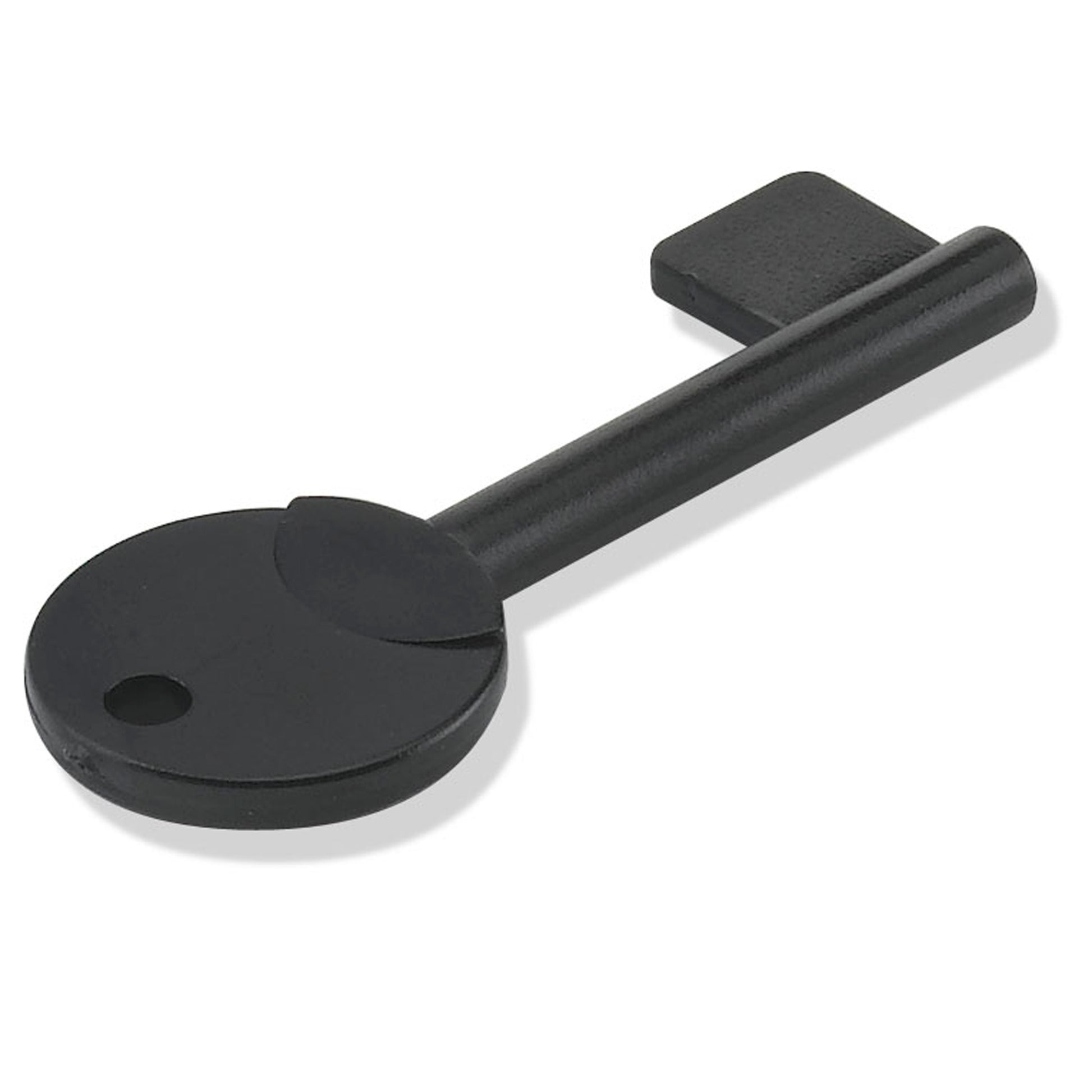

A resettable emergency call point can be returned to its normal operating condition after activation without replacing a glass element. This reduces maintenance costs and allows the unit to be quickly put back into service using the supplied reset mechanism.

Can the BG1 Be Used with Access Control Systems?

Yes. The BG1 can be used as an emergency door release call point with access control systems, door entry systems, intercom systems, magnetic locks, electric strikes, electric bolts, and other electronic locking devices. The COM, NO, and NC outputs provide flexible integration options for safely releasing doors in an emergency.

What is the Difference Between a Resettable Call Point and a Break Glass Unit?

A traditional break glass unit requires the glass element to be replaced after activation. A resettable call point provides the same emergency door release function but can be quickly reset and reused, reducing maintenance requirements and ongoing costs.

Where Should an Emergency Door Release Unit Be Installed?

Emergency door release units are typically installed adjacent to electronically locked exit doors and magnetic lock systems. They should be positioned where occupants can easily access them in the event of an emergency while complying with local fire and building regulations.
