ABLOY MP420 Lock Package 6MP

The ABLOY MP420 Lock Package 6MP is a compliant high-security electric locking package designed for narrow stile door applications where read-in access control, free egress and panic escape operation are required. It provides a complete package based around the ABLOY MP420 motor lockcase for controlled access from the outside and safe escape from the inside.

Designed for high-security narrow stile door applications, Package 6MP uses a motor-operated deadbolt, hook bolts and latch bolt. The inside panic bar always operates for free egress and panic escape, while the outside handle is controlled and activated by a signal from the access control system. Key override is available from the outside at all times, providing mechanical access where required.

Suitable for commercial, industrial, educational, healthcare, residential and public sector environments, the ABLOY MP420 Lock Package 6MP is commonly used where a compliant high-security access control locking solution is required for narrow stile doors with EN 1125 panic escape requirements.

Available Models

• ABLOY-MP420-30-PACK6MP – MP420 Package 6MP 30mm backset (New ID Key Card)
• ABLOY-MP420-35-PACK6MP – MP420 Package 6MP 35mm backset (New ID Key Card)
• ABLOY-MP420-40-PACK6MP – MP420 Package 6MP 40mm backset (New ID Key Card)
• ABLOY-MP420-45-PACK6MP – MP420 Package 6MP 45mm backset (New ID Key Card)
• ABLOY-MP420-30-PACK6MP – MP420 Package 6MP 30mm backset (keyed to your existing KEY ID Card)
• ABLOY-MP420-35-PACK6MP – MP420 Package 6MP 35mm backset (keyed to your existing KEY ID Card)
• ABLOY-MP420-40-PACK6MP – MP420 Package 6MP 40mm backset (keyed to your existing KEY ID Card)
• ABLOY-MP420-45-PACK6MP – MP420 Package 6MP 45mm backset (keyed to your existing KEY ID Card)

The CY326 can be keyed to match you current KEY ID Card, photo of the KEY ID Card will need to be sent to us upon completion of your order.

Key Features

• ABLOY compliant high-security lock package
• Designed for narrow stile door applications
• Read-in access control with free egress
• Panic escape operation
• Inside panic bar always operates
• Outside handle controlled by access control signal
• Key override at all times from the outside
• Based around the ABLOY MP420 motor lockcase
• Motor-operated deadbolt, hook bolts and latch bolt
• Suitable for high-security narrow stile door applications
• Available in 30mm, 35mm, 40mm and 45mm backsets
• Complies with EN 1125 when used with correct furniture
• Package components support EN 1634-1, EN 61000-6-1, EN 1303 cylinder requirements and EN 14846

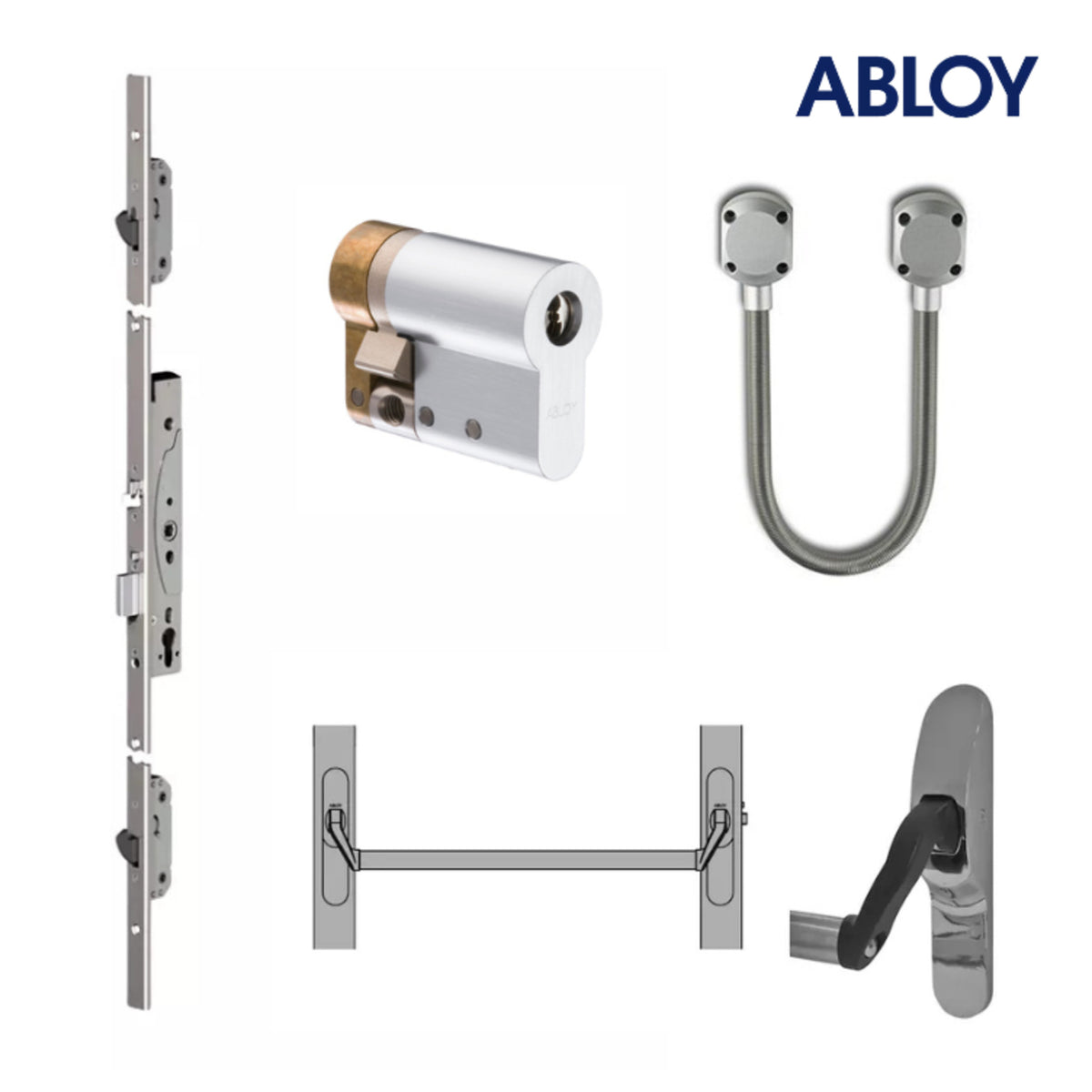

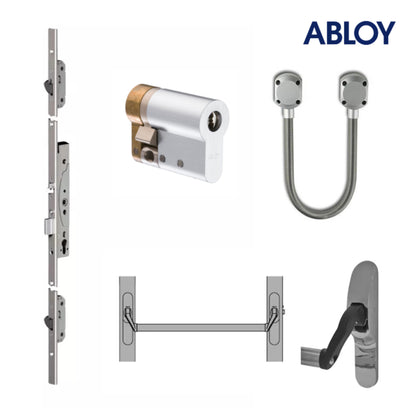

Package Includes

• ABLOY MP420 motor lockcase
• ABLOY CY326 single Euro cylinder
• DL8 door loop
• PBE011-EL420 panic bar with cylinder escutcheon


Typical Applications

• Access control systems
• Read-in / free egress doors
• High-security narrow stile door applications
• Narrow stile doors
• Narrow stile multipoint doors
• Commercial buildings
• Office entrances
• Educational facilities
• Healthcare buildings
• Public buildings
• Residential developments
• Industrial premises
• Restricted access areas
• Internal controlled doors
• EN 1125 panic escape route applications where correctly specified

Compatibility and Accessories

The ABLOY MP420 Lock Package 6MP is designed for narrow stile door applications requiring high-security access-controlled entry, free egress and panic escape operation from the inside.

When ordering, please check the required backset, door type, door profile, panic hardware requirements, cylinder requirements, access control interface, door loop requirements, door closer requirements and any escape or fire door certification requirements before purchase.

Compatible with

• ABLOY electric locks
• ABLOY motor locks
• ABLOY lock cylinders and barrels
• Access Control Systems
• Door Entry Systems
• Keypad Entry Systems
• Proximity Readers
• Timers and Relays
• Push Buttons
• Power Supplies
• Door Entry Intercom Systems
• Emergency Door Release Units
• Suitable Door Furniture
• Compatible Euro Profile Cylinders


Technical specification

• Product type: ABLOY compliant high-security electric lock package
• Package: Package 6MP
• Main lockcase: ABLOY MP420 motor lockcase
• Door application: Narrow stile doors
• Operation: Read-in / free egress
• Escape function: Panic escape
• Locking method: Motor-operated deadbolt, hook bolts and latch bolt
• Inside hardware: Panic bar always operates
• Outside handle: Controlled and activated by access control signal
• Key override: Available at all times from the outside
• Cylinder included: CY326 single Euro cylinder
• Door loop included: DL8 door loop
• Panic hardware included: PBE011-EL420 panic bar with cylinder escutcheon
• Door closer: DC240 optional
• Backsets available: 30mm, 35mm, 40mm and 45mm
• Ordering codes: ABLOY-MP420-30-PACK6MP, ABLOY-MP420-35-PACK6MP, ABLOY-MP420-40-PACK6MP, ABLOY-MP420-45-PACK6MP
• Standards: EN 1125 when used with correct furniture, EN 1634-1, EN 61000-6-1, EN 1303 cylinder, EN 14846


ABLOY MP420 Lock Package 6MP Product Information

Please check the full lock package specification, door type and project requirements before ordering. The ABLOY MP420 Lock Package 6MP should be installed in accordance with the manufacturer’s installation instructions and the requirements of the door application.

Where the package is used on an escape route or fire-rated door, the complete door assembly, hardware specification, fire test evidence, certification, access control interface and installation method must be suitable for the application.

The ABLOY MP420 Lock Package 6MP provides a professional read-in / free egress access control locking solution for narrow stile doors where high-security motor locking, EN 1125 panic escape operation and a compliant ABLOY electric lock package are required.

Frequently Asked Questions

What is the ABLOY MP420 Lock Package 6MP used for?

The ABLOY MP420 Lock Package 6MP is used for high-security narrow stile door applications where read-in access control, free egress and panic escape operation are required.

How does Package 6MP operate?

The inside panic bar always operates for free egress and panic escape. The outside handle is controlled and activated by a signal from the access control system, and key override is available from the outside at all times.

What lockcase is included in Package 6MP?

Package 6MP includes the ABLOY MP420 motor lockcase.

What cylinder is included with Package 6MP?

Package 6MP includes the ABLOY CY326 single Euro cylinder.

Does Package 6MP include a door loop?

Yes. Package 6MP includes the DL8 door loop.

Does Package 6MP include panic hardware?

Yes. Package 6MP includes the PBE011-EL420 panic bar with cylinder escutcheon.

Is a door closer included?

The DC240 door closer is listed as an optional item for Package 6MP.

What backsets are available?

Package 6MP is available with 30mm, 35mm, 40mm and 45mm backsets.

Does Package 6MP have key override?

Yes. Key override is available at all times from the outside.

Is Package 6MP suitable for EN 1125 applications?

Package 6MP complies with EN 1125 when used with the correct furniture. The complete door hardware set must be correctly specified and installed for the application.

What is the difference between Package 6E and Package 6MP?

Package 6E is based around the ABLOY EL420 motor lockcase for narrow stile doors with EN 179 escape operation. Package 6MP is based around the ABLOY MP420 motor lockcase and includes panic escape hardware for EN 1125 applications.

What should I check before ordering?

Please check the required backset, door type, door profile, panic hardware requirements, access control requirements, cylinder requirements, door loop requirements, escape route requirements and any fire door certification requirements before ordering.
