ABLOY MP420 Lock Package 6ME

The ABLOY MP420 Lock Package 6ME is a compliant high-security electric locking package designed for narrow stile multipoint door applications where read-in access control and free egress are required. It provides a complete package based around the ABLOY MP420 multipoint motor lockcase for controlled access from the outside and safe exit from the inside.

Designed for high-security narrow stile multipoint door applications, Package 6ME uses a motor-operated deadbolt, hook bolts and latch bolt. The inside handle always operates for free egress, while the outside handle is controlled and activated by a signal from the access control system. Key override is available from the outside at all times, providing mechanical access where required.

Suitable for commercial, industrial, educational, healthcare, residential and public sector environments, the ABLOY MP420 Lock Package 6ME is commonly used where a compliant high-security access control locking solution is required for narrow stile multipoint doors with EN 179 escape requirements.

Available Models

• ABLOY-MP420-30-PACK6ME – MP420 Package 6ME 30mm backset (New ID Key Card)
• ABLOY-MP420-35-PACK6ME – MP420 Package 6ME 35mm backset (New ID Key Card)
• ABLOY-MP420-40-PACK6ME – MP420 Package 6ME 40mm backset (New ID Key Card)
• ABLOY-MP420-45-PACK6ME – MP420 Package 6ME 45mm backset (New ID Key Card)
• ABLOY-MP420-30-PACK6ME – MP420 Package 6ME 30mm backset (keyed to your existing KEY ID Card)
• ABLOY-MP420-35-PACK6ME – MP420 Package 6ME 35mm backset (keyed to your existing KEY ID Card)
• ABLOY-MP420-40-PACK6ME – MP420 Package 6ME 40mm backset (keyed to your existing KEY ID Card)
• ABLOY-MP420-45-PACK6ME – MP420 Package 6ME 45mm backset (keyed to your existing KEY ID Card)

The CY326 can be keyed to match you current KEY ID Card, photo of the KEY ID Card will need to be sent to us upon completion of your order.

Key Features

• ABLOY compliant high-security lock package
• Designed for narrow stile multipoint door applications
• Read-in access control with free egress
• Inside handle always operates
• Outside handle controlled by access control signal
• Key override at all times from the outside
• Based around the ABLOY MP420 multipoint motor lockcase
• Motor-operated deadbolt, hook bolts and latch bolt
• Suitable for high-security narrow stile multipoint door applications
• Available in 30mm, 35mm, 40mm and 45mm backsets
• Complies with EN 179 when used with correct furniture
• Package components support EN 1634-1, EN 61000-6-1, EN 1303 cylinder requirements and EN 14846

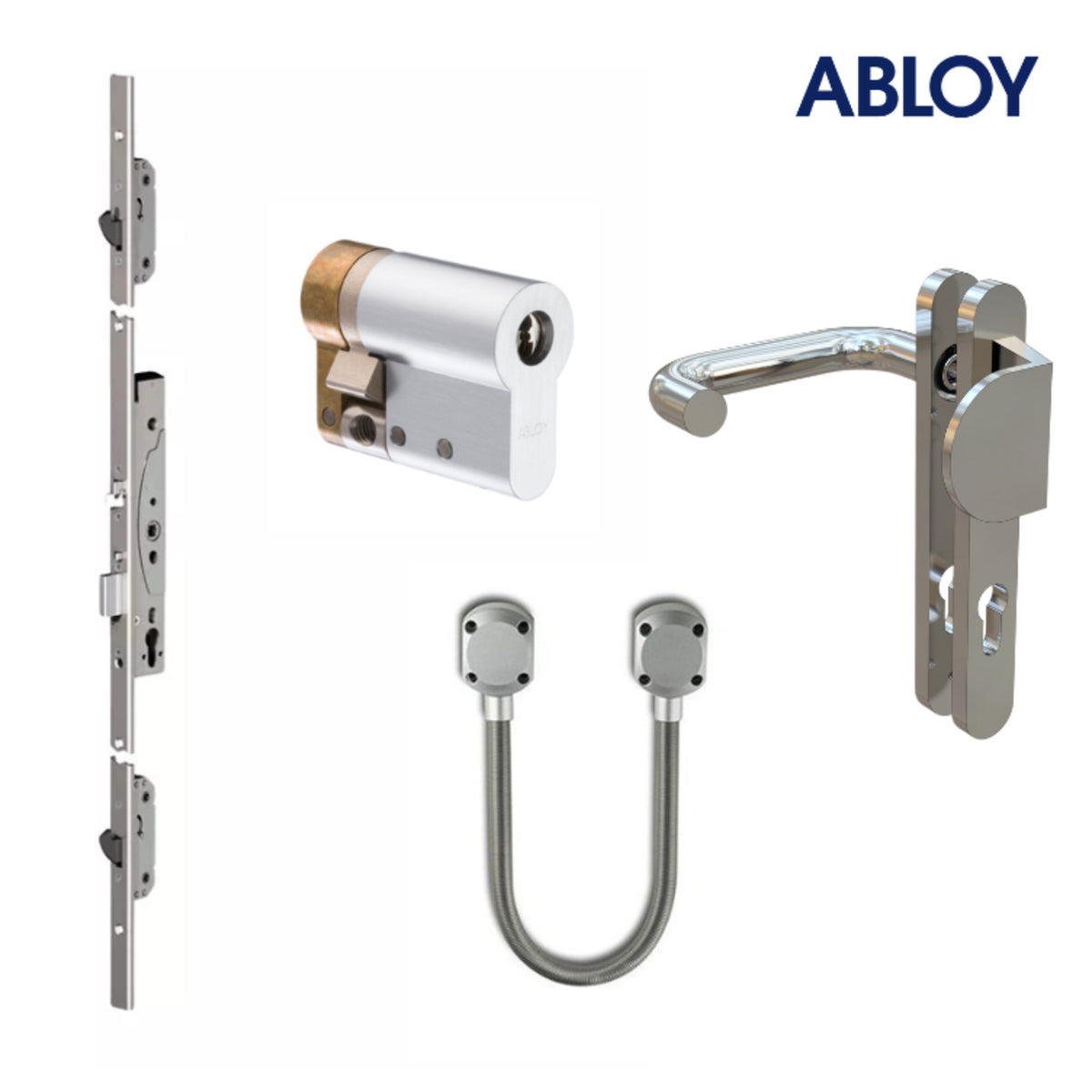

Package Includes

• ABLOY MP420 multipoint motor lockcase
• ABLOY CY326 single Euro cylinder
• DL8 door loop
• 60-0719 handle and pull pad


Typical Applications

• Access control systems
• Read-in / free egress doors
• High-security narrow stile door applications
• Narrow stile doors
• Narrow stile multipoint doors
• Commercial buildings
• Office entrances
• Educational facilities
• Healthcare buildings
• Public buildings
• Residential developments
• Industrial premises
• Restricted access areas
• Internal controlled doors
• EN 179 escape route applications where correctly specified


Compatibility and Accessories

The ABLOY MP420 Lock Package 6ME is designed for narrow stile multipoint door applications requiring high-security access-controlled entry and free egress from the inside.

When ordering, please check the required backset, door type, door profile, multipoint locking requirements, handle furniture, pull pad requirements, cylinder requirements, access control interface, door loop requirements, door closer requirements and any escape or fire door certification requirements before purchase.

Compatible with

• ABLOY electric locks
• ABLOY motor locks
• ABLOY lock cylinders and barrels
• Access Control Systems
• Door Entry Systems
• Keypad Entry Systems
• Proximity Readers
• Timers and Relays
• Push Buttons
• Power Supplies
• Door Entry Intercom Systems
• Emergency Door Release Units
• Suitable Door Furniture
• Compatible Euro Profile Cylinders


Technical specification

• Product type: ABLOY compliant high-security electric lock package
• Package: Package 6ME
• Main lockcase: ABLOY MP420 multipoint motor lockcase
• Door application: Narrow stile multipoint doors
• Operation: Read-in / free egress
• Locking method: Motor-operated deadbolt, hook bolts and latch bolt
• Inside handle: Always operates
• Outside handle: Controlled and activated by access control signal
• Key override: Available at all times from the outside
• Cylinder included: CY326 single Euro cylinder (3 keys included)
• Door loop included: DL8 door loop
• Handle set included: 60-0719 handle and pull pad
• Backsets available: 30mm, 35mm, 40mm and 45mm
• Ordering codes: ABLOY-MP420-30-PACK6ME, ABLOY-MP420-35-PACK6ME, ABLOY-MP420-40-PACK6ME, ABLOY-MP420-45-PACK6ME
• Operating voltage: 12VAC to 18VAC, 12VDC to 24VDC
• Current draw at 12VDC: 80mA idle, 450mA normal, 1300mA maximum
• Current draw at 24VDC: 40mA idle, 220mA normal, 600mA maximum
• Monitoring: RQE on inside handle, bolt position, door position and cylinder operation
• Standards: EN 179 when used with correct furniture, EN 1634-1, EN 61000-6-1, EN 1303 cylinder, EN 14846


ABLOY MP420 Lock Package 6ME Product Information

Please check the full lock package specification, door type and project requirements before ordering. The ABLOY MP420 Lock Package 6ME should be installed in accordance with the manufacturer’s installation instructions and the requirements of the door application.

Where the package is used on an escape route or fire-rated door, the complete door assembly, hardware specification, fire test evidence, certification, access control interface and installation method must be suitable for the application.

The ABLOY MP420 Lock Package 6ME provides a professional read-in / free egress access control locking solution for narrow stile multipoint doors where high-security motor locking, EN 179 escape operation and a compliant ABLOY electric lock package are required.

Frequently Asked Questions

What is the ABLOY MP420 Lock Package 6ME used for?

The ABLOY MP420 Lock Package 6ME is used for high-security narrow stile multipoint door applications where read-in access control and free egress from the inside are required.

How does Package 6ME operate?

The inside handle always operates for free egress. The outside handle is controlled and activated by a signal from the access control system, and key override is available from the outside at all times.

What lockcase is included in Package 6ME?

Package 6ME includes the ABLOY MP420 multipoint motor lockcase.

What cylinder is included with Package 6ME?

Package 6ME includes the ABLOY CY326 single Euro cylinder.

Does Package 6ME include a door loop?

Yes. Package 6ME includes the DL8 door loop.

Does Package 6ME include handles?

Yes. Package 6ME includes the 60-0719 handle and pull pad.

Is a door closer included?

The DC240 door closer is listed as an optional item for Package 6ME.

What backsets are available?

Package 6ME is available with 30mm, 35mm, 40mm and 45mm backsets.

Does Package 6ME have key override?

Yes. Key override is available at all times from the outside.

Is Package 6ME suitable for EN 179 applications?

Package 6ME complies with EN 179 when used with the correct furniture. The complete door hardware set must be correctly specified and installed for the application.

What is the difference between Package 6E and Package 6ME?

Package 6E is based around the ABLOY EL420 motor lockcase for narrow stile doors. Package 6ME is based around the ABLOY MP420 multipoint motor lockcase for narrow stile multipoint doors.

What should I check before ordering?

Please check the required backset, door type, door profile, multipoint locking requirements, access control requirements, handle furniture, pull pad requirements, cylinder requirements, door loop requirements, escape route requirements and any fire door certification requirements before ordering.
