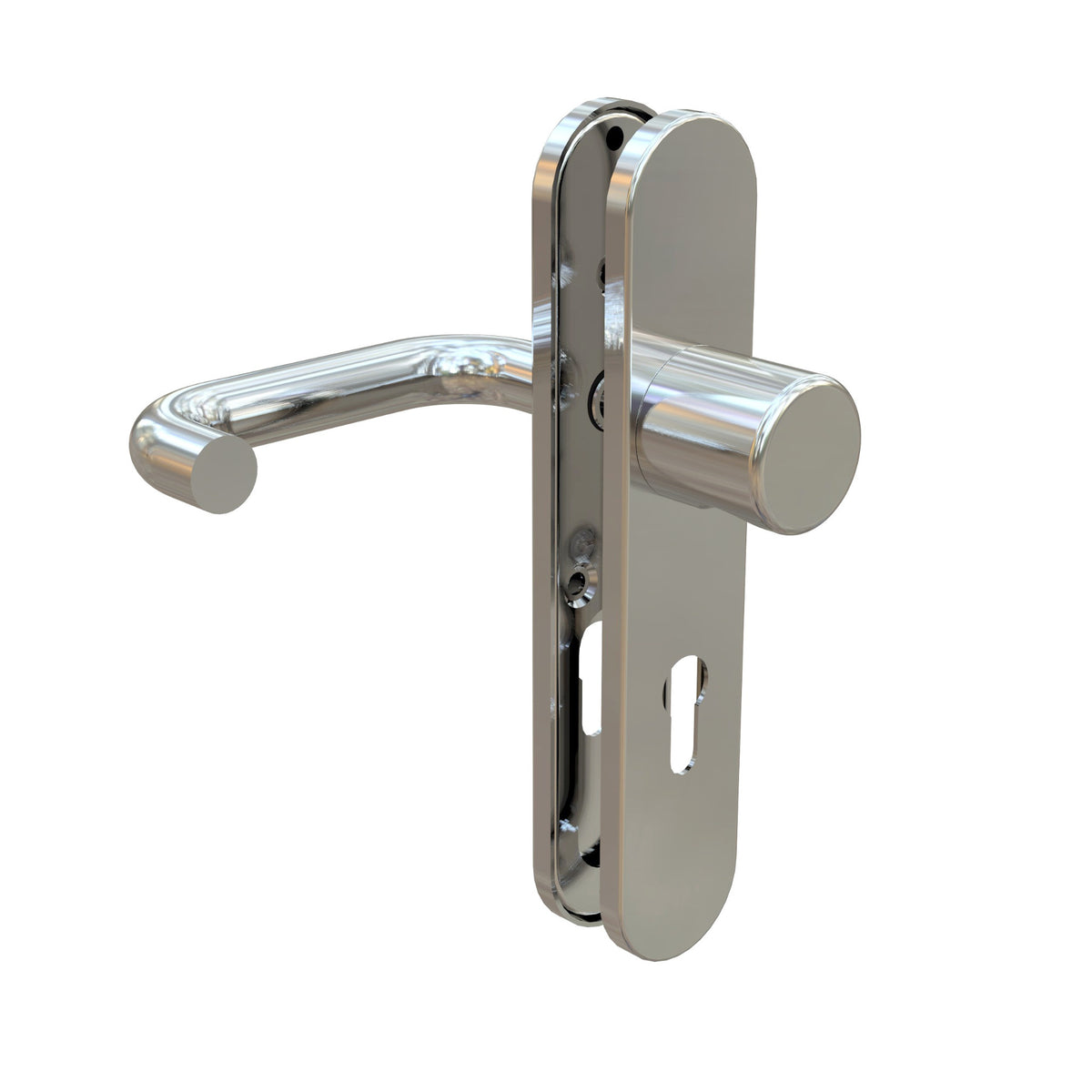

ABLOY Futura 60-0119-SSS Lever and Knob Handle Set

The ABLOY Futura 60-0119-SSS is a satin stainless steel lever and knob handle set designed for use with compatible ABLOY electric lock installations. It features an internal lever handle and external fixed knob mounted on long plates, providing a practical and professional door furniture solution for access control and escape door applications.

Manufactured from 19mm round stainless steel bar, the Futura 60-0119-SSS combines durability with a clean, modern appearance. The external plate includes a cylinder cut-out, allowing compatible mechanical key override to be incorporated into the installation.

The handle set is designed to suit lockcases with 72mm centres and has been tested with the ABLOY EL520 to provide compliance with BS EN 179 when correctly specified and installed.

Suitable for commercial, industrial, educational, healthcare, residential and public sector environments, the 60-0119-SSS is commonly used as part of a complete access control or electric locking installation.

Available Model

• 60-0119-SSS – Futura lever on long plate with internal lever and external knob

Key Features

• Internal lever and external knob arrangement
• Long plate door furniture
• Manufactured from 19mm round bar
• Satin stainless steel finish
• External plate with cylinder cut-out
• Reversible handing
• Designed to suit lockcases with 72mm centres
• Tested with the ABLOY EL520
• BS EN 179 compliant when fitted with the EL520 and correctly specified
• Suitable for access control and electric locking installations
• Durable stainless steel construction
• Suitable for commercial and professional door applications

Typical Applications

• ABLOY EL520 motor lock installations
• Access control systems
• Electric lock installations
• Read-in / free egress doors
• EN 179 escape door applications where correctly specified
• Commercial buildings
• Office entrances
• Educational facilities
• Healthcare buildings
• Public buildings
• Residential developments
• Industrial premises
• Restricted access areas

Compatibility and Accessories

The ABLOY Futura 60-0119-SSS Handle Set is designed for use with compatible lockcases requiring 72mm centres.

ABLOY specifically lists the handle set as tested with the EL520 for BS EN 179 compliance. When building a complete door system, please check the lockcase, cylinder, door thickness, spindle requirements, access control arrangement, escape route requirements and installation method before ordering.

Compatible with

• ABLOY EL520 Motor Lock
• ABLOY Electric Locks
• ABLOY Lock Cylinders and Barrels
• Access Control Systems
• Door Entry Systems
• Compatible Euro Profile Cylinders
• Door Closers
• Door Loops
• Power Supplies
• Suitable Strike Plates

Technical Specification

• Product type: Lever and knob handle set
• Model: ABLOY Futura 60-0119-SSS
• Range: Futura
• Handle arrangement: Internal lever / external knob
• Plate type: Long plate
• Material: Stainless steel
• Bar diameter: 19mm
• Finish: Satin stainless steel
• Centres: 72mm
• Cylinder cut-out: External plate
• Handing: Reversible
• Handle type: Lever / knob
• Door type: Timber
• Standard: EN 179
• Compliance: BS EN 179 when fitted with ABLOY EL520
• EAN: 7394162152473
• Warranty: 1 year

Please check compatibility with the lockcase, cylinder, door and complete access control installation before ordering.

The Futura 60-0119-SSS has been tested with the ABLOY EL520 to provide BS EN 179 compliance. Where the handle set is used on an escape route, the complete door assembly, lockcase, furniture, cylinder, certification and installation method must all be suitable for the application.

The ABLOY Futura 60-0119-SSS provides a durable and professional lever-and-knob furniture solution for compatible ABLOY electric locking systems, combining satin stainless steel construction with an internal lever, external knob and cylinder provision.

Frequently Asked Questions

What is the ABLOY Futura 60-0119-SSS used for?

The 60-0119-SSS is a long-plate handle set designed for compatible ABLOY electric lock installations, with an internal lever and external knob.

What is the 60-0119-SSS made from?

It is manufactured from 19mm round stainless steel bar and finished in satin stainless steel.

What handle arrangement does the 60-0119-SSS have?

The set has an internal lever handle and an external knob.

Does the external plate have a cylinder cut-out?

Yes. The external long plate includes a cylinder cut-out for compatible cylinder operation.

What lock centres does the 60-0119-SSS suit?

The ABLOY 60-0119-SSS is designed to suit locks with 72mm centres.

Is the 60-0119-SSS suitable for the ABLOY EL520?

Yes. ABLOY states that the handle set has been tested with the EL520 to provide full compliance with BS EN 179 when correctly fitted.

Is the handle set handed?

No. ABLOY lists the 60-0119-SSS as reversible.

What finish does the handle set have?

The handle set has a satin stainless steel finish.

Can the 60-0119-SSS be used on an escape door?

Yes, where correctly specified as part of a compatible door assembly. ABLOY states that the handle set complies with BS EN 179 when fitted with the EL520.

What should I check before ordering?

Please check the lockcase model, 72mm centres, cylinder requirements, spindle arrangement, door type, escape route requirements and installation method before ordering.
