ABLOY EL580 Lock Package 9E

The ABLOY EL580 Lock Package 9E is a compliant electric locking package designed for standard wood or metal door applications where read-in access control and free egress are required. It provides a complete package based around the ABLOY EL580 solenoid lockcase for controlled access from the outside and unrestricted handle operation from the inside.

Designed for handle-operated doors, Package 9E allows the inside handle to operate at all times, while the outside handle is controlled and activated by a signal from the access control system. This makes it suitable for applications where authorised entry is required from the secure side while maintaining free egress from inside the building or controlled area.

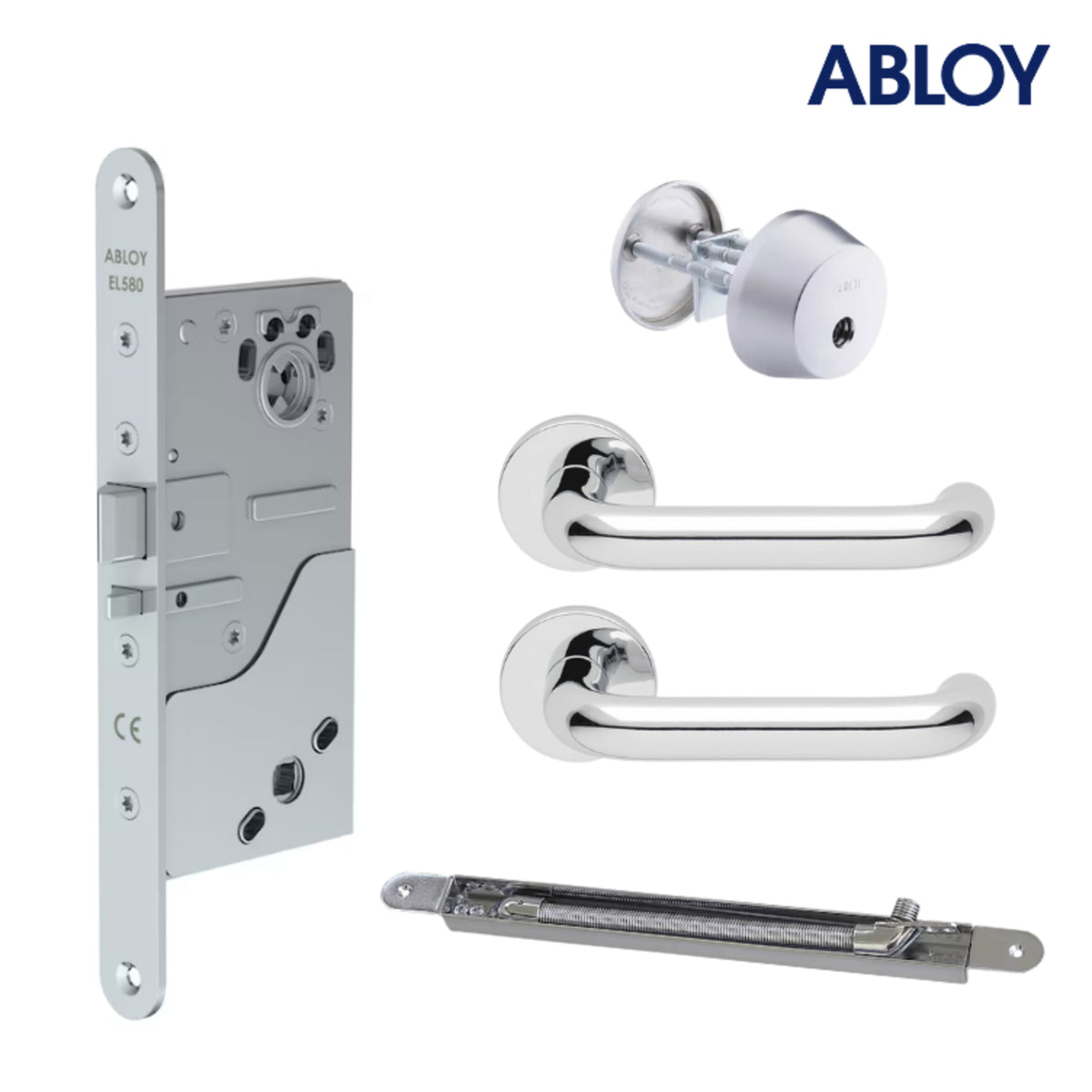

The package is available with 50mm or 70mm backsets and includes the ABLOY EL580 solenoid lockcase, CY037 Scandinavian external cylinder, EA280 concealed door loop and 3-20/032 handle set.

Available Models

• ABLOY-EL580-50-PACK9E – EL580 Package 9E 50mm backset (New ID Key Card)
• ABLOY-EL580-70-PACK9E – EL580 Package 9E 70mm backset (New ID Key Card)
• ABLOY-EL580-50-PACK9E – EL580 Package 9E 50mm backset (keyed to your existing KEY ID Card)
• ABLOY-EL580-70-PACK9E – EL580 Package 9E 70mm backset (keyed to your existing KEY ID Card)

This can be keyed to match you current KEY ID Card, photo of the KEY ID Card will need to be sent to us upon completion of your order.

Key Features

• ABLOY compliant lock package
• Designed for standard wood or metal door applications
• Read-in access control with free egress
• Inside handle always operates
• Outside handle controlled by access control signal
• Based around the ABLOY EL580 solenoid lockcase
• Suitable for handle-operated door applications
• Available in 50mm and 70mm backsets
• Complies with EN 179 when used with correct furniture
• Package components support EN 1634-1, EN 61000-6-1, EN 1303 cylinder requirements and EN 14846
• Includes Scandinavian external cylinder
• Includes concealed door loop


Package Includes

• ABLOY EL580 solenoid lockcase
• ABLOY CY037 Scandinavian external cylinder
• ABLOY EA280 concealed door loop
• 3-20/032 handle set


Typical Applications

• Access control systems
• Read-in / free egress doors
• Standard wood doors
• Standard metal doors
• Commercial buildings
• Office entrances
• Educational facilities
• Healthcare buildings
• Public buildings
• Residential developments
• Industrial premises
• Restricted access areas
• Internal controlled doors
• EN 179 escape route applications where correctly specified


Compatibility and Accessories

The ABLOY EL580 Lock Package 9E is designed for standard wood or metal door applications requiring access-controlled entry and free egress from the inside.

When ordering, please check the required backset, door type, door material, handle furniture, cylinder requirements, access control interface, door loop requirements, door closer requirements and any escape or fire door certification requirements before purchase.

Compatible with

• ABLOY electric locks
• ABLOY solenoid locks
• ABLOY lock cylinders and barrels
• Access Control Systems
• Door Entry Systems
• Keypad Entry Systems
• Proximity Readers
• Timers and Relays
• Push Buttons
• Power Supplies
• Door Entry Intercom Systems
• Emergency Door Release Units
• Suitable Door Furniture


Technical Specification

• Product type: ABLOY compliant electric lock package
• Package: Package 9E
• Main lockcase: ABLOY EL580 solenoid lockcase
• Door application: Standard wood or metal doors
• Operation: Read-in / free egress
• Inside handle: Always operates
• Outside handle: Controlled and activated by access control signal
• Cylinder included: CY037 Scandinavian external cylinder
• Door loop included: EA280 concealed door loop
• Handle set included: 3-20/032 handle set
• Backsets available: 50mm and 70mm
• Ordering codes: ABLOY-EL580-50-PACK9E, ABLOY-EL580-70-PACK9E
• Standards: EN 179 when used with correct furniture, EN 1634-1, EN 61000-6-1, EN 1303 cylinder, EN 14846


ABLOY EL580 Package 9E Product Information

Please check the full lock package specification, door type and project requirements before ordering. The ABLOY EL580 Lock Package 9E should be installed in accordance with the manufacturer’s installation instructions and the requirements of the door application.

Where the package is used on an escape route or fire-rated door, the complete door assembly, hardware specification, fire test evidence, certification, access control interface and installation method must be suitable for the application.

The ABLOY EL580 Lock Package 9E provides a professional read-in / free egress access control locking solution for standard wood or metal doors where EN 179 escape operation and a compliant ABLOY electric lock package are required.

Frequently Asked Questions

What is the ABLOY EL580 Lock Package 9E used for?

The ABLOY EL580 Lock Package 9E is designed for standard wood or metal door applications where read-in access control and free egress from the inside are required.

How does Package 9E operate?

The inside handle always operates for free egress, while the outside handle is controlled and activated by a signal from the access control system.

What lockcase is included in Package 9E?

Package 9E includes the ABLOY EL580 solenoid lockcase.

What cylinder is included with Package 9E?

Package 9E includes the ABLOY CY037 Scandinavian external cylinder.

Does Package 9E include a door loop?

Yes. Package 9E includes the ABLOY EA280 concealed door loop.

Does Package 9E include handles?

Yes. Package 9E includes the 3-20/032 handle set.

What backsets are available?

Package 9E is available with 50mm and 70mm backsets.

Is Package 9E suitable for EN 179 applications?

Yes. ICS lists Package 9E as complying with EN 179 when used with the correct furniture. The complete door hardware set must be correctly specified and installed for the application.

What is the difference between Package 1E and Package 9E?

Package 1E is based around the ABLOY EL560 DIN solenoid lockcase and Euro profile cylinder arrangement. Package 9E uses the ABLOY EL580 Scandinavian solenoid lockcase with a CY037 Scandinavian external cylinder.

What should I check before ordering?

Please check the required 50mm or 70mm backset, door type, door material, access control requirements, handle furniture, cylinder requirements, door loop requirements, escape route requirements and any fire door certification requirements before ordering.
