ABLOY EL560 Lock Package 1E

The ABLOY EL560 Lock Package 1E is a compliant electric locking package designed for standard wood or metal door applications where read-in access control and free egress are required. It provides a complete package based around the ABLOY EL560 solenoid lockcase for controlled access from the outside and safe exit from the inside.

Designed for handle-operated doors, Package 1E allows the inside handle to operate at all times, while the outside handle is controlled and activated by a signal from the access control system. Key override is available from the outside at all times, providing mechanical access where required.

Suitable for commercial, industrial, educational, healthcare, residential and public sector environments, the ABLOY EL560 Lock Package 1E is commonly used where a compliant access control locking solution is required for standard doors.

Available Models

• ABLOY-EL560-55-PACK1E – EL560 Lock Package 1E, 55mm backset
• ABLOY-EL560-60-PACK1E – EL560 Lock Package 1E, 60mm backset
• ABLOY-EL560-65-PACK1E – EL560 Lock Package 1E, 65mm backset
• ABLOY-EL560-80-PACK1E – EL560 Lock Package 1E, 80mm backset
• ABLOY-EL560-100-PACK1E – EL560 Lock Package 1E, 100mm backset

Key Features

• ABLOY compliant lock package
• Designed for standard wood or metal door applications
• Read-in access control with free egress
• Inside handle always operates
• Outside handle controlled by access control signal
• Key override at all times from the outside
• Based around the ABLOY EL560 solenoid lockcase
• Suitable for handle-operated door applications
• Available in 55mm, 60mm, 65mm, 80mm and 100mm backsets
• Complies with EN 179 when used with correct furniture
• Package components support EN 1634-1, EN 61000-6-1, EN 1303 cylinder requirements and EN 14846

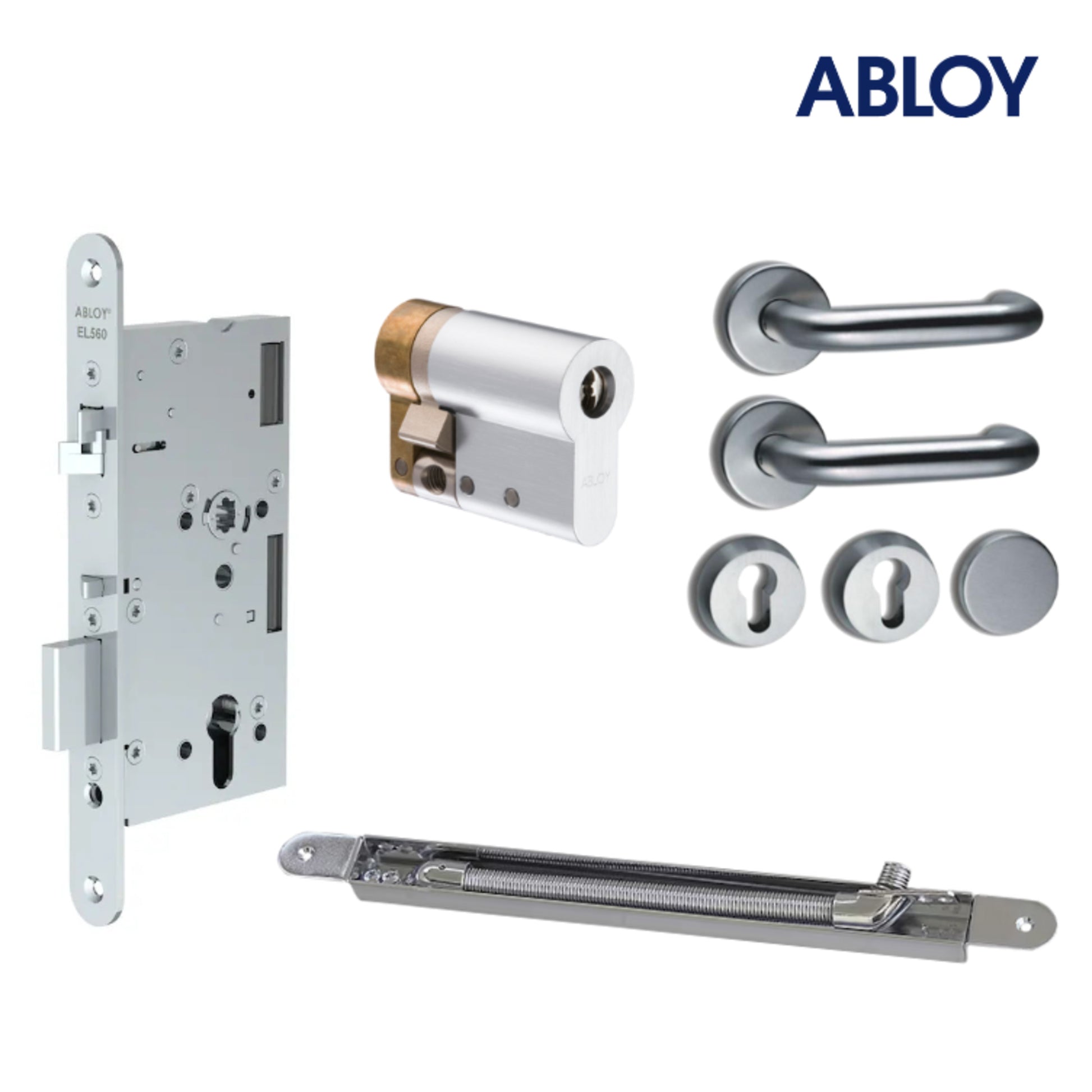

Package Includes

• ABLOY EL560 solenoid lockcase
• ABLOY CY326 single Euro cylinder
• ABLOY EA280 concealed door loop
• 60-0319-SSS handle set

Typical Applications

• Access control systems
• Read-in / free egress doors
• Standard wood doors
• Standard metal doors
• Commercial buildings
• Office entrances
• Educational facilities
• Healthcare buildings
• Public buildings
• Residential developments
• Industrial premises
• Restricted access areas
• Internal controlled doors
• EN 179 escape route applications where correctly specified

Compatibility and Accessories

The ABLOY EL560 Lock Package 1E is designed for standard door applications requiring access-controlled entry and free egress from the inside.

When ordering, please check the required backset, door type, door material, handle furniture, cylinder requirements, access control interface, door loop requirements, door closer requirements and any escape or fire door certification requirements before purchase.

Compatible with

• ABLOY electric locks
• ABLOY solenoid locks
• ABLOY lock cylinders and barrels
• Access Control Systems
• Door Entry Systems
• Keypad Entry Systems
• Proximity Readers
• Timers and Relays
• Push Buttons
• Power Supplies
• Door Entry Intercom Systems
• Emergency Door Release Units
• Suitable Door Furniture
• Compatible Euro Profile Cylinders

Technical Specification

• Product type: ABLOY compliant electric lock package
• Package: Package 1E
• Main lockcase: ABLOY EL560 solenoid lockcase
• Door application: Standard wood or metal doors
• Operation: Read-in / free egress
• Inside handle: Always operates
• Outside handle: Controlled and activated by access control signal
• Key override: Available at all times from the outside
• Cylinder included: CY326 single Euro cylinder
• Door loop included: EA280 concealed door loop
• Handle set included: 60-0319-SSS handle set
• Door closer: DC240 optional
• Alternative item: 3-19/042 PZ+BL-SSS
• Backsets available: 55mm, 60mm, 65mm, 80mm and 100mm
• Ordering codes: ABLOY-EL560-55-PACK1E, ABLOY-EL560-60-PACK1E, ABLOY-EL560-65-PACK1E, ABLOY-EL560-80-PACK1E, ABLOY-EL560-100-PACK1E
• Standards: EN 179 when used with correct furniture, EN 1634-1, EN 61000-6-1, EN 1303 cylinder, EN 14846

Please check the full lock package specification, door type and project requirements before ordering. The ABLOY EL560 Lock Package 1E should be installed in accordance with the manufacturer’s installation instructions and the requirements of the door application.

Where the package is used on an escape route or fire-rated door, the complete door assembly, hardware specification, fire test evidence, certification, access control interface and installation method must be suitable for the application.

The ABLOY EL560 Lock Package 1E provides a professional read-in / free egress access control locking solution for standard wood or metal doors where a compliant handle-operated ABLOY electric lock package is required.

Frequently Asked Questions

What is the ABLOY EL560 Lock Package 1E used for?

The ABLOY EL560 Lock Package 1E is used for standard wood or metal door applications where read-in access control and free egress from the inside are required.

How does Package 1E operate?

The inside handle always operates for free egress. The outside handle is controlled and activated by a signal from the access control system.

What lockcase is included in Package 1E?

Package 1E includes the ABLOY EL560 solenoid lockcase.

What cylinder is included with Package 1E?

Package 1E includes the ABLOY CY326 single Euro cylinder.

Does Package 1E include a door loop?

Yes. Package 1E includes the ABLOY EA280 concealed door loop.

Does Package 1E include handles?

Yes. Package 1E includes the 60-0319-SSS handle set.

Is a door closer included?

The DC240 door closer is listed as an optional item for Package 1E.

What backsets are available?

Package 1E is available with 55mm, 60mm, 65mm, 80mm and 100mm backsets.

Does Package 1E have key override?

Yes. Key override is available at all times from the outside.

Is Package 1E suitable for EN 179 applications?

Package 1E complies with EN 179 when used with the correct furniture. The complete door hardware set must be correctly specified and installed for the application.

What should I check before ordering?

Please check the required backset, door type, door material, access control requirements, handle furniture, cylinder requirements, escape route requirements and any fire door certification requirements before ordering.
