ABLOY EL520 Lock Package 5P

The ABLOY EL520 Lock Package 5P is a compliant high-security electric locking package designed for standard wood or metal door applications where read-in access control, free egress and panic escape operation are required. It provides a complete package based around the ABLOY EL520 motor lockcase for controlled access from the outside and safe escape from the inside.

Designed for high-security door applications, Package 5P uses a motor-operated deadbolt and latch bolt. The inside panic bar always operates for free egress and panic escape, while outside access is controlled by the access control system. Key override is available from the outside at all times, providing mechanical access where required.

Suitable for commercial, industrial, educational, healthcare, residential and public sector environments, the ABLOY EL520 Lock Package 5P is commonly used where a compliant high-security access control locking solution is required for standard doors with EN 1125 panic escape requirements.

Available Models

• ABLOY-EL520-55-PACK5P – EL520 Package 5P 55mm backset (New ID Key Card)
• ABLOY-EL520-60-PACK5P – EL520 Package 5P 60mm backset (New ID Key Card)
• ABLOY-EL520-65-PACK5P – EL520 Package 5P 65mm backset (New ID Key Card)
• ABLOY-EL520-55-PACK5P – EL520 Package 5P 55mm backset (keyed to your existing KEY ID Card)
• ABLOY-EL520-60-PACK5P – EL520 Package 5P 60mm backset (keyed to your existing KEY ID Card)
• ABLOY-EL520-65-PACK5P – EL520 Package 5P 65mm backset (keyed to your existing KEY ID Card)

The CY326 can be keyed to match you current KEY ID Card, photo of the KEY ID Card will need to be sent to us upon completion of your order.

Key Features

• ABLOY compliant high-security lock package
• Designed for standard wood or metal door applications
• Read-in access control with free egress
• Panic escape operation
• Inside panic bar always operates
• Outside access controlled by access control system
• Key override at all times from the outside
• Based around the ABLOY EL520 motor lockcase
• Motor-operated deadbolt and latch bolt
• Suitable for high-security door applications
• Available in 55mm, 60mm and 65mm backsets
• Complies with EN 1125 when used with correct furniture
• Package components support EN 1634-1, EN 61000-6-1, EN 1303 cylinder requirements and EN 14846

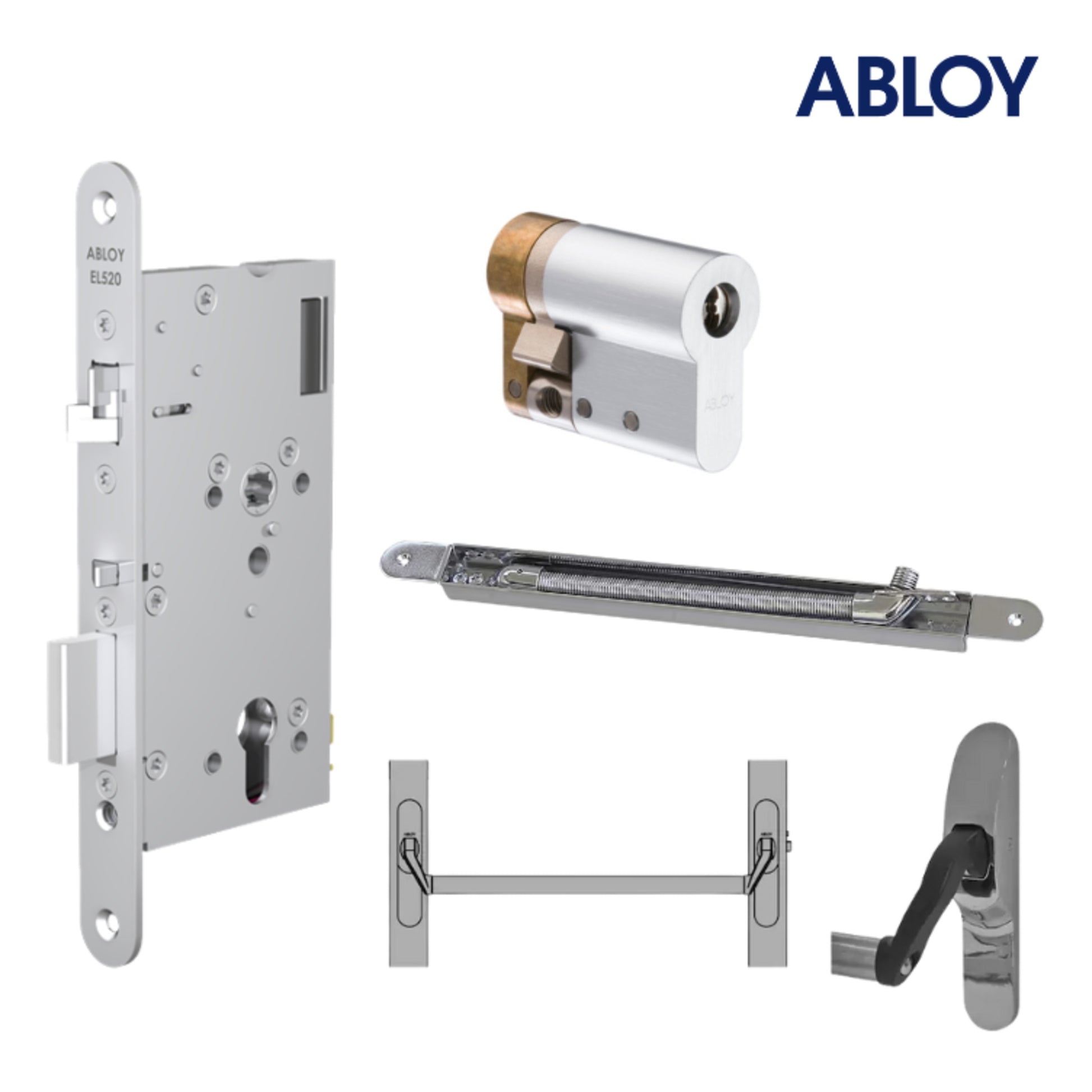

Package Includes

• ABLOY EL520 motor lockcase
• ABLOY CY326 single Euro cylinder
• ABLOY EA280 concealed door loop
• PBE011-EL520 panic bar with cylinder escutcheon

Typical Applications

• Access control systems
• Read-in / free egress doors
• Panic escape doors
• High-security door applications
• Standard wood doors
• Standard metal doors
• Commercial buildings
• Office entrances
• Educational facilities
• Healthcare buildings
• Public buildings
• Residential developments
• Industrial premises
• Restricted access areas
• Internal controlled doors
• EN 1125 panic escape route applications where correctly specified


Compatibility and Accessories

The ABLOY EL520 Lock Package 5P is designed for standard wood or metal door applications requiring high-security access-controlled entry, free egress and panic escape operation from the inside.

When ordering, please check the required backset, door type, door material, panic hardware requirements, cylinder requirements, access control interface, door loop requirements, door closer requirements and any escape or fire door certification requirements before purchase.

Compatible with

• ABLOY electric locks
• ABLOY motor locks
• ABLOY lock cylinders and barrels
• Access Control Systems
• Door Entry Systems
• Keypad Entry Systems
• Proximity Readers
• Timers and Relays
• Push Buttons
• Power Supplies
• Door Entry Intercom Systems
• Emergency Door Release Units
• Suitable Door Furniture
• Compatible Euro Profile Cylinders


Technical specification

• Product type: ABLOY compliant high-security electric lock package
• Package: Package 5P
• Main lockcase: ABLOY EL520 motor lockcase
• Door application: Standard wood or metal doors
• Operation: Read-in / free egress
• Escape function: Panic escape
• Locking method: Motor-operated deadbolt and latch bolt
• Inside hardware: Panic bar always operates
• Outside access: Controlled by access control system
• Key override: Available at all times from the outside
• Cylinder included: CY326 single Euro cylinder
• Door loop included: EA280 concealed door loop
• Panic hardware included: PBE011-EL520 panic bar with cylinder escutcheon
• Backsets available: 55mm, 60mm and 65mm
• Ordering codes: ABLOY-EL520-55-PACK5P, ABLOY-EL520-60-PACK5P, ABLOY-EL520-65-PACK5P
• Standards: EN 1125 when used with correct furniture, EN 1634-1, EN 61000-6-1, EN 1303 cylinder, EN 14846


ABLOY EL520 Lock Package 5P Product Information

Please check the full lock package specification, door type and project requirements before ordering. The ABLOY EL520 Lock Package 5P should be installed in accordance with the manufacturer’s installation instructions and the requirements of the door application.

Where the package is used on an escape route or fire-rated door, the complete door assembly, hardware specification, fire test evidence, certification, access control interface and installation method must be suitable for the application.

The ABLOY EL520 Lock Package 5P provides a professional read-in / free egress access control locking solution for standard wood or metal doors where high-security motor locking, EN 1125 panic escape operation and a compliant ABLOY electric lock package are required.

Frequently Asked Questions

What is the ABLOY EL520 Lock Package 5P used for?

The ABLOY EL520 Lock Package 5P is used for high-security standard wood or metal door applications where read-in access control, free egress and panic escape operation are required.

How does Package 5P operate?

The inside panic bar always operates for free egress and panic escape. Outside access is controlled by the access control system, and key override is available from the outside at all times.

What lockcase is included in Package 5P?

Package 5P includes the ABLOY EL520 motor lockcase.

What cylinder is included with Package 5P?

Package 5P includes the ABLOY CY326 single Euro cylinder.

Does Package 5P include a door loop?

Yes. Package 5P includes the ABLOY EA280 concealed door loop.

Does Package 5P include panic hardware?

Yes. Package 5P includes the PBE011-EL520 panic bar with cylinder escutcheon.

What backsets are available?

Package 5P is available with 55mm, 60mm and 65mm backsets.

Does Package 5P have key override?

Yes. Key override is available at all times from the outside.

Is Package 5P suitable for EN 1125 applications?

Package 5P complies with EN 1125 when used with the correct furniture. The complete door hardware set must be correctly specified and installed for the application.

What is the difference between Package 5E and Package 5P?

Package 5E is designed for EN 179 escape applications using handle furniture. Package 5P is designed for EN 1125 panic escape applications and includes panic bar hardware.

What should I check before ordering?

Please check the required backset, door type, door material, panic hardware requirements, access control requirements, cylinder requirements, door loop requirements, escape route requirements and any fire door certification requirements before ordering.
