ABLOY EL520 Lock Package 5E

The ABLOY EL520 Lock Package 5E is a compliant high-security electric locking package designed for standard wood or metal door applications where read-in access control and free egress are required. It provides a complete package based around the ABLOY EL520 motor lockcase for controlled access from the outside and safe exit from the inside.

Designed for high-security door applications, Package 5E uses a motor-operated deadbolt and latch bolt. The inside handle always operates for free egress, while access from the outside is controlled by the access control system. Key override is available from the outside at all times, providing mechanical access where required.

Suitable for commercial, industrial, educational, healthcare, residential and public sector environments, the ABLOY EL520 Lock Package 5E is commonly used where a compliant high-security access control locking solution is required for standard doors with EN 179 escape requirements.

Available Models

• ABLOY-EL520-55-PACK5E – EL520 Package 5E 55mm backset (New ID Key Card)
• ABLOY-EL520-60-PACK5E – EL520 Package 5E 60mm backset (New ID Key Card)
• ABLOY-EL520-65-PACK5E – EL520 Package 5E 65mm backset (New ID Key Card)
• ABLOY-EL520-55-PACK5E – EL520 Package 5E 55mm backset (keyed to your existing KEY ID Card)
• ABLOY-EL520-60-PACK5E – EL520 Package 5E 60mm backset (keyed to your existing KEY ID Card)
• ABLOY-EL520-65-PACK5E – EL520 Package 5E 65mm backset (keyed to your existing KEY ID Card)

The CY326 can be keyed to match you current KEY ID Card, photo of the KEY ID Card will need to be sent to us upon completion of your order.

Key Features

• ABLOY compliant high-security lock package
• Designed for standard wood or metal door applications
• Read-in access control with free egress
• Inside handle always operates
• Outside access controlled by access control system
• Key override at all times from the outside
• Based around the ABLOY EL520 motor lockcase
• Motor-operated deadbolt and latch bolt
• Suitable for high-security door applications
• Available in 55mm, 60mm and 65mm backsets
• Complies with EN 179 when used with correct furniture
• Package components support EN 1634-1, EN 61000-6-1, EN 1303 cylinder requirements and EN 14846

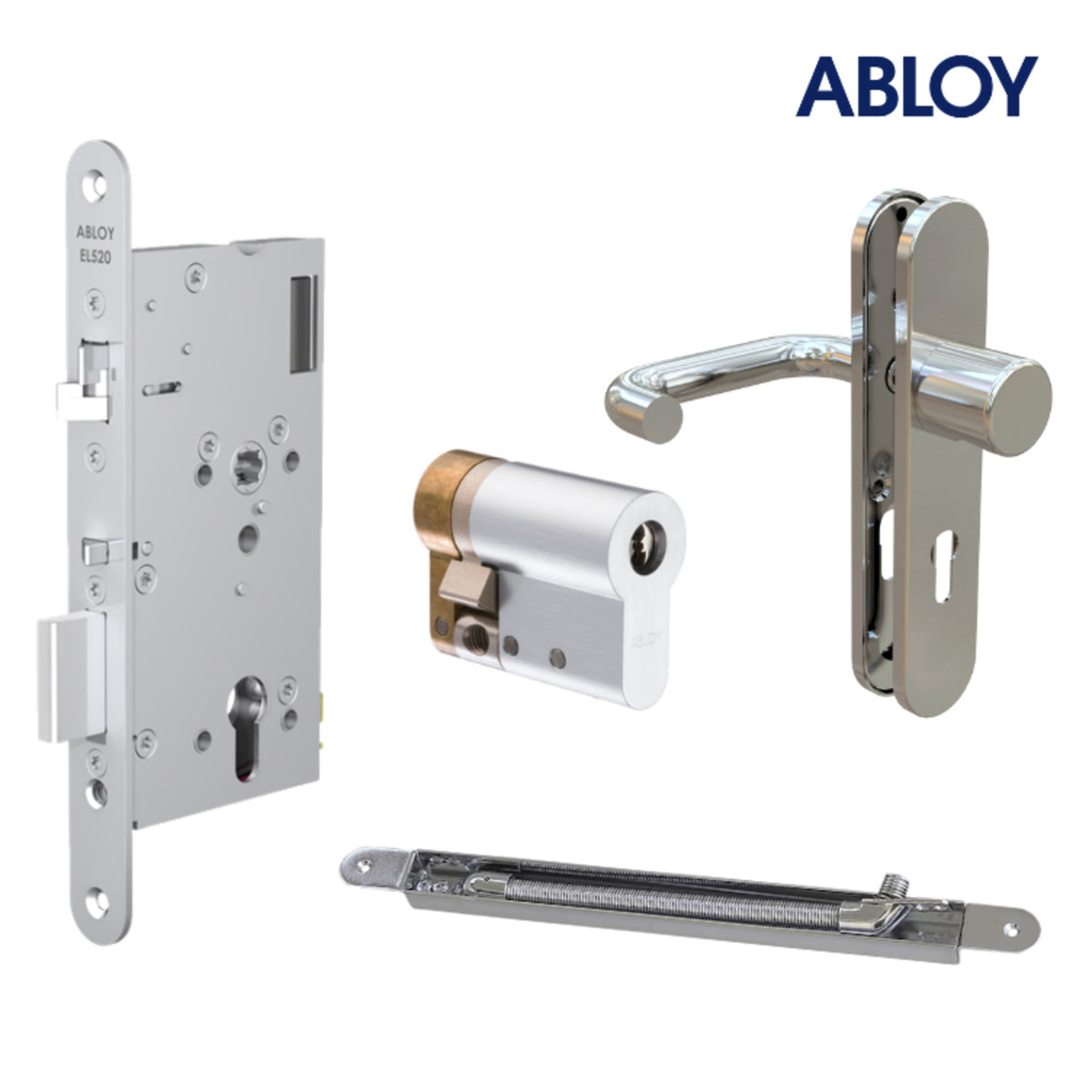

Package Includes

• ABLOY EL520 motor lockcase
• ABLOY CY326 single Euro cylinder (3 keys included)
• ABLOY EA280 concealed door loop
• 60-0119-SSS handle set


Typical Applications

• Access control systems
• Read-in / free egress doors
• Multipoint standard doors
• Standard wood doors
• Standard metal doors
• Commercial buildings
• Office entrances
• Educational facilities
• Healthcare buildings
• Public buildings
• Residential developments
• Industrial premises
• Restricted access areas
• Internal controlled doors
• EN 179 escape route applications where correctly specified

Compatibility and Accessories

The ABLOY EL520 Lock Package 5E is designed for standard wood or metal door applications requiring high-security access-controlled entry and free egress from the inside.

When ordering, please check the required backset, door type, door material, handle furniture, cylinder requirements, access control interface, door loop requirements, door closer requirements and any escape or fire door certification requirements before purchase.

Compatible with

• ABLOY electric locks
• ABLOY solenoid locks
• ABLOY lock cylinders and barrels
• Access Control Systems
• Door Entry Systems
• Keypad Entry Systems
• Proximity Readers
• Timers and Relays
• Push Buttons
• Power Supplies
• Door Entry Intercom Systems
• Emergency Door Release Units
• Suitable Door Furniture
• Compatible Euro Profile Cylinders

Technical specification

• Product type: ABLOY compliant high-security electric lock package
• Package: Package 5E
• Main lockcase: ABLOY EL520 motor lockcase
• Door application: Standard wood or metal doors
• Operation: Read-in / free egress
• Locking method: Motor-operated deadbolt and latch bolt
• Inside handle: Always operates
• Outside access: Controlled by access control system
• Key override: Available at all times from the outside
• Cylinder included: CY326 single Euro cylinder
• Door loop included: EA280 concealed door loop
• Handle set included: 60-0119-SSS handle set
• Backsets available: 55mm, 60mm and 65mm
• Ordering codes: ABLOY-EL520-55-PACK5E, ABLOY-EL520-60-PACK5E, ABLOY-EL520-65-PACK5E
• Standards: EN 179 when used with correct furniture, EN 1634-1, EN 61000-6-1, EN 1303 cylinder, EN 14846

ABLOY EL520 Lock Package 5E Product Information

Please check the full lock package specification, door type and project requirements before ordering. The ABLOY EL520 Lock Package 5E should be installed in accordance with the manufacturer’s installation instructions and the requirements of the door application.

Where the package is used on an escape route or fire-rated door, the complete door assembly, hardware specification, fire test evidence, certification, access control interface and installation method must be suitable for the application.

The ABLOY EL520 Lock Package 5E provides a professional read-in / free egress access control locking solution for standard wood or metal doors where high-security motor locking, EN 179 escape operation and a compliant ABLOY electric lock package are required.

Frequently Asked Questions

What is the ABLOY EL520 Lock Package 5E used for?

The ABLOY EL520 Lock Package 5E is used for high-security standard wood or metal door applications where read-in access control and free egress from the inside are required.

How does Package 5E operate?

The inside handle always operates for free egress. Outside access is controlled by the access control system, and key override is available from the outside at all times.

What lockcase is included in Package 5E?

Package 5E includes the ABLOY EL520 motor lockcase.

What cylinder is included with Package 5E?

Package 5E includes the ABLOY CY326 single Euro cylinder.

Does Package 5E include a door loop?

Yes. Package 5E includes the ABLOY EA280 concealed door loop.

Does Package 5E include handles?

Yes. Package 5E includes the 60-0119-SSS handle set.

Is a door closer included?

The DC240 door closer is listed as an optional item for Package 5E.

What backsets are available?

Package 5E is available with 55mm, 60mm and 65mm backsets.

Does Package 5E have key override?

Yes. Key override is available at all times from the outside.

Is Package 5E suitable for EN 179 applications?

Package 5E complies with EN 179 when used with the correct furniture. The complete door hardware set must be correctly specified and installed for the application.

What is the difference between Package 1E and Package 5E?

Package 1E is based around the ABLOY EL560 solenoid lockcase for standard read-in / free egress applications. Package 5E is based around the ABLOY EL520 motor lockcase and is intended for high-security standard door applications with motor-operated deadbolt and latch bolt locking.

What should I check before ordering?

Please check the required backset, door type, door material, access control requirements, handle furniture, cylinder requirements, door loop requirements, escape route requirements and any fire door certification requirements before ordering.
