ABLOY EL466 Lock Package 3ME

The ABLOY EL466 Lock Package 3ME is a compliant electric locking package designed for narrow stile profile, multipoint door applications where read-in access control and free egress are required. It provides a complete package based around the ABLOY EL466 multipoint solenoid lockcase for controlled access from the outside and safe exit from the inside.

Designed for narrow stile handle-operated multipoint doors, Package 3ME allows the inside handle to operate at all times, while the outside handle is controlled and activated by a signal from the access control system. Key override is available from the outside at all times, providing mechanical access where required.

Suitable for commercial, industrial, educational, healthcare, residential and public sector environments, the ABLOY EL466 Lock Package 3ME is commonly used where a compliant access control locking solution is required for narrow stile multipoint doors with EN 179 escape requirements.

Available Models

• ABLOY-EL466-30-PACK3ME – EL466 Package 3ME 30mm backset (New ID Key Card)
• ABLOY-EL466-35-PACK3ME – EL466 Package 3ME 35mm backset (New ID Key Card)
• ABLOY-EL466-40-PACK3ME – EL466 Package 3ME 40mm backset (New ID Key Card)

• ABLOY-EL466-45-PACK3ME – EL466 Package 3ME 45mm backset (New ID Key Card)
• ABLOY-EL466-30-PACK3ME – EL466 Package 3ME 30mm backset (keyed to your existing KEY ID Card)
• ABLOY-EL466-35-PACK3ME – EL466 Package 3ME 35mm backset (keyed to your existing KEY ID Card)

• ABLOY-EL466-40-PACK3ME – EL466 Package 3ME 40mm backset (keyed to your existing KEY ID Card)

• ABLOY-EL466-45-PACK3ME – EL466 Package 3ME 45mm backset (keyed to your existing KEY ID Card)

The CY326 can be keyed to match you current KEY ID Card, photo of the KEY ID Card will need to be sent to us upon completion of your order.

Key Features

• ABLOY compliant lock package
• Designed for narrow stile profile, multipoint door applications
• Read-in access control with free egress
• Inside handle always operates
• Outside handle controlled by access control signal
• Key override at all times from the outside
• Based around the ABLOY EL466 multipoint solenoid lockcase
• Suitable for narrow stile handle-operated multipoint door applications
• Available in 30mm, 35mm, 40mm and 45mm backsets
• Complies with EN 179 when used with correct furniture
• Package components support EN 1634-1, EN 61000-6-1, EN 1303 cylinder requirements and EN 14846

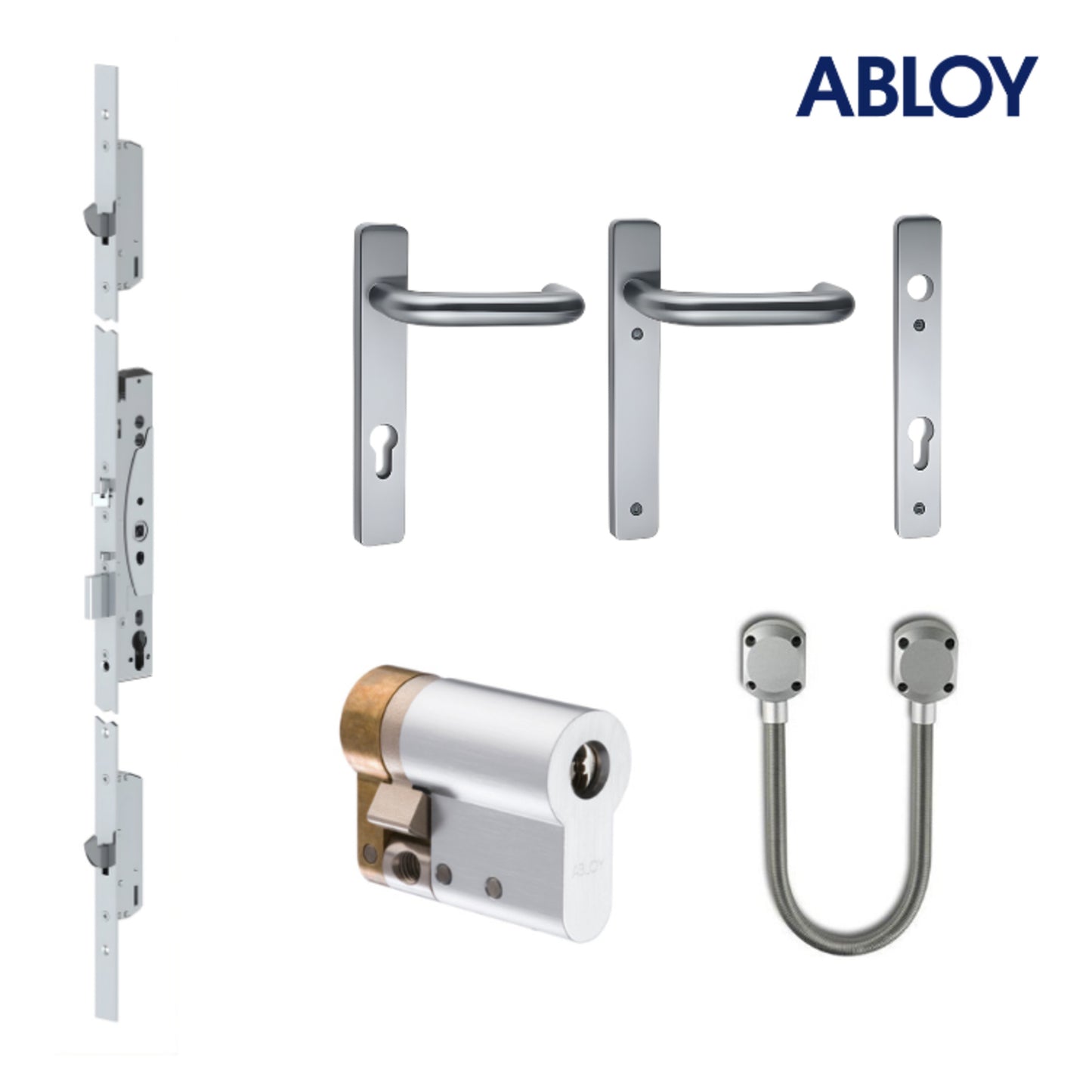

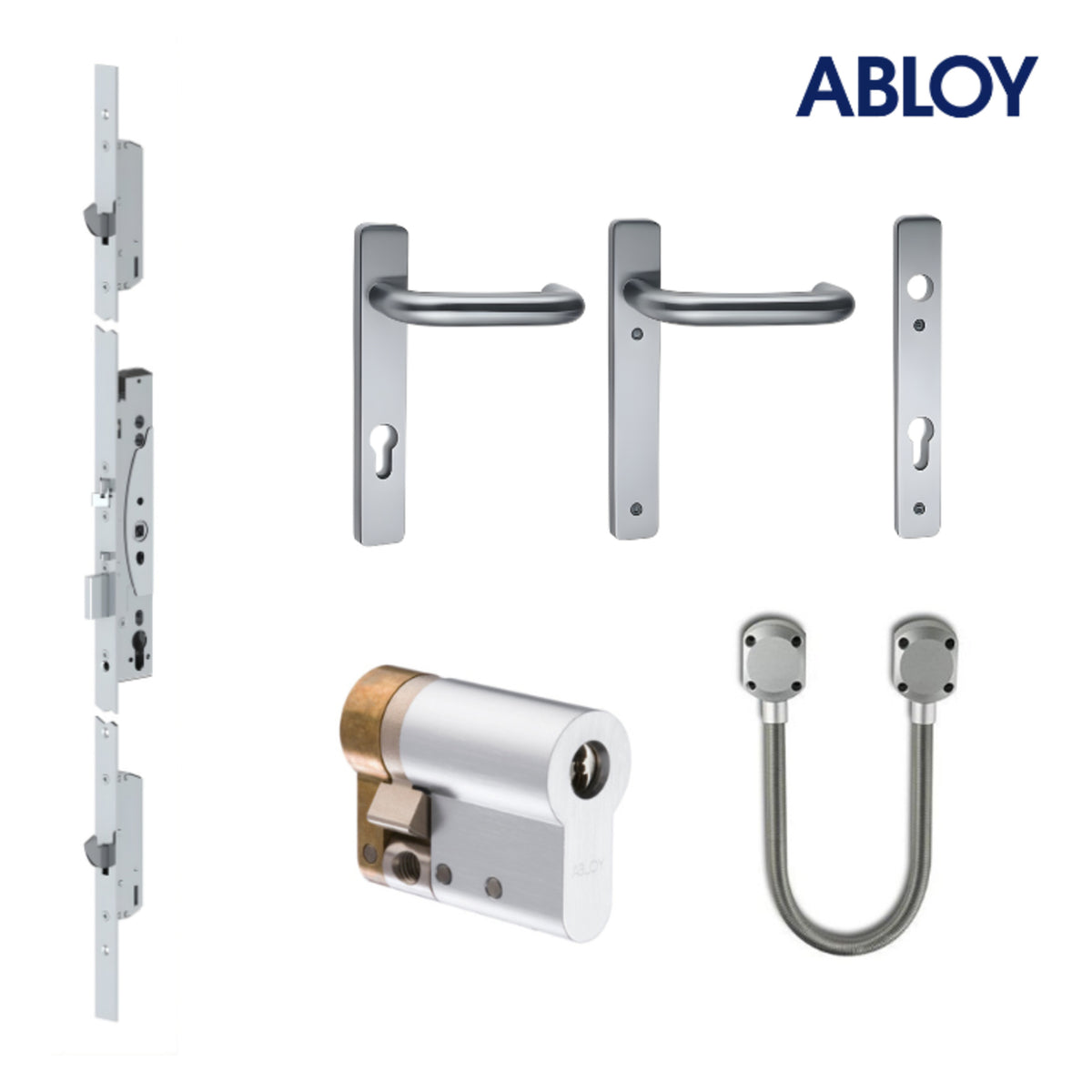

Package Includes

• ABLOY EL466 solenoid lockcase
• ABLOY CY326 single Euro cylinder
• DL8 door loop
• 60-0819-SSS handle set

Typical Applications

• Access control systems
• Read-in / free egress doors
• Narrow style doors
• Commercial buildings
• Office entrances
• Educational facilities
• Healthcare buildings
• Public buildings
• Residential developments
• Industrial premises
• Restricted access areas
• Internal controlled doors
• EN 179 escape route applications where correctly specified


Compatibility and Accessories

The ABLOY EL466 Lock Package 3ME is designed for narrow stile profile, multipoint door applications requiring access-controlled entry and free egress from the inside.

When ordering, please check the required backset, door type, door profile, multipoint lock requirements, handle furniture, cylinder requirements, access control interface, door loop requirements, door closer requirements and any escape or fire door certification requirements before purchase.

Compatible with

• ABLOY electric locks
• ABLOY solenoid locks
• ABLOY lock cylinders and barrels
• Access Control Systems
• Door Entry Systems
• Keypad Entry Systems
• Proximity Readers
• Timers and Relays
• Push Buttons
• Power Supplies
• Door Entry Intercom Systems
• Emergency Door Release Units
• Suitable Door Furniture
• Compatible Euro Profile Cylinders


Technical Specification

• Product type: ABLOY compliant electric lock package
• Package: Package 3ME
• Main lockcase: ABLOY EL466 multipoint solenoid lockcase
• Door application: Narrow stile profile, multipoint doors
• Operation: Read-in / free egress
• Inside handle: Always operates
• Outside handle: Controlled and activated by access control signal
• Key override: Available at all times from the outside
• Cylinder included: CY326 single Euro cylinder
• Door loop included: DL8 door loop
• Handle set included: 60-0819-SSS handle set
• Backsets available: 30mm, 35mm, 40mm and 45mm
• Ordering codes: ABLOY-EL466-30-PACK3ME, ABLOY-EL466-35-PACK3ME, ABLOY-EL466-40-PACK3ME, ABLOY-EL466-45-PACK3ME
• Standards: EN 179 when used with correct furniture, EN 1634-1, EN 61000-6-1, EN 1303 cylinder, EN 14846

ABLOY EL466 Lock Package 3ME Product Information

Please check the full lock package specification, door type and project requirements before ordering. The ABLOY EL466 Lock Package 3ME should be installed in accordance with the manufacturer’s installation instructions and the requirements of the door application.

Where the package is used on an escape route or fire-rated door, the complete door assembly, hardware specification, fire test evidence, certification, access control interface and installation method must be suitable for the application.

The ABLOY EL466 Lock Package 3ME provides a professional read-in / free egress access control locking solution for narrow stile profile, multipoint doors where EN 179 escape operation and a compliant ABLOY electric lock package are required.

Frequently Asked Questions

What is the ABLOY EL466 Lock Package 3ME used for?

The ABLOY EL466 Lock Package 3ME is used for narrow stile profile, multipoint door applications where read-in access control and free egress from the inside are required.

How does Package 3ME operate?

The inside handle always operates for free egress. The outside handle is controlled and activated by a signal from the access control system.

What lockcase is included in Package 3ME?

Package 3ME includes the ABLOY EL466 multipoint solenoid lockcase.

What cylinder is included with Package 3ME?

Package 3ME includes the ABLOY CY326 single Euro cylinder.

Does Package 3ME include a door loop?

Yes. Package 3ME includes the DL8 door loop.

Does Package 3ME include handles?

Yes. Package 3ME includes the 60-0819-SSS handle set.

Is a door closer included?

The DC240 door closer is listed as an optional item for Package 3ME.

What backsets are available?

Package 3ME is available with 30mm, 35mm, 40mm and 45mm backsets.

Does Package 3ME have key override?

Yes. Key override is available at all times from the outside.

Is Package 3ME suitable for EN 179 applications?

Package 3ME complies with EN 179 when used with the correct furniture. The complete door hardware set must be correctly specified and installed for the application.

What is the difference between Package 3E and Package 3ME?

Package 3E is designed for narrow style doors using the ABLOY EL460 solenoid lockcase. Package 3ME is designed for narrow stile profile, multipoint doors using the ABLOY EL466 multipoint solenoid lockcase.

What should I check before ordering?

Please check the required backset, door type, door profile, multipoint lock requirements, access control requirements, handle furniture, cylinder requirements, door loop requirements, escape route requirements and any fire door certification requirements before ordering.
