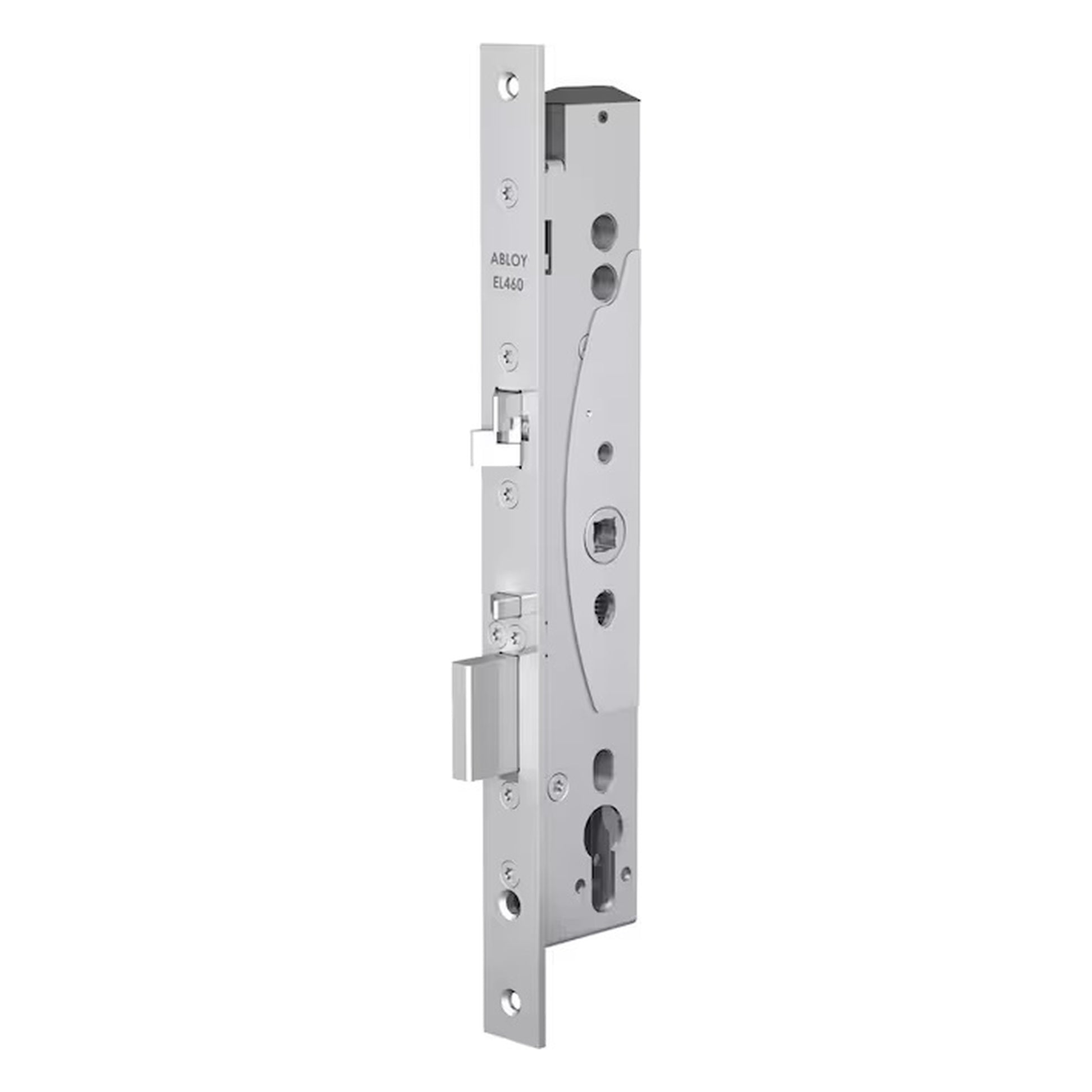

ABLOY EL460 Handle Controlled Electric Lock

The ABLOY EL460 Handle Controlled Electric Lock is a handle-controlled solenoid operated lockcase designed for use on profile doors where electronic access control or remote door release is required. The lock can be electrically controlled by an access control system, keypad, timer, push button or other suitable control device.

Designed for medium traffic doors, the EL460 provides controlled entry from the outside while allowing free egress from the inside. The outside handle is electrically engaged when access is authorised, while the inside handle mechanically opens the lock without the need for electrical control.

The EL460 can be configured for fail-locked or fail-unlocked operation, making it suitable for a range of access control and door security applications. It is commonly used on internal doors in offices, storage rooms, maintenance rooms, commercial buildings, public buildings, education sites and healthcare environments.

Available Models

• EL460-30MM – ABLOY EL460 DIN solenoid lock, 30mm backset

• EL460-35MM – ABLOY EL460 DIN solenoid lock, 35mm backset

• EL460-40MM – ABLOY EL460 DIN solenoid lock, 40mm backset

• EL460-45MM – ABLOY EL460 DIN solenoid lock, 45mm backset

Key Features

• DIN standard handle-controlled solenoid lockcase

• Designed for narrow profile doors

• Single point locking

• Electrically controlled outside handle

• Inside handle provides mechanical free egress

• Split spindle function

• Mechanical automatic locking system

• Mechanical cylinder override

• Can be changed between fail-locked and fail-unlocked operation

• Non-handed design

• Exit side can be changed over

• 12–24VDC operating voltage

• Double action latch

• Dead bolt with 20mm throw

• Monitoring functions

• Door status monitoring

• Handle down monitoring

• Bolt deadlocked monitoring

• Bolt in monitoring

• Key cylinder used monitoring

• Sabotage loop

• Suitable for access control and remote-control systems

• Certified to EN 14846 electric lock standard

• Certified to EN 179 for exit door applications

• Certified to EN 1125 for panic exit door applications

• Suitable for compatible fire door applications, subject to certification and installation requirements

Typical Applications

• Access control systems

• Door entry systems

• Electronically controlled profile doors

• Commercial buildings

• Office buildings

• Public buildings

• Hospitals and healthcare buildings

• Schools, colleges and universities

• Storage rooms

• Maintenance rooms

• Restricted access areas

• Medium traffic doors

• Internal door security applications

• Escape door applications where suitable hardware and certification requirements are met

• Compatible fire-rated door applications where suitable certification and installation requirements are met

Compatibility and Accessories

The ABLOY EL460 DIN Solenoid Lock is designed to integrate with a wide range of electronic access control and door security equipment.

When building a complete system, please check the required backset, operating voltage, fail-locked or fail-unlocked function, spindle requirements, cylinder requirements, handle furniture, monitoring requirements, door type, escape route requirements and fire door certification before ordering.

• Access Control Systems

• Door Entry Systems

• Keypad Entry Systems

• Proximity Readers

• Timers and Relays

• Push Buttons

• Power Supplies

• Door Entry Intercom Systems

• Emergency Door Release Units

• Suitable Door Furniture

• Compatible Euro Profile Cylinders

• Compatible Strike Plates

• Compatible Connection Cables

• Lead Covers

Technical Specification

• Product type: Solenoid operated lockcase

• Model: ABLOY EL460

• Lock type: DIN standard handle-controlled single point lock

• Door type: Narrow profile doors

• Operation: Electrically controlled outside handle with inside handle mechanical free egress

• Spindle type: Split spindle function

• Electrical function: Fail-locked / fail-unlocked selectable

• Operating voltage: 12–24VDC

• Current consumption at 12VDC: 240mA idle, 550mA maximum

• Current consumption at 24VDC: 130mA idle, 300mA maximum

• Latch: Double action latch

• Dead bolt: Yes

• Dead bolt throw: 20mm

• Handing: Non-handed

• Exit function: Yes

• Mechanical override: Mechanical cylinder override

• Monitoring: Integrated monitoring contacts

• Microswitch capacity: Maximum 0.5A at 30V AC/DC resistive, 10W

• Available backsets: 30mm, 35mm, 40mm and 45mm

• Mortice standard: Europrofile

• Installation type: Mortice

• Locking points: Single point

• Standards: EN 14846, EN 179 and EN 1125

• Fire door suitability: Yes, subject to correct specification, certification and installation requirements

• Door automatics: Not suitable for use with door automatics

EL460 Product information

Please refer to the ABLOY product datasheet and installation instructions before ordering or installing the EL460 DIN Solenoid Lock.

The lock model, backset, spindle, cylinder, handle furniture, operating mode, access control wiring, monitoring requirements and door certification should all be checked before installation.

Where the EL460 is used on an escape route or fire-rated door, the complete door assembly, hardware specification, fire test evidence, certification, emergency release requirements and installation method must be suitable for the application.

The ABLOY EL460 provides a professional solenoid operated lockcase solution for profile door access control applications where outside handle control, inside free egress, mechanical cylinder override and monitoring outputs are required.

Frequently Asked Questions

What is the ABLOY EL460 used for?

The ABLOY EL460 is a DIN solenoid operated lockcase used for access control and remote door release applications on suitable narrow profile doors.

How does the ABLOY EL460 work?

The EL460 electrically controls the outside handle. When access is authorised, the outside handle is engaged and can operate the lock. The inside handle mechanically opens the lock for free egress without requiring electrical control.

Is the ABLOY EL460 fail-locked or fail-unlocked?

The ABLOY EL460 can be changed between fail-locked and fail-unlocked operation. In fail-locked mode, the lock can be opened by handle when power is on and cannot be opened by handle when power is off. In fail-unlocked mode, the electrical function is reversed.

What is the difference between the ABLOY EL460 and EL560?

The ABLOY EL460 is designed for narrow profile doors, while the ABLOY EL560 is designed for solid doors. Both are DIN standard handle-controlled solenoid lockcases for access control applications.

Can the ABLOY EL460 be opened mechanically?

Yes. The ABLOY EL460 has mechanical cylinder override, allowing the lock to be operated mechanically as well as electrically.

Can the inside handle always open the door?

Yes. The EL460 has an exit function. The inside handle opens the lock mechanically, so electrical control is not required from the exit side.

What voltage does the ABLOY EL460 require?

The ABLOY EL460 operates on 12–24VDC.

What backsets are available?

The ABLOY EL460 is available in 30mm, 35mm, 40mm and 45mm backset versions.

Does the ABLOY EL460 provide monitoring?

Yes. The EL460 includes integrated monitoring functions, including door status, handle down, bolt deadlocked, bolt in, key cylinder used and sabotage loop monitoring.

Is the ABLOY EL460 suitable for fire doors?

The EL460 is listed as suitable for fire doors, but suitability depends on the complete door assembly, certification, installation method and project requirements. Always check the relevant fire test evidence and installation requirements before use on a fire-rated door.

Is the ABLOY EL460 suitable for escape doors?

The EL460 is certified to EN 179 and EN 1125 for exit and panic exit door applications. The complete door hardware set must be correctly specified and installed for the application.

Can the ABLOY EL460 be used with door automatics?

No. ABLOY states that handle-controlled locks such as the EL460 cannot be used with door automatics.

Can the ABLOY EL460 be connected to access control?

Yes. The EL460 can be electrically controlled by access control systems and remote-control devices such as keypads, timers, push buttons and door entry systems.
